Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 4 images and 3 PNC and OE references.

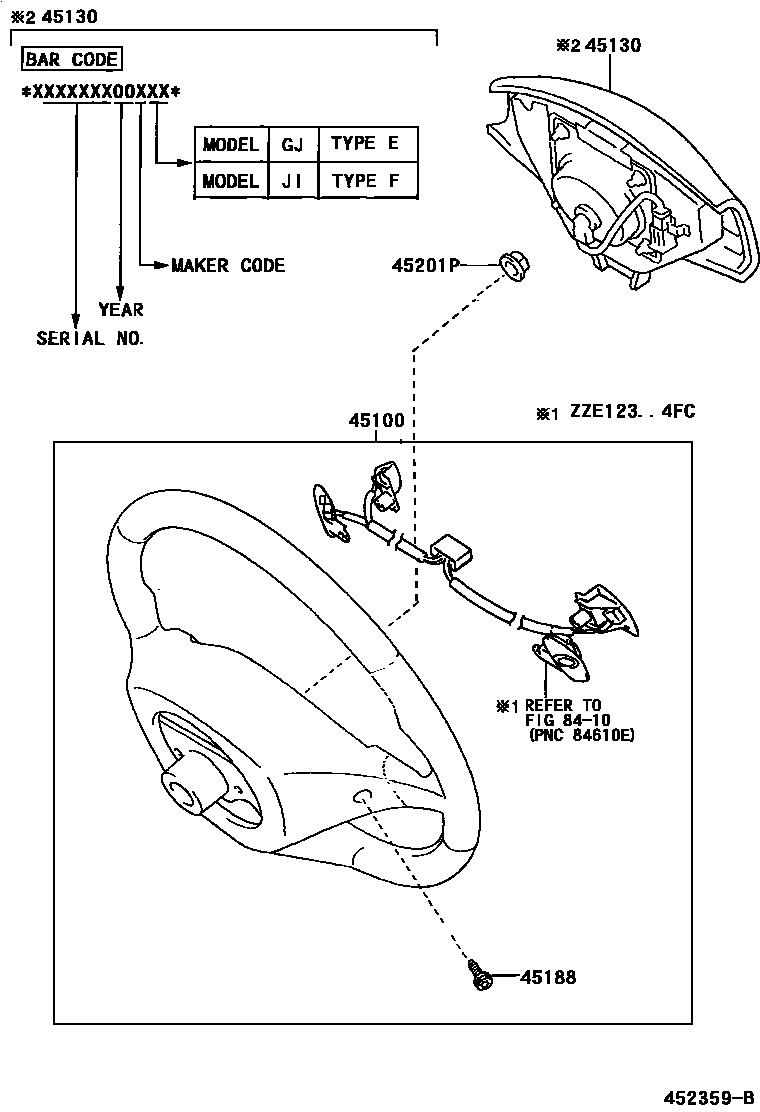

Toyota COROLLA Steering Wheel EPC diagram — 452359B — Steering Wheel — 452359B (200008 – 200209)

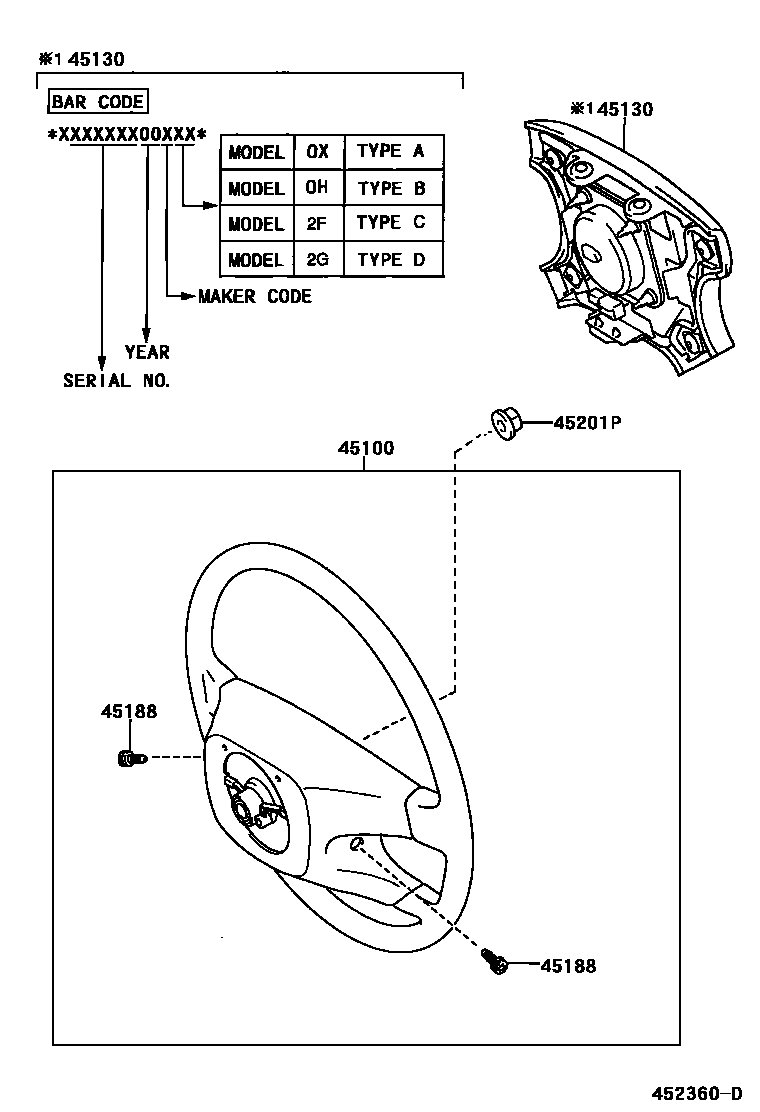

Toyota COROLLA Steering Wheel EPC diagram — 452360D — Steering Wheel — 452360D (200008 – 200209)

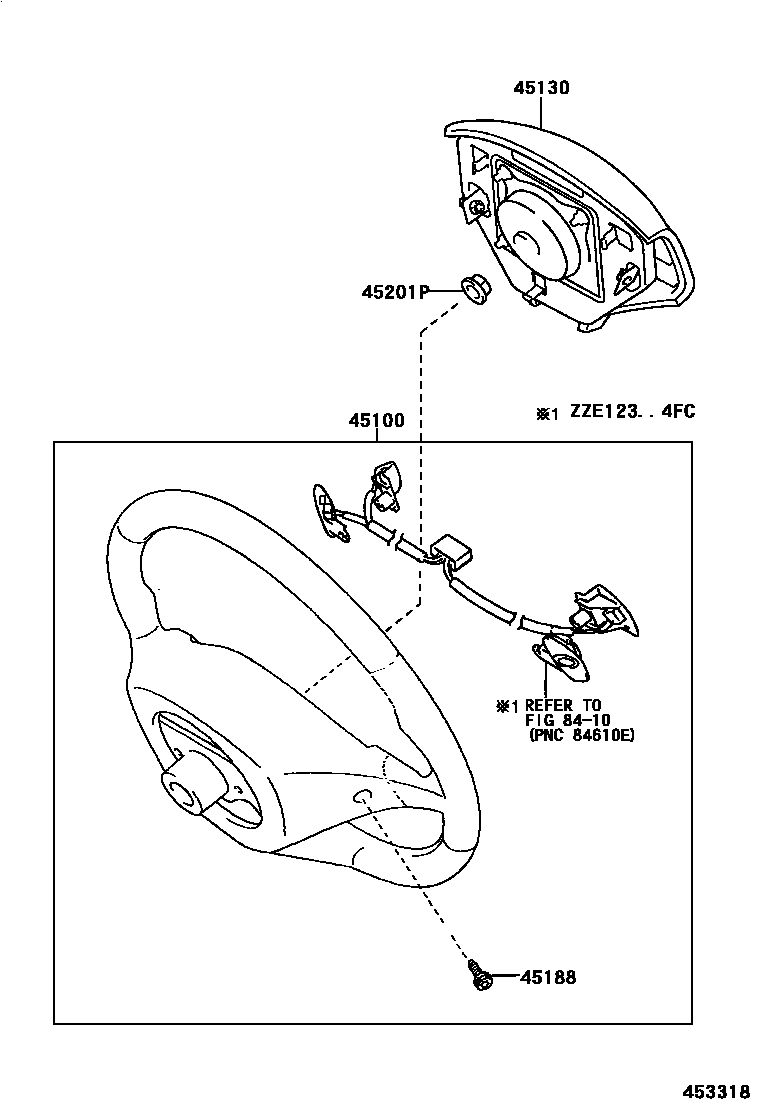

Toyota COROLLA Steering Wheel EPC diagram — 453318 — Steering Wheel — 453318 (200209 – 999999)

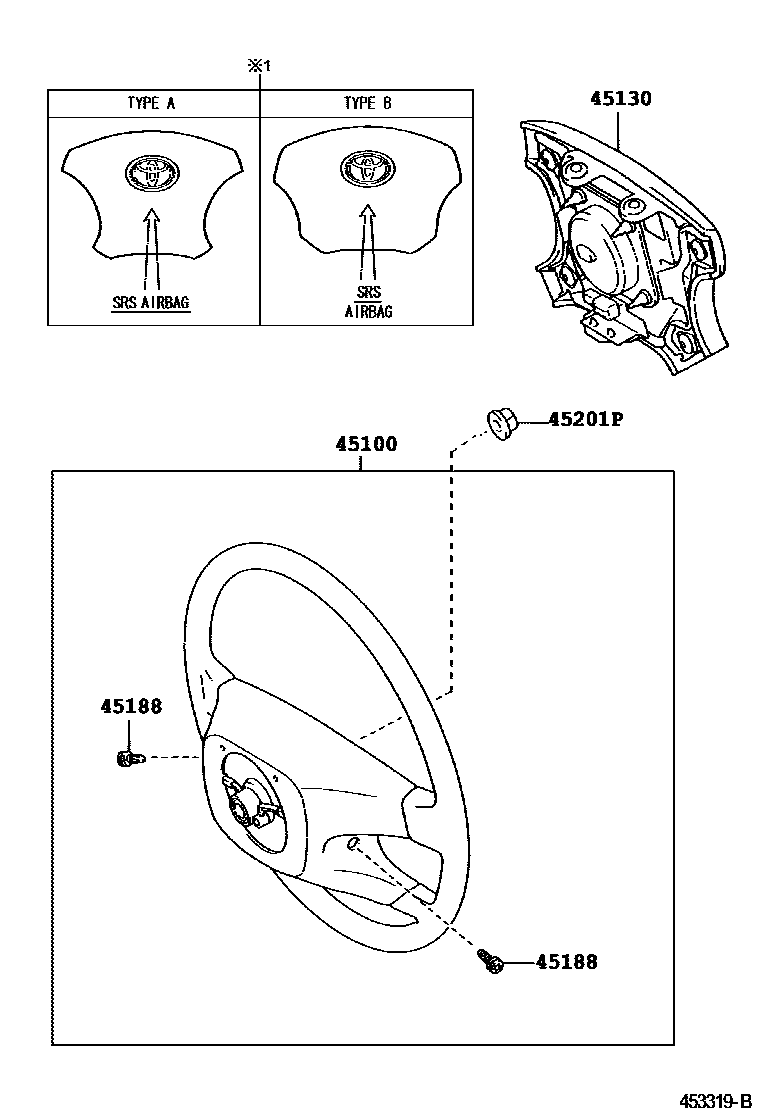

Toyota COROLLA Steering Wheel EPC diagram — 453319B — Steering Wheel — 453319B (200209 – 999999)

PNC and OE references

PNC	Part name	OE numbers
45100	Steering wheel assembly	45100-1A050 · 45100-1A060
45188	Steering wheel trim cover fixing screws	45188-60010 · 90148-60007
45201P	Steering wheel fixing nut	90179-12071
