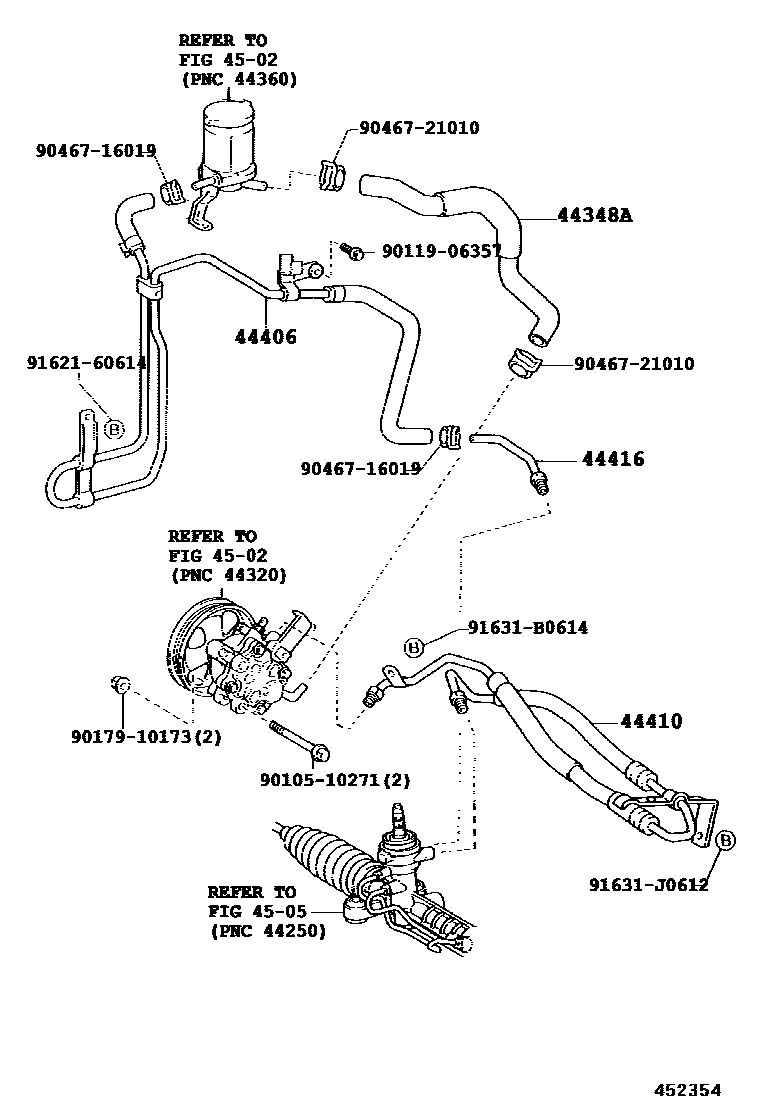

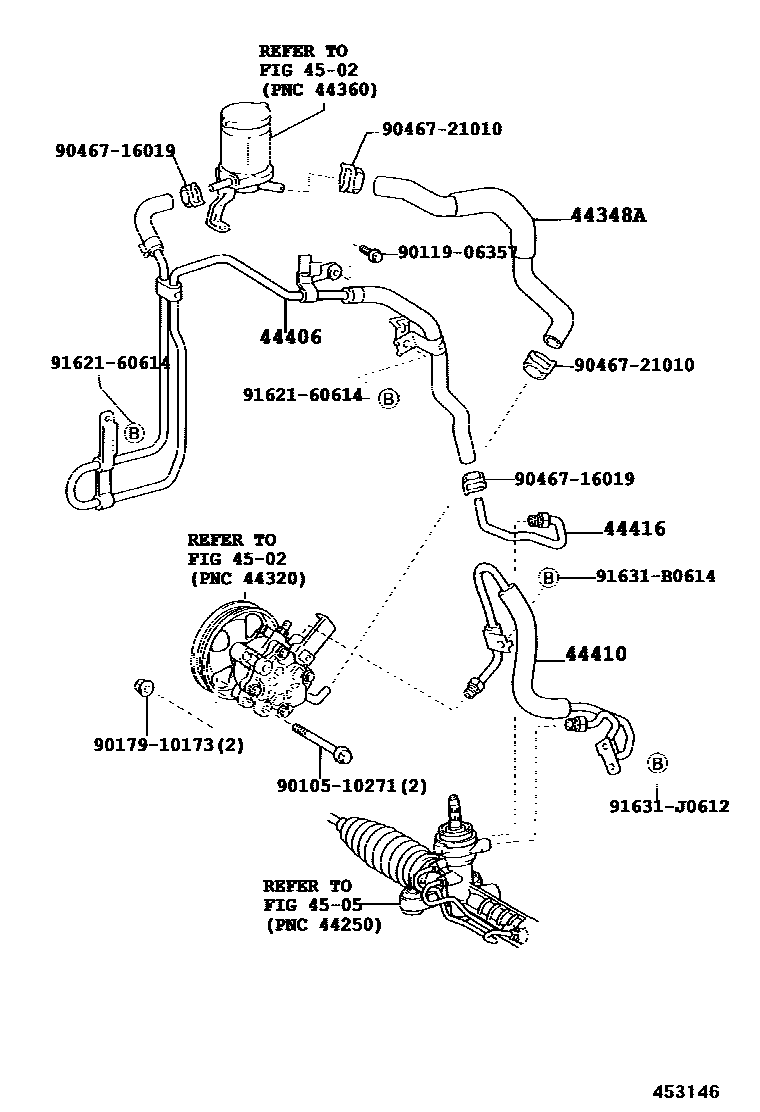

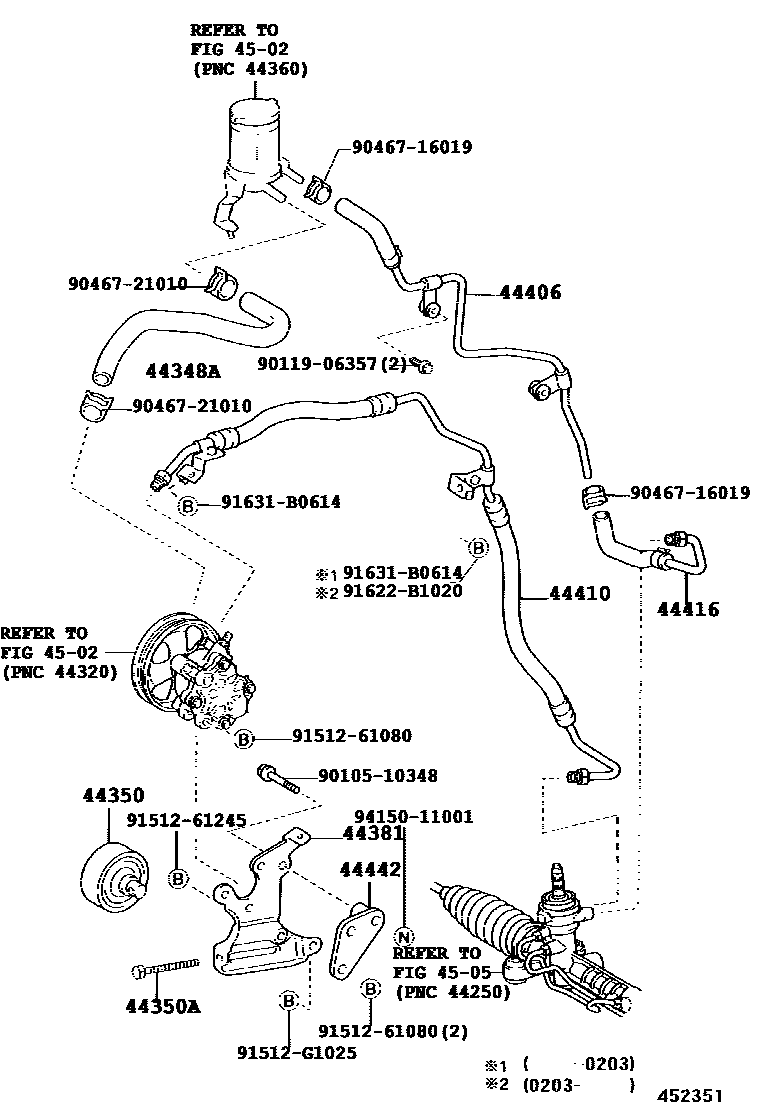

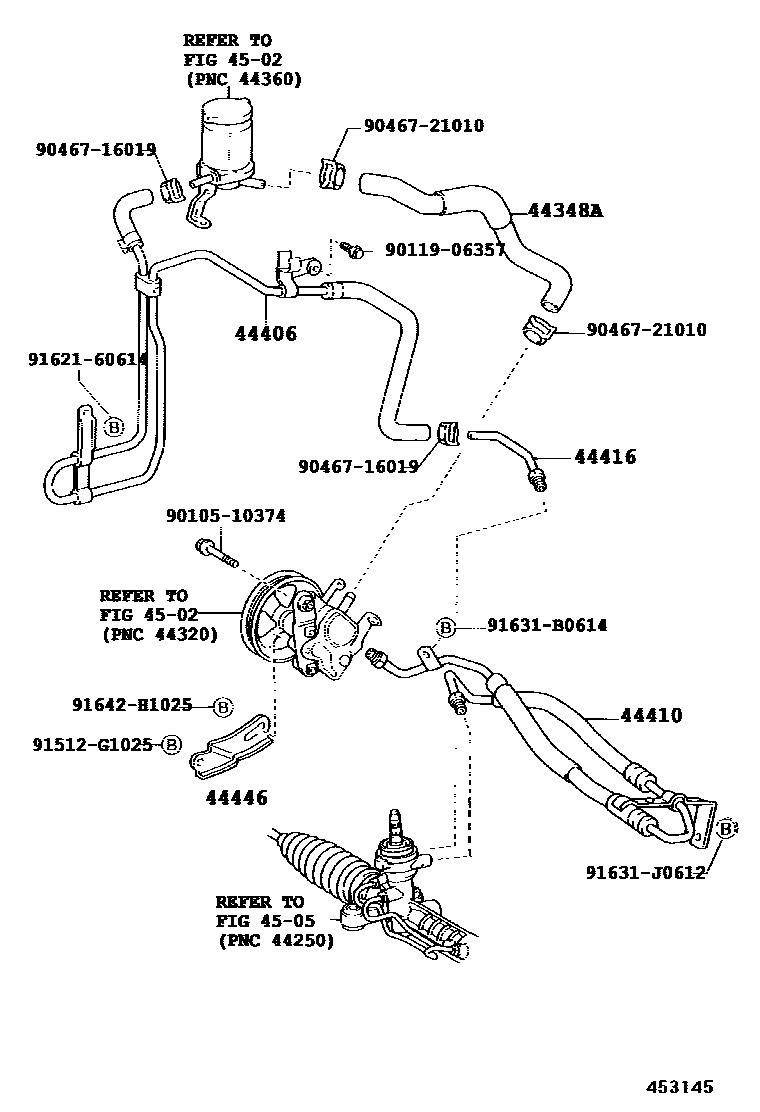

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44348A | No. 1 hose (tank to pump) | 44348-12080 · 44348-12081 · 44348-12090 · 44348-12091 · 44348-12100 |
| 44350 | Power steering idler assembly | 44350-12070 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-12040 |
| 44406 | Oil return pipe sub-assembly | 44406-12230 · 44406-12231 · 44406-12240 · 44406-12250 · 44406-12251 |
| 44410 | Pressure supply pipe assembly | 44410-12600 · 44410-12610 · 44410-12611 · 44410-12620 · 44410-12621 · 44410-12630 · 44410-12631 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12250 · 44416-12260 · 44416-12270 |
| 44442 | Pump rear bracket | 44442-12050 |
| 44446 | Adjust the stand | 44446-52010 |
