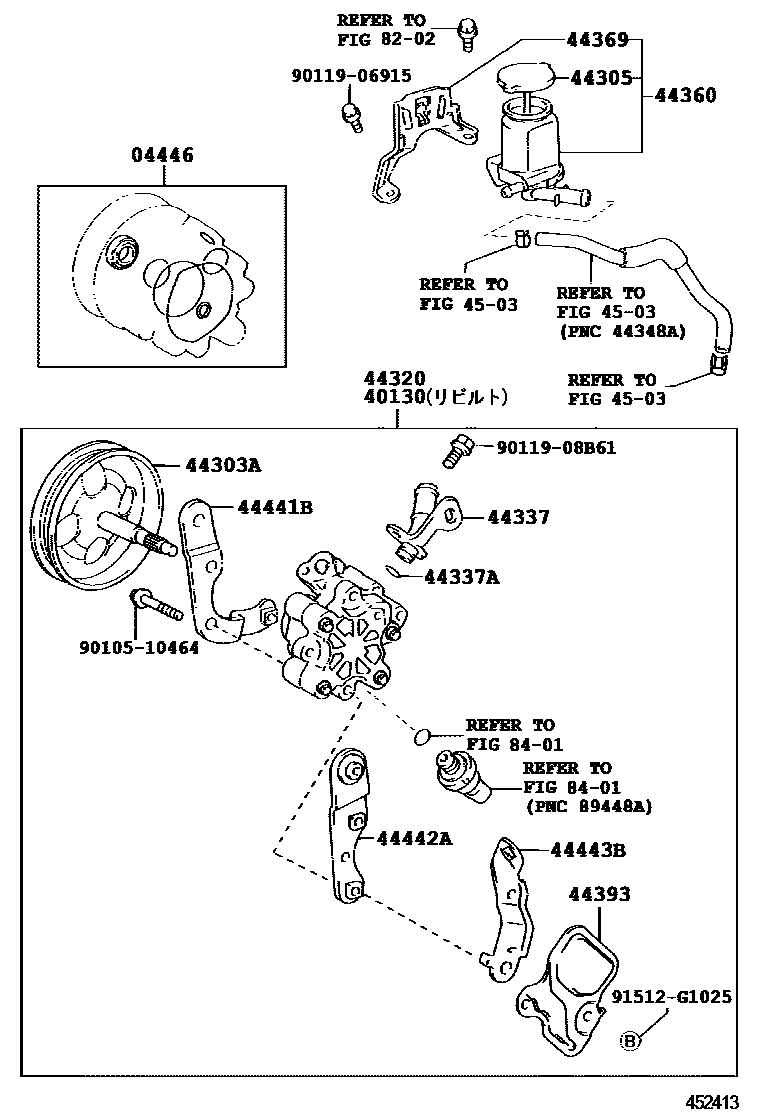

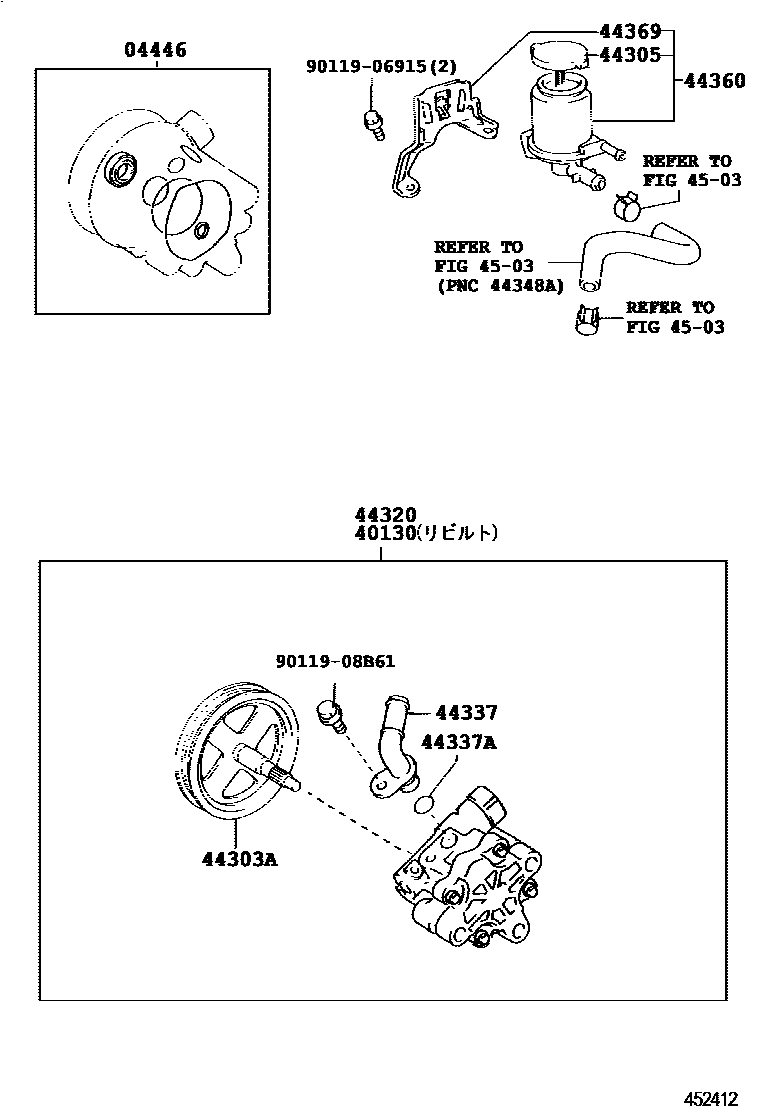

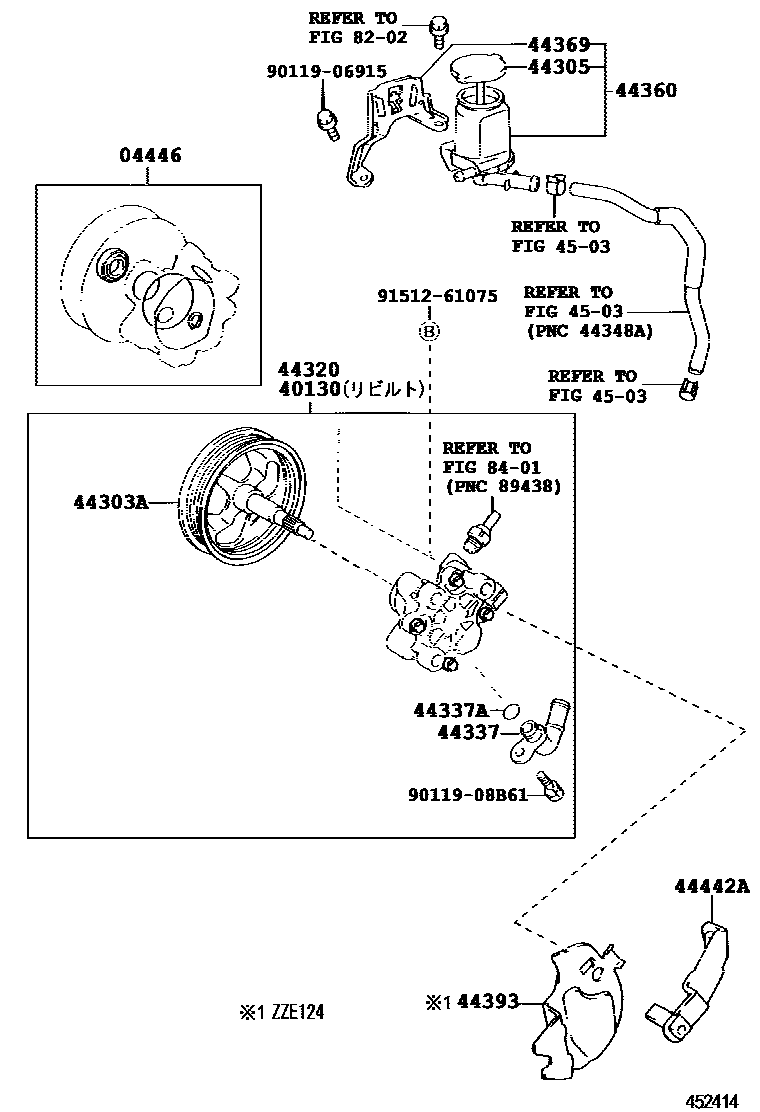

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-20170 · 04446-32050 |
| 40130 | Refurbished vane pump assembly | 40130-12530 · 40130-12540 · 40130-12550 · 40130-12560 · 40130-12570 |
| 44303A | Shaft sub-assembly with pulley | 44303-12030 · 44303-20010 · 44303-32010 · 44303-52020 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28030 |
| 44320 | Vane pump assembly | 44310-12530 · 44310-12540 · 44310-12550 · 44310-12560 · 44310-12570 |
| 44337 | Power steering suction port connector | 44337-12120 · 44337-12130 · 44337-32110 · 44337-48010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-12080 · 44360-12100 |
| 44369 | No. 1 oil storage tank bracket | 44369-12060 · 44369-12070 |
| 44393 | Power steering pump insulation pad | 44393-42010 · 44393-52010 · 44393-63010 |
| 44441B | Pump front bracket | 44441-52010 |
| 44442A | Vane pump rear bracket | 44442-12040 · 44442-52020 |
| 44443B | Vane pump bracket | 44442-12030 |
