Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 18 images and 40 PNC and OE references.

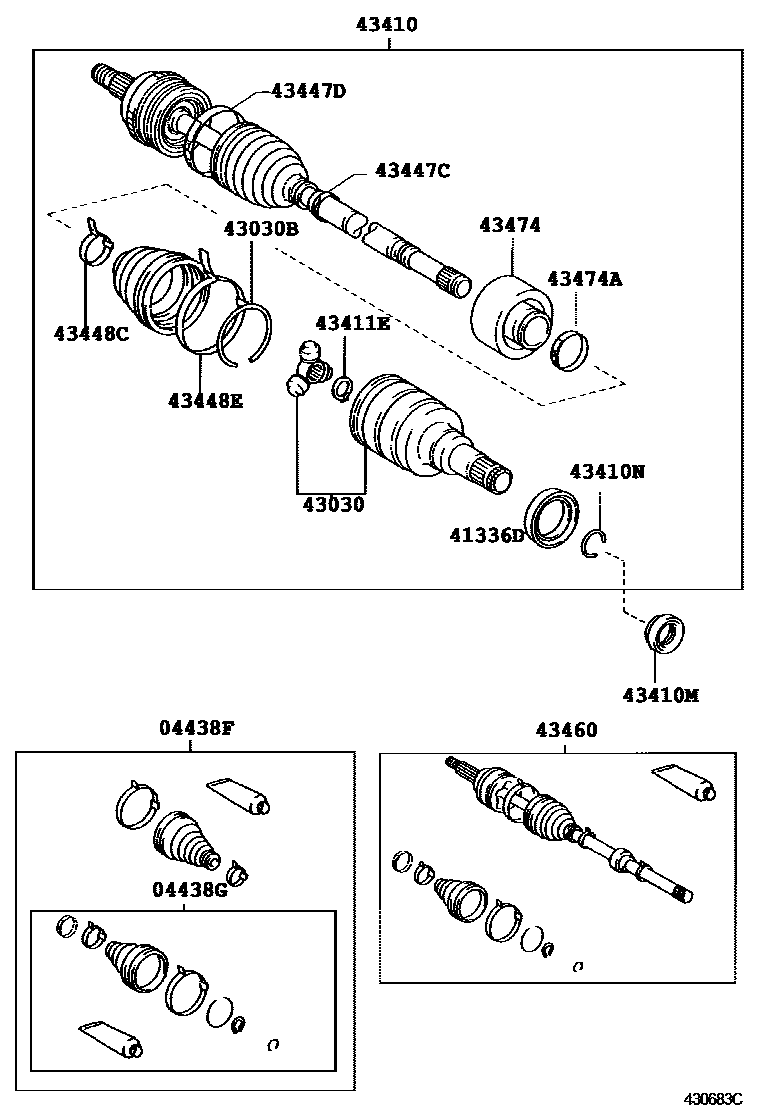

Toyota COROLLA Front Drive Shaft EPC diagram — 430683C — Front Drive Shaft — 430683C (200008 – 200404)

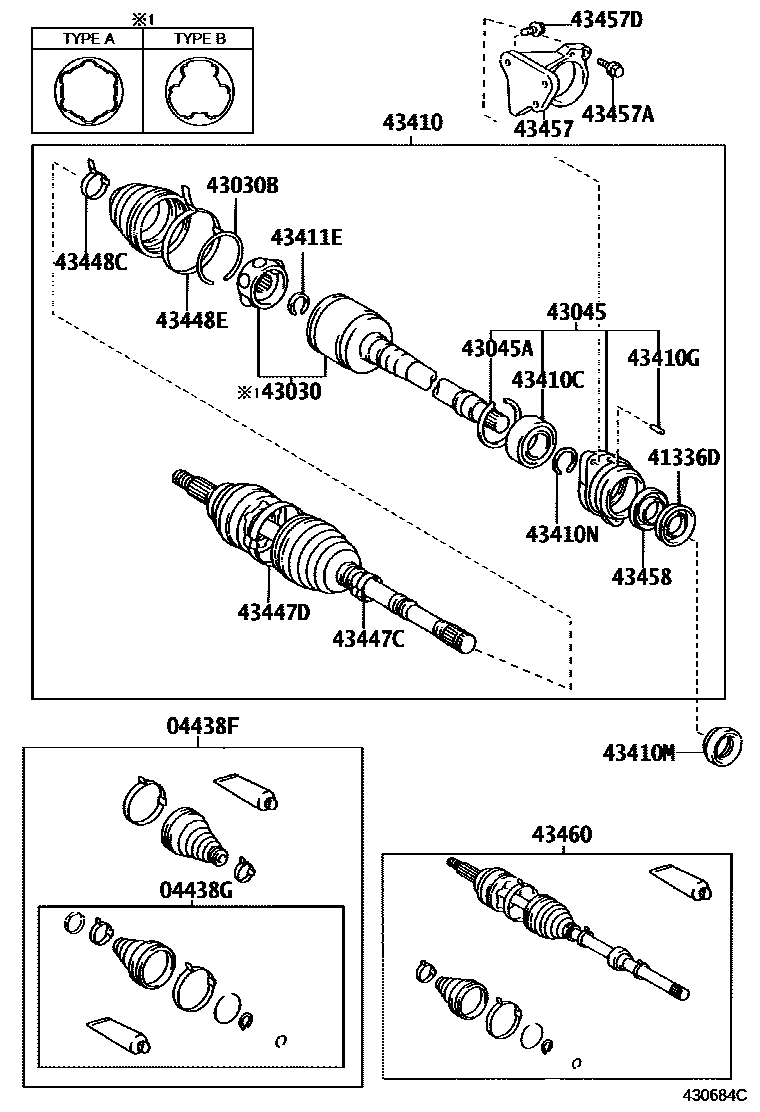

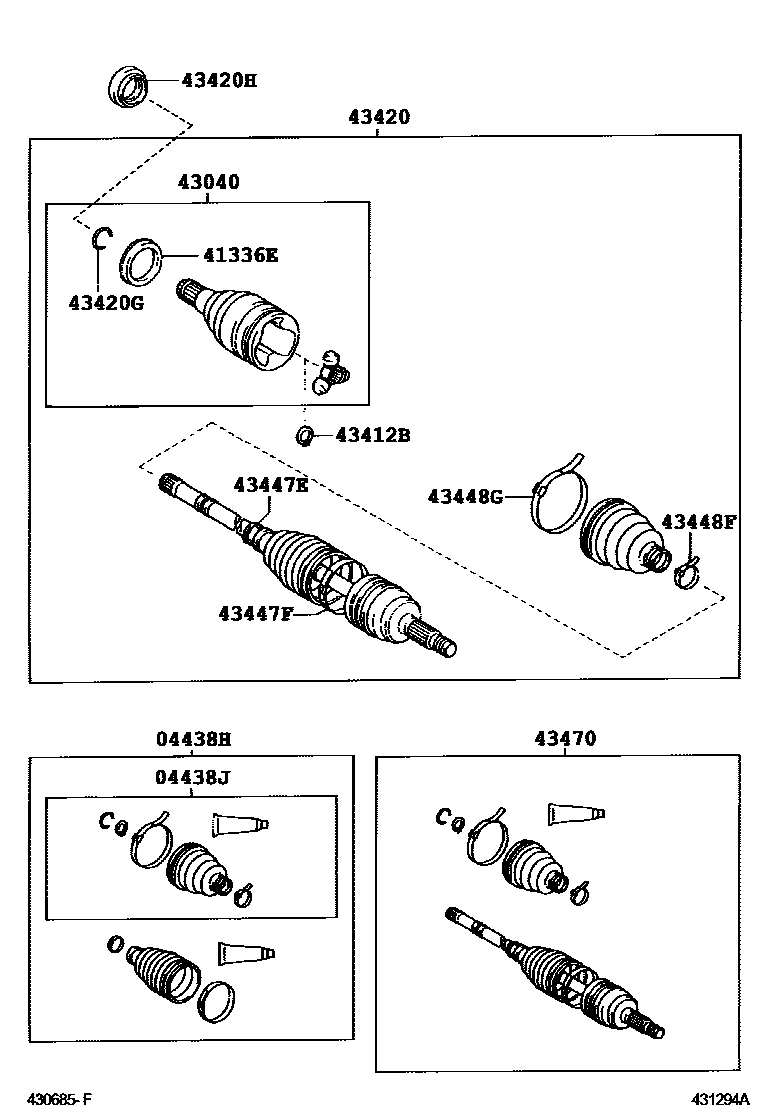

Toyota COROLLA Front Drive Shaft EPC diagram — 430684C — Front Drive Shaft — 430684C (200008 – 200404)

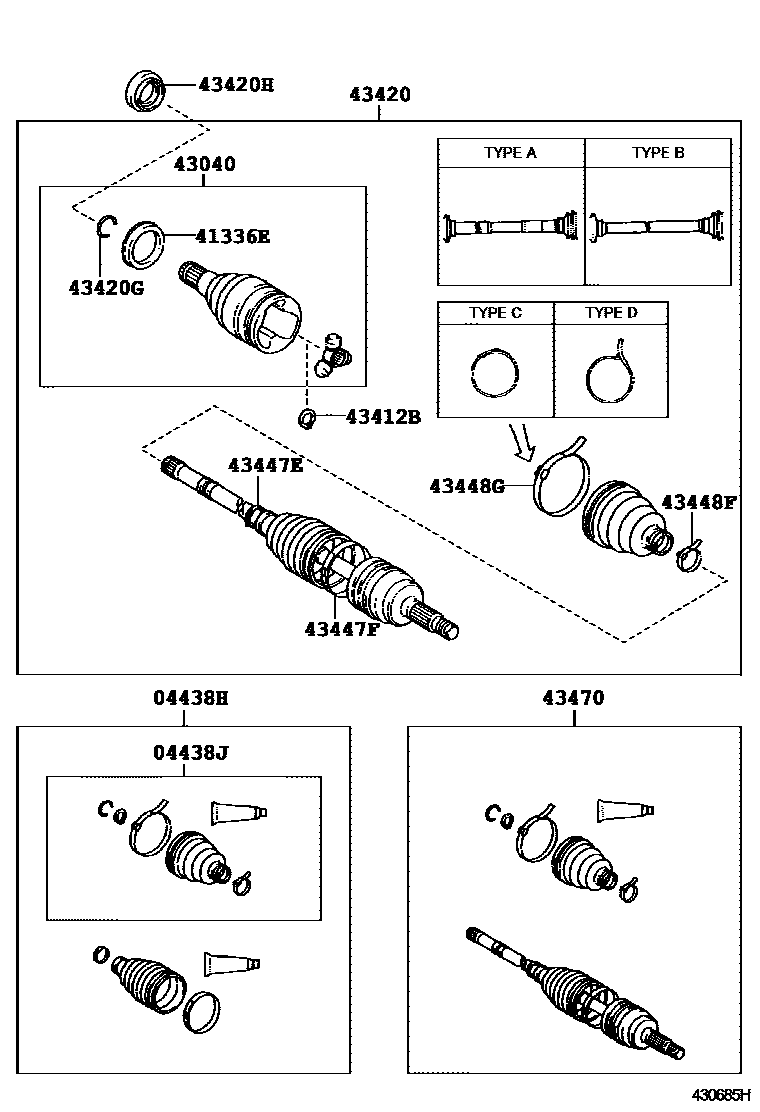

Toyota COROLLA Front Drive Shaft EPC diagram — 430685H — Front Drive Shaft — 430685H (200008 – 200404)

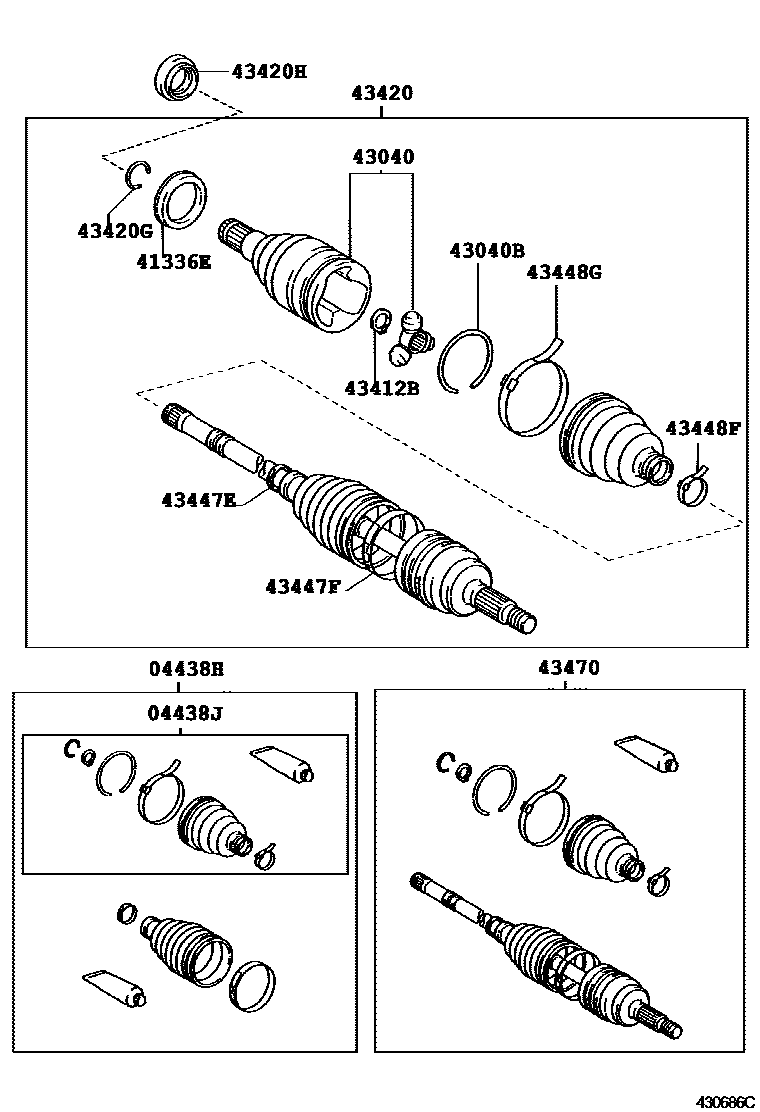

Toyota COROLLA Front Drive Shaft EPC diagram — 430686C — Front Drive Shaft — 430686C (200008 – 200404)

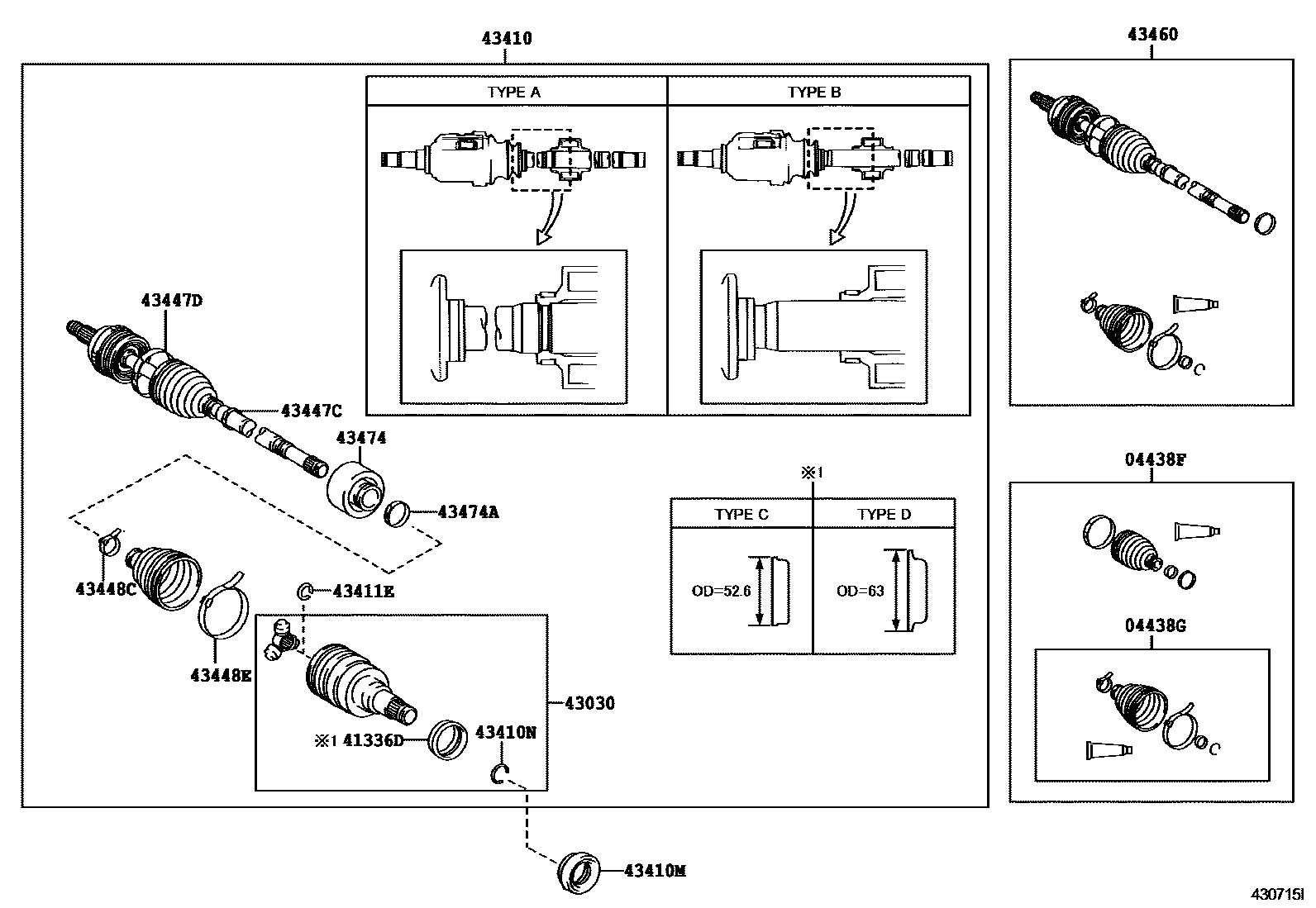

Toyota COROLLA Front Drive Shaft EPC diagram — 430715I — Front Drive Shaft — 430715I (200008 – 200404)

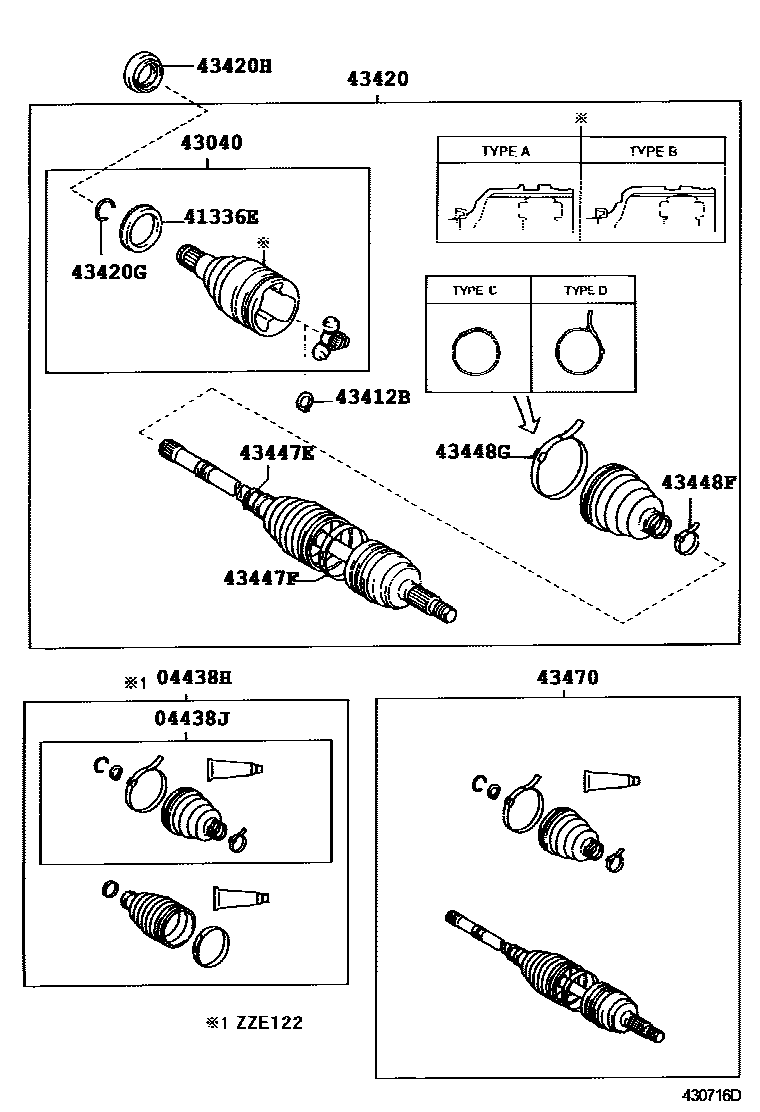

Toyota COROLLA Front Drive Shaft EPC diagram — 430716D — Front Drive Shaft — 430716D (200008 – 200404)

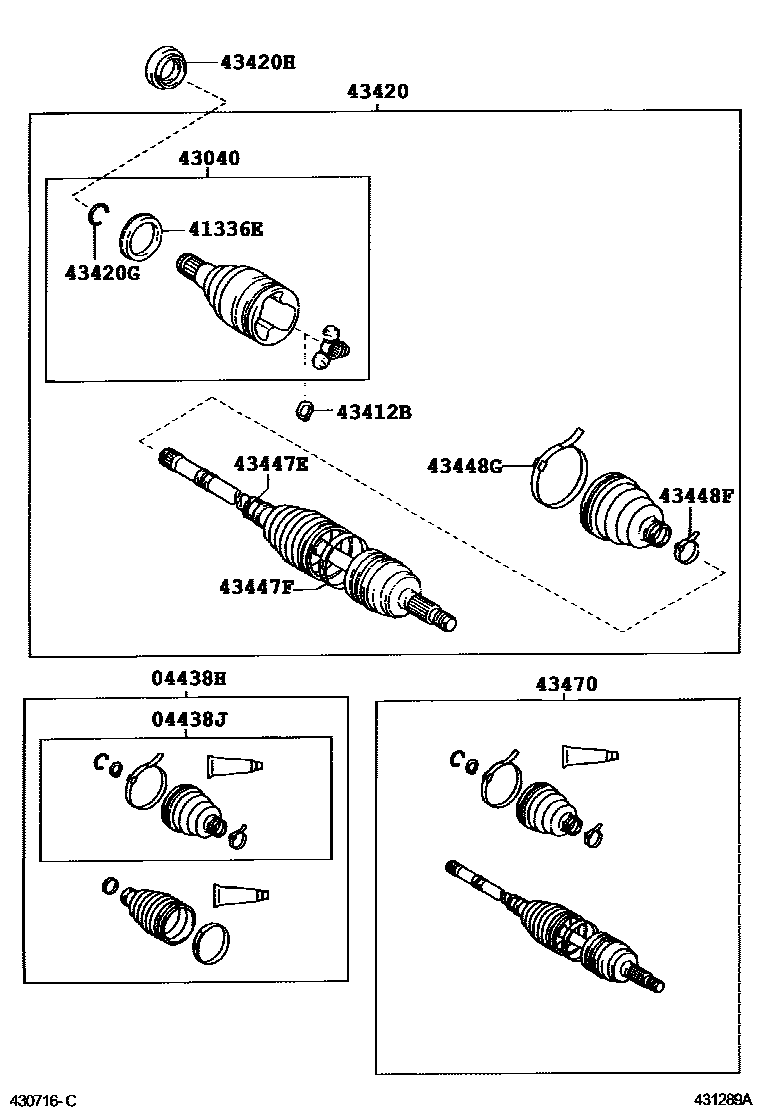

Toyota COROLLA Front Drive Shaft EPC diagram — 431289A — Front Drive Shaft — 431289A (200404 – 999999)

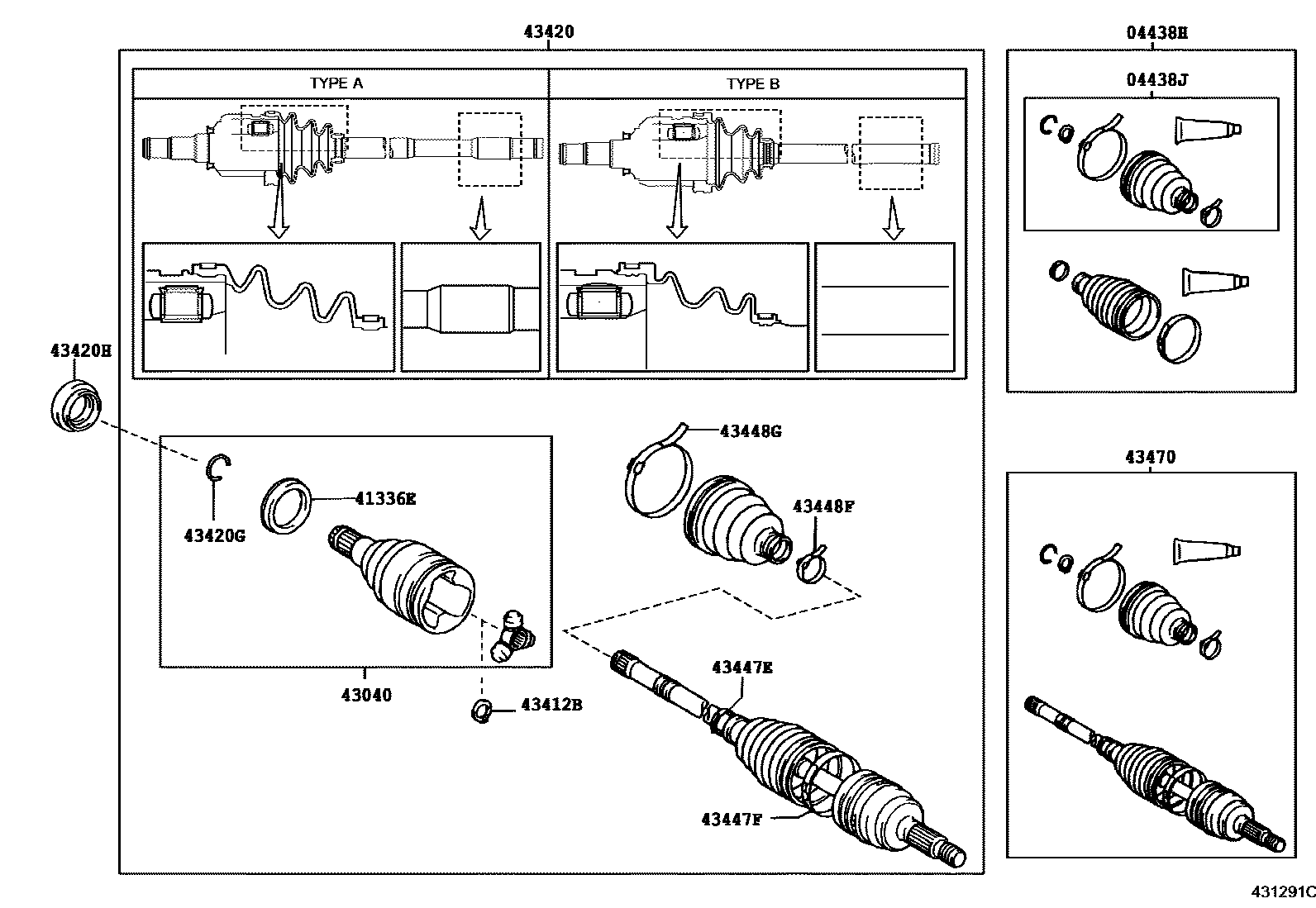

Toyota COROLLA Front Drive Shaft EPC diagram — 431291C — Front Drive Shaft — 431291C (200404 – 999999)

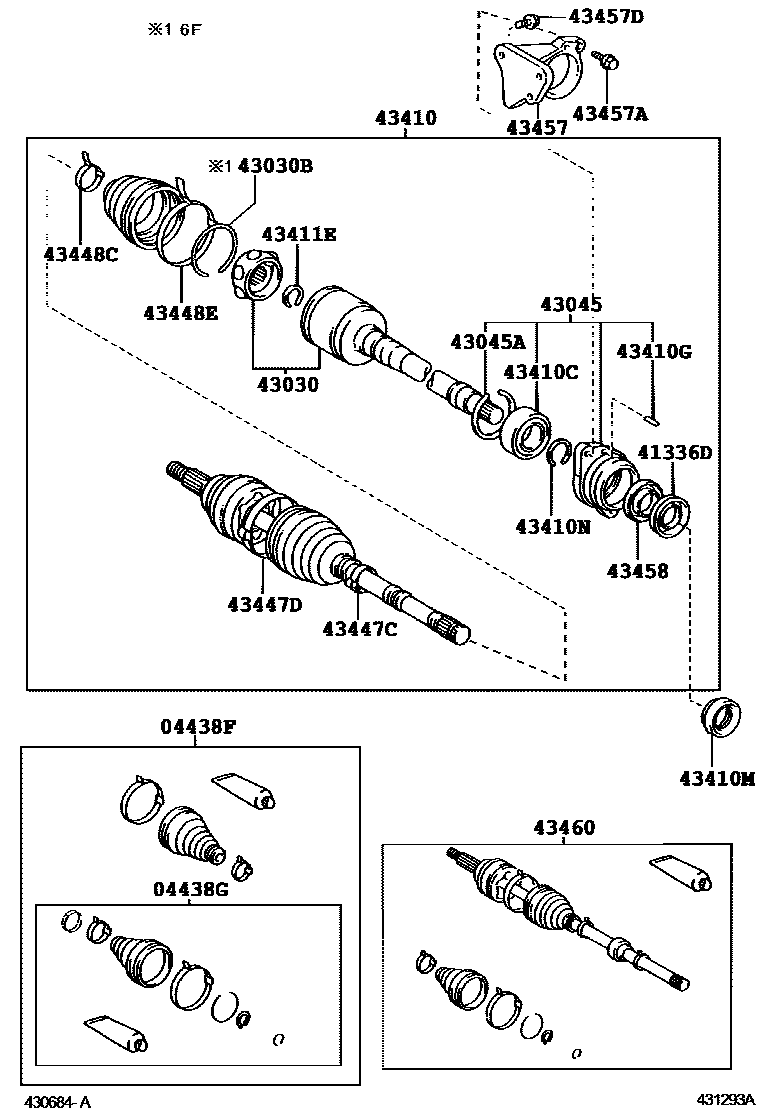

Toyota COROLLA Front Drive Shaft EPC diagram — 431293A — Front Drive Shaft — 431293A (200404 – 999999)

Toyota COROLLA Front Drive Shaft EPC diagram — 431294A — Front Drive Shaft — 431294A (200404 – 999999)

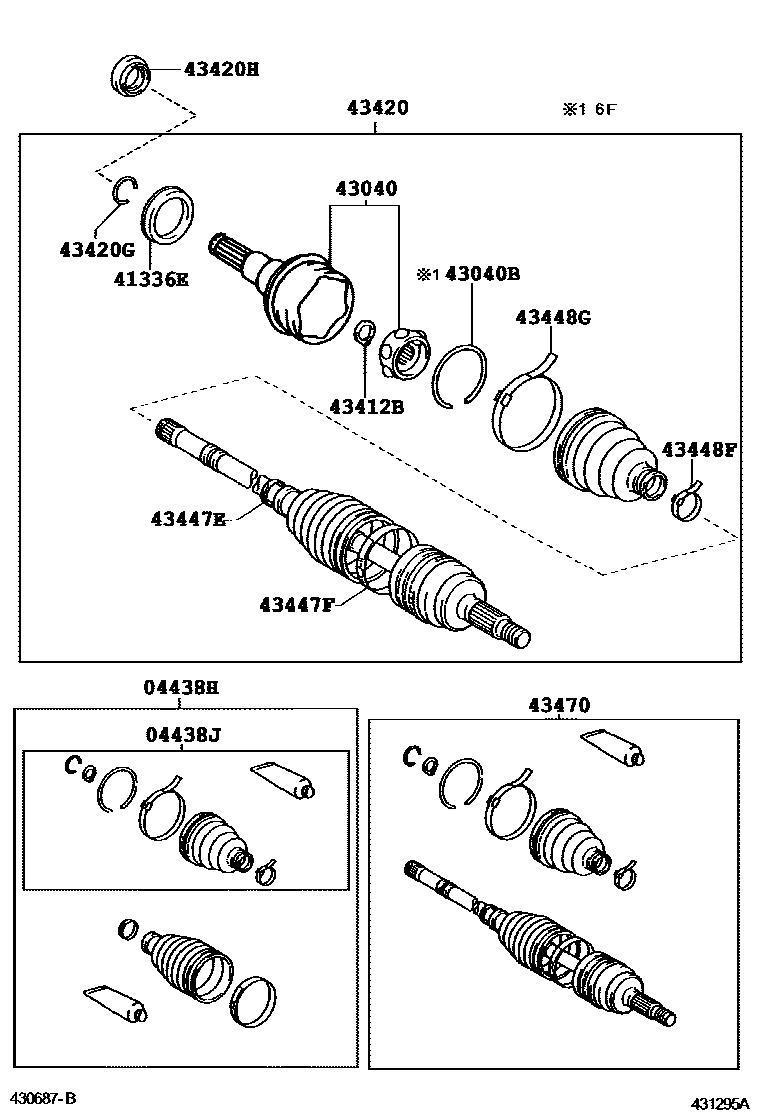

Toyota COROLLA Front Drive Shaft EPC diagram — 431295A — Front Drive Shaft — 431295A (200404 – 999999)

Toyota COROLLA Front Drive Shaft EPC diagram — 431999A — Front Drive Shaft — 431999A (200008 – 999999)

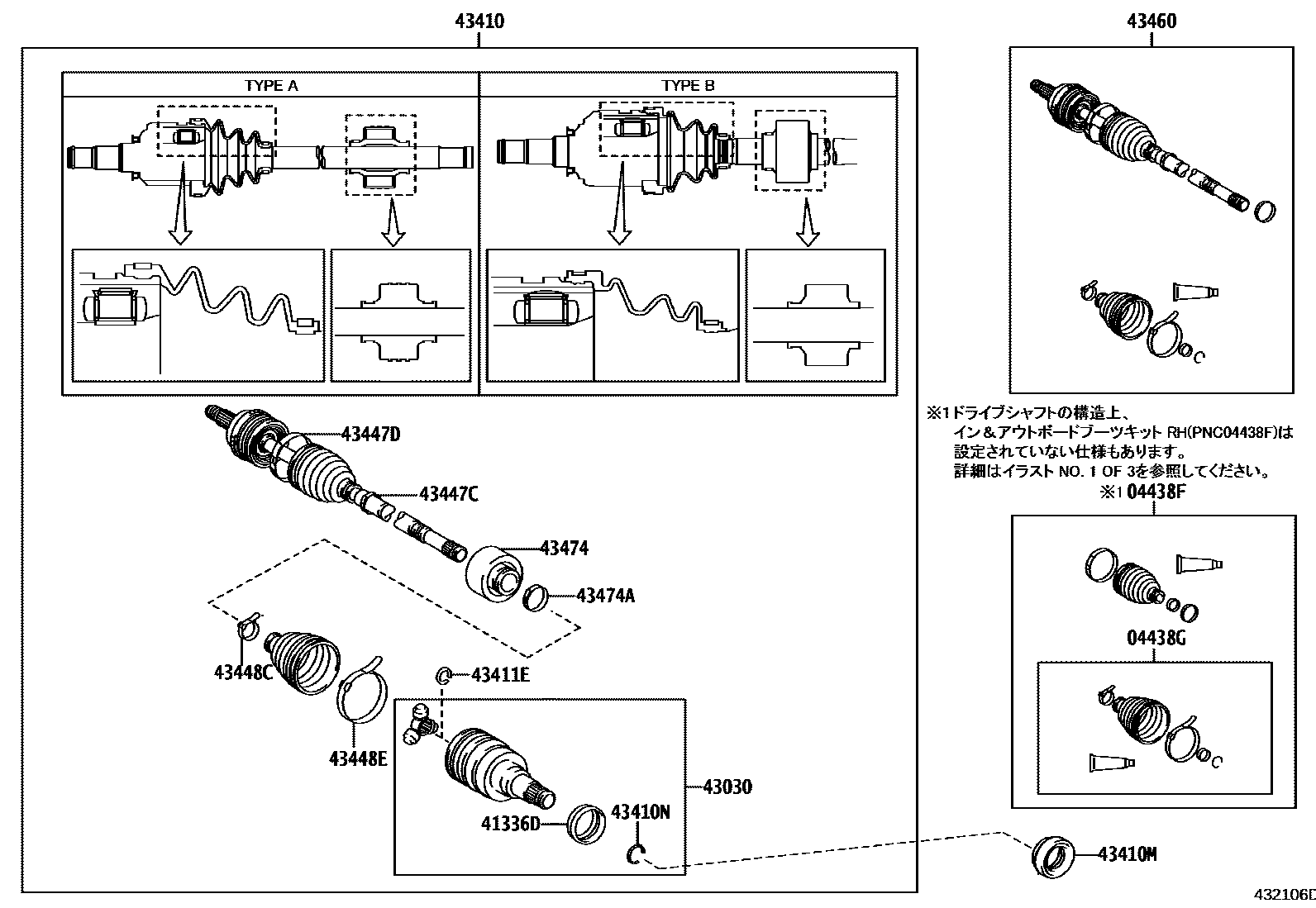

Toyota COROLLA Front Drive Shaft EPC diagram — 432106D — Front Drive Shaft — 432106D (200008 – 200404)

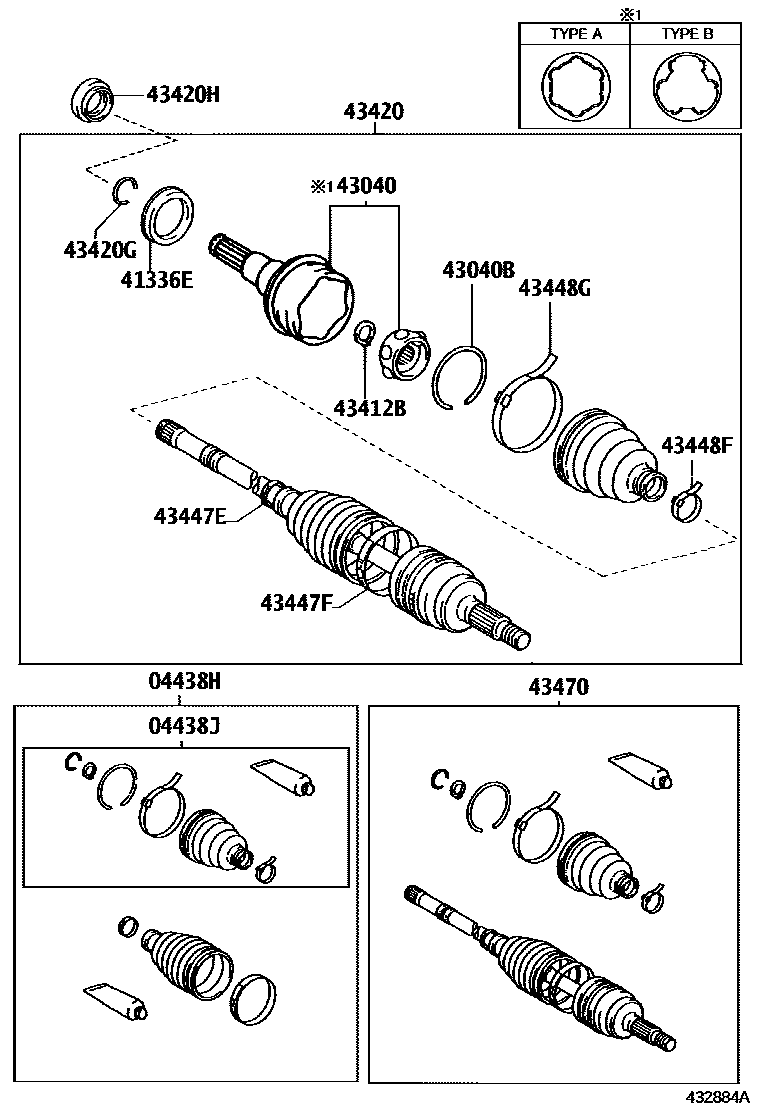

Toyota COROLLA Front Drive Shaft EPC diagram — 432884A — Front Drive Shaft — 432884A (200008 – 200404)

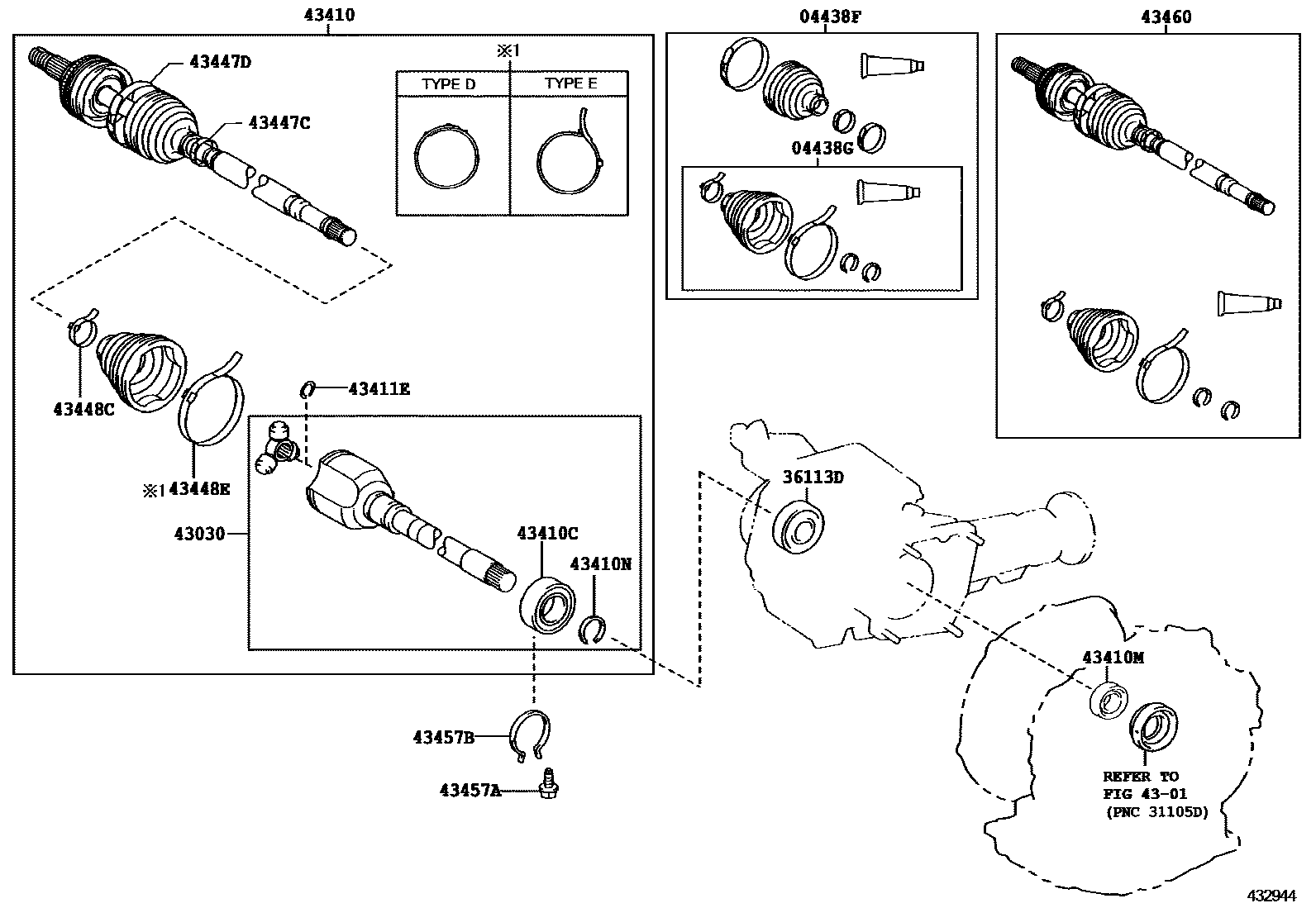

Toyota COROLLA Front Drive Shaft EPC diagram — 432944 — Front Drive Shaft — 432944 (200008 – 200404)

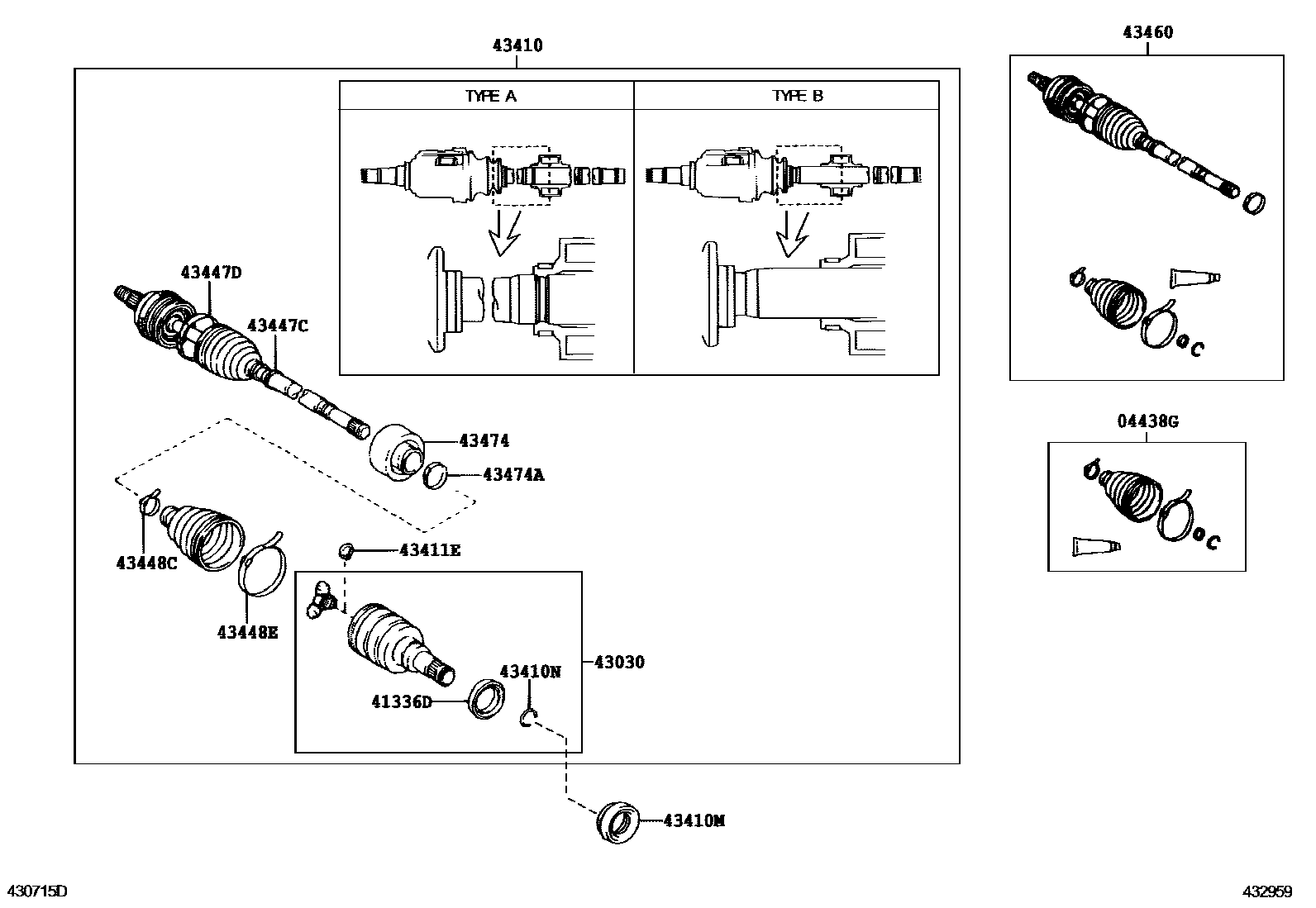

Toyota COROLLA Front Drive Shaft EPC diagram — 432959 — Front Drive Shaft — 432959 (200404 – 999999)

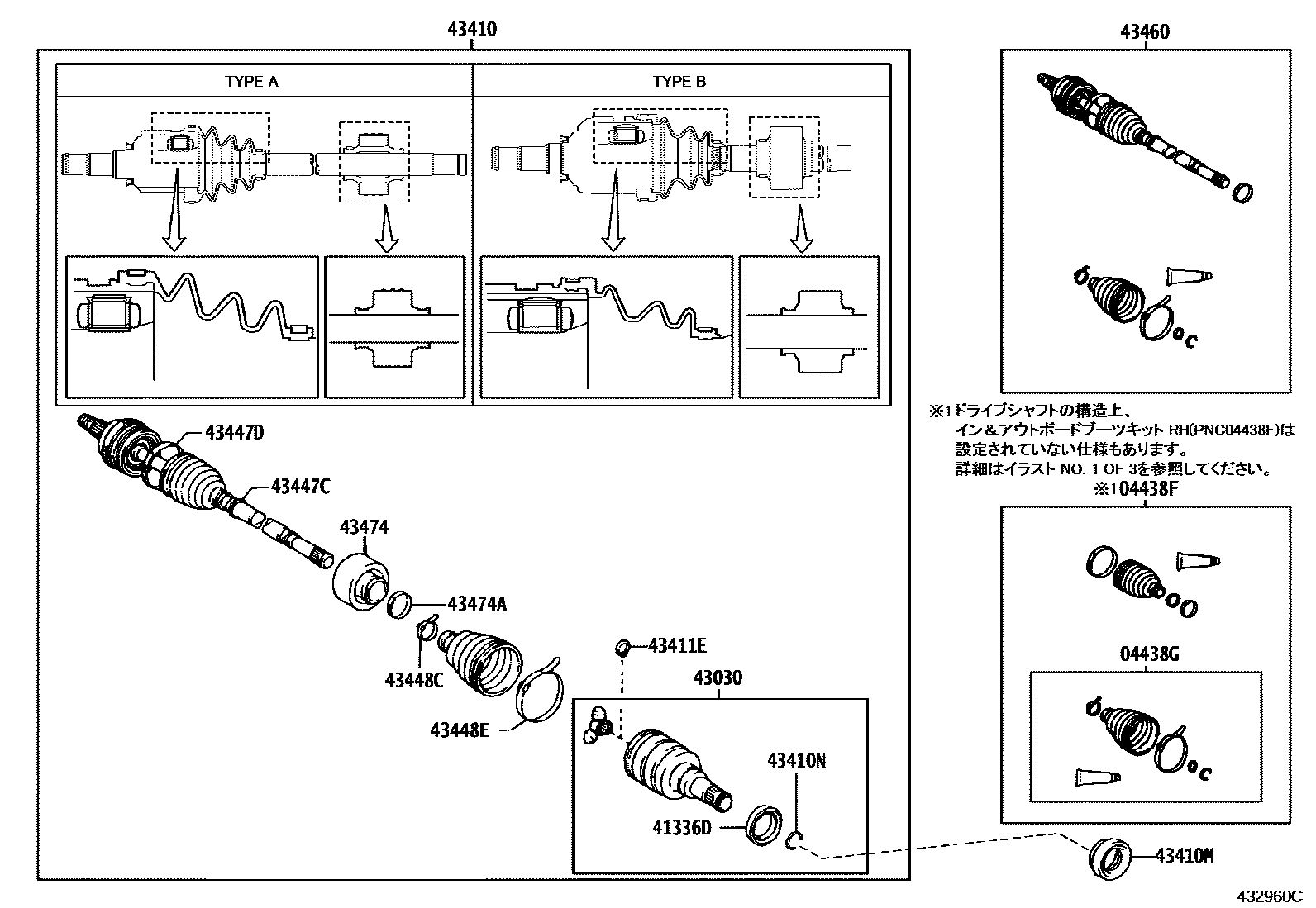

Toyota COROLLA Front Drive Shaft EPC diagram — 432960C — Front Drive Shaft — 432960C (200404 – 999999)

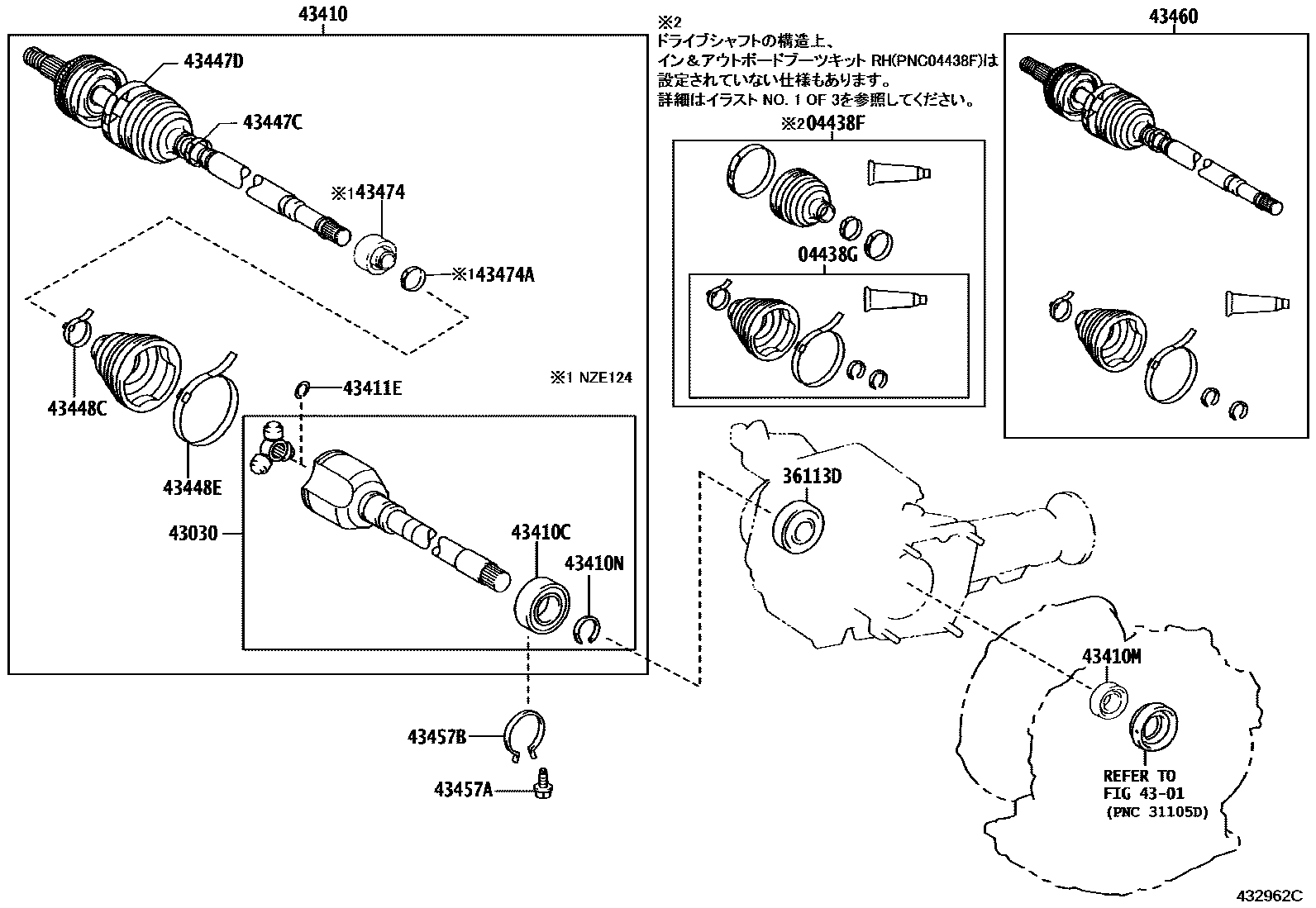

Toyota COROLLA Front Drive Shaft EPC diagram — 432962C — Front Drive Shaft — 432962C (200404 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04438F	Right front driveshaft inboard and outboard dust boot assembly	04427-12100 · 04427-12110 · 04427-12120 · 04427-42080 · 04427-52260 · 04427-52540 · 04427-52580 · 04428-12250 · 04428-12370 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12540 · 04438-12580 · 04438-12600 · 04438-12610 · 04438-12670 · 04438-32280 · 04438-52062 · 04438-52063 · 04438-52080 · 04438-63010
04438G	Right front drive shaft inner universal joint dust boot assembly	04437-12090 · 04437-12100 · 04437-42060 · 04437-52030 · 04437-52190 · 04438-12450 · 04438-12490 · 04438-12510 · 04438-12530 · 04438-12570 · 04438-12870 · 04438-32231 · 04438-32240 · 04438-42200 · 04438-52230
04438H	Left front driveshaft inboard and outboard dust boot assembly	04427-52260 · 04427-52580 · 04428-12310 · 04428-12370 · 04428-12390 · 04428-42100 · 04438-12481 · 04438-12501 · 04438-12502 · 04438-12540 · 04438-12580 · 04438-12600 · 04438-12610 · 04438-12640 · 04438-12690 · 04438-32280 · 04438-63010
04438J	Left front drive shaft inner universal joint dust boot assembly	04437-52190 · 04438-12450 · 04438-12490 · 04438-12530 · 04438-12570 · 04438-12680 · 04438-12870 · 04438-32231 · 04438-32240 · 04438-42200 · 04438-52030 · 04438-52230
36113D	Toyota part	90311-36006
41336D	Right front driveshaft dust cover	41336-12010 · 41336-12020 · 41336-12060 · 41336-20050 · 41336-32010
41336E	Left front driveshaft dust cover	41336-12010 · 41336-12060 · 41336-28020 · 41336-32020
43030	Right front drive shaft inner universal joint assembly	43030-02030 · 43030-12060 · 43030-12070 · 43030-12110 · 43030-12120 · 43030-13010 · 43030-20020 · 43030-20100 · 43030-52010 · 43040-02020 · 43040-32040 · 43403-10011 · 43403-12040
43030B	Hole snap ring (for right front drive shaft inboard universal joint)	90520-71002 · 90521-79001
43040	Left front drive shaft inner universal joint assembly	43040-02020 · 43040-12050 · 43040-12090 · 43040-13010 · 43040-20070 · 43040-32040 · 43403-02040 · 43403-10011 · 43403-12040
43040B	Hole snap ring (for left front drive shaft inboard universal joint)	90520-71002 · 90521-79001
43045	Drive shaft bearing shell sub-assembly	43045-20010
43045A	Snap ring (for drive shaft bearing housing sub-assembly)	96153-00680
43410	Right front driveshaft assembly	43410-02220 · 43410-02230 · 43410-12490 · 43410-12500 · 43410-12501 · 43410-12510 · 43410-12520 · 43410-12530 · 43410-12531 · 43410-12660 · 43410-12670 · 43410-12680 · 43410-12700 · 43410-13060
43410C	Bearings (for front driveshaft)	90363-36004 · 90363-36006
43410G	Direct sales (for front driveshaft)	90250-06003
43410M	Toyota part	90311-34023 · 90311-34031 · 90311-35019 · 90311-35045 · 90311-35051 · 90311-35055 · 90311-35057 · 90311-40025 · 90316-28003
43410N	Hole snap ring (for right front driveshaft)	90520-33008 · 90521-26004 · 90521-27005 · 90521-33002
43411E	Inner shaft snap ring (for right front axle inner drive shaft)	43425-13010 · 90520-22001 · 90520-22005 · 90520-23056 · 90520-25034
43412B	Inner shaft snap ring (for left front axle inner drive shaft)	43425-13010 · 90520-22001 · 90520-22005 · 90520-23056 · 90520-25034
43420	Left front drive shaft assembly	43420-02240 · 43420-02260 · 43420-12420 · 43420-12430 · 43420-12440 · 43420-12450 · 43420-12460 · 43420-12580 · 43420-12590 · 43420-12600 · 43420-12630 · 43420-13040 · 43420-20581 · 43420-32231
43420G	Hole snap ring (for left front driveshaft)	90521-26004 · 90521-27005 · 90521-33002
43420H	Toyota part	90311-34017 · 90311-34022 · 90311-34026 · 90311-34028 · 90311-34030 · 90311-35019 · 90311-35044 · 90311-35046 · 90311-35054 · 90311-35058 · 90311-50024
43447C	Clamp (for the outer universal joint dust cover of the right front axle)	42345-12150 · 42345-20100 · 42345-52110 · 90949-01A65
43447D	No. 2 clip (for the universal joint dust cover on the outside of the right front axle)	42345-12080 · 42345-12140 · 42345-20120 · 42345-52100
43447E	Clamp (for left front axle outer universal joint dust cover)	42345-12150 · 42345-20040 · 42345-20100 · 42345-52110 · 90949-01A65
43447F	No. 2 clip (for left front axle outer universal joint dust cover)	42345-12080 · 42345-12140 · 42345-20120 · 42345-28020 · 42345-52100
43448C	Clamp (for the universal joint dust cover inside the right front axle)	90949-01078 · 90949-01108
43448E	No. 2 clip (for the universal joint dust cover inside the right front axle)	42345-12160 · 42346-22010 · 90949-01146 · 90949-01802
43448F	Clamp (for left front axle inner universal joint dust cover)	42345-12160 · 90949-01078 · 90949-01108
43448G	Clamp No. 2 (for the universal joint dust cover inside the left front axle)	42345-12160 · 42346-22010 · 90949-01146 · 90949-01802
43457	drive shaft bearing bracket	43457-20080 · 43457-32070
43457A	Bolts (for securing the No. 1 drive shaft bearing bracket)	90105-10361 · 90119-10952 · 90901-19023 · 90901-19060
43457B	Hole snap ring (for drive shaft bearing bracket)	90521-75002
43457D	Bolts (for securing the No. 2 drive shaft bearing bracket)	90105-10381
43458	Front drive shaft dust cover	43458-20011
43460	Right front outer drive universal joint shaft assembly	43460-09440 · 43460-09470 · 43460-19795 · 43460-19805 · 43460-19825 · 43460-19835 · 43460-39125 · 43460-39126 · 43460-80001 · 43460-80004 · 43460-80011 · 43460-80024 · 43460-80028 · 43460-80040 · 43460-80043 · 43460-80045 · 43460-80046 · 43460-80047 · 43460-80052 · 43470-80007 · 43470-80046 · 43470-80106
43470	Left front outer drive universal joint shaft assembly	43470-09670 · 43470-09700 · 43470-09720 · 43470-29655 · 43470-39297 · 43470-80003 · 43470-80004 · 43470-80006 · 43470-80007 · 43470-80008 · 43470-80015 · 43470-80018 · 43470-80019 · 43470-80027 · 43470-80047 · 43470-80095 · 43470-80096 · 43470-80097 · 43470-80114 · 43470-80118 · 43470-80165
43474	drive shaft damper	43474-12040 · 43474-12120 · 43474-12130 · 43474-13030 · 43474-52030
43474A	Clamp (for securing driveshaft damper)	42345-14010
