Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 5 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

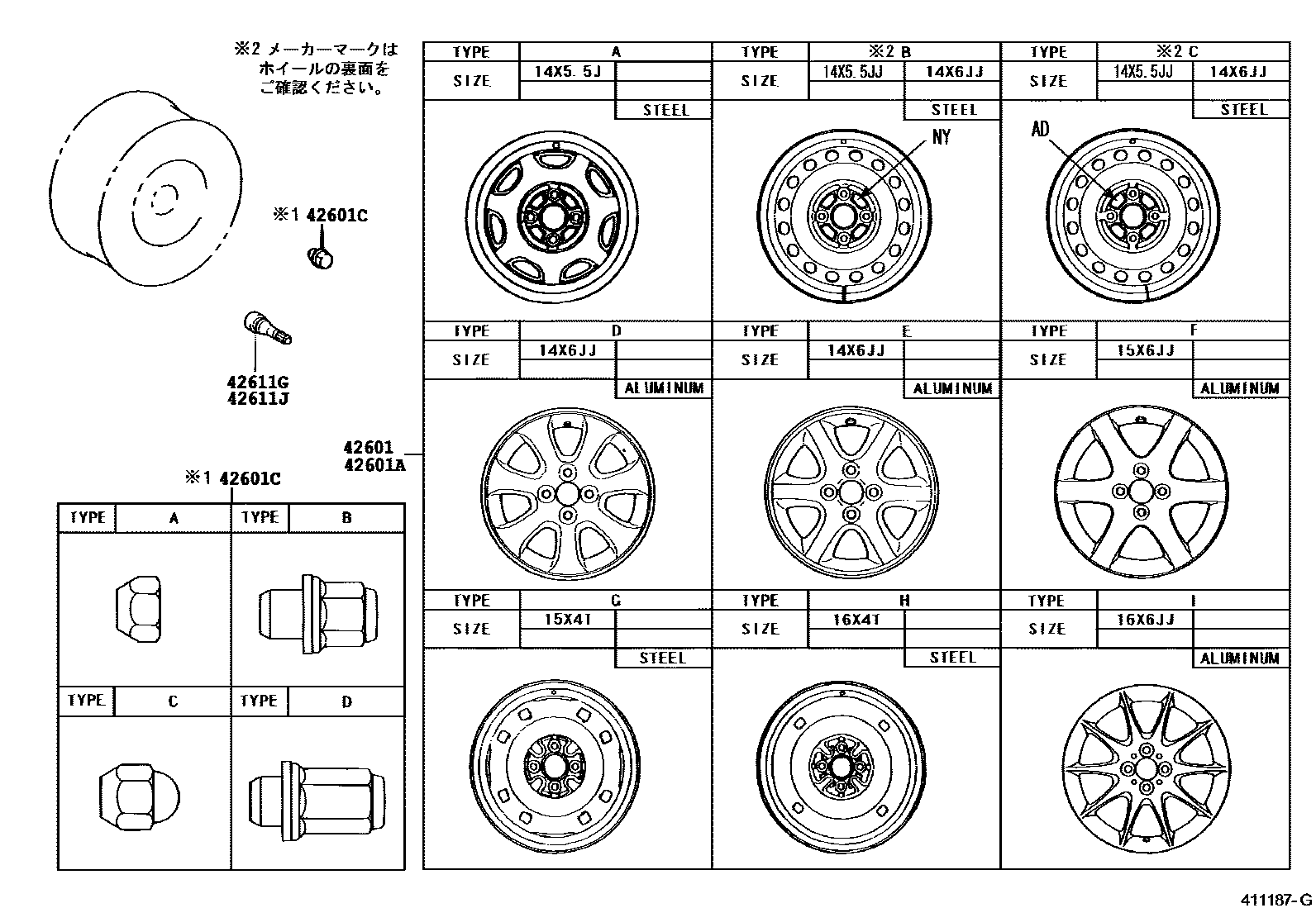

| 42601 | spoke wheel | 42611-02440 · 42611-13130 · 42611-1A390 · 42611-1A450 · 42611-1A460 · 42611-1A470 · 42611-1A480 · 42611-1A490 · 42611-1A500 · 42611-1A510 · 42611-1A530 |
| 42601A | Spoke wheel (for spare tire) | 42611-02440 · 42611-1A010 · 42611-1A240 · 42611-1A390 · 42611-1A450 · 42611-1A460 · 42611-1A470 · 42611-1A480 · 42611-1A490 · 42611-1A500 · 42611-1A510 · 42611-1A530 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01058 · 90942-01082 |

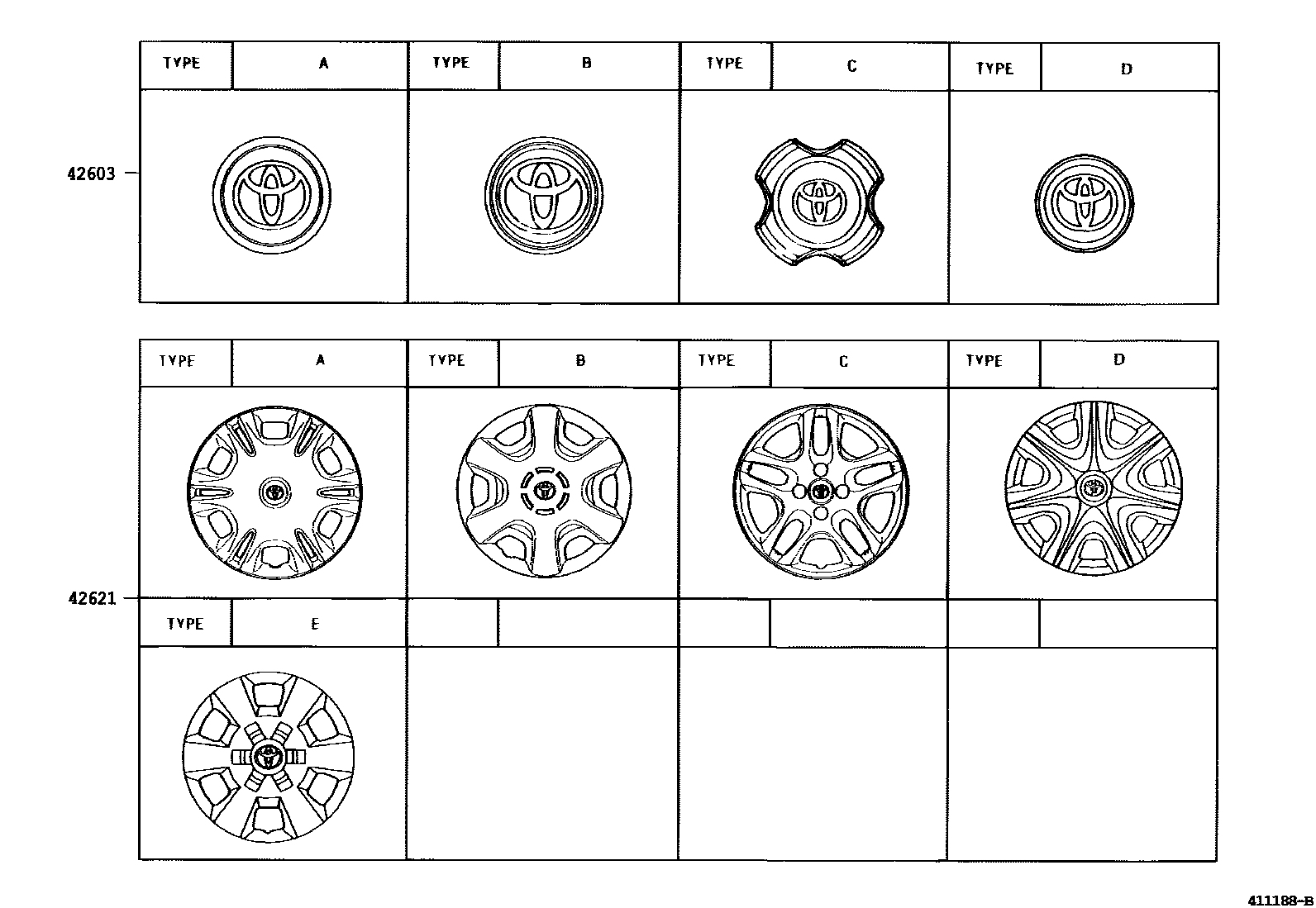

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12700 · 42603-12710 · 42603-32210 · 42638-12290 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12590 · 42602-12620 · 42602-12630 · 42602-12670 · 42602-12680 · 42602-12690 |
