Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) — Figure 3509

Toyota COROLLA EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 4 images and 35 PNC and OE references.

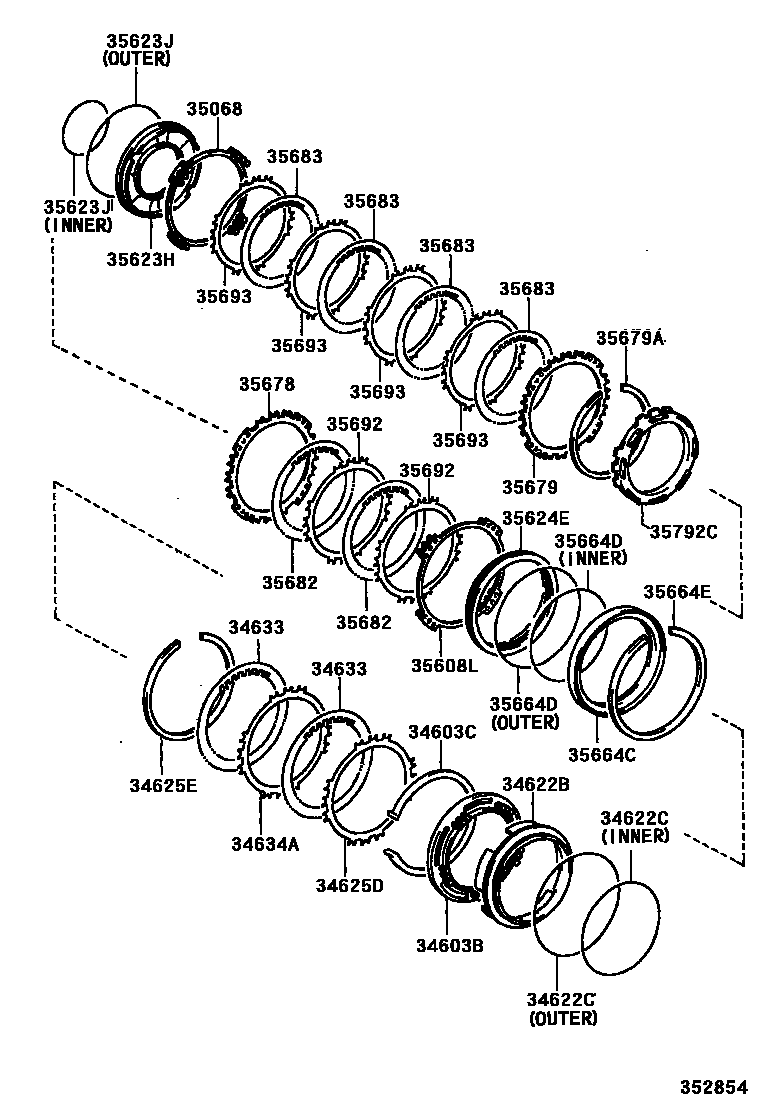

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) EPC diagram — 352854
3号制动器、一档和倒档制动器(ATM) — 352854 (200008 – 999999)

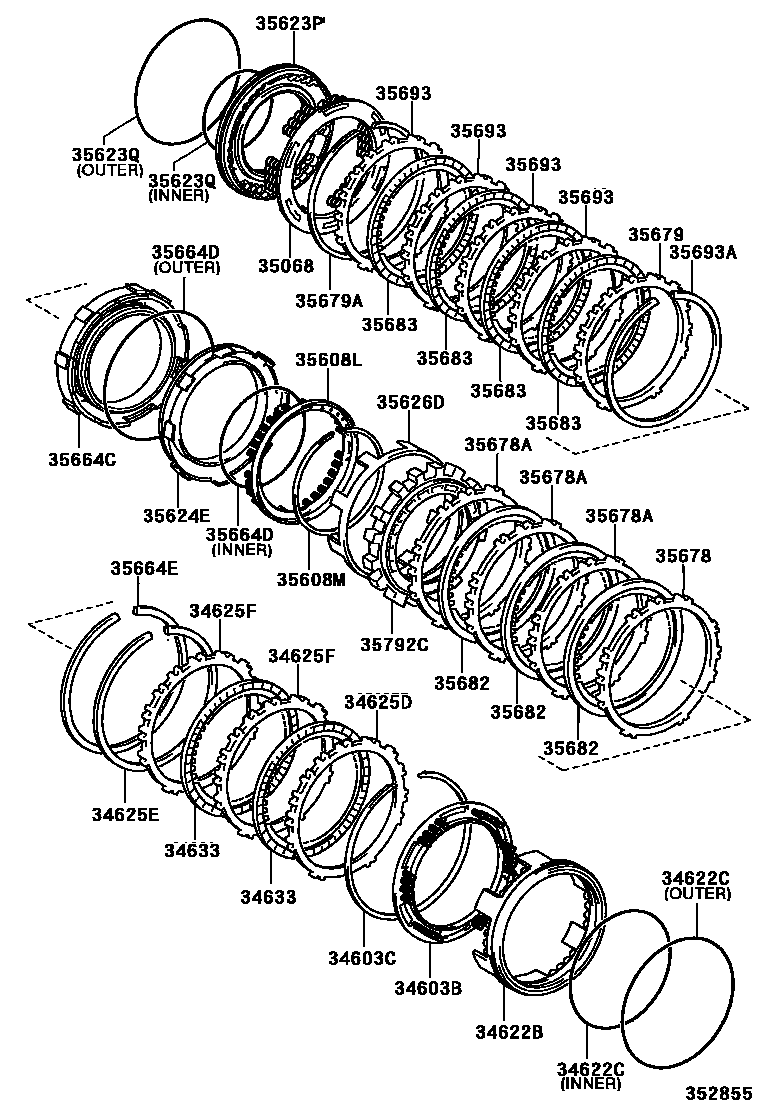

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) EPC diagram — 352855
3号制动器、一档和倒档制动器(ATM) — 352855 (200008 – 999999)

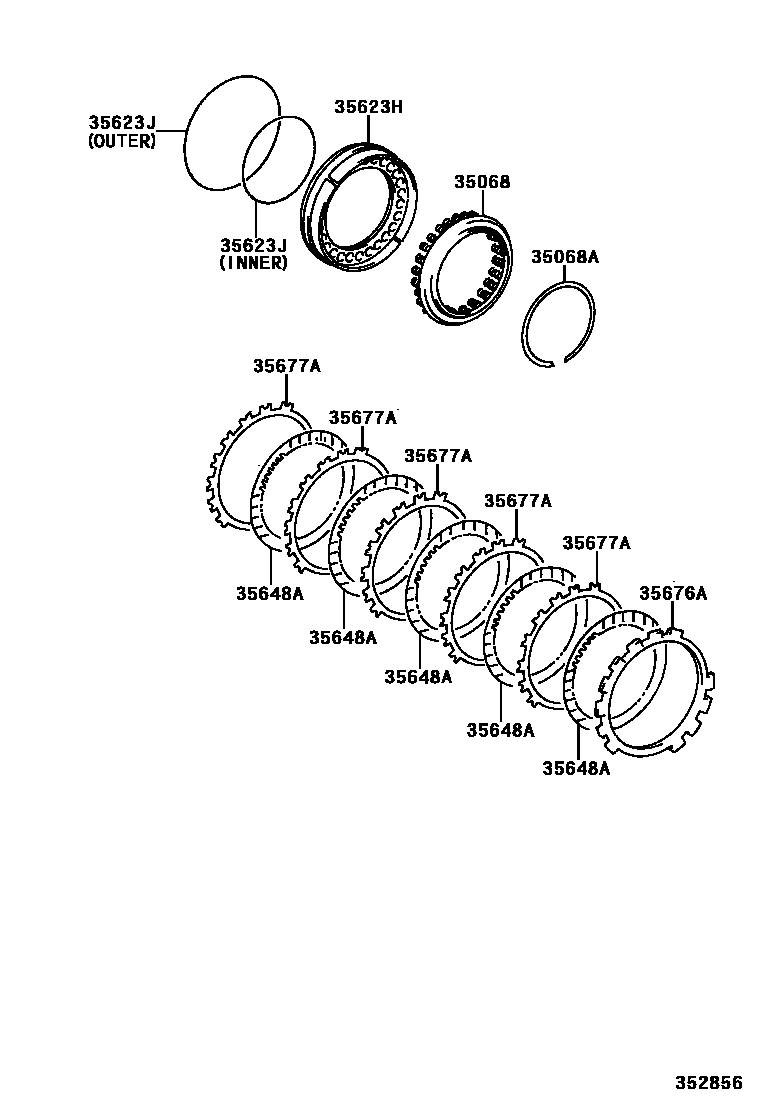

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) EPC diagram — 352856
3号制动器、一档和倒档制动器(ATM) — 352856 (200008 – 999999)

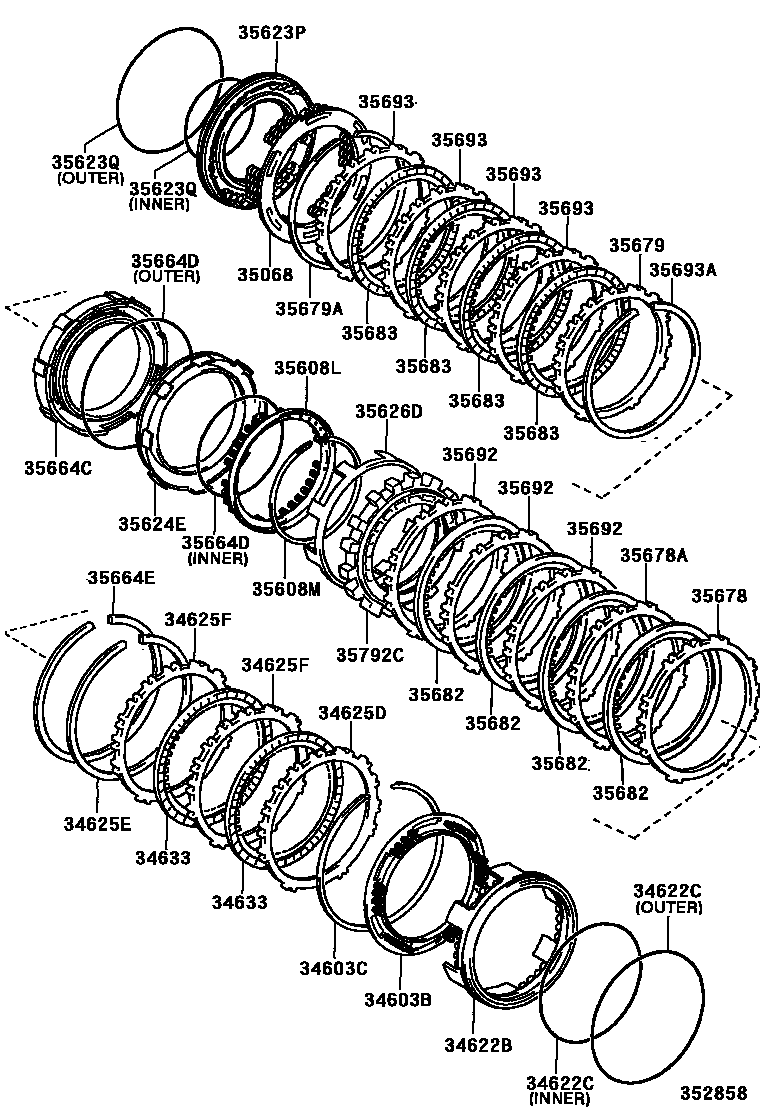

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) EPC diagram — 352858
3号制动器、一档和倒档制动器(ATM) — 352858 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
34603BOverdrive brake return spring sub-assembly34603-52010 · 34603-52020
34603CHole snap ring (for overdrive brake return spring)90520-99047 · 90520-99055
34622BSecond gear coast and overdrive brake piston34622-52010 · 34622-52021
34622CO-ring (for second gear coasting and overdrive)90301-99113 · 90301-99115 · 90301-99121 · 90301-99122
34625DSecond gear coast and overdrive brake flange34625-52010 · 34625-52020 · 34625-52030 · 34625-52040 · 34625-52050 · 34625-52071 · 34625-52081 · 34625-52091 · 34625-52100 · 34625-52110
34625EHole snap ring (for 2nd gear coast and overdrive brake flange)90520-99046 · 90520-99050
34625FNo. 2 second gear coast and overdrive brake flange34625-52060
34633Second gear coast and overdrive brake disc34633-52020 · 34633-52030
34634ASecond gear coast and overdrive brake pads34634-52010
35068First and reverse brake return spring sub-assembly35068-21010 · 35068-52020 · 35068-52030
35068AShaft snap ring (for first and reverse brake return spring)90520-99035
35608LSecond gear brake piston return spring sub-assembly35608-52010 · 35608-52020
35608MSnap ring (for second gear brake piston return spring)90520-99048
35623HFirst and reverse brake piston35623-48010 · 35623-52020
35623JO-ring (for first and reverse brakes)90301-97001 · 90301-99096 · 90301-99098 · 90301-99113
35623PNo. 2 first and reverse brake piston35623-52030
35623QO-ring (for No. 2 first and reverse brake piston)90301-98002 · 90301-99117
35624ESecond gear brake piston35624-52010 · 35624-52020
35626DSecond gear brake piston sleeve35626-52010 · 35626-52020
35648AClutch disc (for first and reverse brakes)35692-21010 · 35692-21011
35664CSecond gear brake cylinder35664-52010 · 35664-52020
35664DO-ring (for second gear brake cylinder)90301-99114 · 90301-99116 · 90301-99118 · 90301-99119
35664EHole snap ring (for second gear brake cylinder)90520-99046 · 90520-99050
35676ABrake flange (for first and reverse brakes)35678-21010 · 35678-21020 · 35678-21030 · 35678-21040 · 35678-21050 · 35678-21060 · 35678-21070 · 35678-21080
35677AClutch disc (for first and reverse brake)35682-21010
35678Brake flange (for second gear brake)35678-52010 · 35678-52020 · 35678-52030 · 35678-52040 · 35678-52050
35678ANo. 1 brake flange (for second gear brake)35678-52020
35679Brake flange (for first and reverse gears)35679-52010 · 35679-52020 · 35679-52030 · 35679-52040 · 35679-52050
35679AHole snap ring (for brake flange)90520-99042 · 90520-99054
35682Brake disc (for second gear brake)35682-52010 · 35682-52020
35683Brake disc (for first and reverse gears)35683-52020 · 35683-52030 · 35683-52040 · 35683-52050 · 35683-52070
35692Brake pads (for second gear brake)35692-52010 · 35692-52020
35693Brake pads (for first and reverse gears)35693-52020 · 35693-52030 · 35693-52040
35693ASnap ring (for first and reverse brake pads)90520-99057
35792CNo. 2 one-way clutch35792-52010 · 35792-52021
