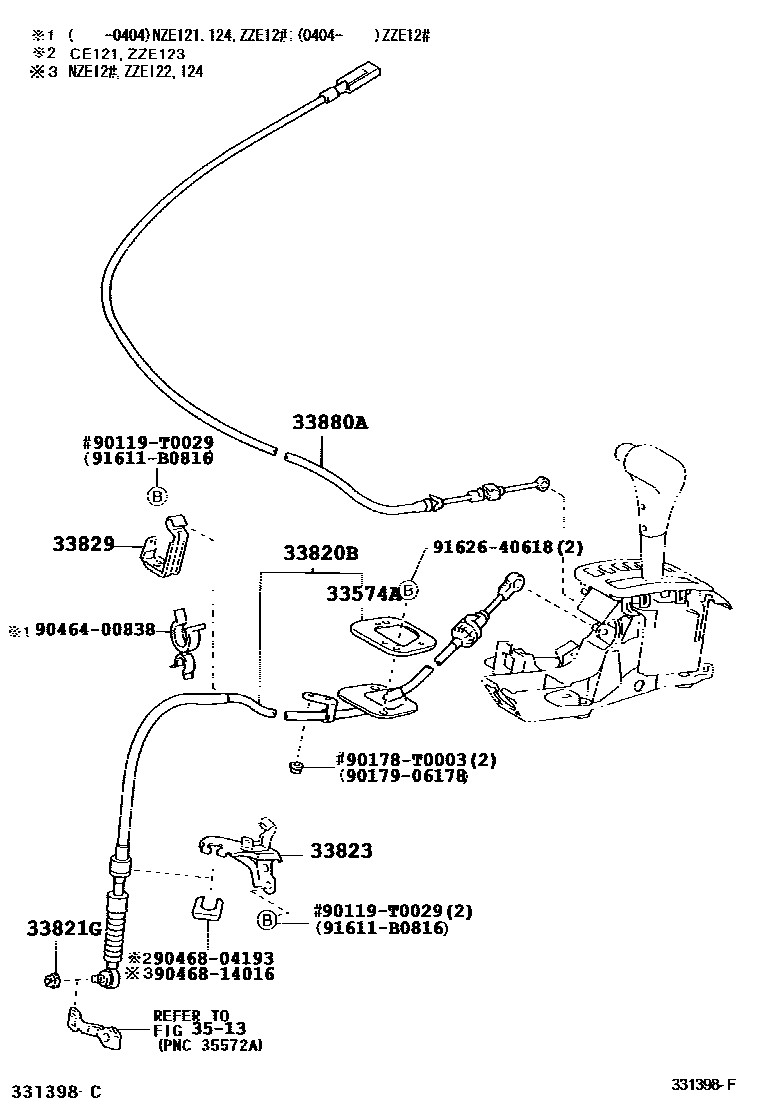

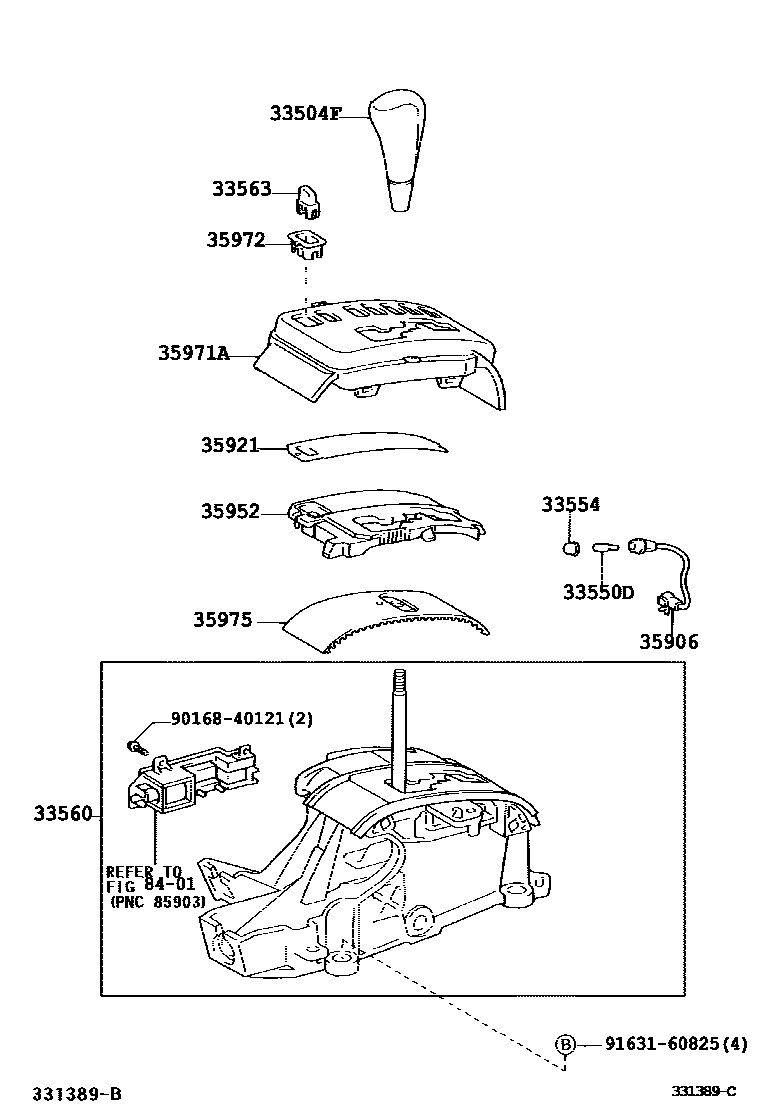

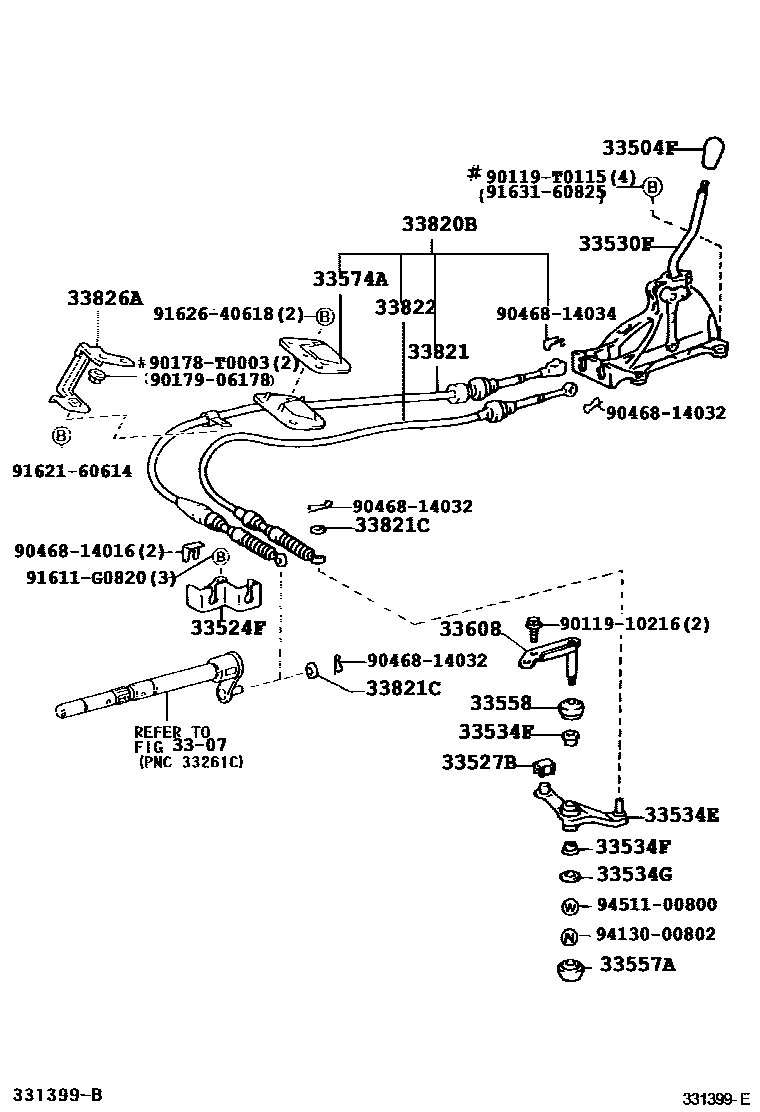

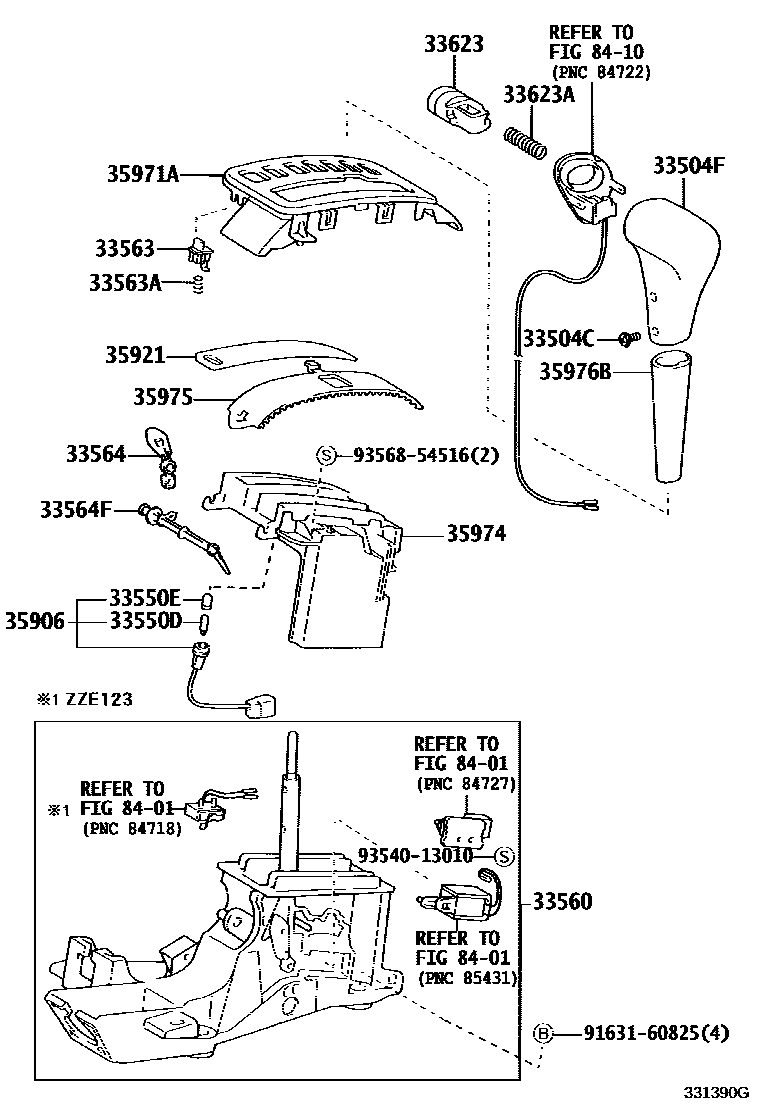

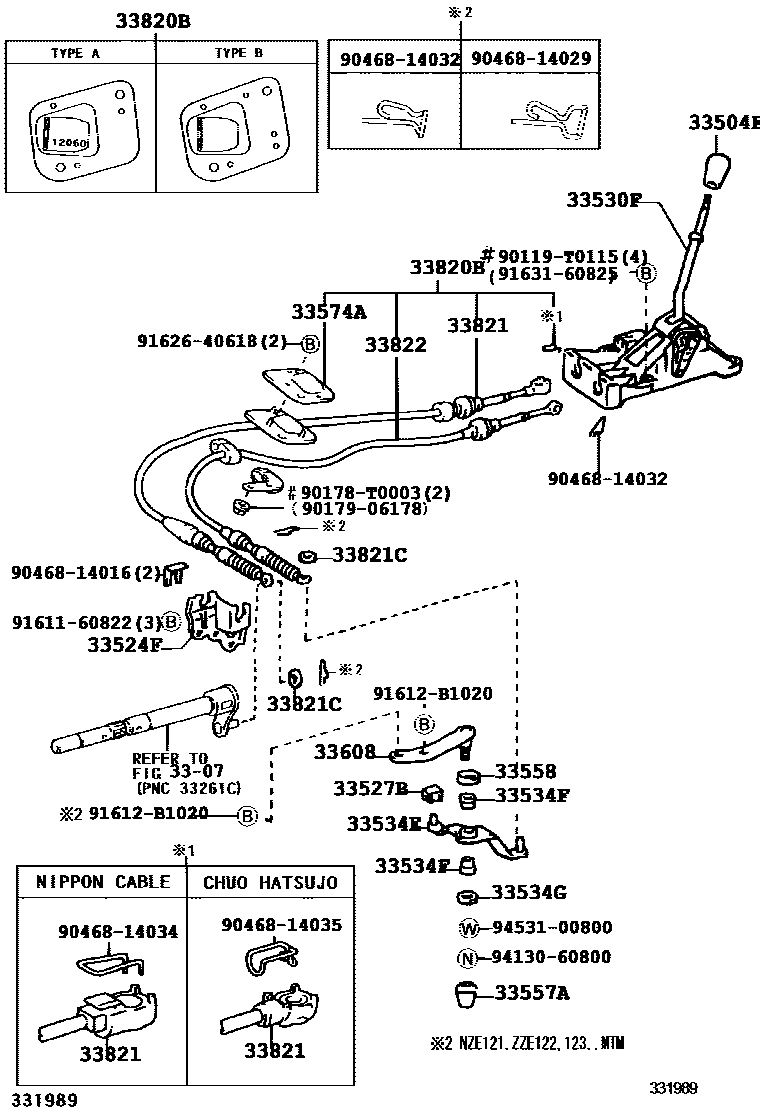

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504C | Screw (for securing shift lever knob) | 90159-40221 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 · 33524-42020 · 33524-52010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12750 · 33530-12751 · 33530-12760 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 · 33534-42010 · 33534-52010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 35955-74010 · 90981-11014 |
| 33550E | position indicator cover | 35956-52030 |
| 33554 | shift lever cover | 33554-12100 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-12050 · 33560-12051 · 33560-12070 · 33560-12071 · 33560-12140 |
| 33563 | Shift lock release button | 33563-12180 · 33563-12190 |
| 33563A | Compression spring (for shift lock release button) | 90501-05055 |
| 33564 | No. 1 shift lock release link | 33564-12130 |
| 33564F | No. 2 shift lock release link | 33564-12150 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12090 · 33574-12100 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-42010 · 33608-52010 · 33608-52020 |
| 33623 | Shift lever handle button | 33623-12190 |
| 33623A | Compression spring (for shift lever knob button) | 90501-06082 |
| 33820B | Transmission control cable assembly | 33820-12870 · 33820-12880 · 33820-12A20 · 33820-1A010 · 33820-1A011 · 33820-1A020 · 33820-1A040 · 33820-1A070 · 33820-1A080 · 33820-1A090 · 33820-1A110 · 33820-1A120 · 33820-1A140 · 33820-1A150 · 33820-1A151 · 33820-1A152 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12890 · 33821-12891 · 33821-1A070 · 33821-1A100 · 33821-1A110 · 33821-1A130 · 33821-1A140 · 33821-1A141 · 33821-1A142 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90179-08061 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12420 · 33822-12430 · 33822-12450 · 33822-12460 · 33822-12461 · 33822-12480 · 33822-12481 |
| 33823 | No. 1 transmission control cable bracket | 33823-12220 · 33823-12230 · 33823-12260 · 33823-12270 · 33823-20230 |
| 33826A | No. 2 transmission control cable bracket | 33826-12010 |
| 33829 | Transmission control cable bracket | 33829-12030 · 33829-12050 · 33829-12070 · 33829-12110 · 33829-20090 |
| 33880A | Parking lock cable assembly (for floor shift) | 33880-12030 · 33880-12050 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12190 · 35906-12200 |
| 35921 | control position indicator board | 35921-12520 · 35921-12530 · 35921-12560 |
| 35952 | Position indicator lampshade | 35952-12020 |
| 35971A | Position indicator light upper shell | 35971-12470 · 35971-12480 · 35971-12500 |
| 35972 | Position indicator light housing cover | 35972-12010 |
| 35974 | Position indicator light lower shell | 35974-12240 |
| 35975 | Slide cover (for position indicator light) | 35975-12290 · 35975-12350 · 35975-30270 |
