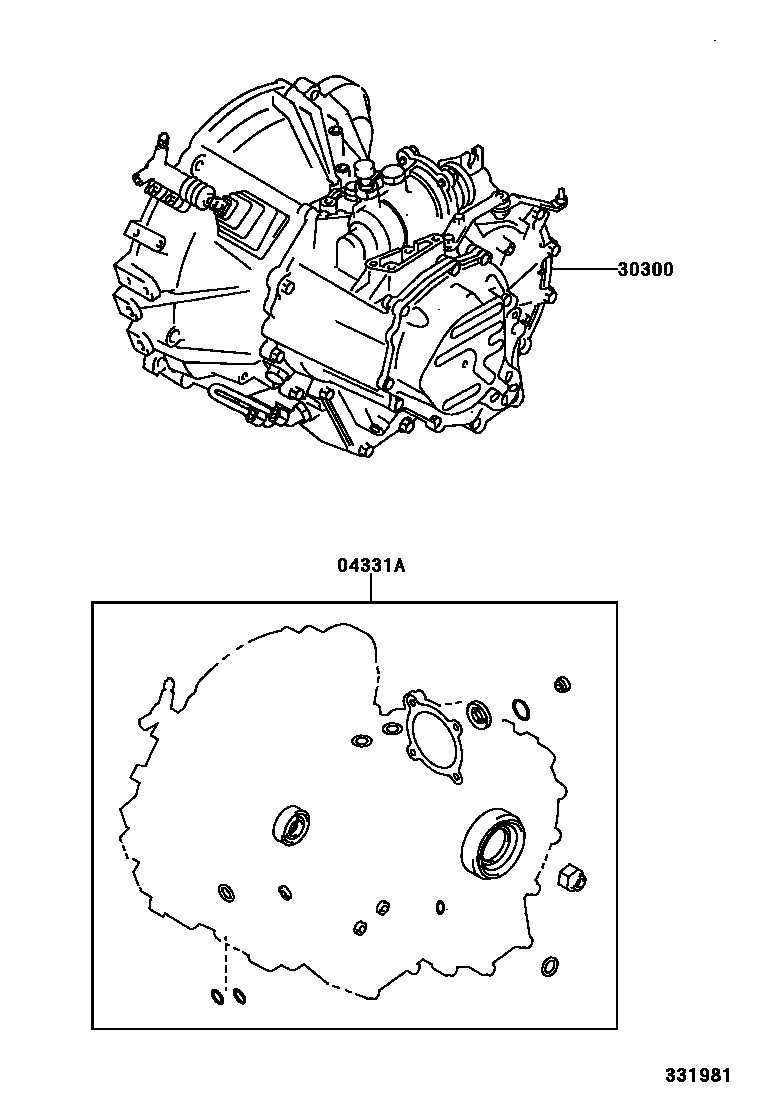

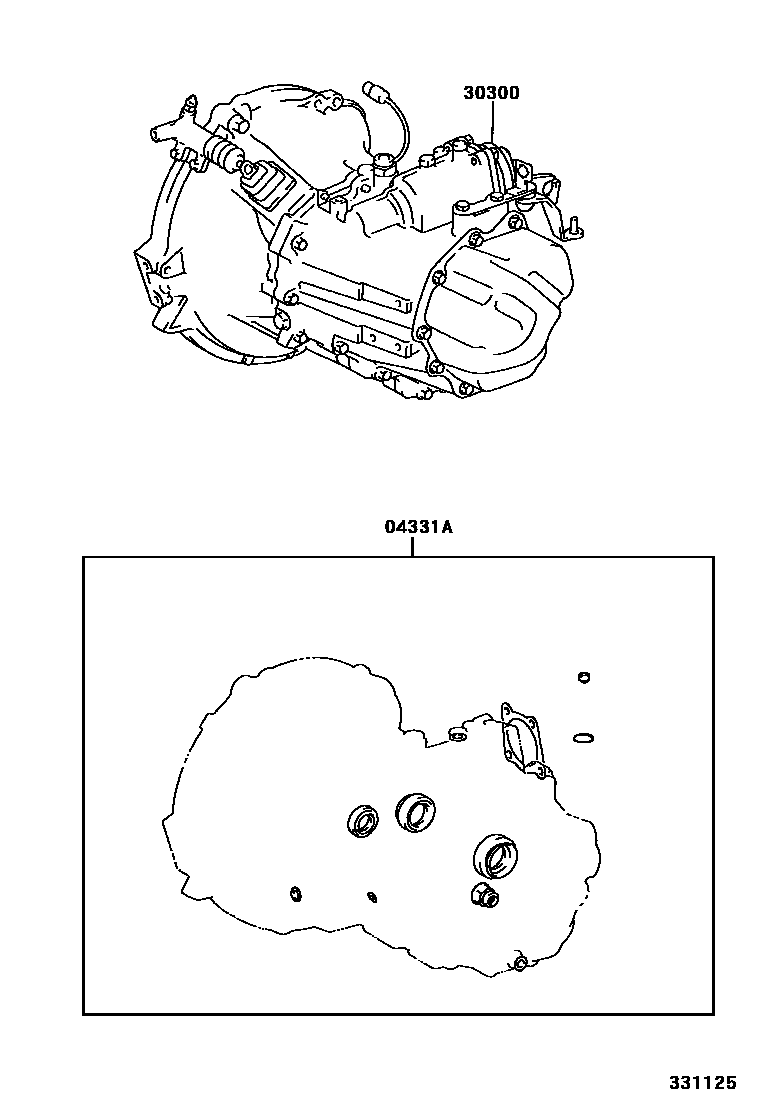

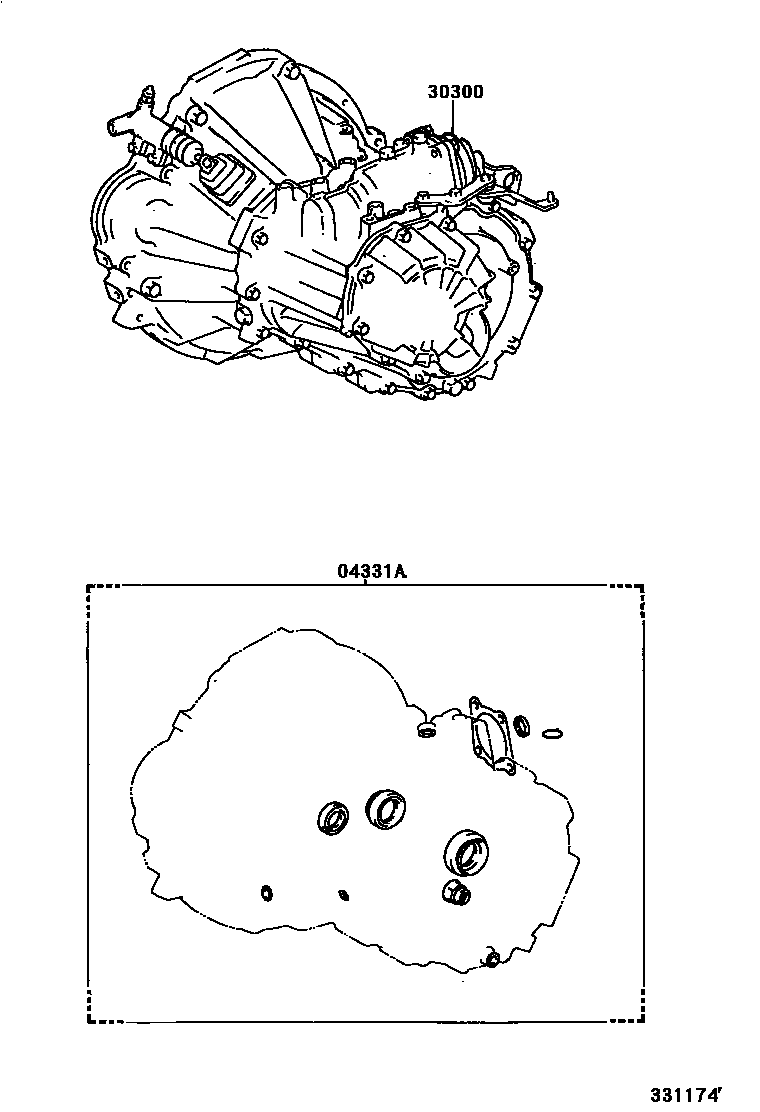

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12110 · 04331-12140 · 04331-12540 · 04331-12580 · 04331-20100 · 04331-28020 · 04331-52270 |
| 30300 | Manual transmission axle assembly | 30300-1A770 · 30300-1A790 · 30300-1A791 · 30300-1A792 · 30300-1A800 · 30300-1A801 · 30300-1A820 · 30300-1A821 · 30300-1A840 · 30300-1A841 |
