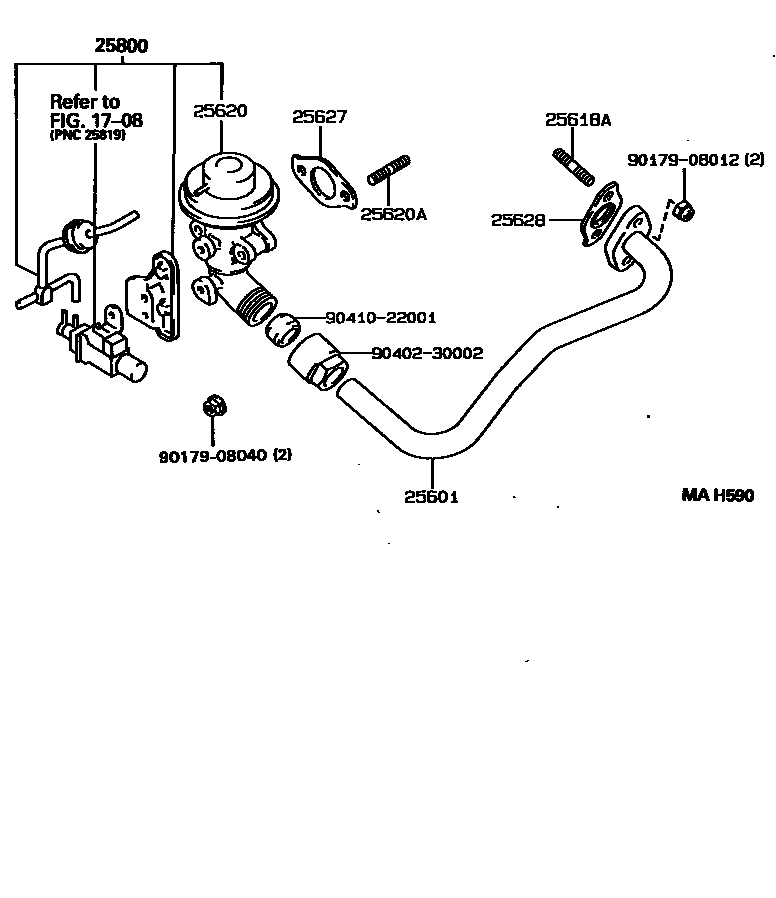

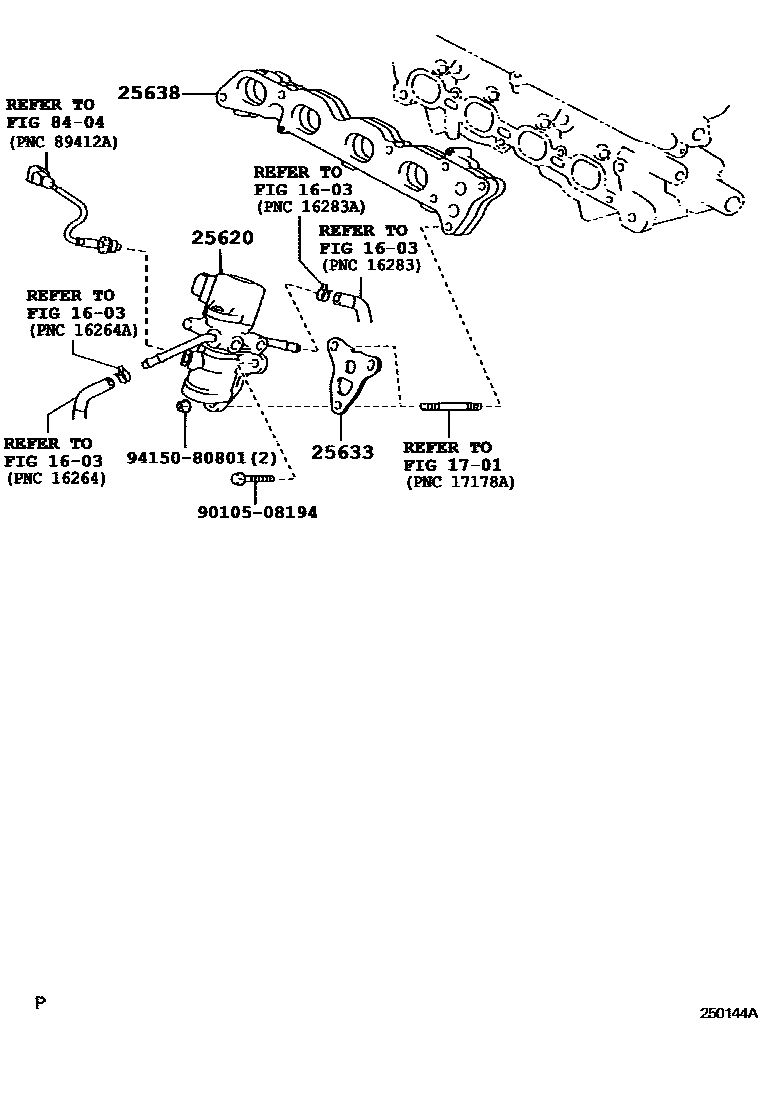

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-64071 |
| 25618A | Stud bolts (for EGR air inlet) | 92122-60822 |
| 25620 | EGR valve assembly | 25620-21010 · 25620-64200 |
| 25620A | Stud bolts (for EGR valve) | 90116-08198 |
| 25627 | EGR valve gasket | 25627-64030 |
| 25628 | EGR air intake gasket | 25628-64030 |
| 25633 | EGR valve gasket | 25633-21020 |
| 25638 | EGR discharge chamber | 25638-21020 |
| 25800 | Electronic EGR control valve assembly | 25800-64160 |
