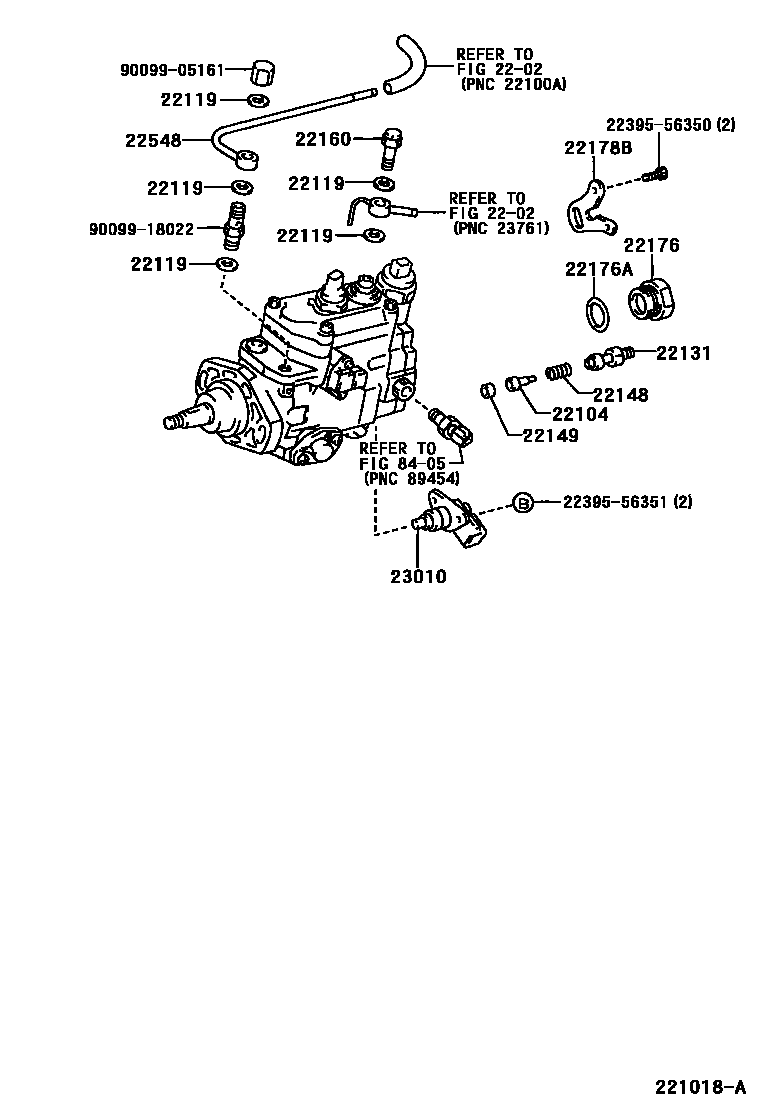

Toyota COROLLA 喷油泵体 — Figure 2203
Toyota COROLLA EPC diagram 2203, 喷油泵体, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22104 | Fuel injection pump delivery valve sub-assembly | 22104-6A640 |
| 22119 | Bleed device oil nozzle gasket | 90201-12109 |
| 22131 | Oil delivery valve pressing seat | 22190-6A680 |
| 22148 | Oil delivery valve spring | 22148-54010 |
| 22149 | Delivery valve gasket | 22149-56351 |
| 22160 | Overflow screw sub-assembly | 22160-54271 |
| 22176 | Distributor cap screw plug | 22176-54640 |
| 22176A | O-ring (for distributor cap screw plug) | 22193-54772 |
| 22178B | Bracket (for fuel injection pump assembly) | 22178-64010 |
| 22548 | Rotary oil nozzle | 22548-6E150 |
| 23010 | Timing control valve assembly | 23010-67010 |
