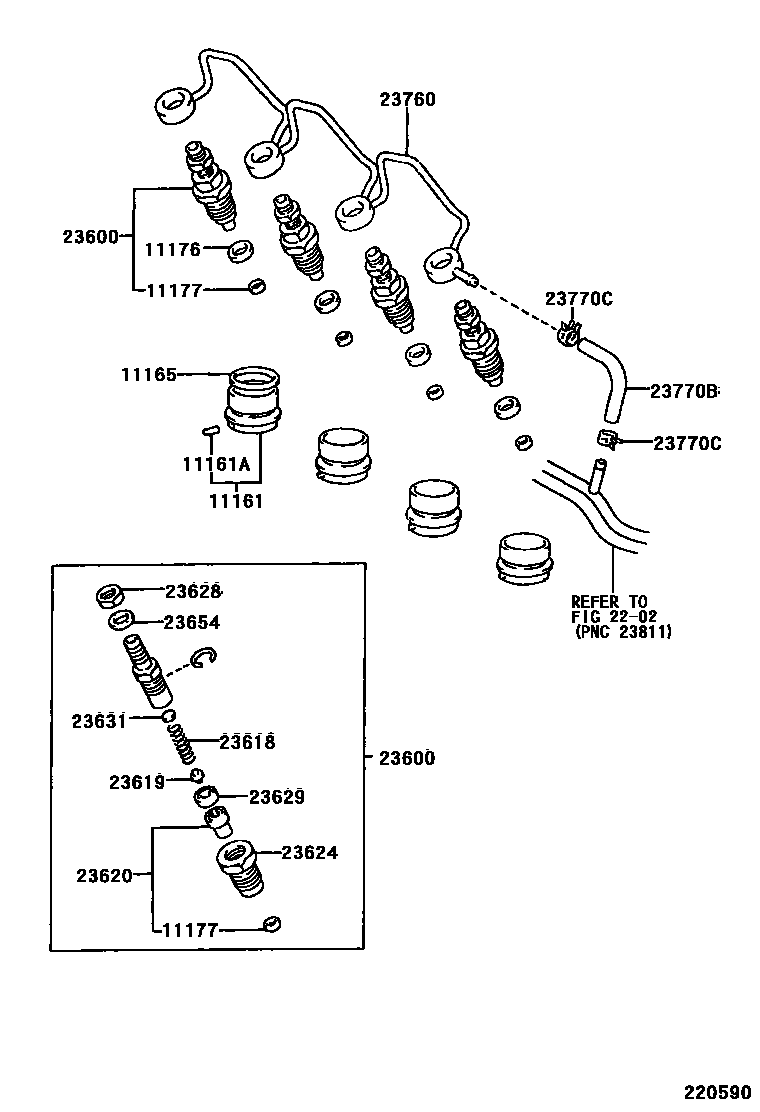

Toyota COROLLA 喷油嘴 — Figure 2201
Toyota COROLLA EPC diagram 2201, 喷油嘴, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11161 | combustion chamber | 11106-64170 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11165 | Gasket (for combustion chamber) | 11165-64021 · 11166-64021 |
| 11176 | Injector seat | 11176-64020 |
| 11177 | Injector seat gasket | 11177-64010 |
| 23600 | Injector body and injector assembly | 23600-69125 |
| 23618 | Injector body pressure adjustment spring | 23618-54730 |
| 23619 | Injector body compression pin | 23619-64010 |
| 23620 | Fuel injector assembly | 23620-69085 |
| 23624 | Fuel injector fixing nut | 23624-64041 |
| 23628 | Nut (for fixing the sealing ring) | 23628-64010 |
| 23629 | Spacer (for fuel injector) | 23629-54080 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-64010 · 23631-64011 · 23631-64012 · 23631-64013 · 23631-64014 · 23631-64015 · 23631-64016 · 23631-64017 · 23631-64018 · 23631-64019 · 23632-64010 · 23632-64011 · 23632-64012 · 23632-64013 · 23632-64014 · 23632-64015 · 23632-64016 · 23632-64017 · 23632-64018 · 23632-64019 · 23633-64010 · 23633-64011 · 23633-64012 · 23633-64013 · 23633-64014 · 23633-64015 · 23633-64016 · 23633-64017 · 23633-64018 · 23633-64019 · 23634-64010 · 23634-64011 · 23634-64012 · 23634-64013 · 23634-64014 · 23634-64015 · 23634-64016 · 23634-64017 · 23634-64018 · 23634-64019 · 23635-64010 · 23635-64011 · 23635-64012 |
| 23654 | Gasket (for sealing ring) | 23654-64010 |
| 23760 | Fuel injector overflow pipe assembly | 23761-64060 |
| 23770B | fuel hose | 23274-64010 |
| 23770C | Clip or clip (for fuel hose assembly) | 90467-10149 · 90467-11076 |
