Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 15 PNC and OE references.

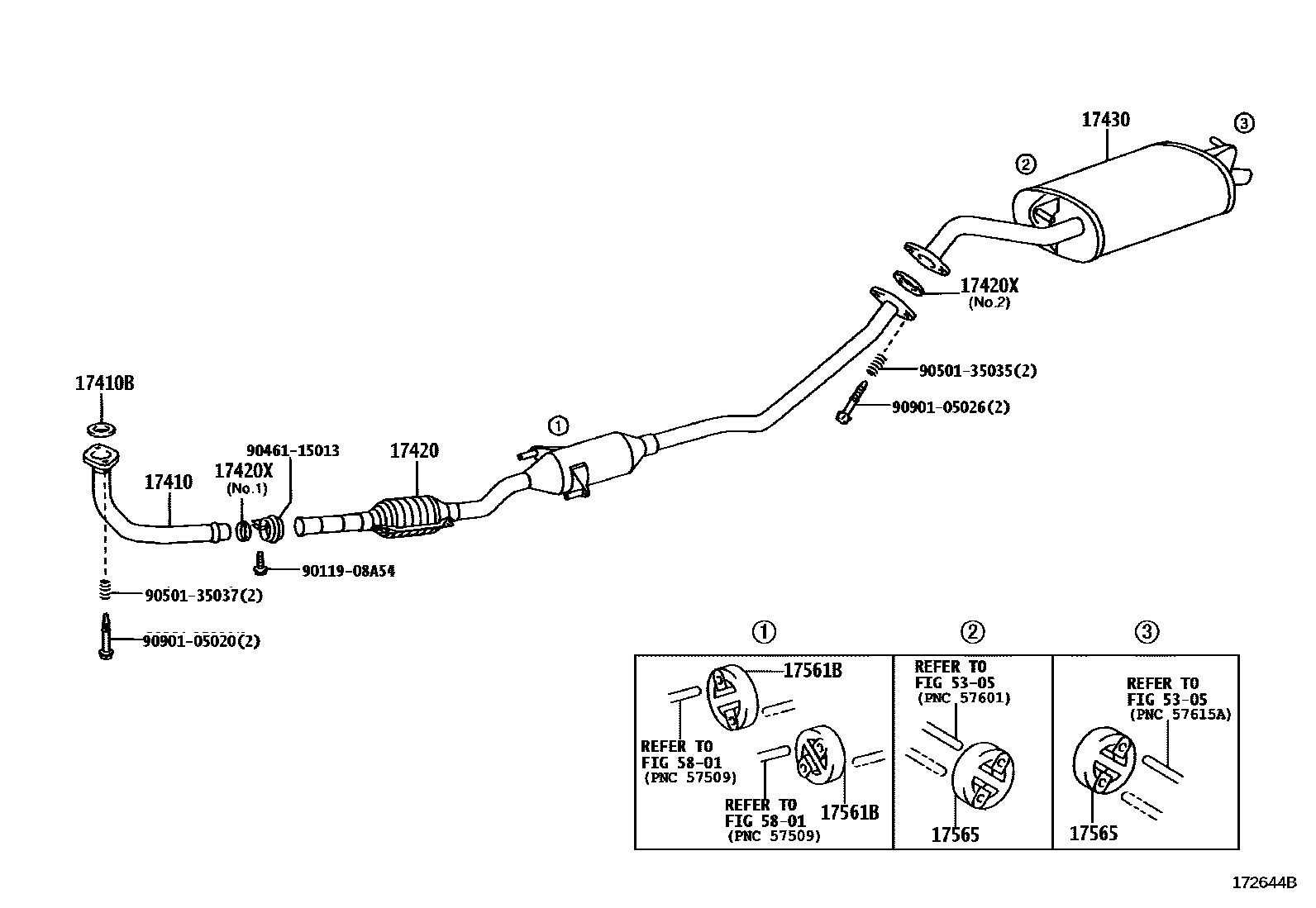

Toyota COROLLA Exhaust Pipe EPC diagram — 172644B
Exhaust Pipe — 172644B (200008 – 200404)

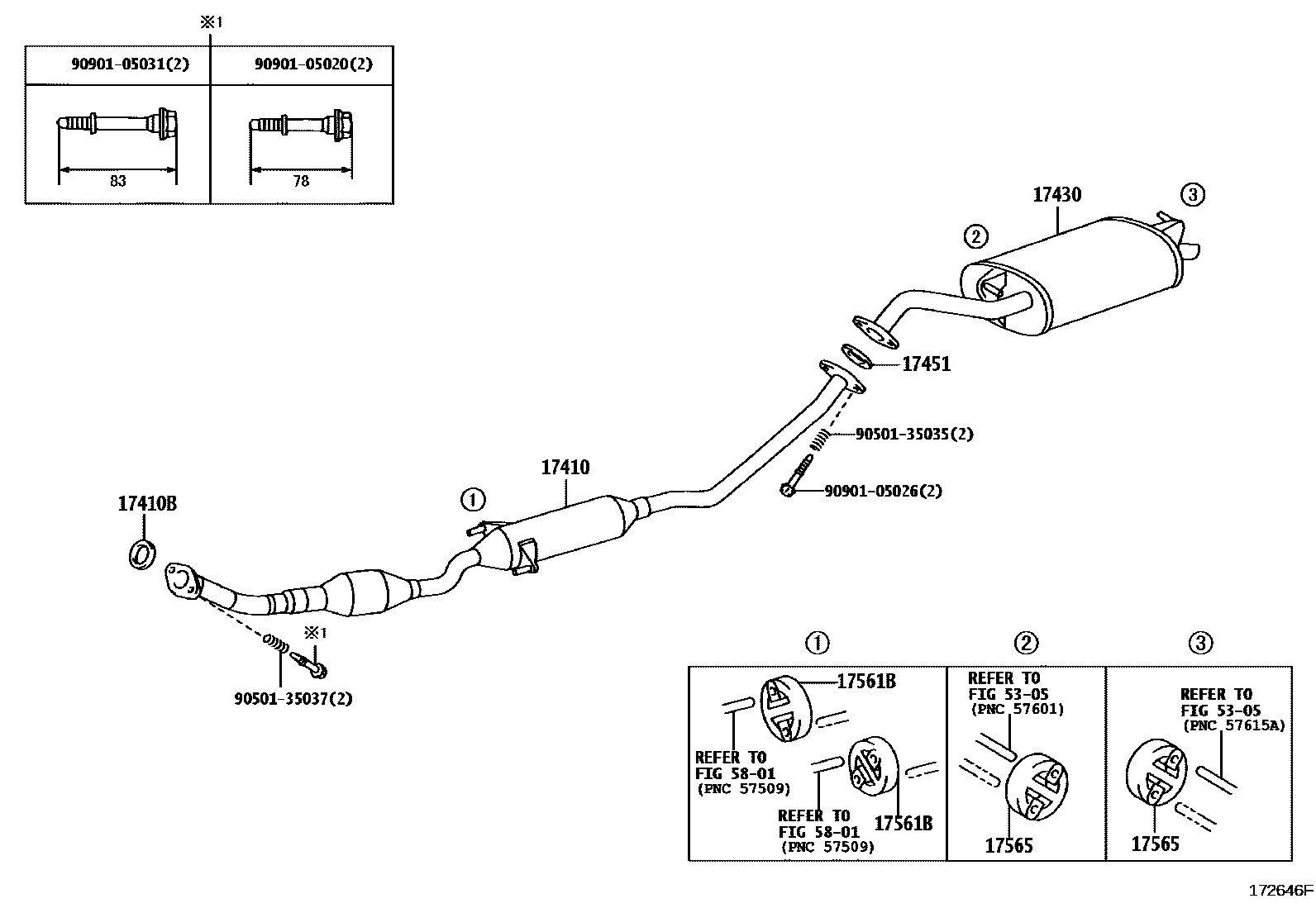

Toyota COROLLA Exhaust Pipe EPC diagram — 172646F
Exhaust Pipe — 172646F (200008 – 999999)

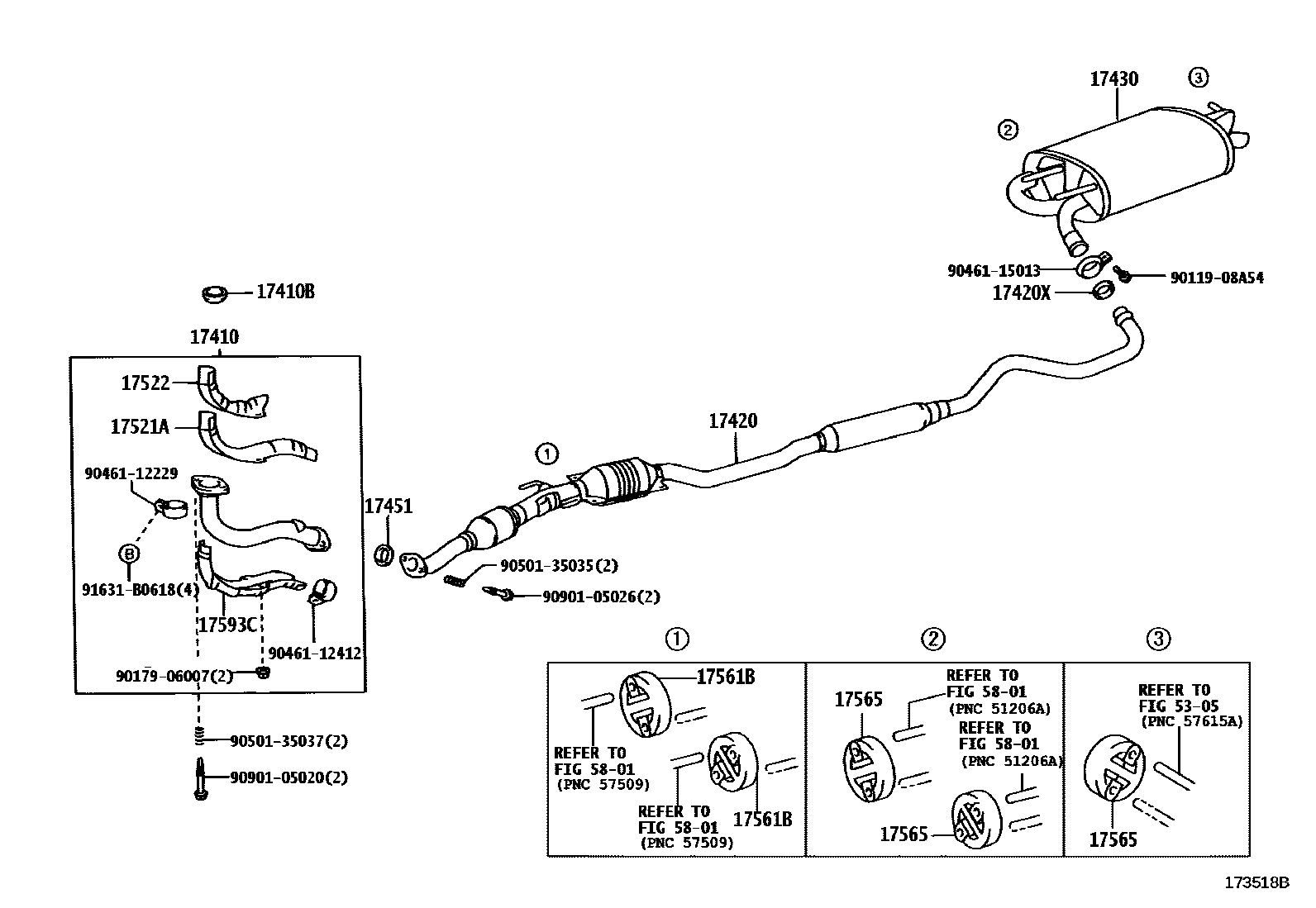

Toyota COROLLA Exhaust Pipe EPC diagram — 173518B
Exhaust Pipe — 173518B (200008 – 999999)

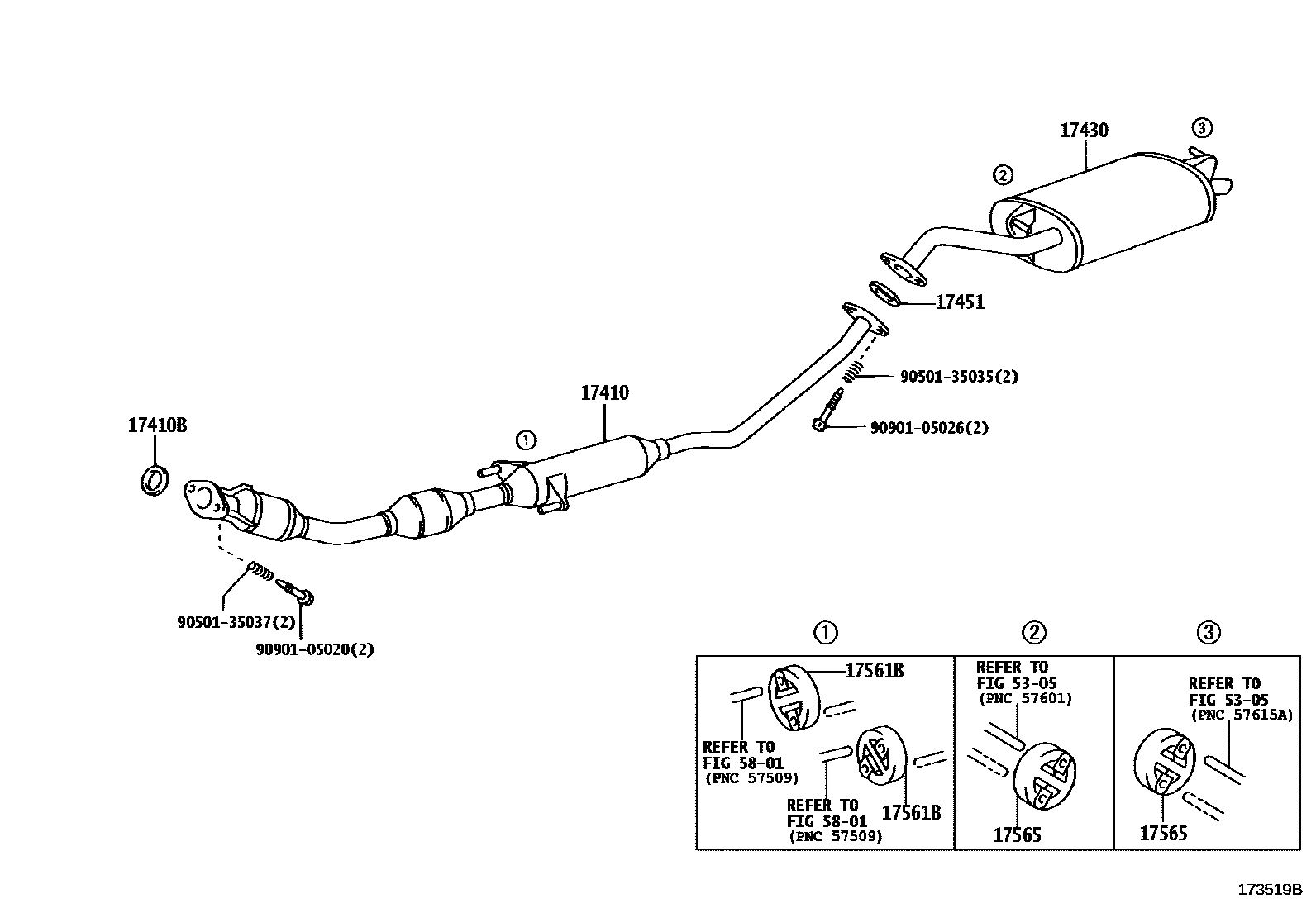

Toyota COROLLA Exhaust Pipe EPC diagram — 173519B
Exhaust Pipe — 173519B (200209 – 999999)

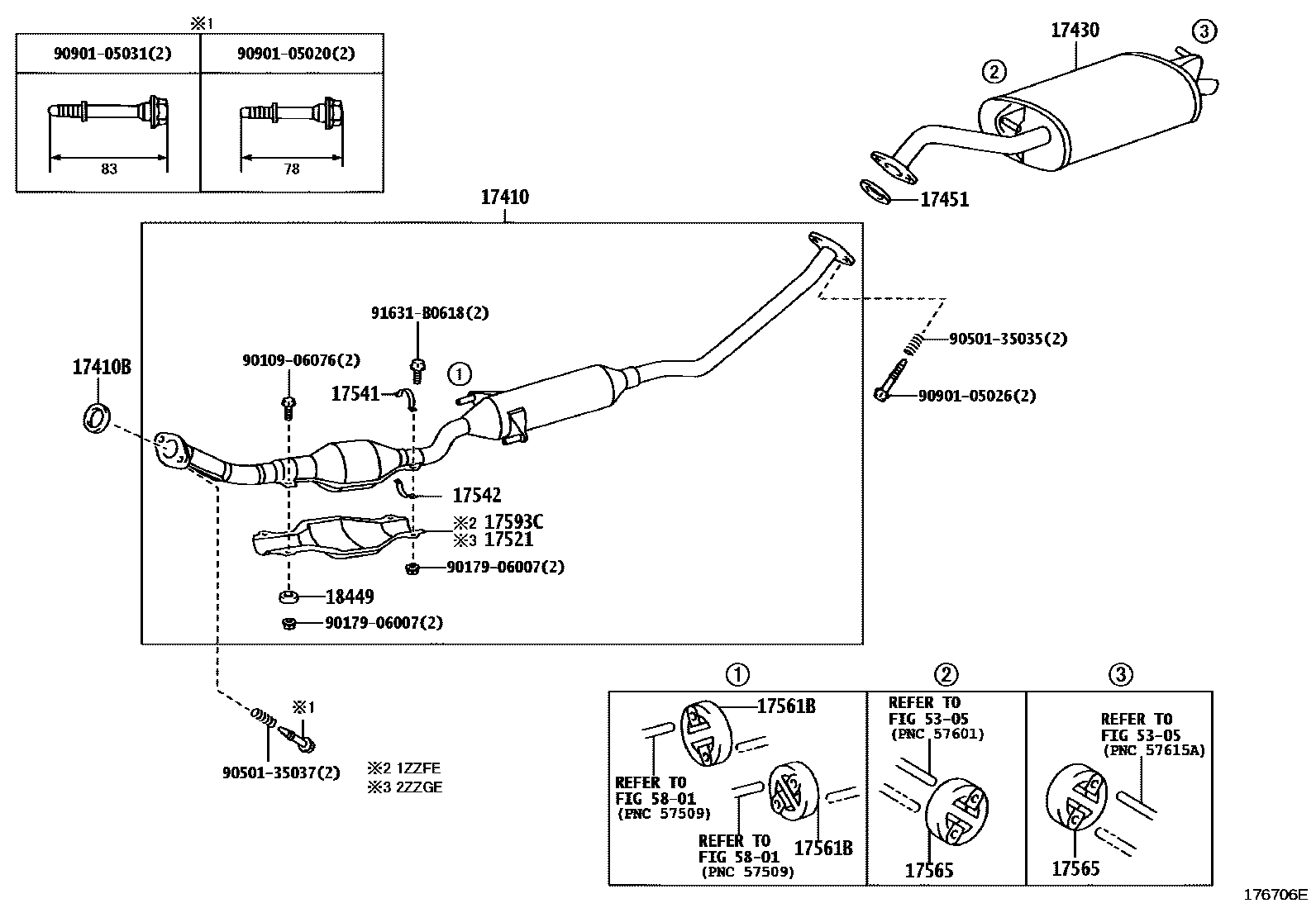

Toyota COROLLA Exhaust Pipe EPC diagram — 176706E
Exhaust Pipe — 176706E (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-21220 · 17410-21280 · 17410-21590 · 17410-21600 · 17410-21650 · 17410-22180 · 17410-22182 · 17410-22200 · 17410-22210 · 17410-22290 · 17410-22420 · 17410-6A040
17410BExhaust pipe gasket17451-21030 · 17451-22050 · 17451-22070 · 90917-06080
17420Central exhaust pipe assembly17420-21080 · 17420-21120 · 17420-22040 · 17420-22070 · 17420-64380
17420XCenter exhaust pipe liner17451-64030 · 90917-06082
17430Exhaust tailpipe assembly17430-21150 · 17430-21180 · 17430-21430 · 17430-21431 · 17430-22170 · 17430-22172 · 17430-22180 · 17430-22400 · 17430-22401 · 17430-6A310 · 17430-6A311
17451Exhaust pipe gasket17451-16030 · 17451-20010 · 17451-21050 · 17451-23010 · 17451-64030
17521No. 1 front exhaust pipe protection device17521-22020
17521ANo. 1 upper exhaust pipe protection device17521-21110 · 17521-21120 · 17521-22050 · 17521-22060
17522No. 2 upper exhaust pipe protection device17522-21030 · 17522-21040 · 17522-22030 · 17522-22040
17541No. 1 exhaust pipe protection device stay17541-42010 · 17541-50010
17542No. 2 exhaust pipe protection device stay17542-42010 · 17542-50010
17561BNo. 1 exhaust pipe lifting lug17565-21030
17565No. 5 exhaust pipe lifting lug17565-21040
17593CNo. 1 lower exhaust pipe protection device17593-21040 · 17593-21070 · 17593-22020 · 17593-22070 · 17593-22090
18449Three-way catalytic converter protection device gasket18449-74010
