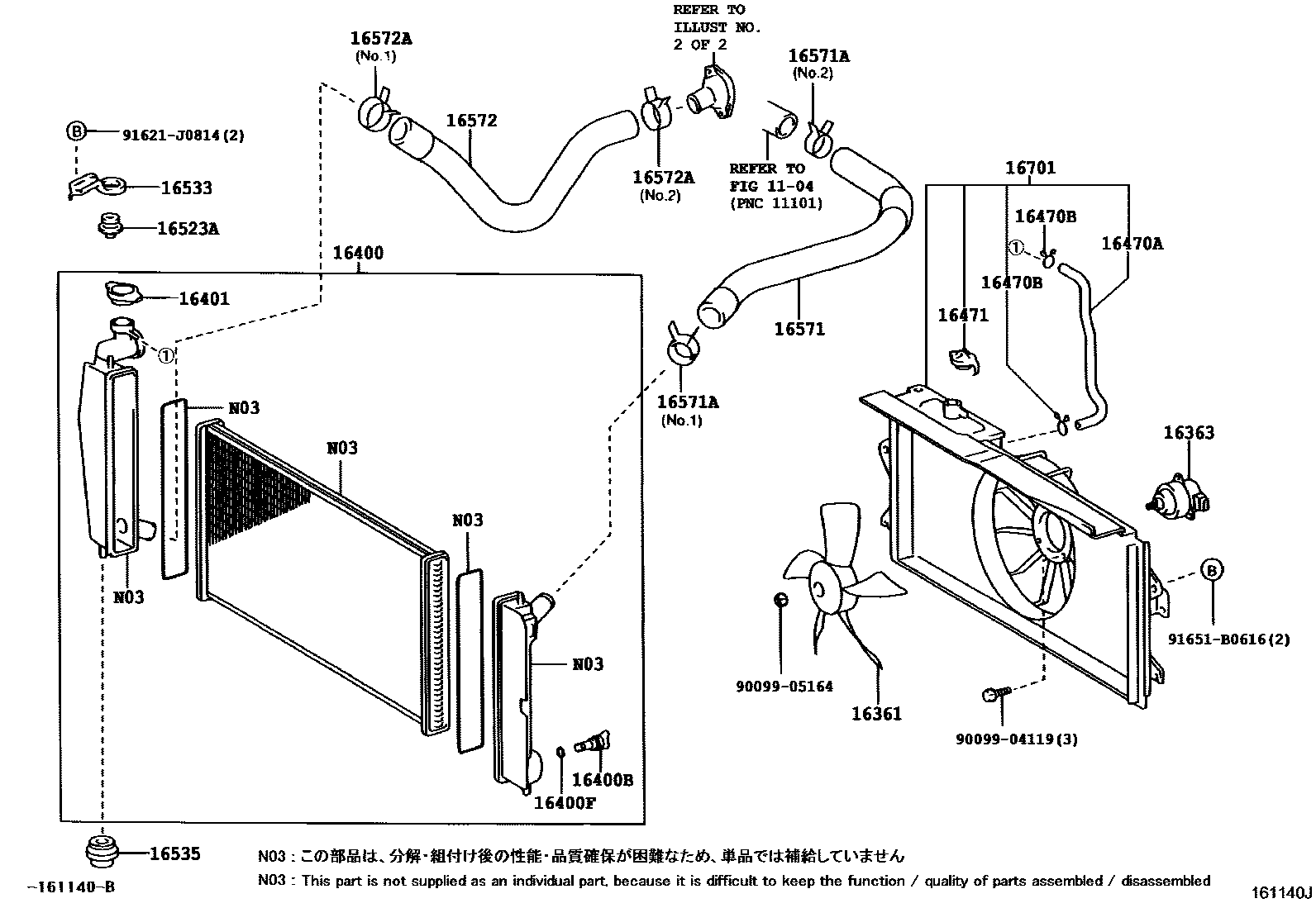

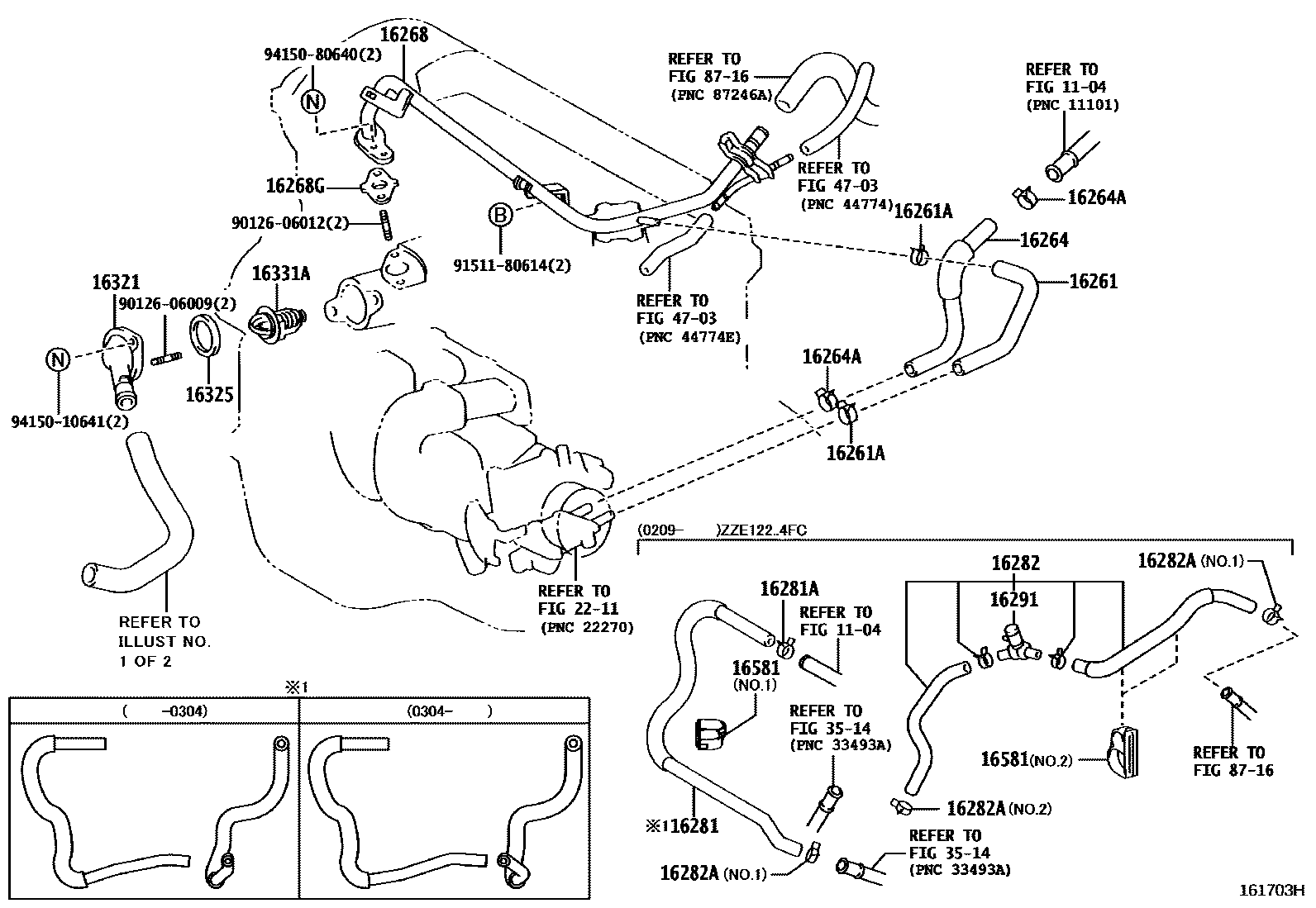

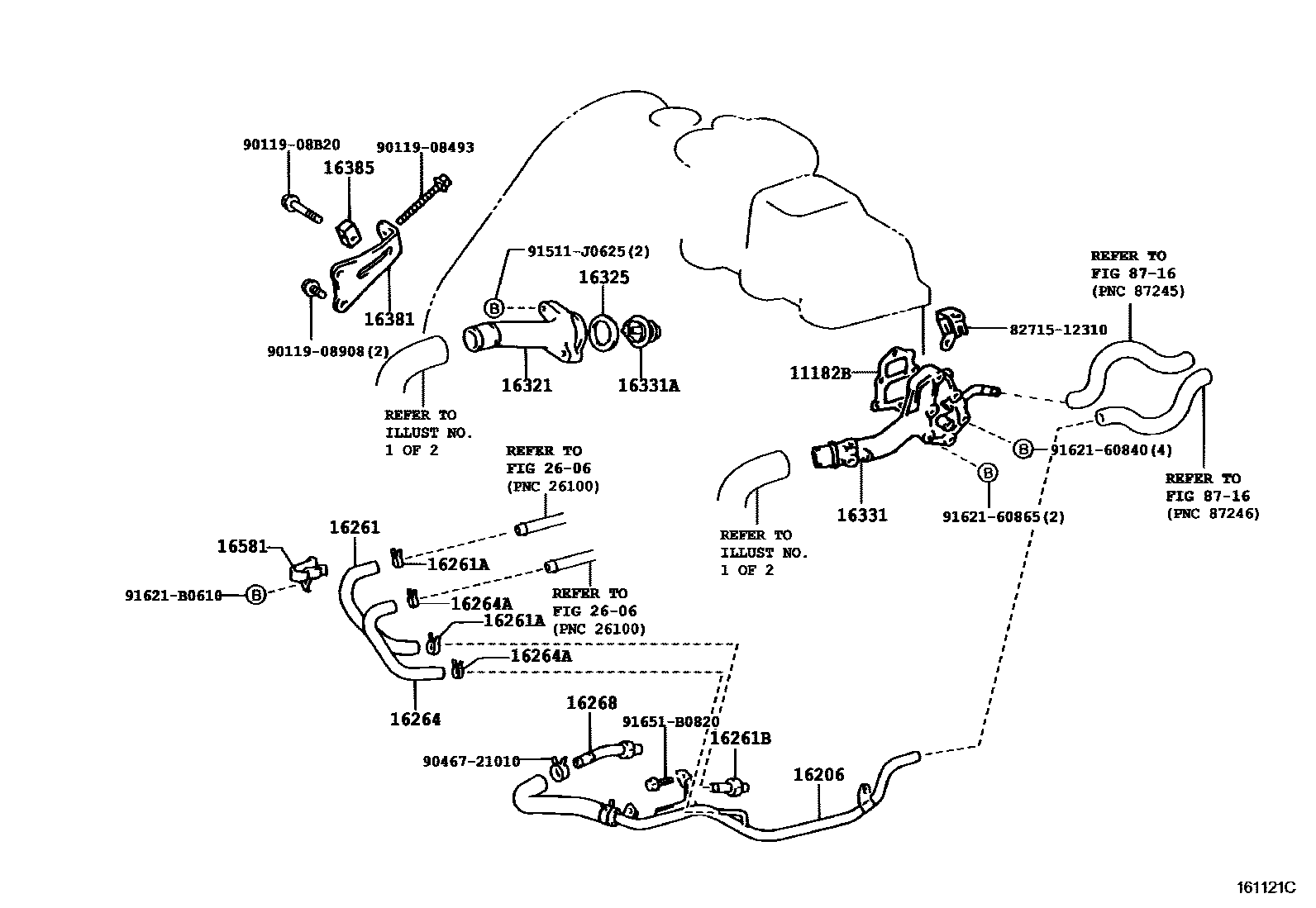

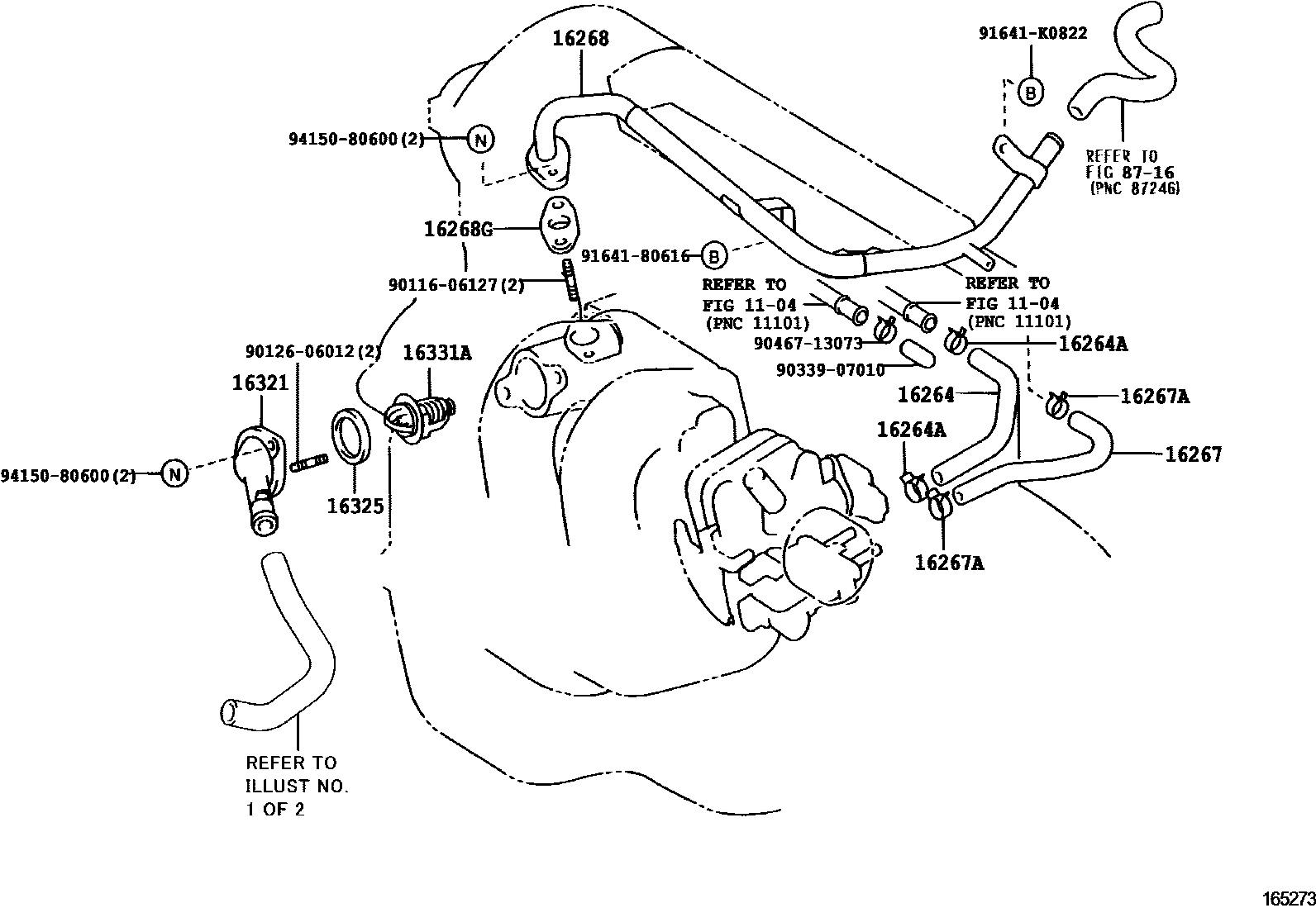

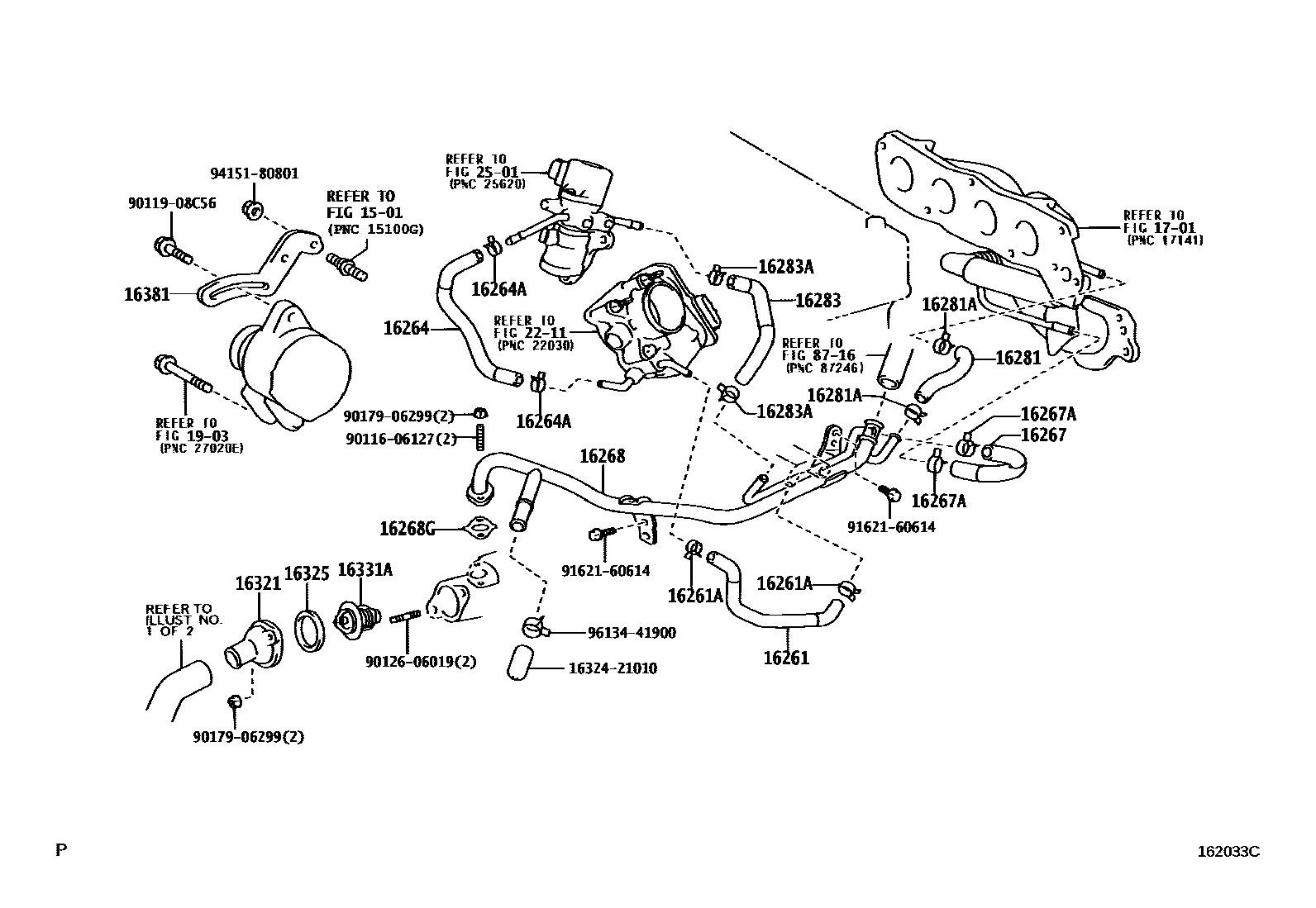

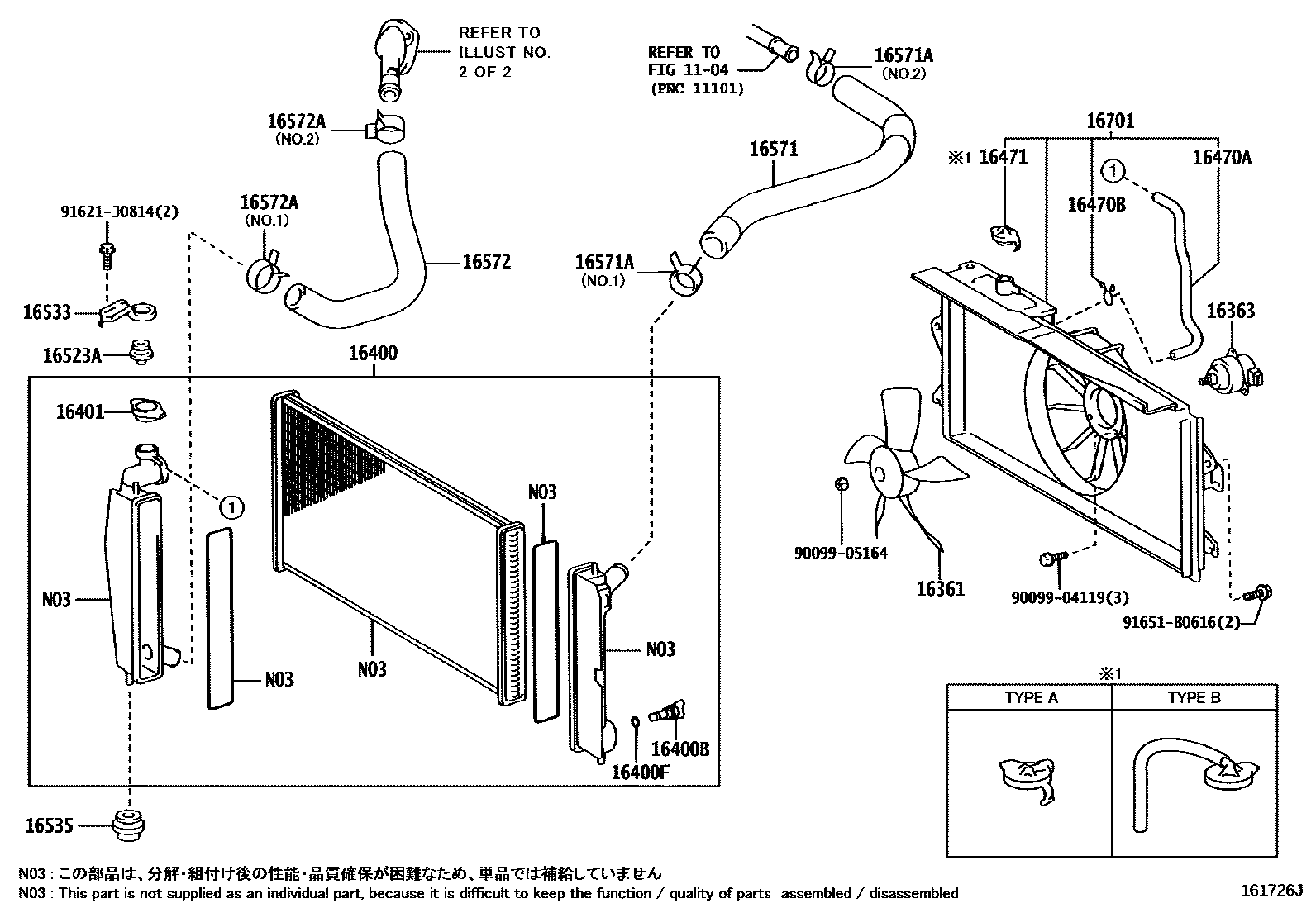

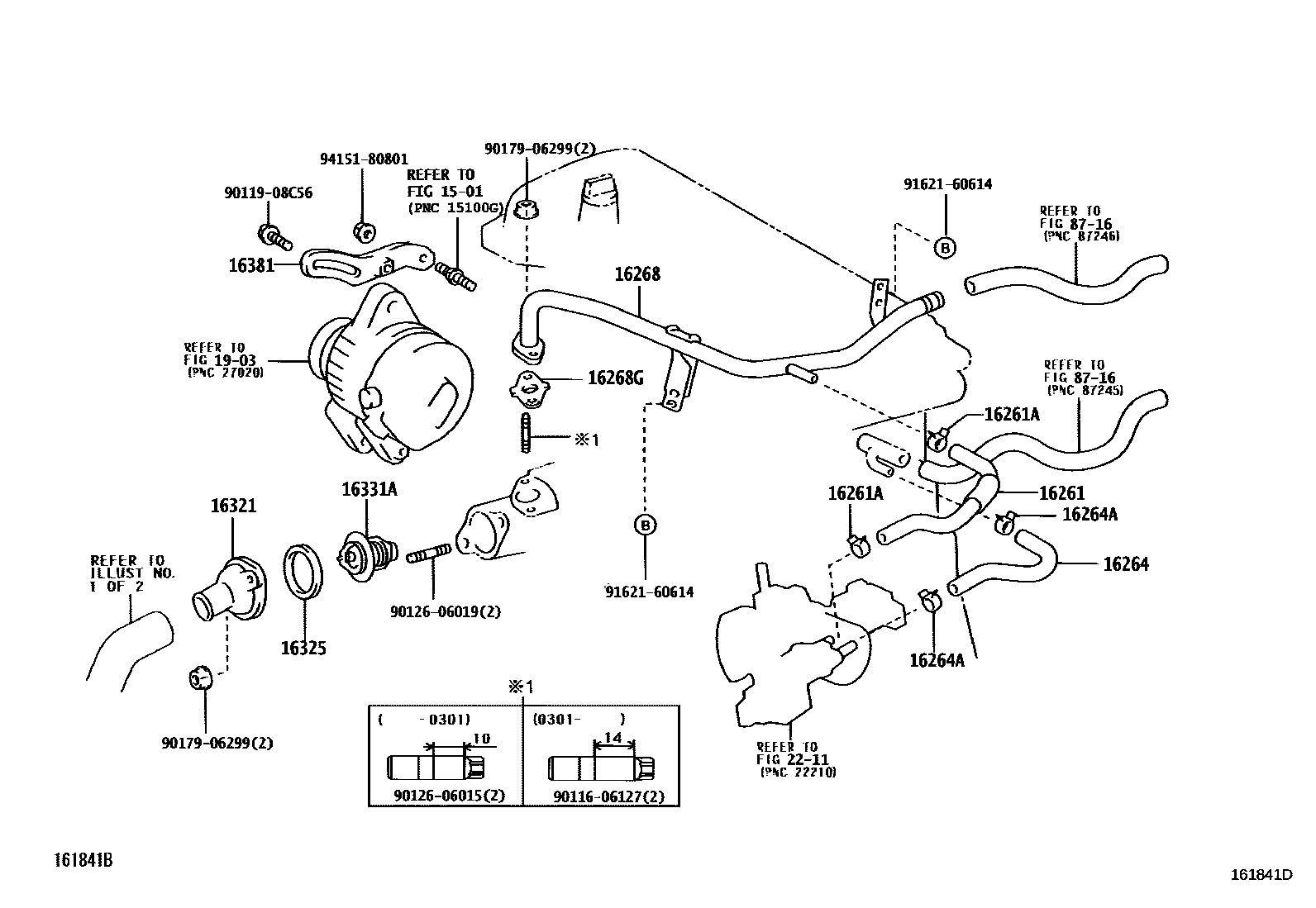

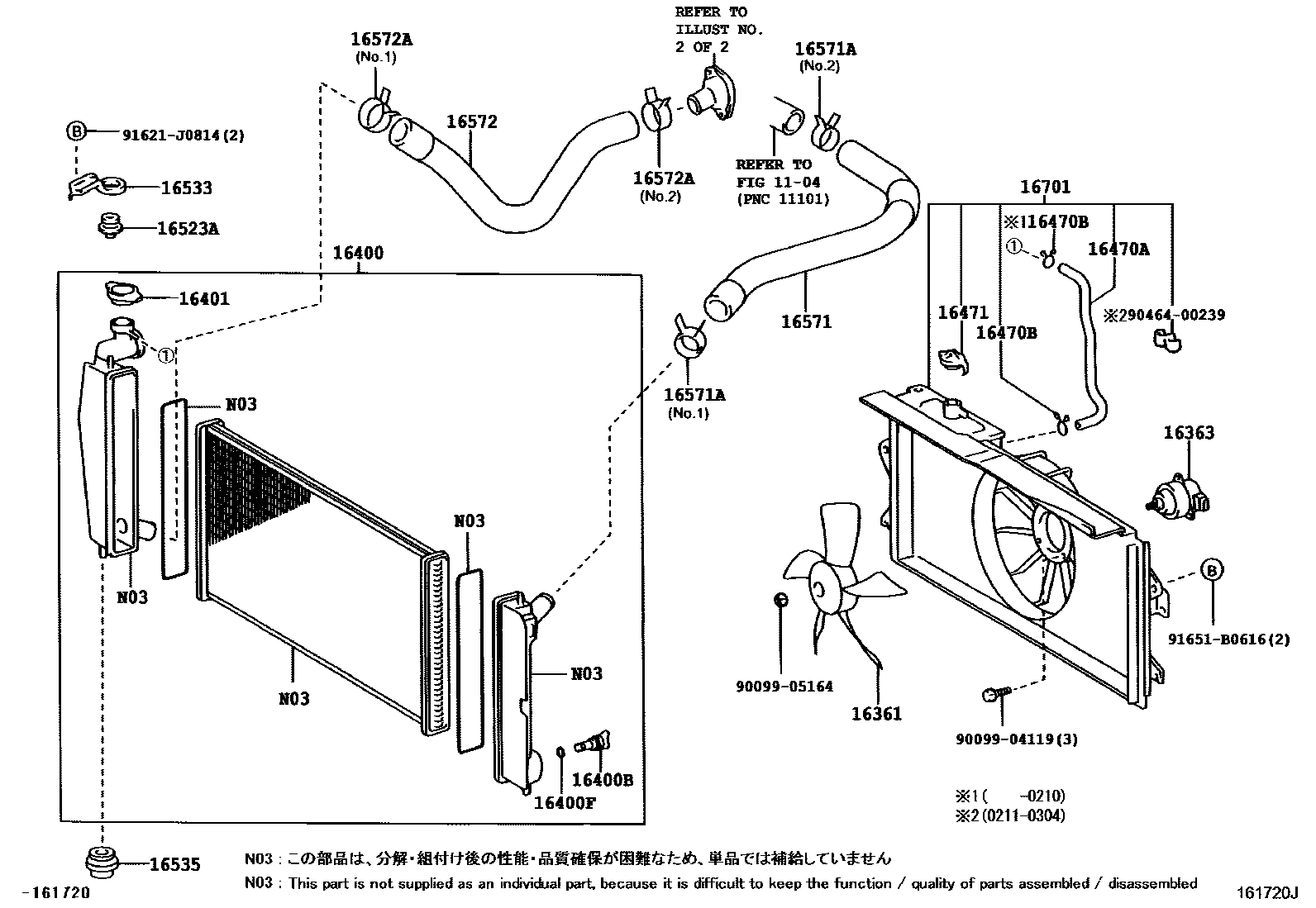

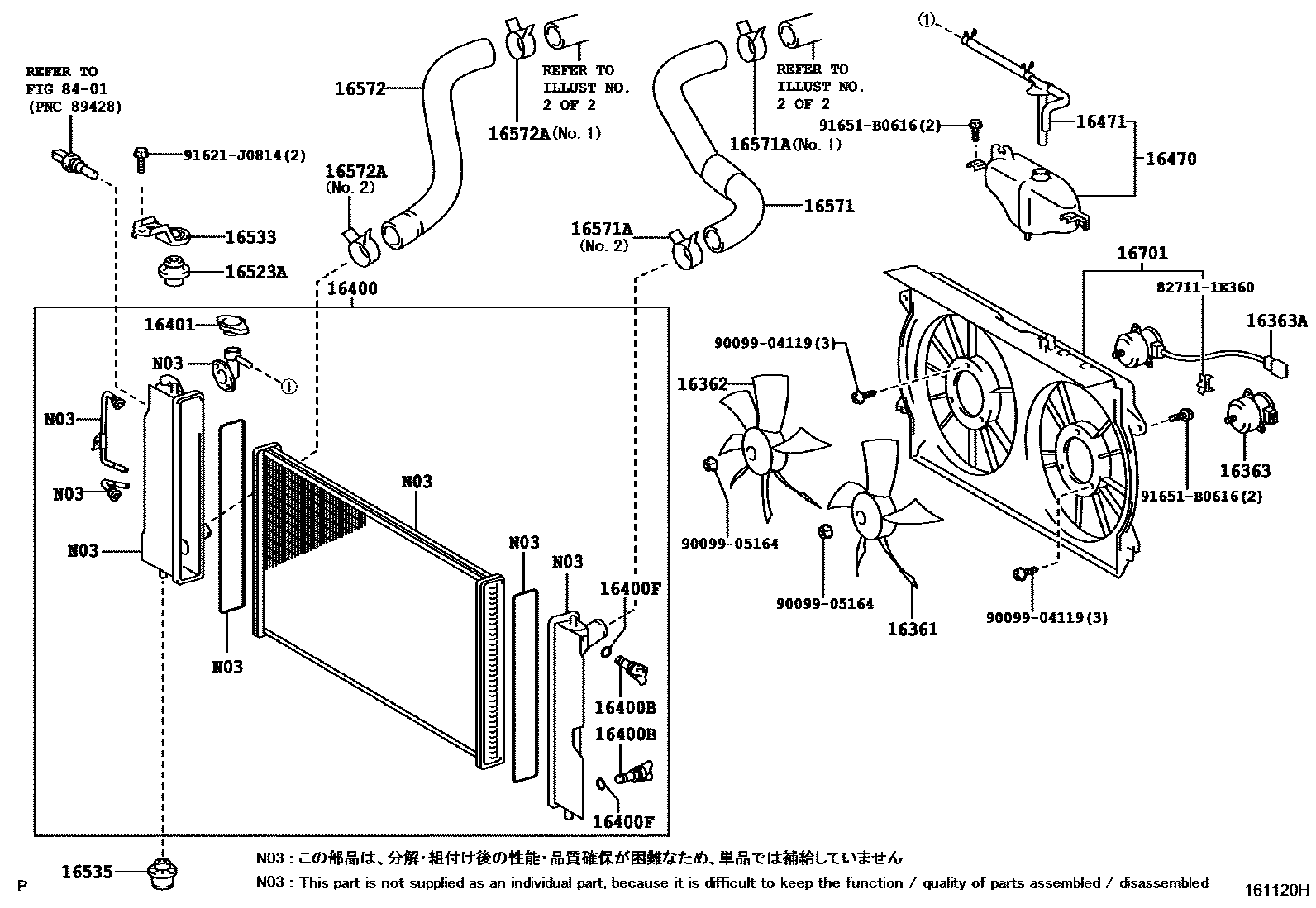

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-64070 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D030 · 16261-21020 · 16261-21070 · 16261-22080 · 16261-64140 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13054 · 90467-15022 · 96135-51300 · 96137-41501 |
| 16261B | Connector (for water bypass hose) | 90404-53059 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D020 · 16264-21020 · 16264-21060 · 16264-22090 · 16264-64160 · 16264-88601 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13054 · 90467-13073 · 90467-13128 · 96135-51300 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-21020 · 16267-88602 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13054 · 90467-13073 · 90467-13128 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-21020 · 16268-21021 · 16268-21022 · 16268-21050 · 16268-22080 · 16268-22100 · 16268-22130 · 16268-64100 · 16268-88601 |
| 16268G | Gasket (for water bypass pipe) | 16258-21020 · 16258-22010 · 16258-88600 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-21020 · 16281-22050 · 16281-22060 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13054 · 96134-41900 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-22040 · 16282-22090 · 16282-22091 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-19022 · 96134-41900 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-21010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90467-13054 |
| 16291 | water hose connector | 16291-22011 |
| 16321 | water inlet | 16321-21020 · 16321-22070 · 16321-64020 · 16321-88600 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H020 · 16325-62010 · 16325-63011 |
| 16331 | Water outlet | 16331-64150 |
| 16331A | thermostat | 90916-03046 · 90916-03084 · 90916-03093 · 90916-03125 · 90916-03126 · 90916-03129 |
| 16361 | Fan | 16361-0D030 · 16361-21060 · 16361-21070 · 16361-64110 |
| 16362 | Fan No. 2 | 16361-22080 |
| 16363 | cooling fan motor | 16363-21030 · 16363-21050 · 16363-23020 · 16363-23030 · 16363-28150 · 16363-64190 · 16363-64240 · 16363-70010 |
| 16363A | Cooling fan motor No. 2 | 16363-64200 · 16363-64230 |
| 16381 | Fan belt adjustment lever | 16381-21020 · 16381-21030 · 16381-21040 · 16381-64180 |
| 16385 | Fan belt adjustment slider | 16385-64011 |
| 16400 | Radiator assembly | 16400-21130 · 16400-21140 · 16400-21150 · 16400-21160 · 16400-21180 · 16400-6A290 · 16400-6A300 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16470 | Radiator reservoir assembly | 16470-64270 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-21030 · 16405-64110 · 16471-23010 |
| 16523A | Radiator bracket cushion | 16523-21020 |
| 16533 | Radiator upper bracket | 16533-21020 |
| 16535 | Radiator lower support | 16504-21010 · 16504-21020 · 16504-64010 · 16535-21040 · 16535-21050 · 16535-27010 · 90480-40016 |
| 16571 | Radiator water inlet hose | 16571-21030 · 16571-21090 · 16571-22070 · 16571-22150 · 16571-22151 · 16571-64370 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-37002 · 90466-41008 · 90467-34004 · 90467-37005 · 90467-41002 · 96136-43901 · 96136-44301 |
| 16572 | Radiator outlet hose | 16572-21030 · 16572-22070 · 16572-22080 · 16572-22110 · 16572-64350 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-35001 · 90466-37002 · 90466-41008 · 90467-34004 · 90467-37005 · 90467-41002 · 96136-43901 · 96136-44301 |
| 16581 | Hose clamp (for water hose) | 16581-22060 · 16581-22070 · 16581-64010 |
| 16701 | Fan cover sub-assembly | 16711-21080 · 16711-27120 · 16711-64520 |
