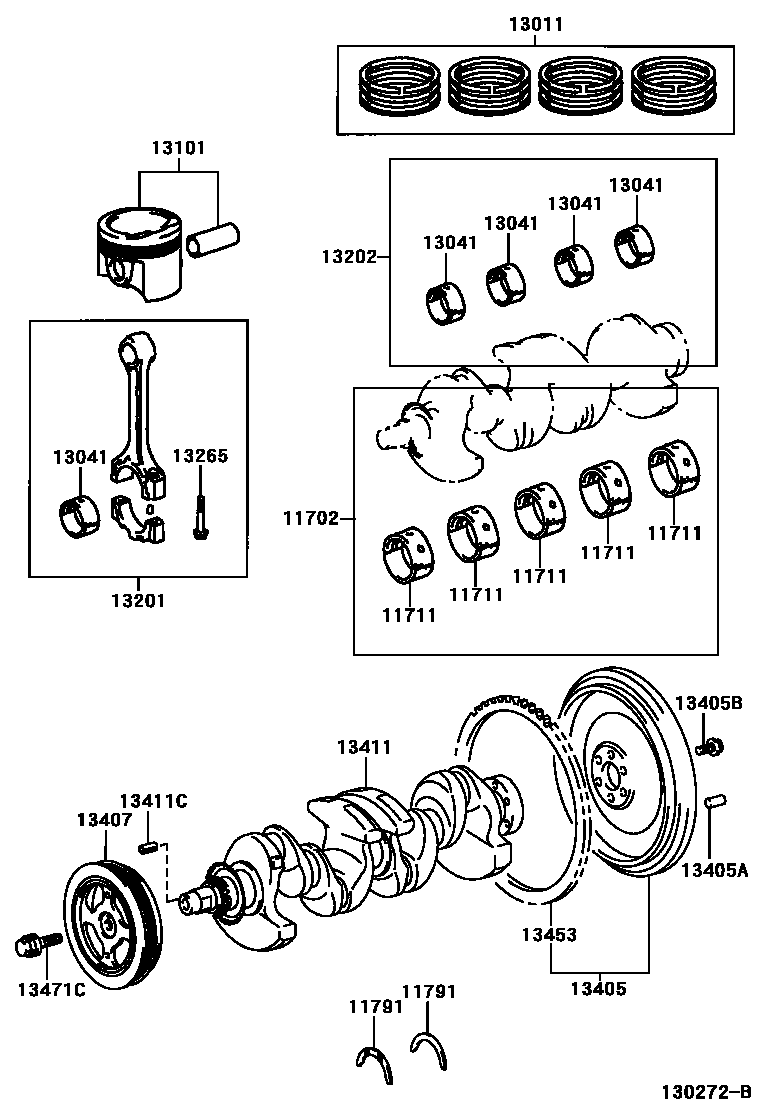

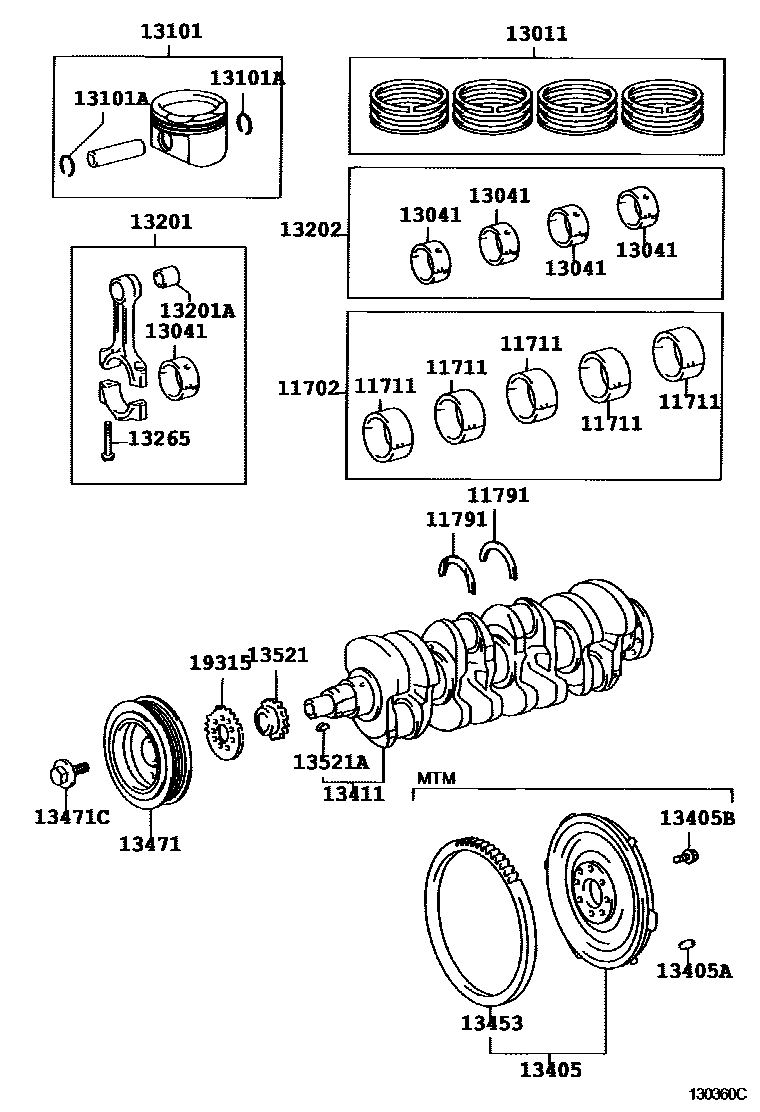

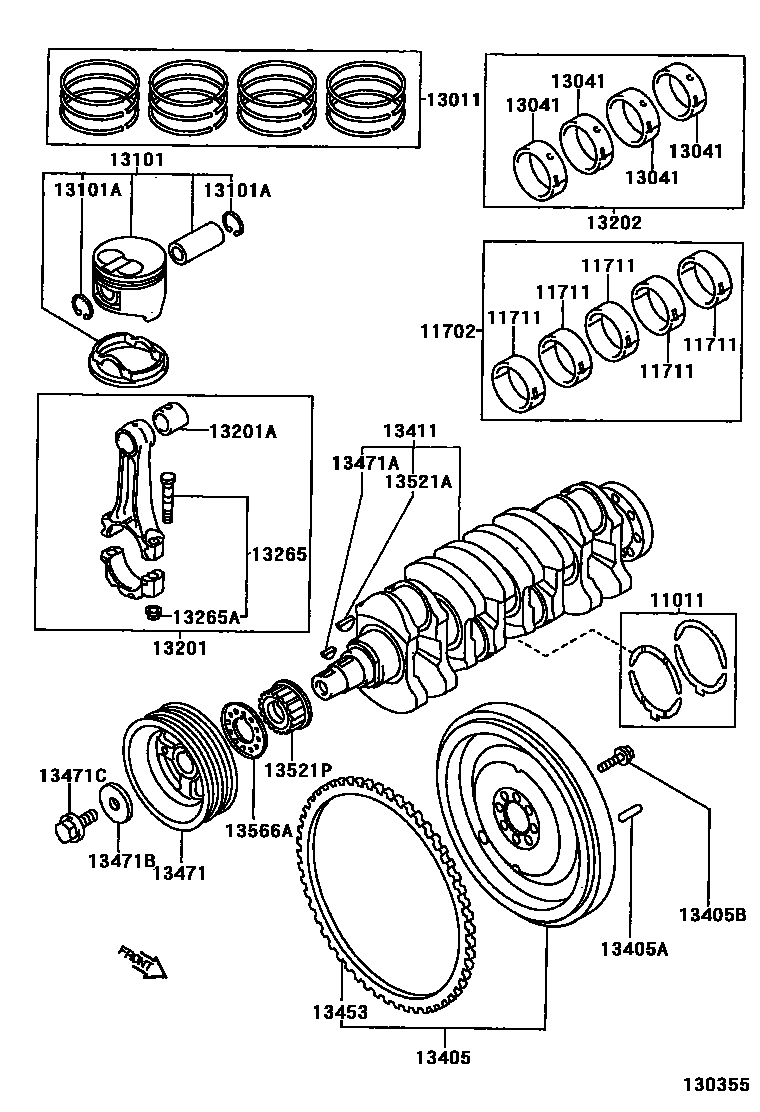

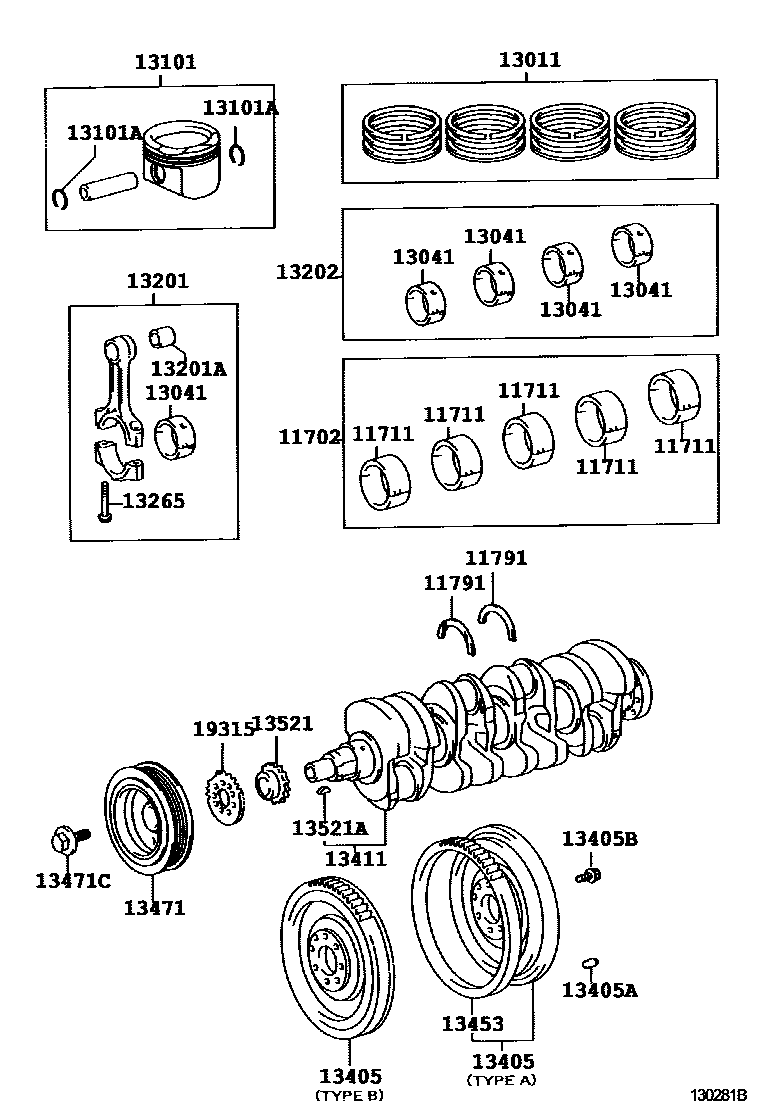

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-64010 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-21010 · 11704-21031 · 11704-21040 · 11704-22011 · 11704-22021 · 11704-22030 · 11704-27021 · 11704-27022 · 11704-27023 · 11704-88600 |
| 11711 | crankshaft bearings | 11701-22010 · 11701-88600 |
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-37010 · 11792-21010 · 11792-22020 · 11793-21010 · 11793-22020 |
| 13011 | Piston ring assembly | 13011-21040 · 13011-21041 · 13011-21050 · 13011-21080 · 13011-21090 · 13011-22090 · 13011-22150 · 13011-22190 · 13011-22200 · 13011-22230 · 13011-64213 · 13011-88601 · 13013-64213 |
| 13101 | Piston sub-assembly with pin | 13101-21030 · 13101-21040 · 13101-21070 · 13101-21080 · 13101-21090 · 13101-21120 · 13101-22030 · 13101-22031 · 13101-22032 · 13101-22140 · 13101-22141 · 13101-22180 · 13101-88601 · 13103-64200 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 · 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-29038 · 13201-29075 · 13201-29095 · 13201-29115 · 13201-29176 · 13201-29425 · 13201-29715 · 13201-29735 · 13201-64032 |
| 13201A | Bushing (for connecting rod small end) | 90999-73138 · 90999-73140 · 90999-73142 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-21030 · 13204-21031 · 13204-22023 · 13204-22024 · 13204-64072 · 13204-88600 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 · 13265-22030 · 13265-49045 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-10042 |
| 13405 | Flywheel sub-assembly | 13405-21020 · 13405-21030 · 13405-64070 · 13405-88600 · 13451-22020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10071 · 90910-02103 · 90913-01024 |
| 13407 | Crankshaft damper sub-assembly | 13407-21020 · 13407-21030 · 13407-21031 |
| 13411 | crankshaft | 13401-0D050 · 13401-21020 · 13401-21030 · 13401-22010 · 13401-22020 · 13401-22051 · 13411-64912 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-64050 |
| 13471 | crankshaft pulley | 13408-64130 · 13470-22020 · 13470-22021 · 13470-88600 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05007 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90560-16025 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16079 · 90119-12127 · 90119-12345 · 90119-12351 |
| 13521 | Crankshaft timing gear or sprocket | 13521-22020 |
| 13521A | Key (for crankshaft timing gear) | 90280-06001 · 95161-30416 |
| 13521P | crankshaft timing pulley | 13521-64011 |
| 13566A | timing belt guide | 13566-64011 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22020 |
