Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 10 PNC and OE references.

Toyota COROLLA Ventilation Hose EPC diagram — 120157
Ventilation Hose — 120157 (200008 – 999999)

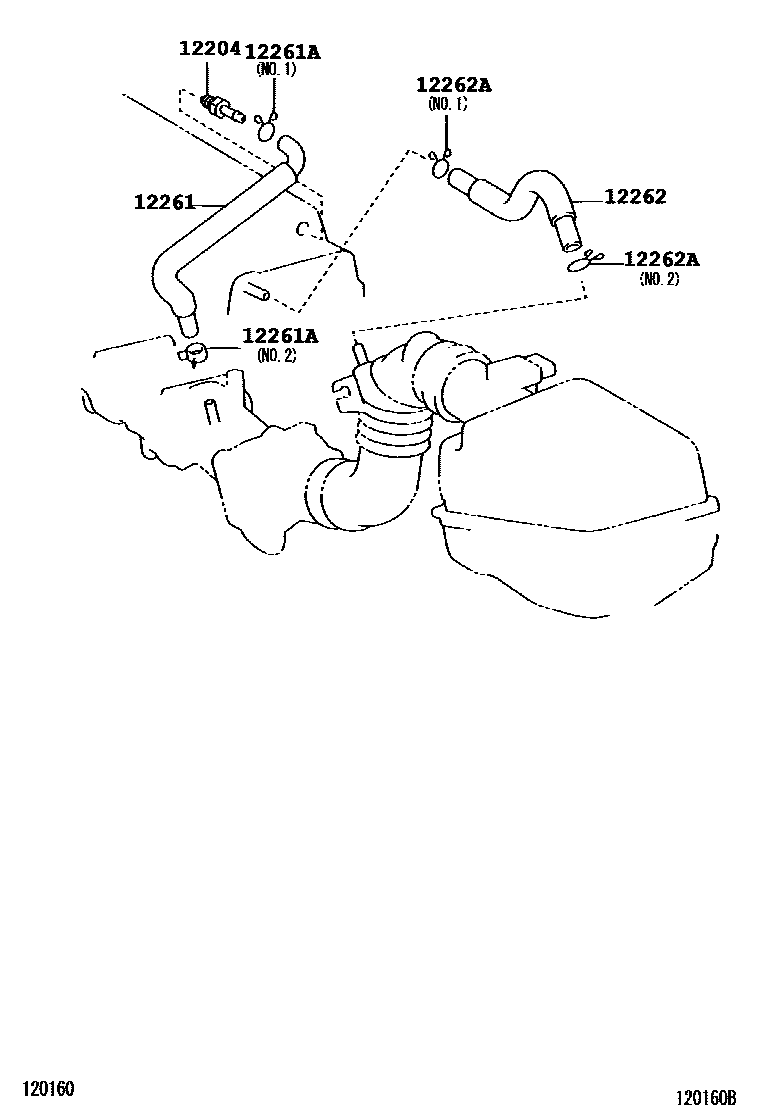

Toyota COROLLA Ventilation Hose EPC diagram — 120160B
Ventilation Hose — 120160B (200008 – 999999)

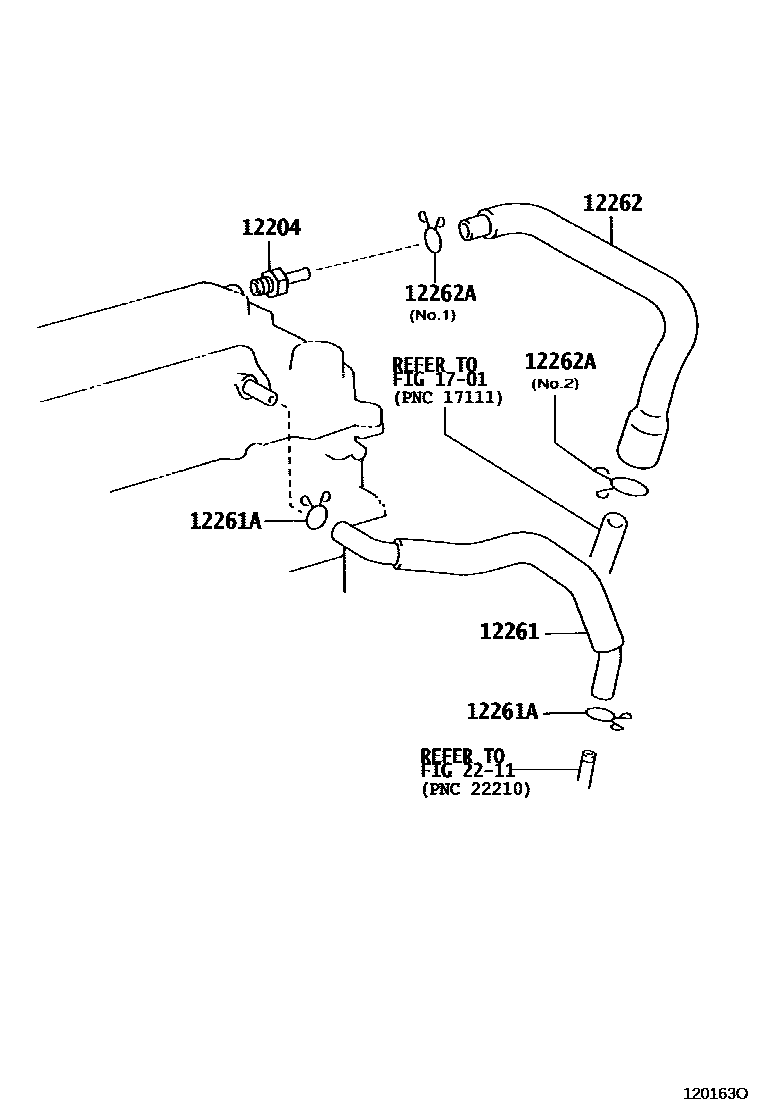

Toyota COROLLA Ventilation Hose EPC diagram — 120163O
Ventilation Hose — 120163O (200008 – 999999)

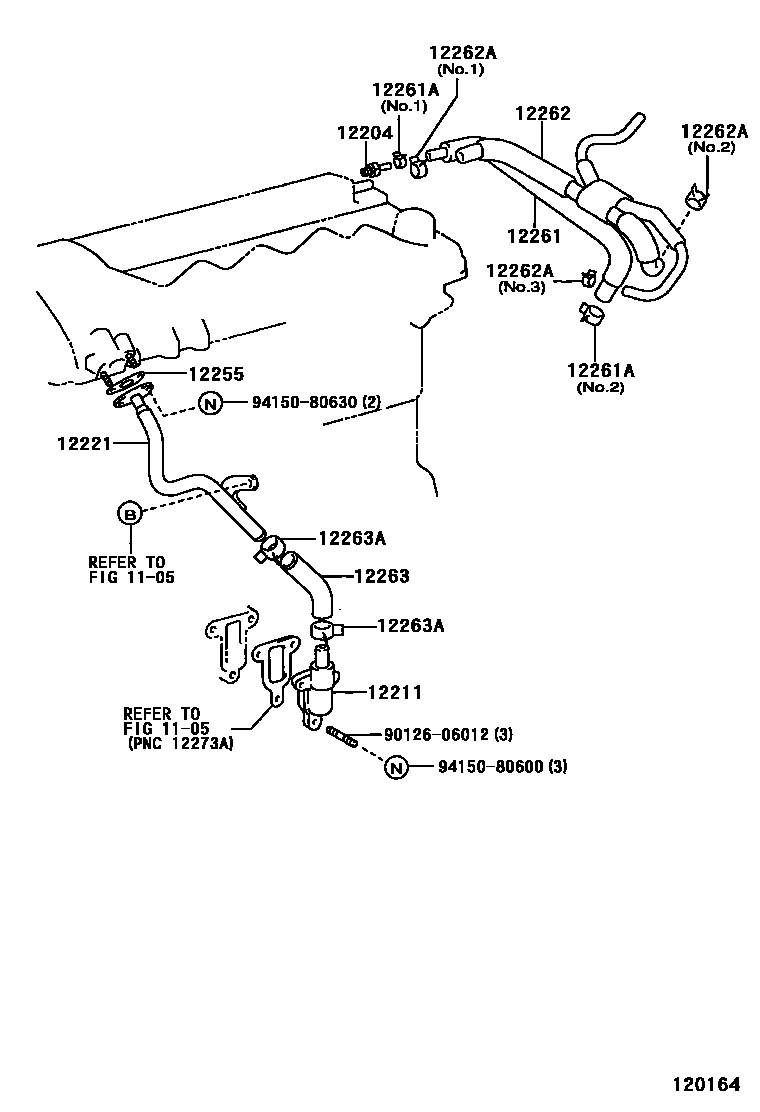

Toyota COROLLA Ventilation Hose EPC diagram — 120164
Ventilation Hose — 120164 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-21010 · 12204-21011 · 12204-21020 · 12204-22050 · 12204-22051 · 12204-88600
12211Ventilation box No. 112211-88600
12221Ventilation duct No. 112221-88601
12255Ventilation padding12255-88600
12261Ventilation Hose12261-0D040 · 12261-21050 · 12261-21060 · 12261-22050 · 12261-64310 · 12261-88601
12261AClip or clip (for vent hose)90466-24001 · 90467-13057 · 90467-14037 · 90467-15120 · 90467-17011 · 90467-18003 · 90467-21152 · 90467-24038 · 96134-51700
12262Ventilation hose No. 212262-0D050 · 12262-21060 · 12262-21071 · 12262-22040 · 12262-22090 · 12262-88601 · 12262-88602
12262AClamp (for vent hose No. 2)16581-21050 · 90466-18002 · 90467-13103 · 90467-19003 · 90467-19019 · 90467-21004 · 90467-21010 · 96132-51300
12263No. 3 ventilation hose12263-88600
12263AClip (for ventilation hose)90467-31003
