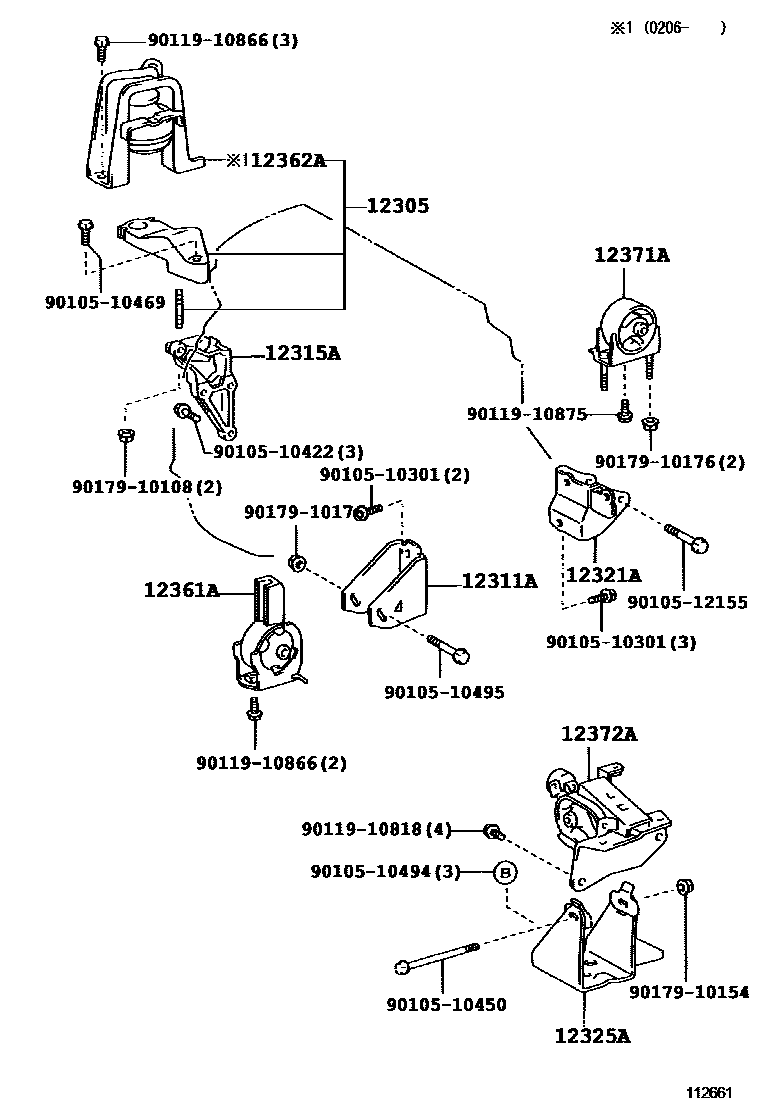

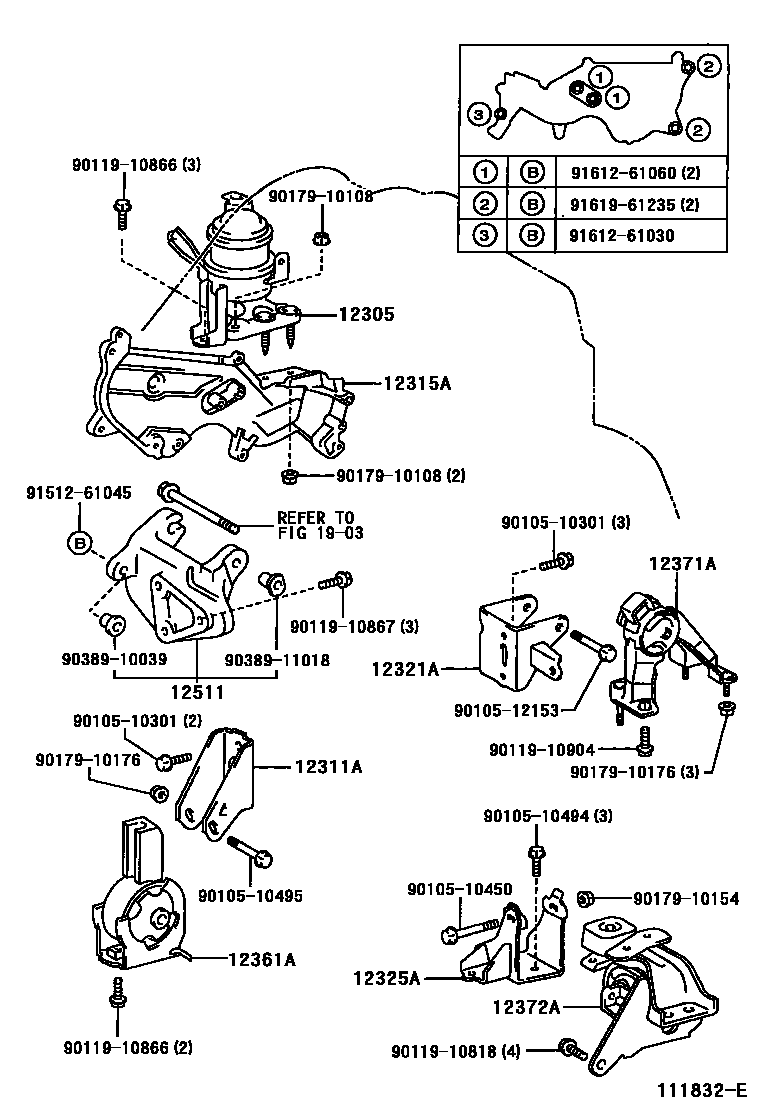

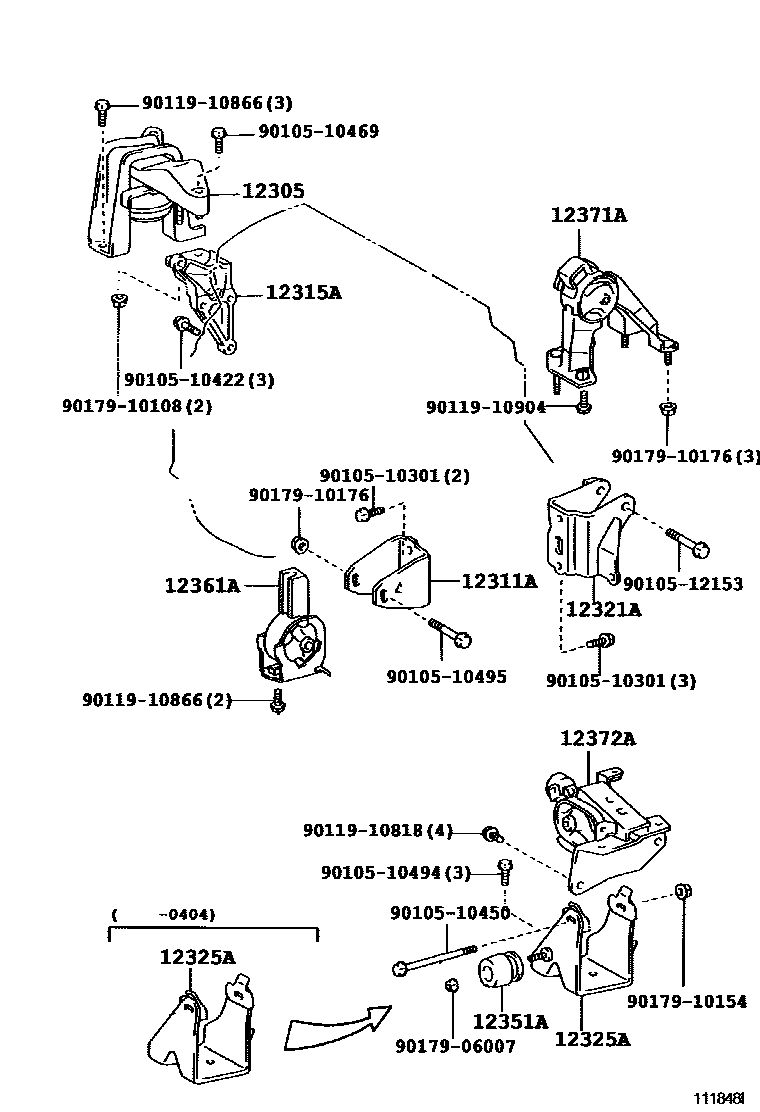

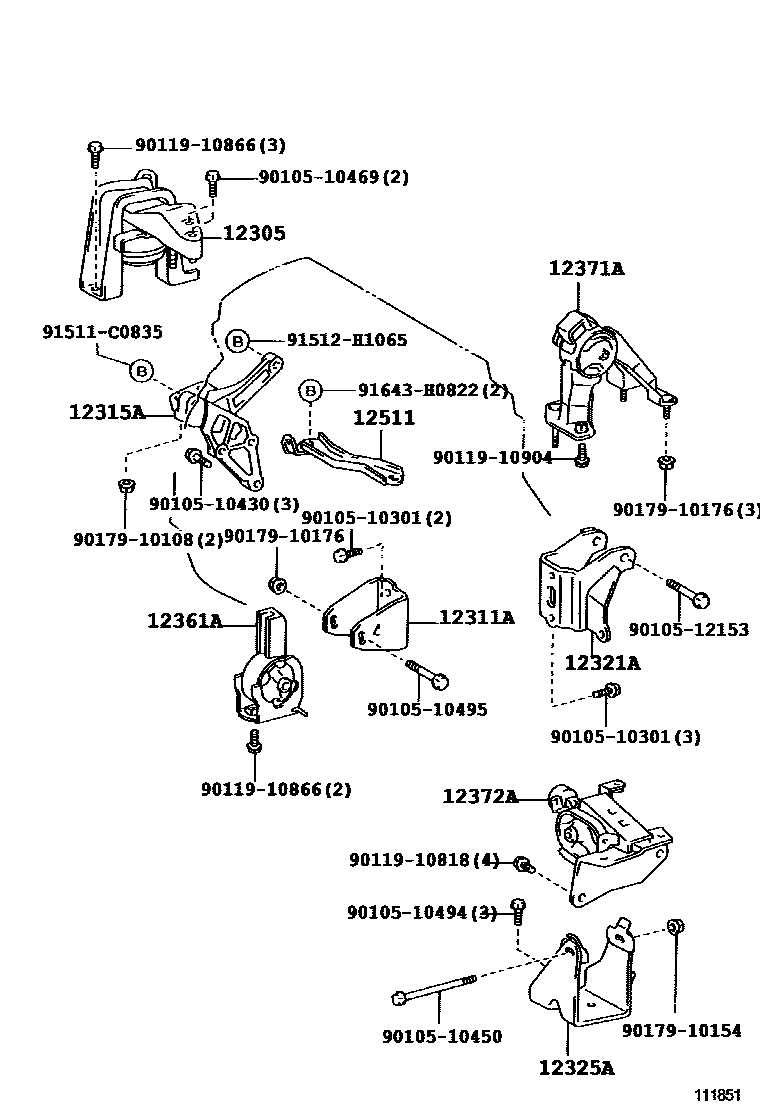

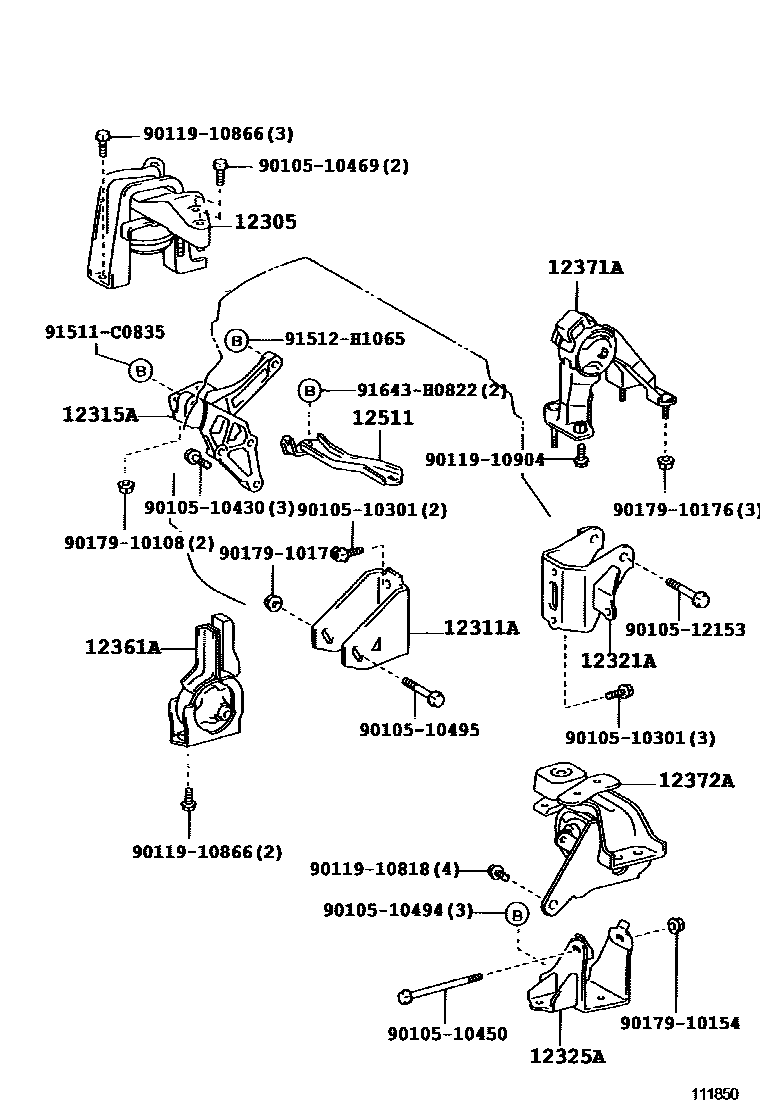

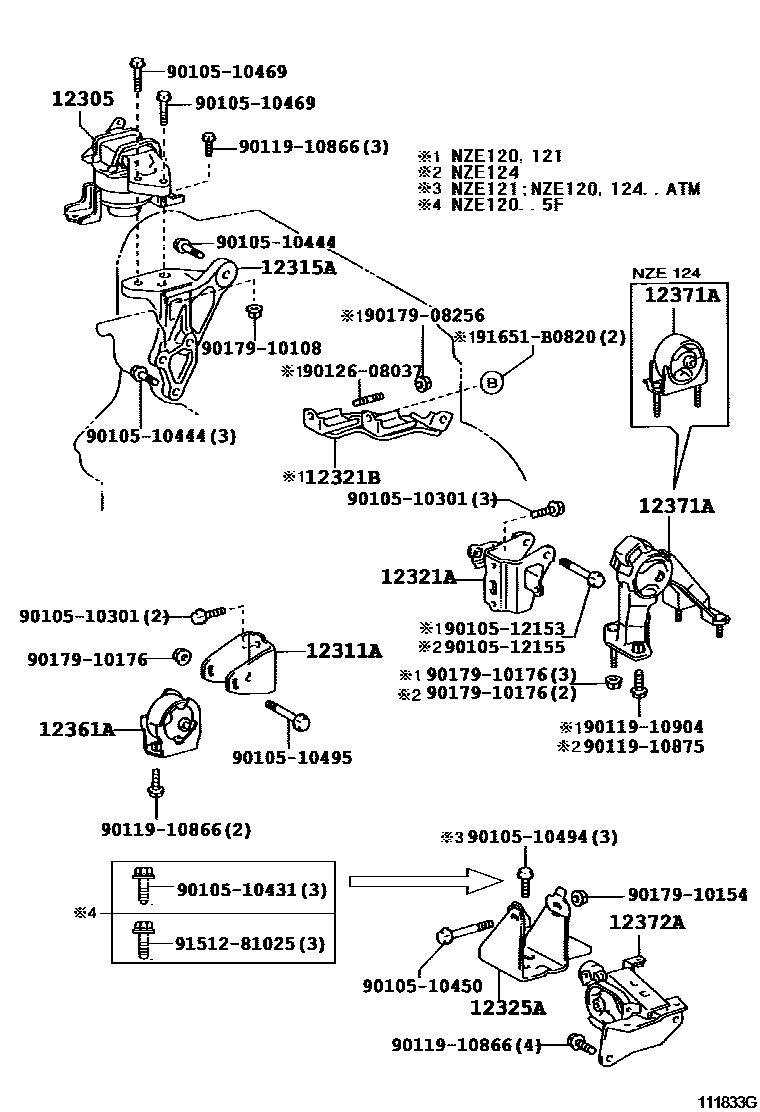

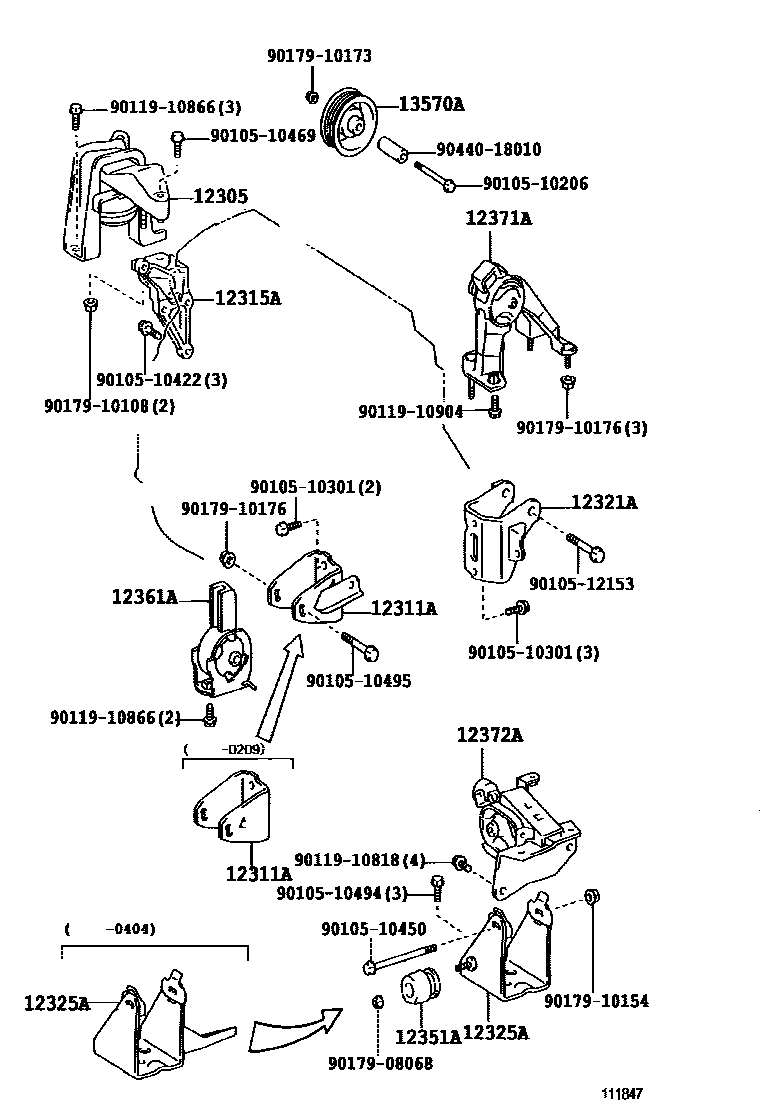

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 7 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21110 · 12305-21130 · 12305-21150 · 12305-22110 · 12305-22120 · 12305-22130 · 12305-22170 · 12305-22180 · 12305-22190 · 12305-22240 · 12305-22250 · 12305-22260 · 12305-64200 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-21010 · 12311-21020 · 12311-21030 · 12311-22110 · 12311-22120 · 12311-22130 · 12311-22140 · 12311-22190 · 12311-64230 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-21030 · 12315-21031 · 12315-21040 · 12315-21041 · 12315-22020 · 12315-22030 · 12315-22050 · 12315-64141 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-21060 · 12321-21070 · 12321-21080 · 12321-22040 · 12321-22110 · 12321-22130 · 12321-22140 · 12321-22150 · 12321-64330 · 12321-64340 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21080 · 12325-21081 · 12325-21090 · 12325-21100 · 12325-21110 · 12325-21120 · 12325-22090 · 12325-22110 · 12325-22120 · 12325-22130 · 12325-22140 · 12325-64190 · 12325-64200 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-11023 · 12351-74110 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-21020 · 12361-21030 · 12361-22080 · 12361-22090 |
| 12362A | Engine left front mounting vibration isolation pad | 12362-22150 |
| 12371A | Engine rear mount vibration isolation pad | 12371-21100 · 12371-21110 · 12371-21120 · 12371-22140 · 12371-22170 · 12371-64310 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-21070 · 12372-22060 · 12372-22080 · 12372-64310 |
| 12511 | No. 1 generator bracket | 12511-64100 · 12511-88601 |
| 13570A | No. 1 poly-ribbed belt idler assembly | 13570-22010 |
