Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 22 PNC and OE references.

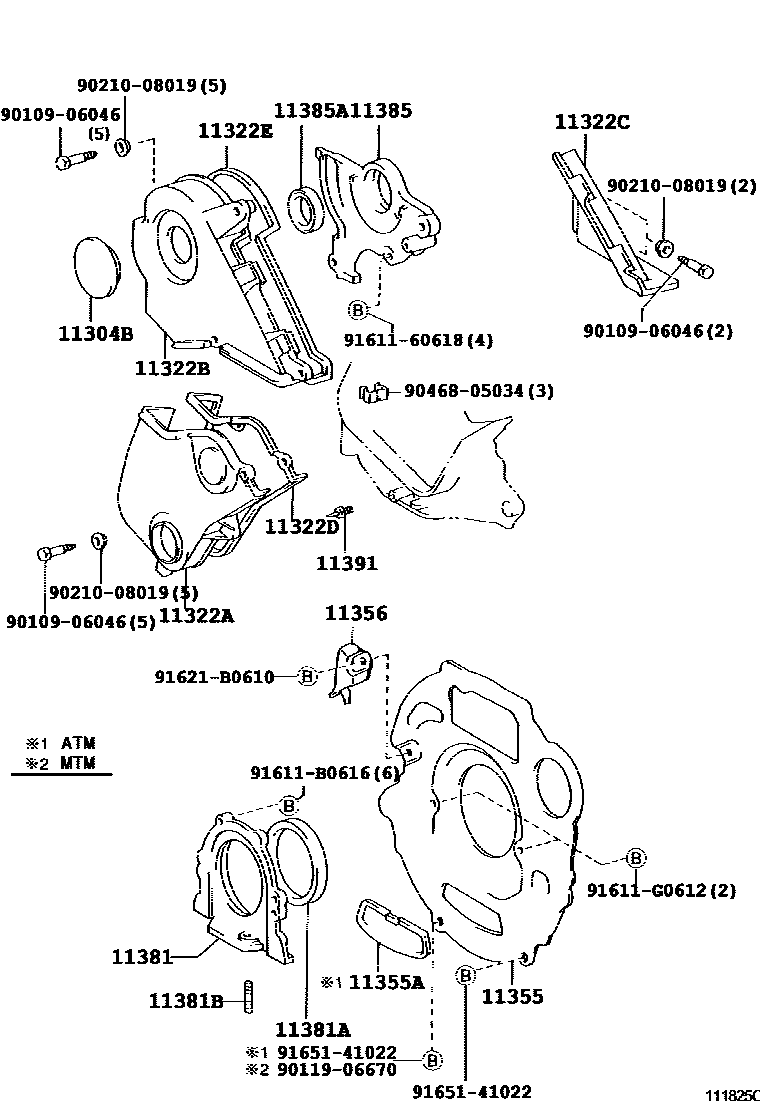

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111825C
Timing Gear Cover & Rear End Plate — 111825C (200008 – 999999)

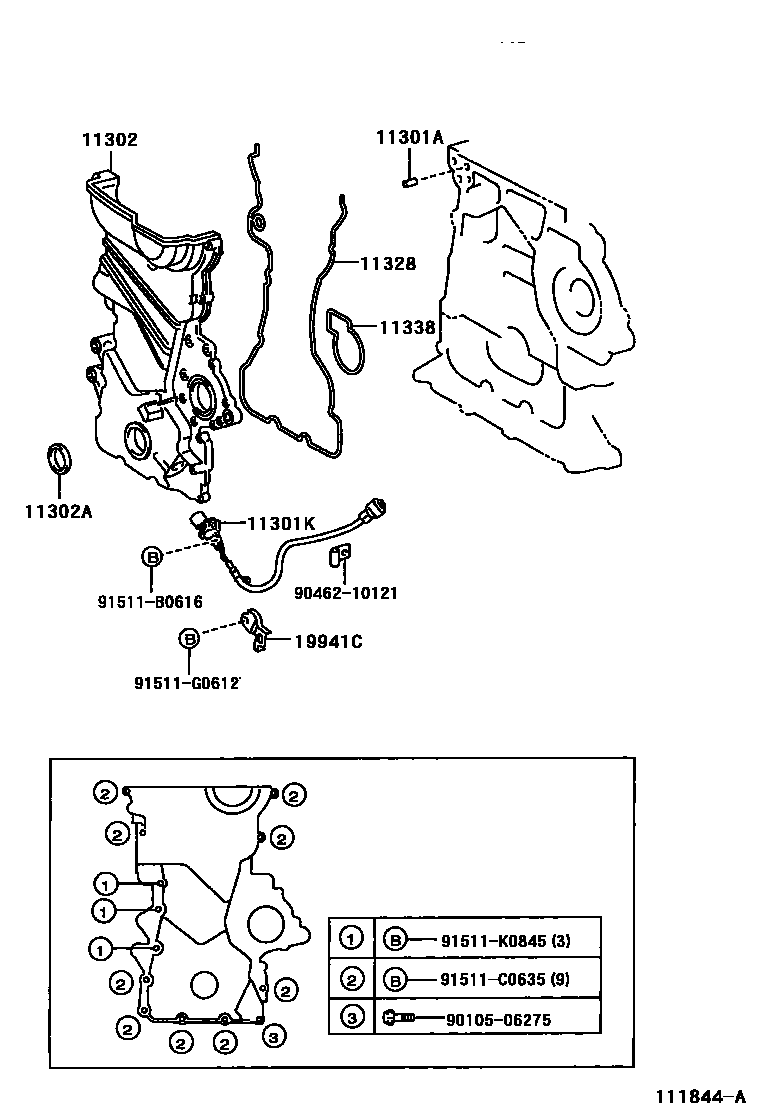

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111844A
Timing Gear Cover & Rear End Plate — 111844A (200008 – 999999)

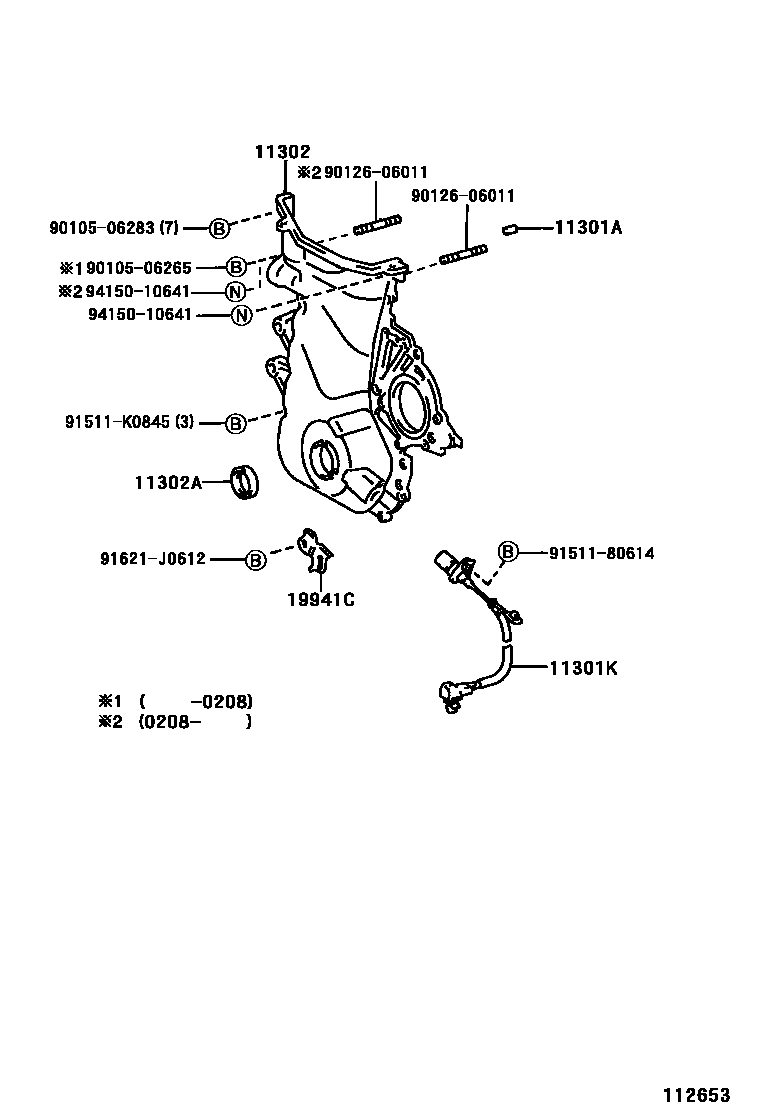

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 112653
Timing Gear Cover & Rear End Plate — 112653 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030 · 90919-05048
11302TIMING CHAIN OR BELT COVER SUB-ASSY11321-0D030 · 11321-22021 · 11321-88601
11302AOil seal (for timing chain or timing belt cover)90311-38059 · 90311-38089
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11322ANo. 1 timing belt cover11321-64070
11322BNo. 2 timing belt cover11322-64010
11322CNo. 3 timing belt cover11323-64011
11322DNo. 1 timing belt cover gasket11328-64070
11322ENo. 2 timing belt cover gasket11329-64020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-88600
11338No. 2 timing chain cover gasket11329-88600
11355rear end plate11355-64052 · 11355-64062
11355AHole plug (for rear end plate)90950-01738
11356No. 2 rear end plate11356-64040
11381RETAINER, ENGINE REAR OIL SEAL11381-64020
11381ASEAL, ENGINE REAR OIL90311-90008
11381BStud bolts (for engine rear oil seal race)90116-06134
11385Camshaft oil seal race11382-64011
11385AOil seal (for camshaft)90311-38081
11391Timing pointer11391-64010
19941CWire clamp (for crankshaft position sensor)19941-22010
