Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

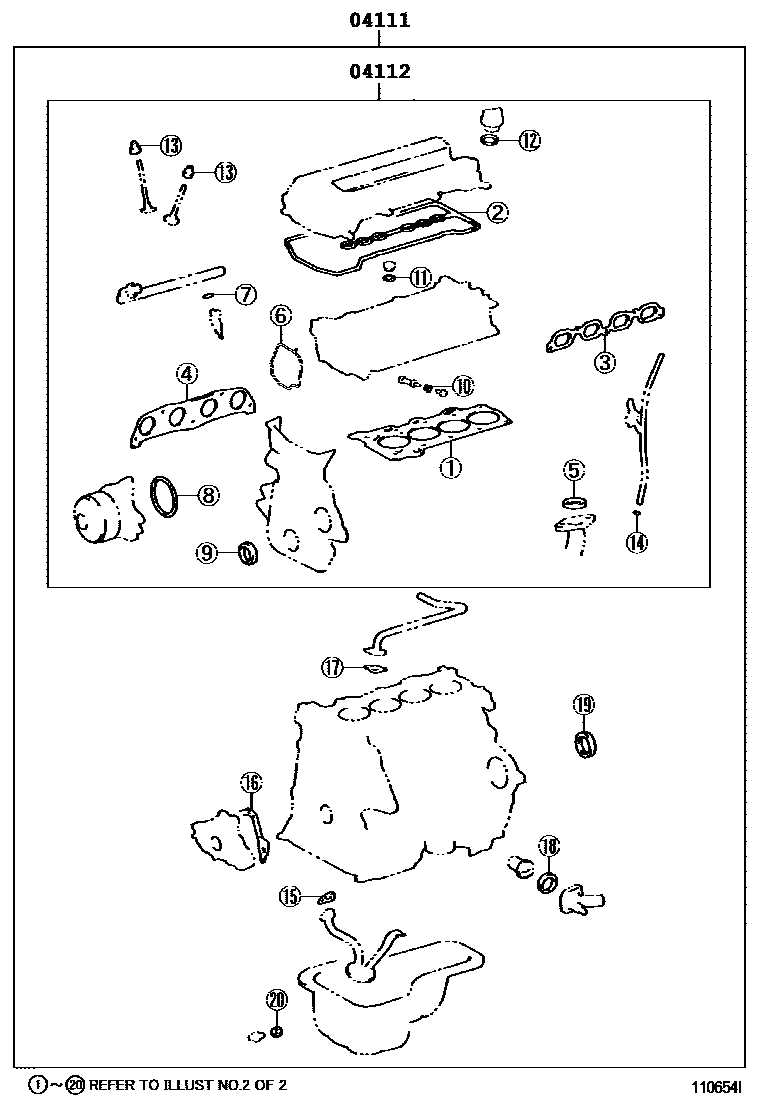

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 110654I
Engine Overhaul Gasket Kit — 110654I (200008 – 200404)

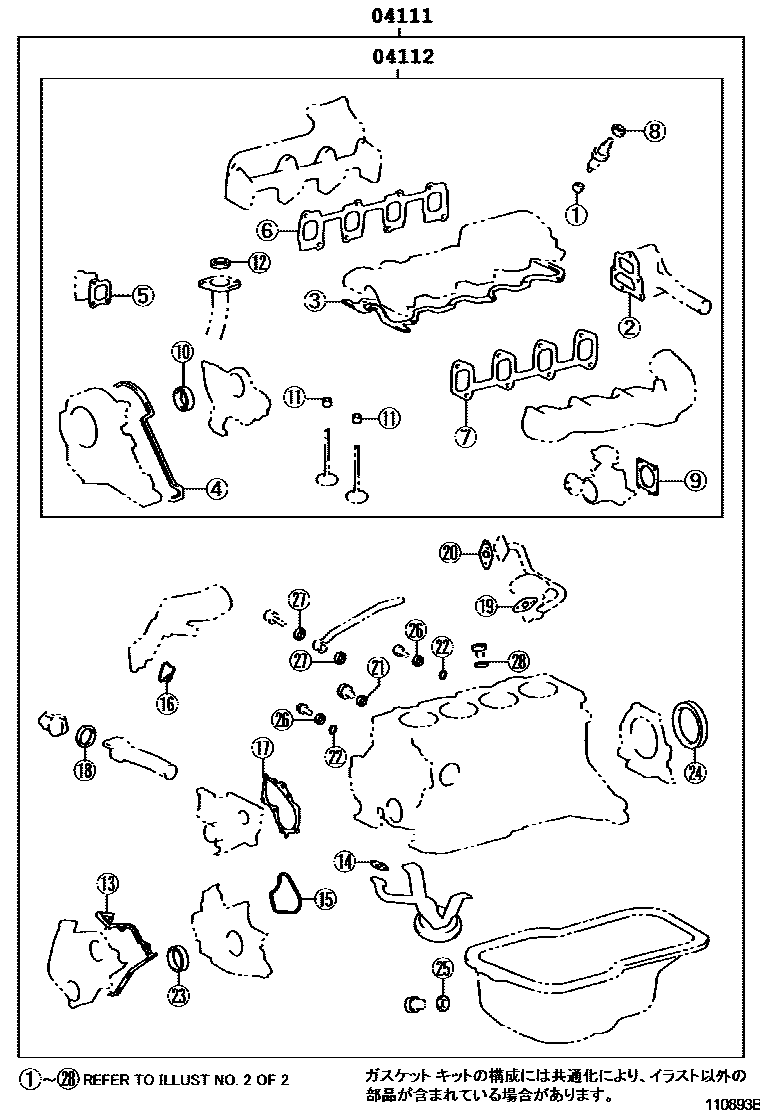

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 110893B
Engine Overhaul Gasket Kit — 110893B (200008 – 999999)

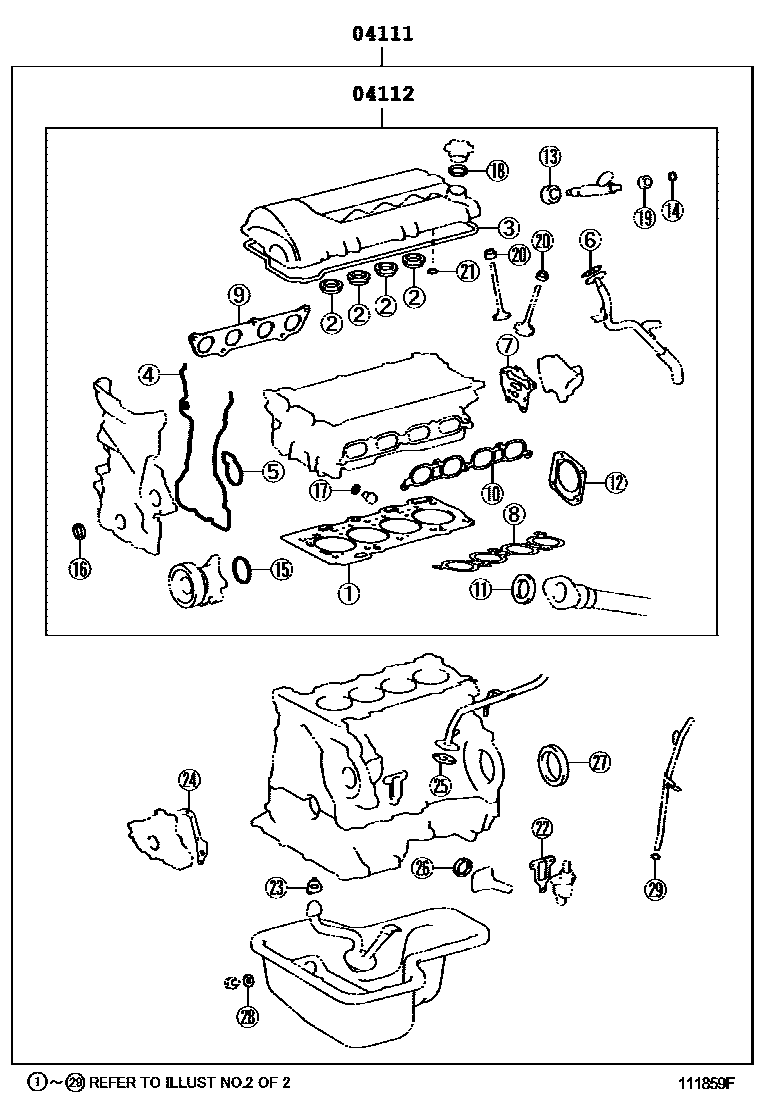

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 111859F
Engine Overhaul Gasket Kit — 111859F (200008 – 200404)

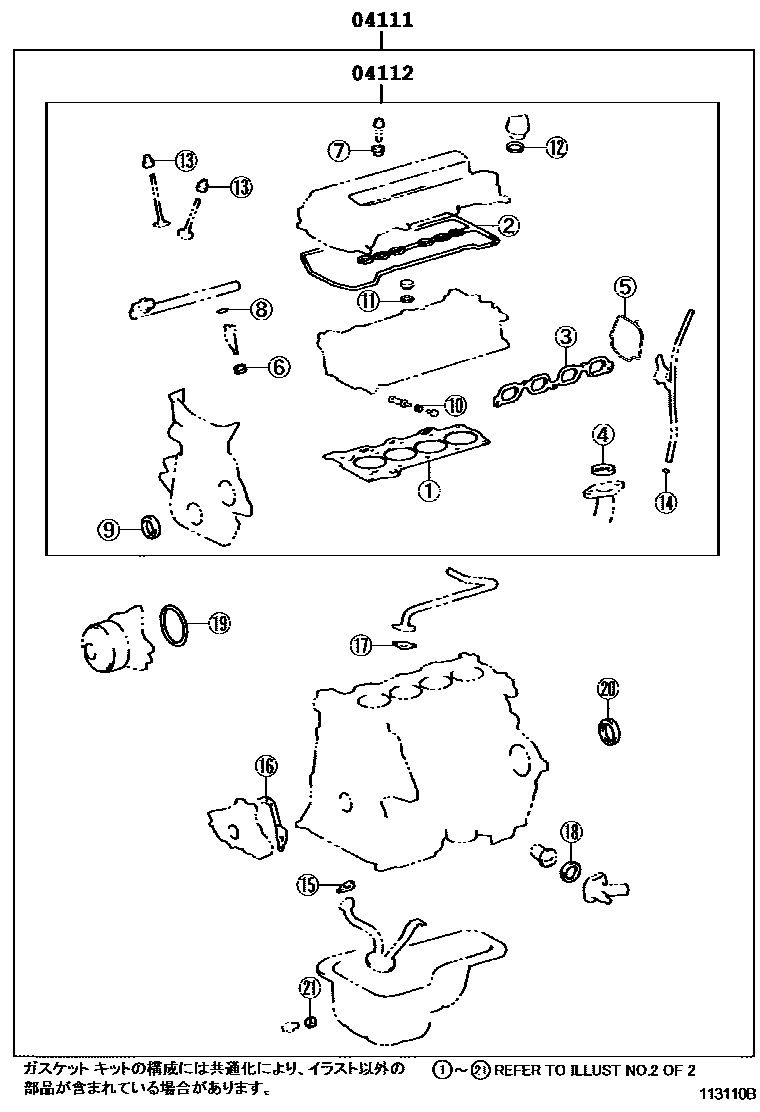

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 113110B
Engine Overhaul Gasket Kit — 113110B (200404 – 999999)

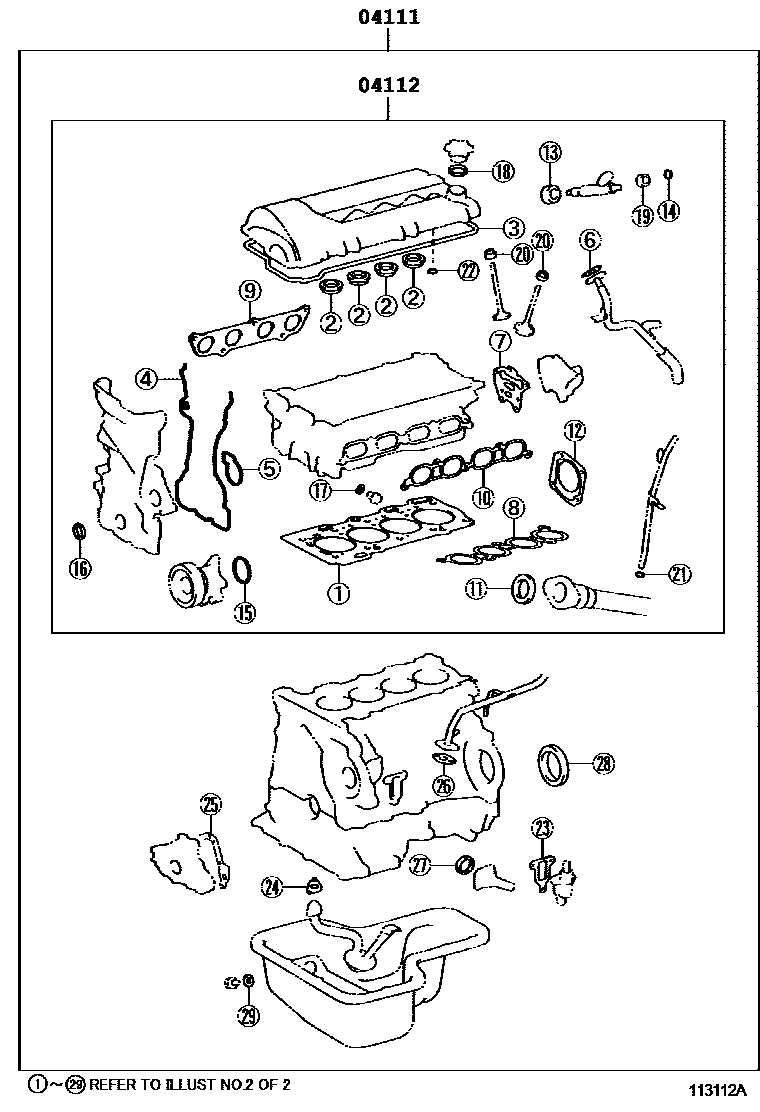

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 113112A
Engine Overhaul Gasket Kit — 113112A (200404 – 999999)

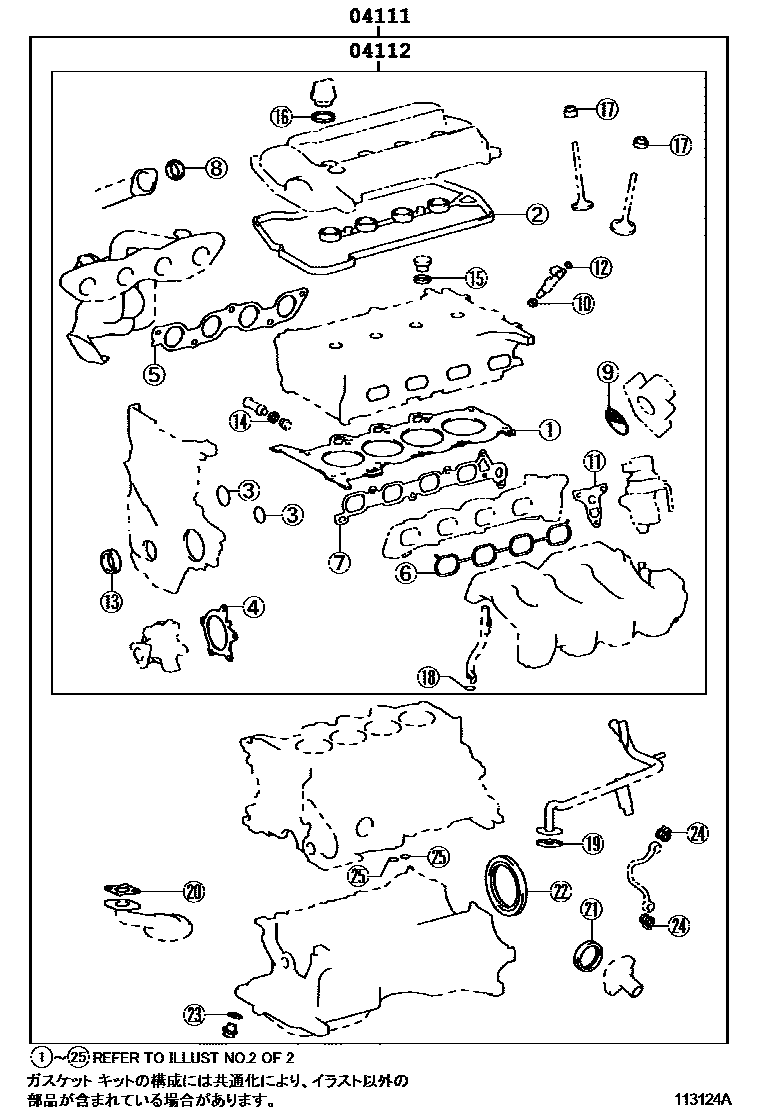

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 113124A
Engine Overhaul Gasket Kit — 113124A (200404 – 999999)

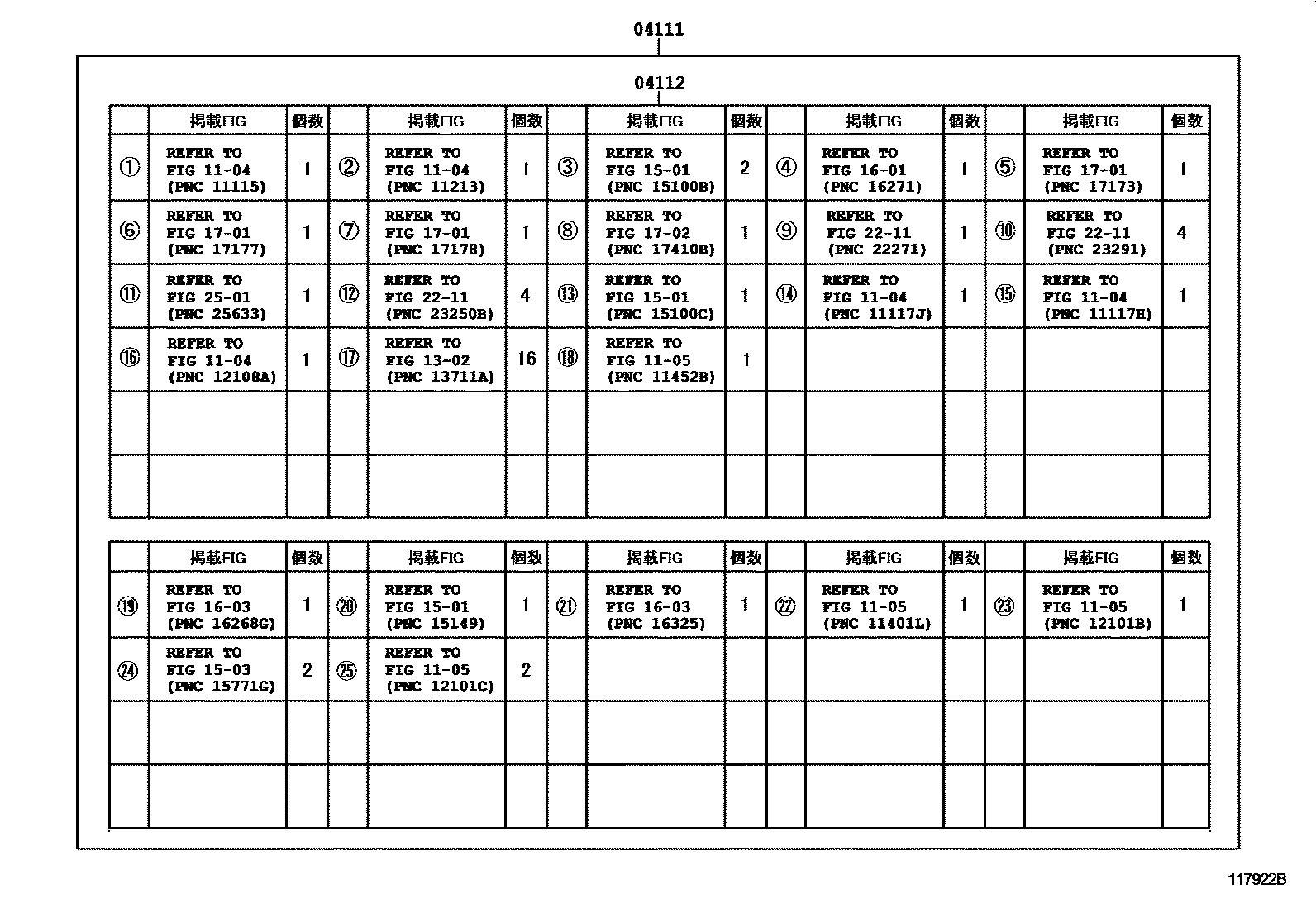

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117922B
Engine Overhaul Gasket Kit — 117922B (200404 – 999999)

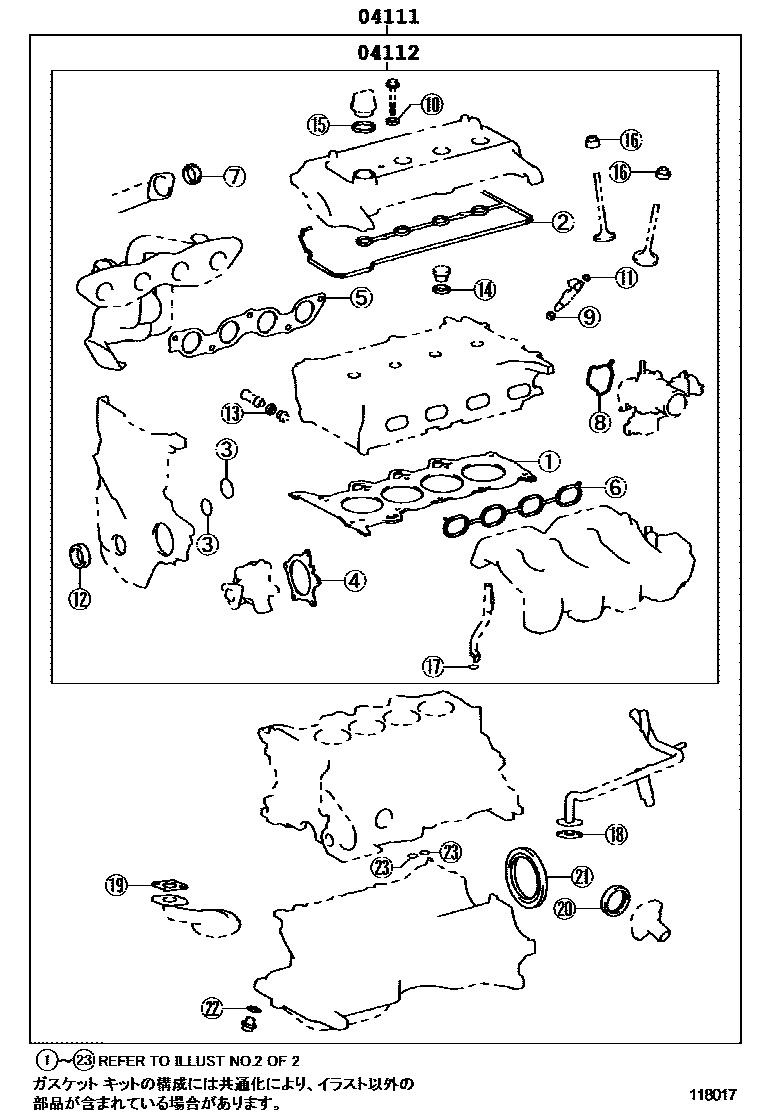

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118017
Engine Overhaul Gasket Kit — 118017 (200008 – 999999)

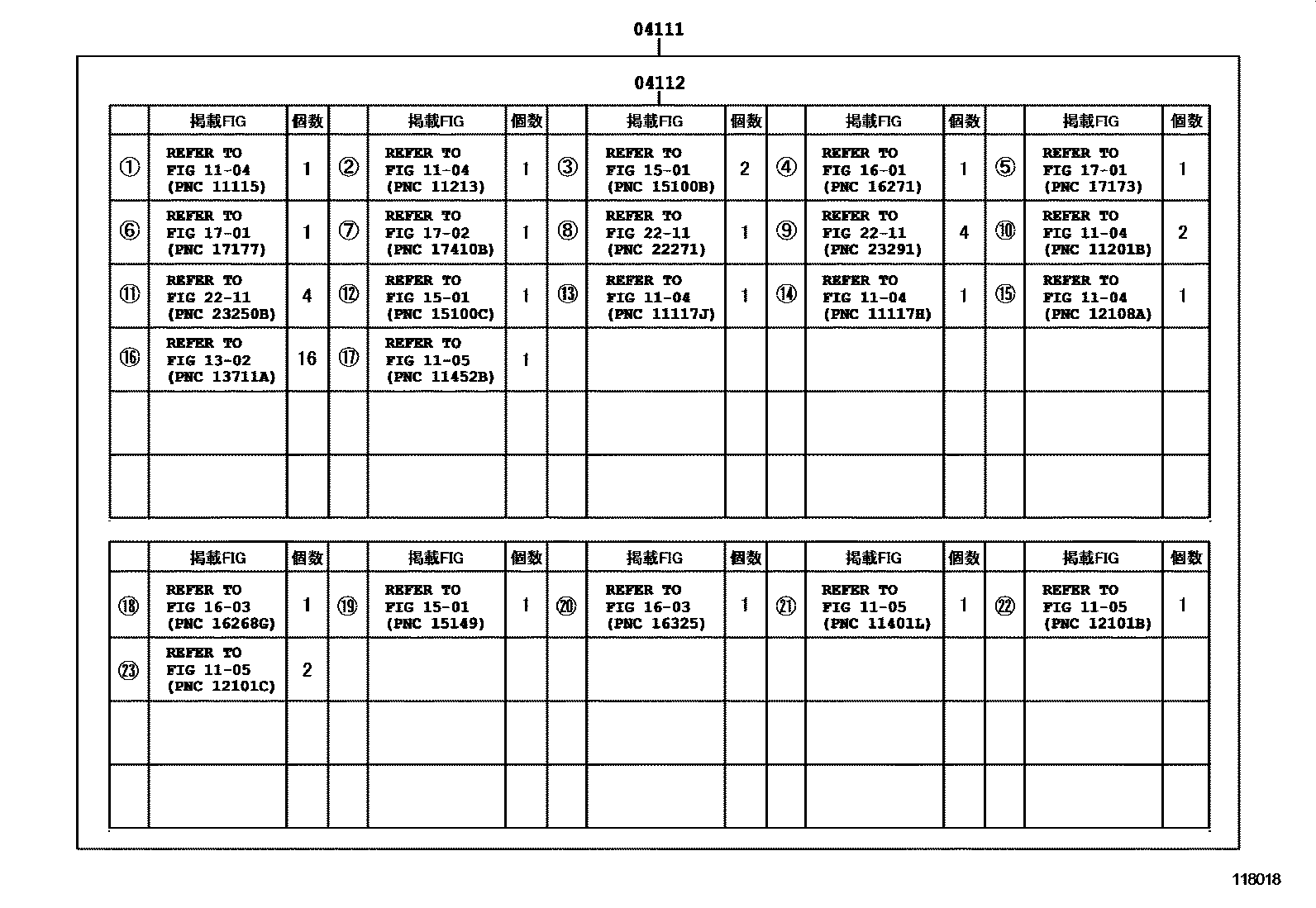

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118018
Engine Overhaul Gasket Kit — 118018 (200008 – 999999)

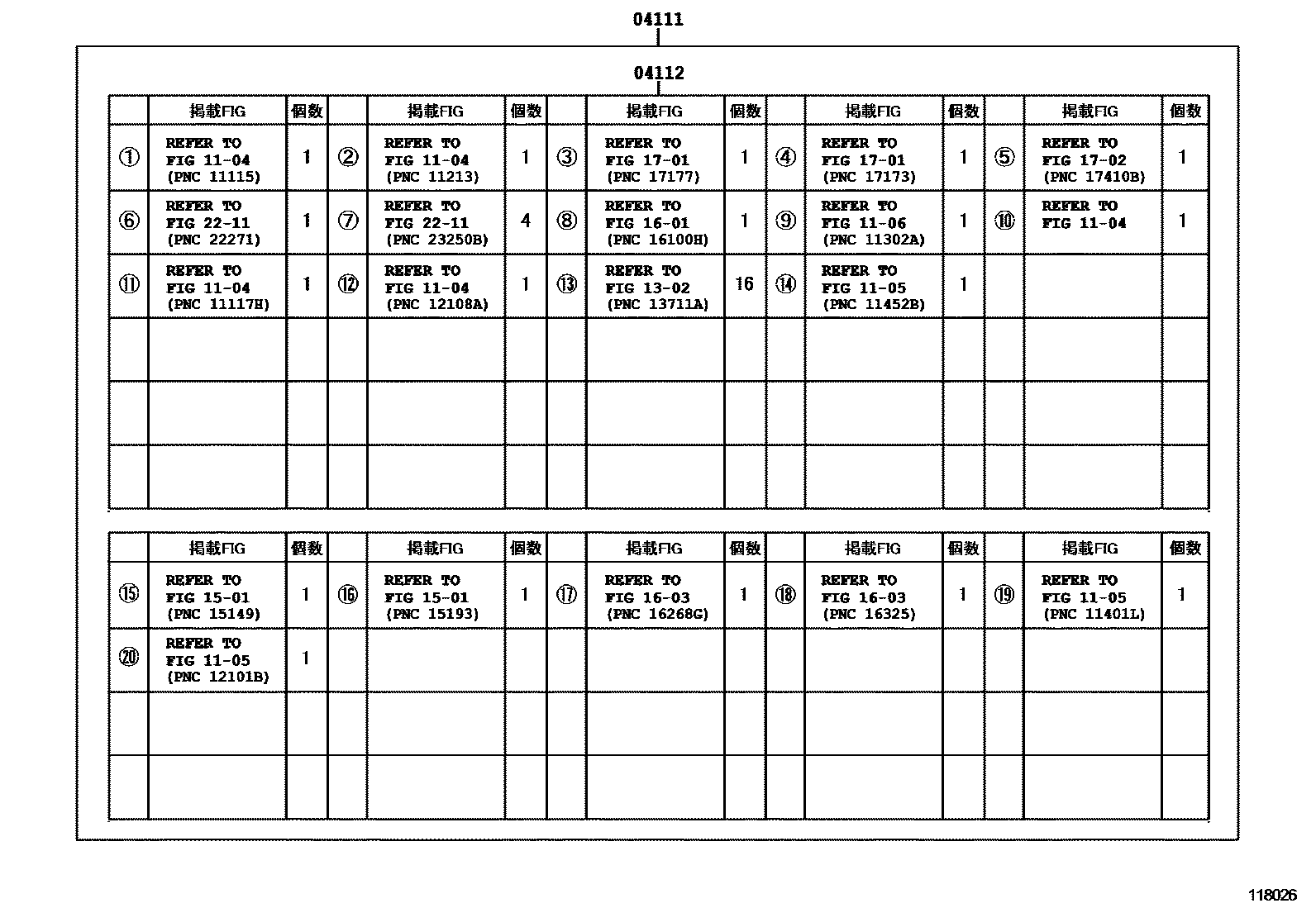

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118026
Engine Overhaul Gasket Kit — 118026 (200008 – 200404)

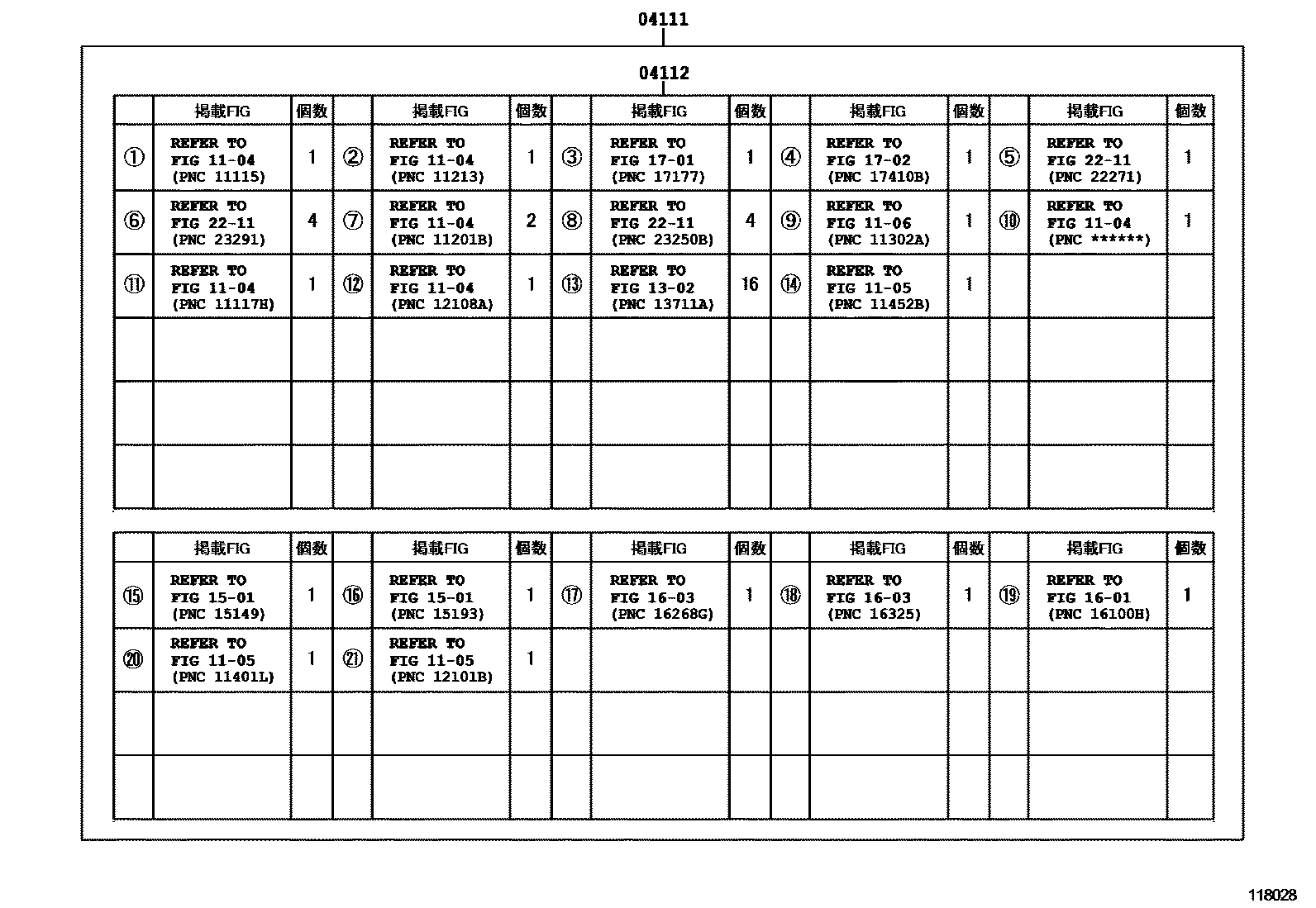

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118028
Engine Overhaul Gasket Kit — 118028 (200404 – 999999)

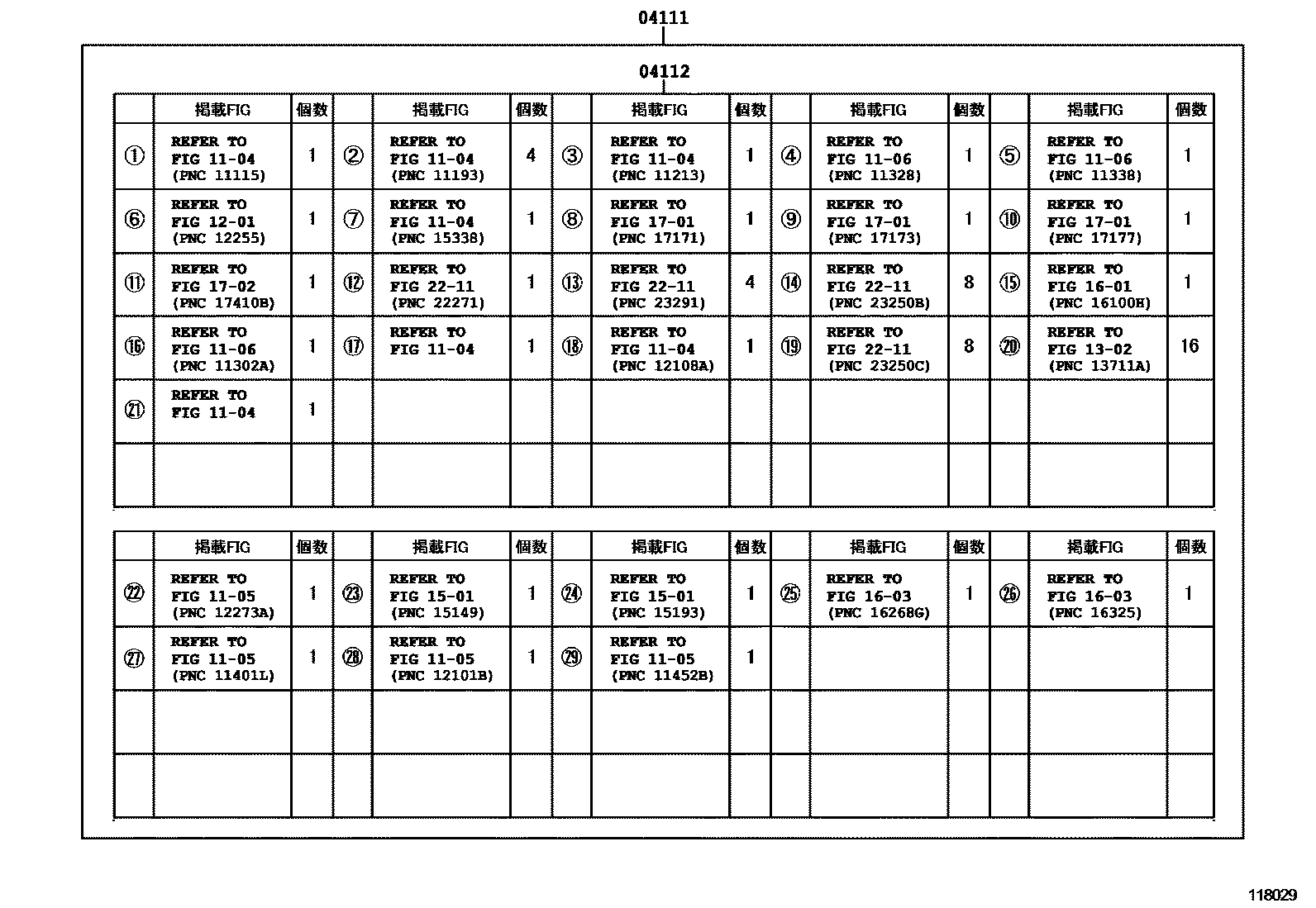

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118029
Engine Overhaul Gasket Kit — 118029 (200008 – 200404)

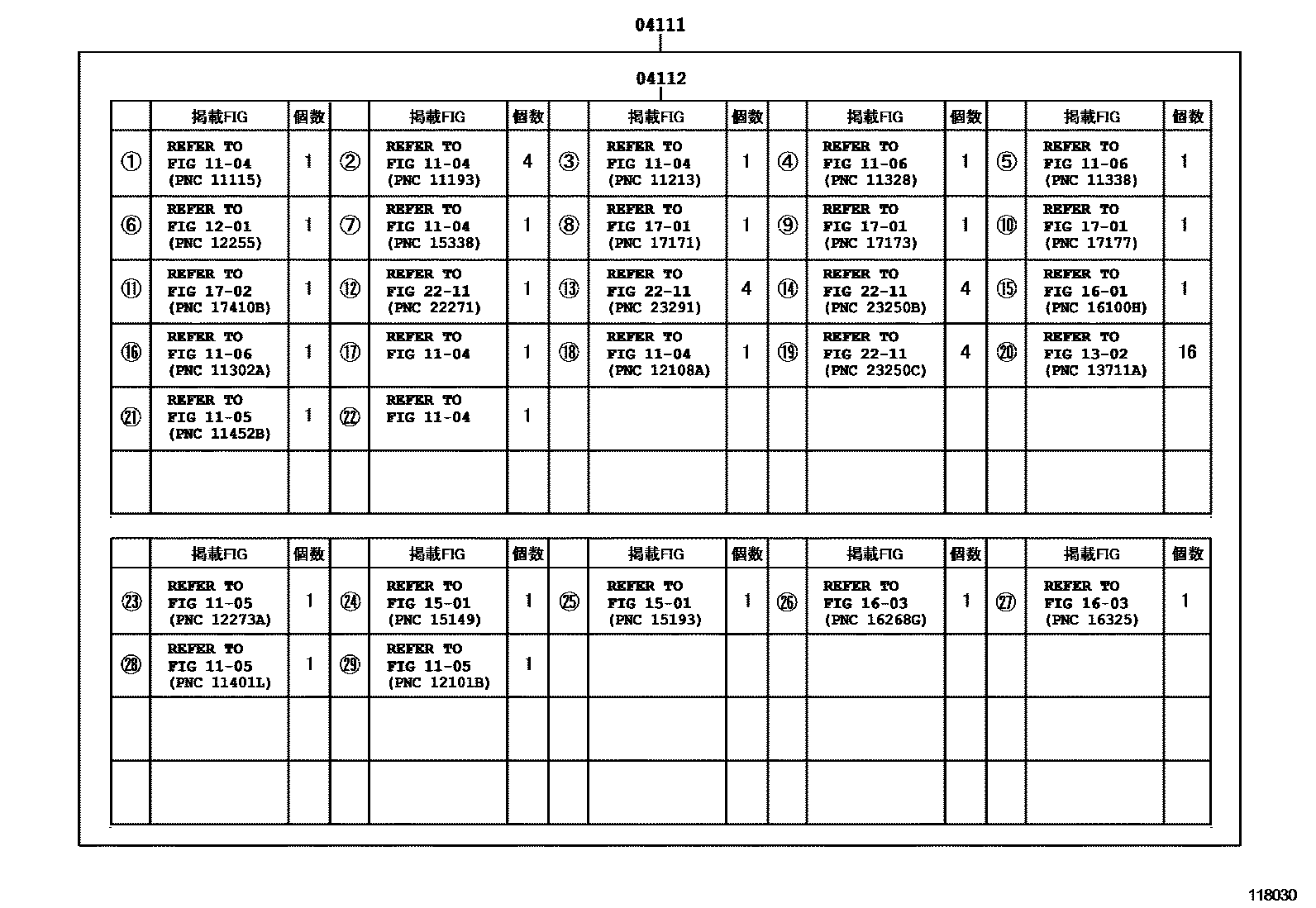

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118030
Engine Overhaul Gasket Kit — 118030 (200404 – 999999)

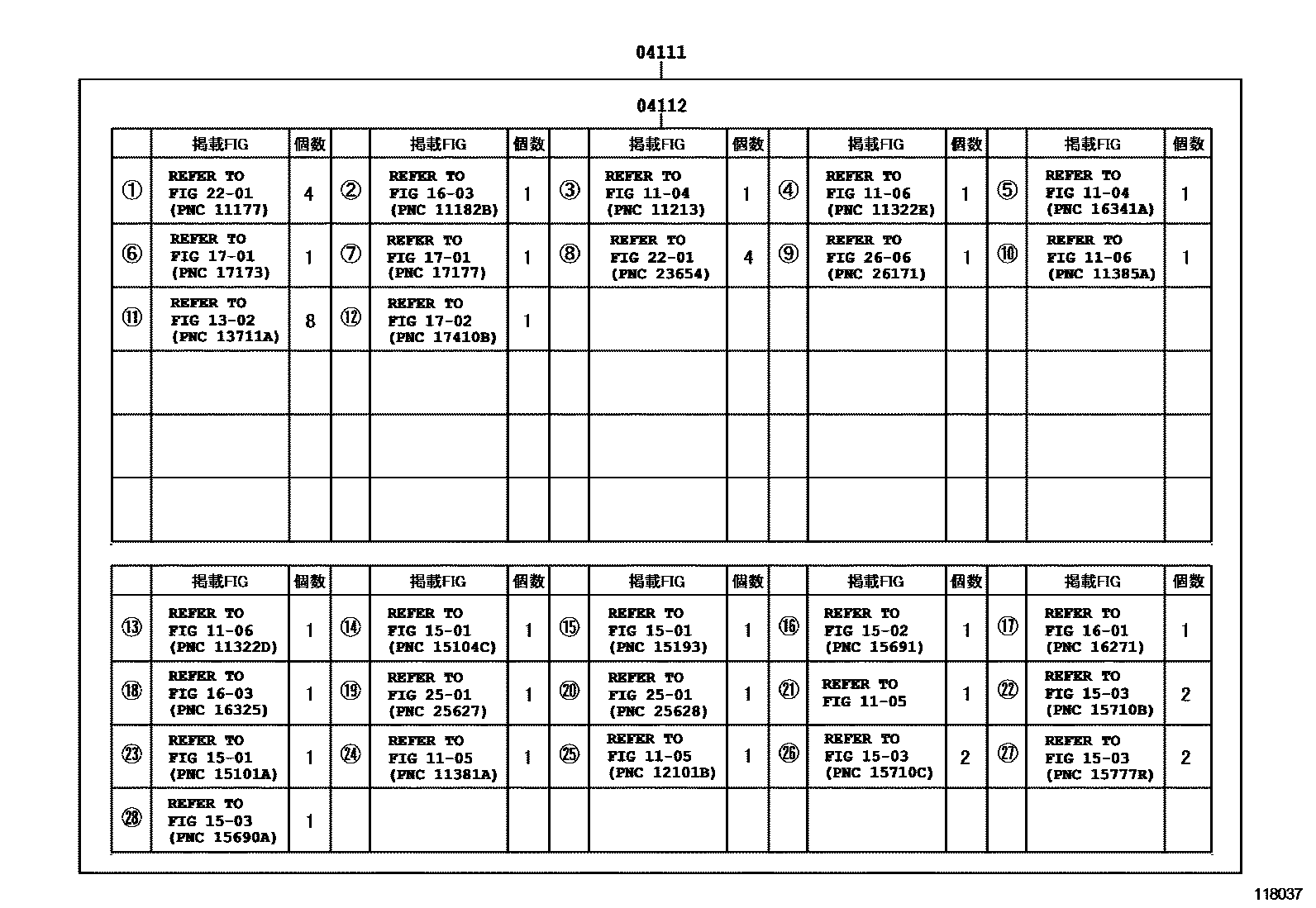

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118037
Engine Overhaul Gasket Kit — 118037 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-21040 · 04111-21041 · 04111-21042 · 04111-21110 · 04111-22131 · 04111-22132 · 04111-22140 · 04111-22141 · 04111-22150 · 04111-22151 · 04111-22152 · 04111-22160 · 04111-22310 · 04111-22330 · 04111-22340 · 04111-22370 · 04111-22460 · 04111-22470 · 04111-64383 · 04111-64740
04112Engine valve grinding pad assembly04112-21040 · 04112-21041 · 04112-21042 · 04112-21110 · 04112-22131 · 04112-22132 · 04112-22140 · 04112-22141 · 04112-22150 · 04112-22151 · 04112-22152 · 04112-22160 · 04112-22310 · 04112-22330 · 04112-22340 · 04112-22350 · 04112-22440 · 04112-22450 · 04112-64291 · 04112-64480
