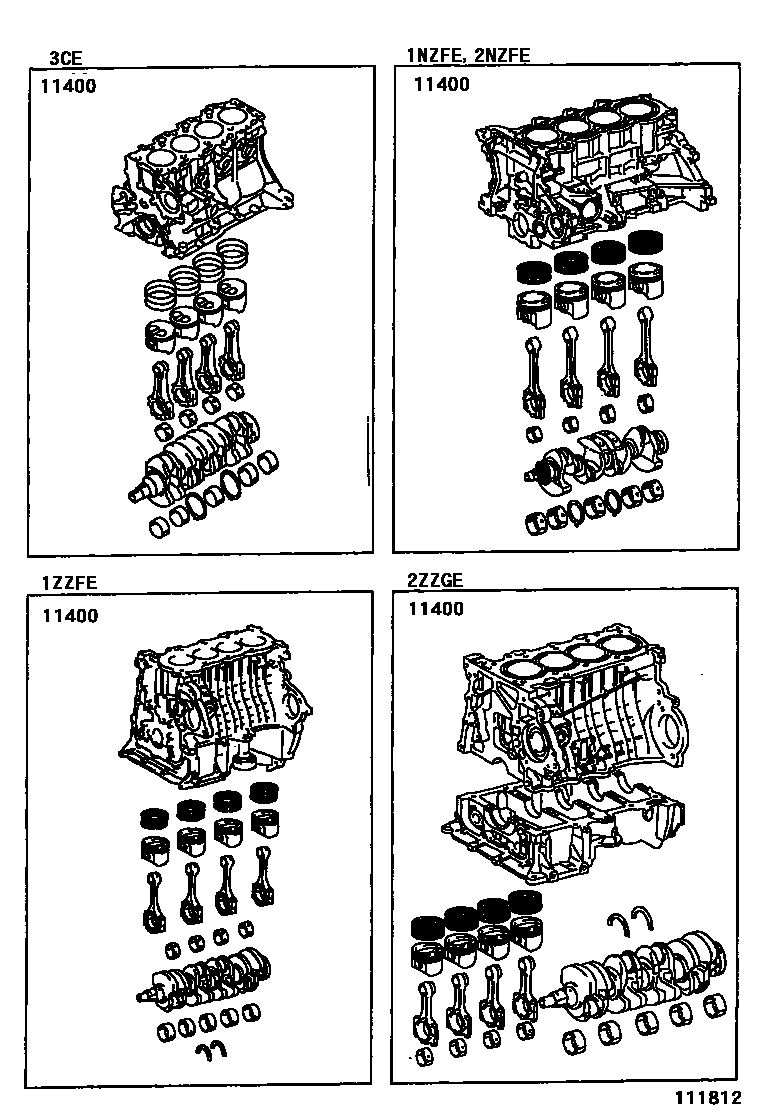

Toyota COROLLA Short Block Assembly — Figure 1102
Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11400 | Short Block Assembly | 11400-21040 · 11400-21051 · 11400-21080 · 11400-21090 · 11400-21150 · 11400-21190 · 11400-21220 · 11400-22120 · 11400-22121 · 11400-22130 · 11400-22180 · 11400-22190 · 11400-64592 · 11400-88515 |
