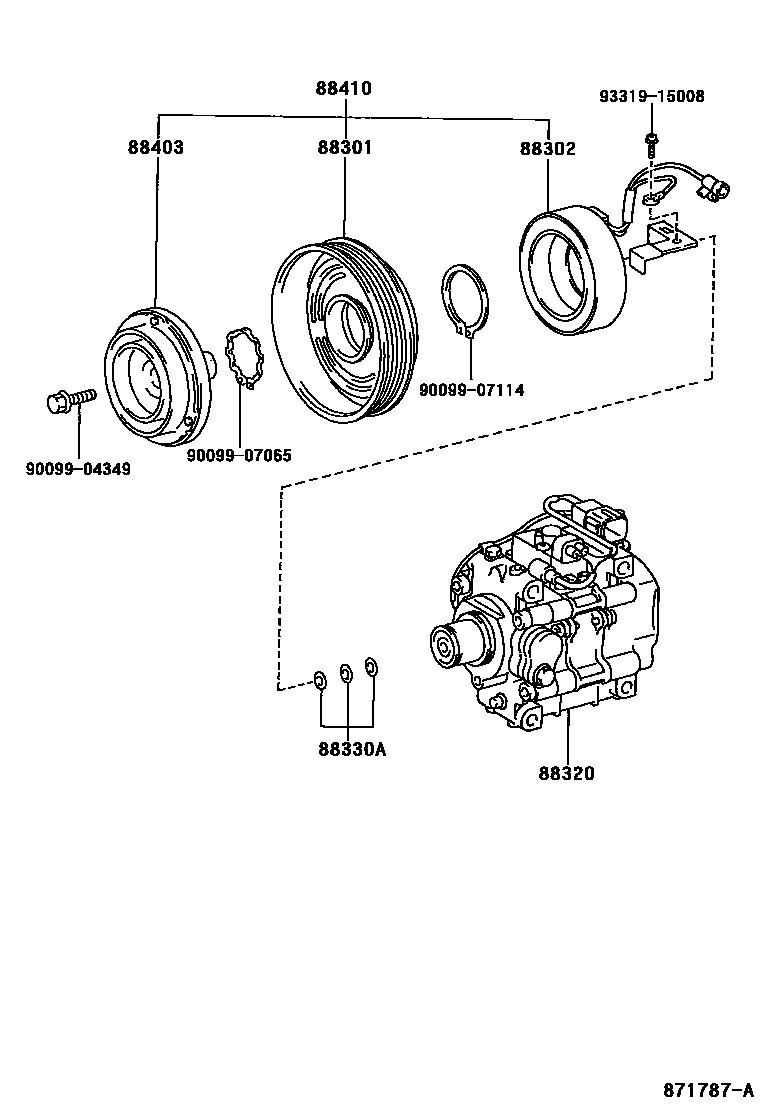

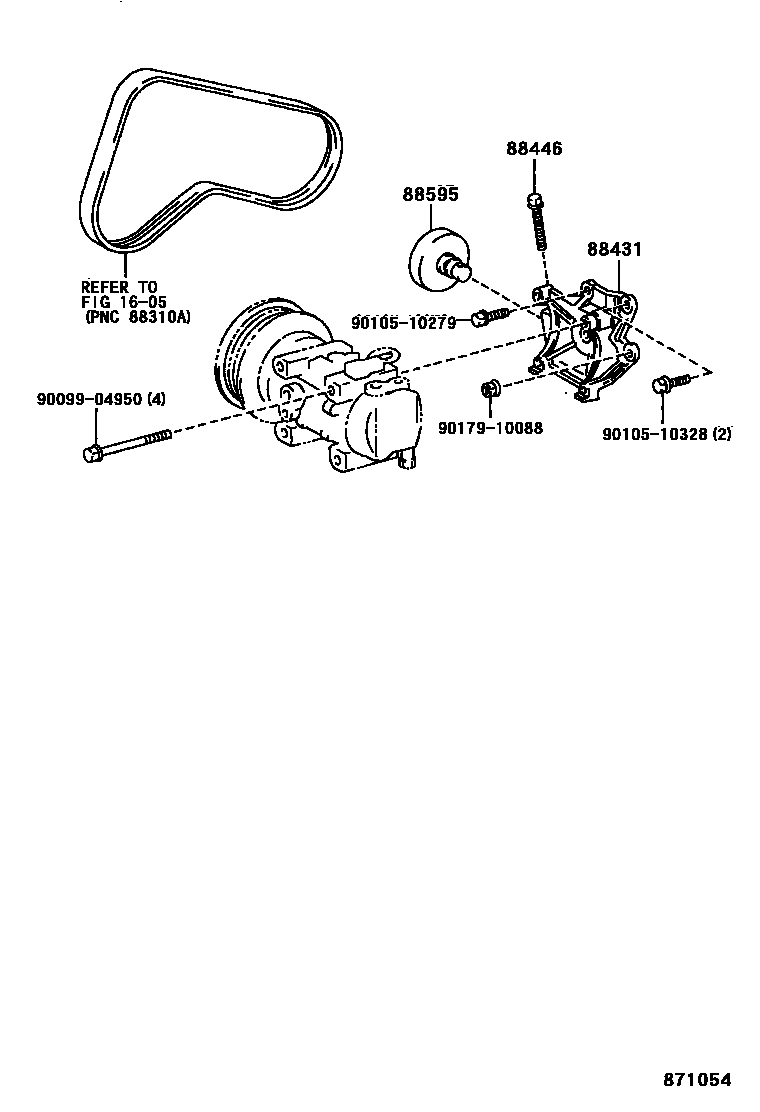

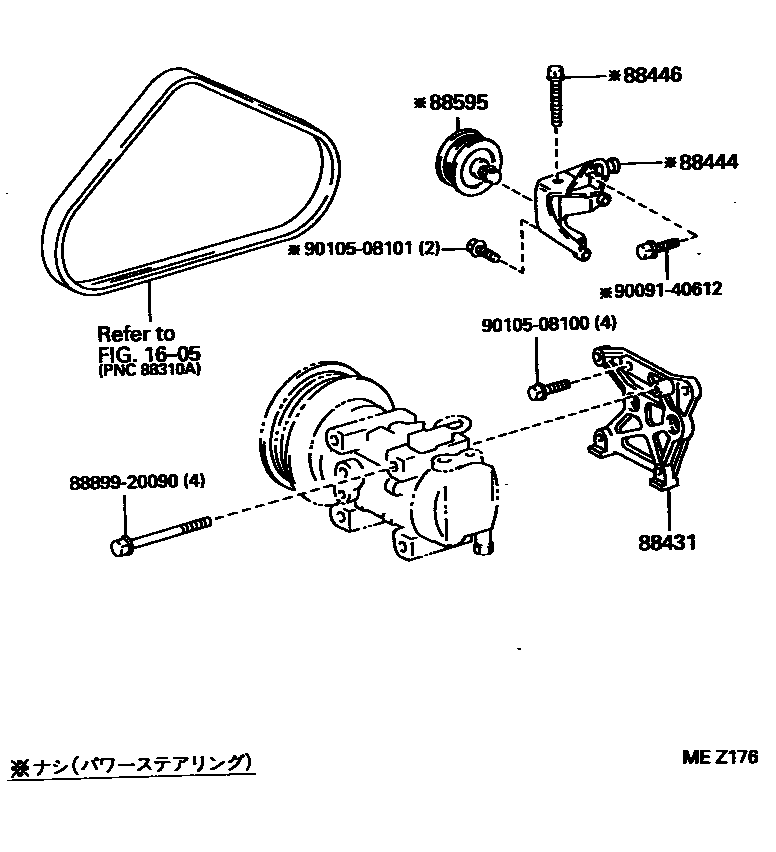

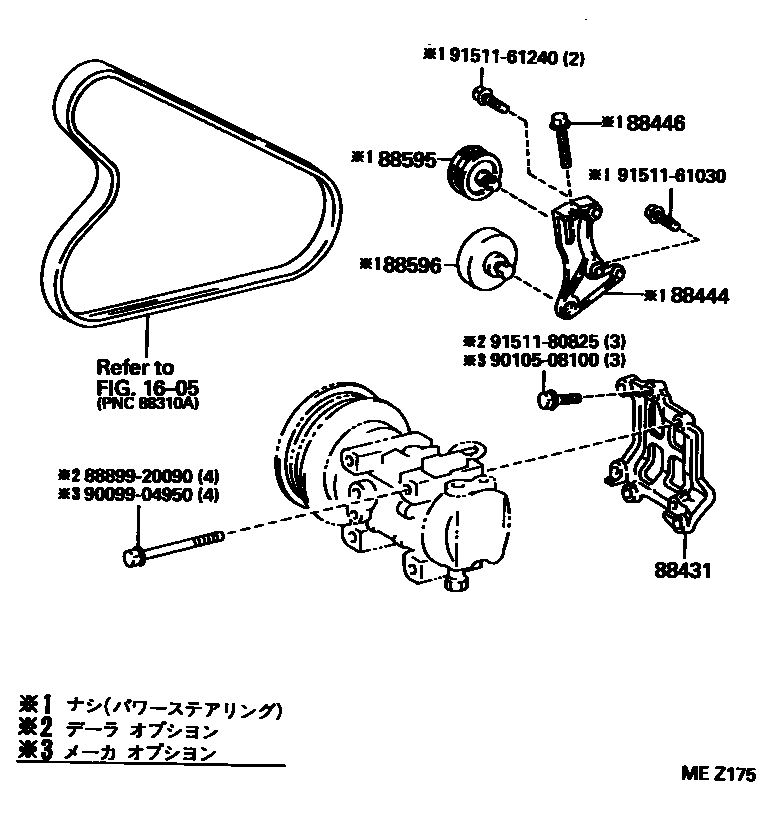

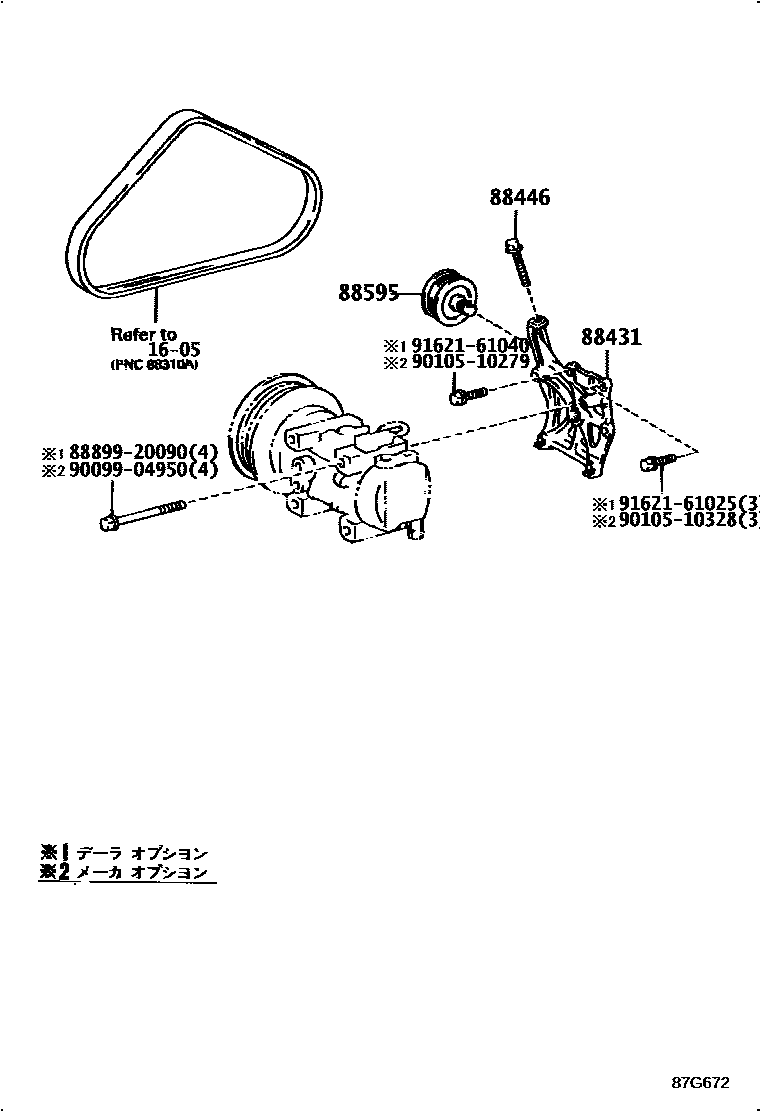

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-1A030 · 88412-1A040 · 88412-1A050 · 88412-1A090 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-1A040 |
| 88320 | Cooler Compressor Assembly | 88320-1A290 · 88320-1A300 · 88320-1A360 · 88320-1A370 · 88320-1A380 · 88320-1A440 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 90099-01553 · 90099-01554 · 90099-01555 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A010 |
| 88410 | Magnetic Clutch Assembly | 88410-1A050 · 88410-1A070 · 88410-1A100 · 88410-1A150 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12510 · 88431-12511 · 88431-12530 · 88431-12540 · 88431-12560 |
| 88444 | Idler gear bracket | 88444-10031 · 88444-12050 |
| 88446 | Idler gear bolt | 88446-12020 · 88446-12030 · 88446-35010 |
| 88595 | Cooler compressor idler pulley | 88440-12170 · 88440-12200 · 88440-12230 · 88440-20160 · 88440-20170 |
| 88596 | No. 2 idler gear assembly | 88440-12190 |
