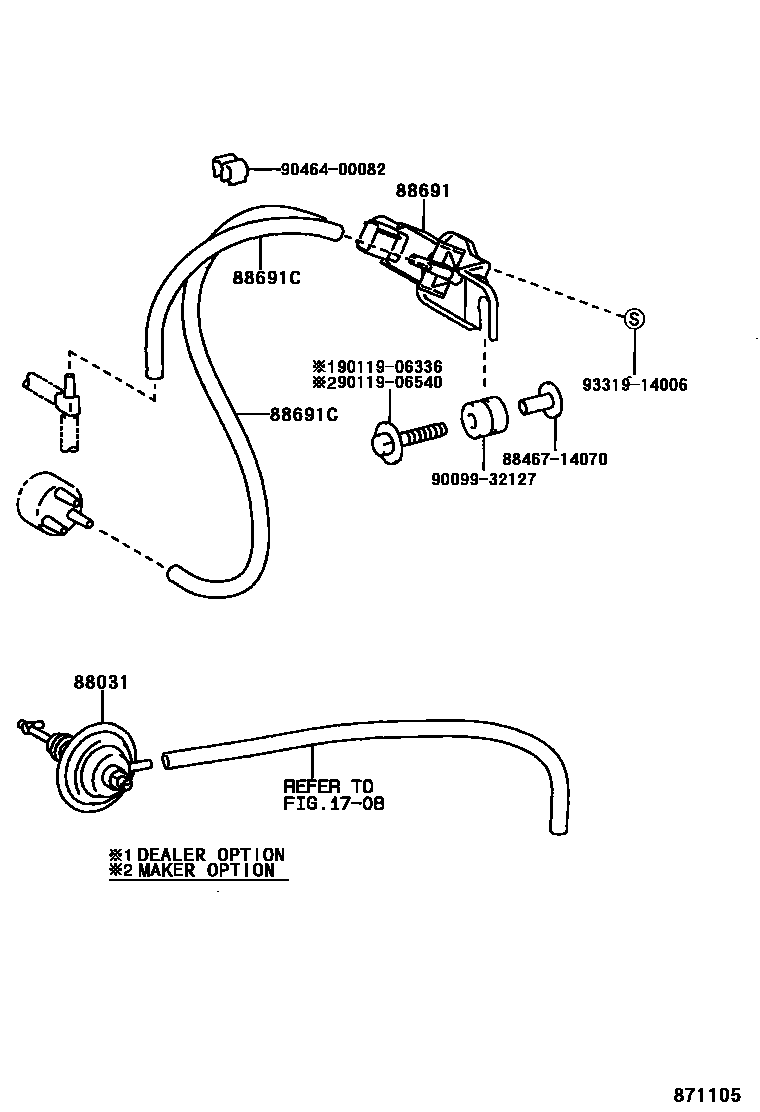

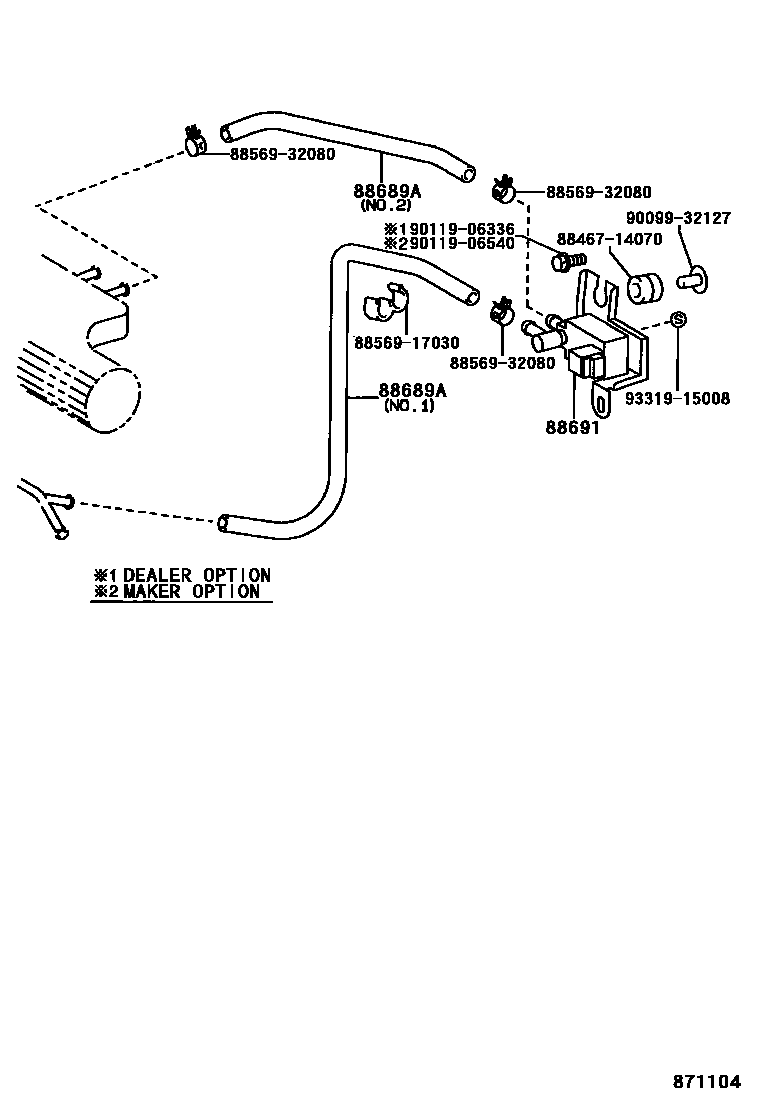

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-20080 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12430 · 88689-12440 · 88689-12520 · 88689-12530 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88691-12180 · 88691-12200 |
