Toyota COROLLA 后视镜 — Figure 8701

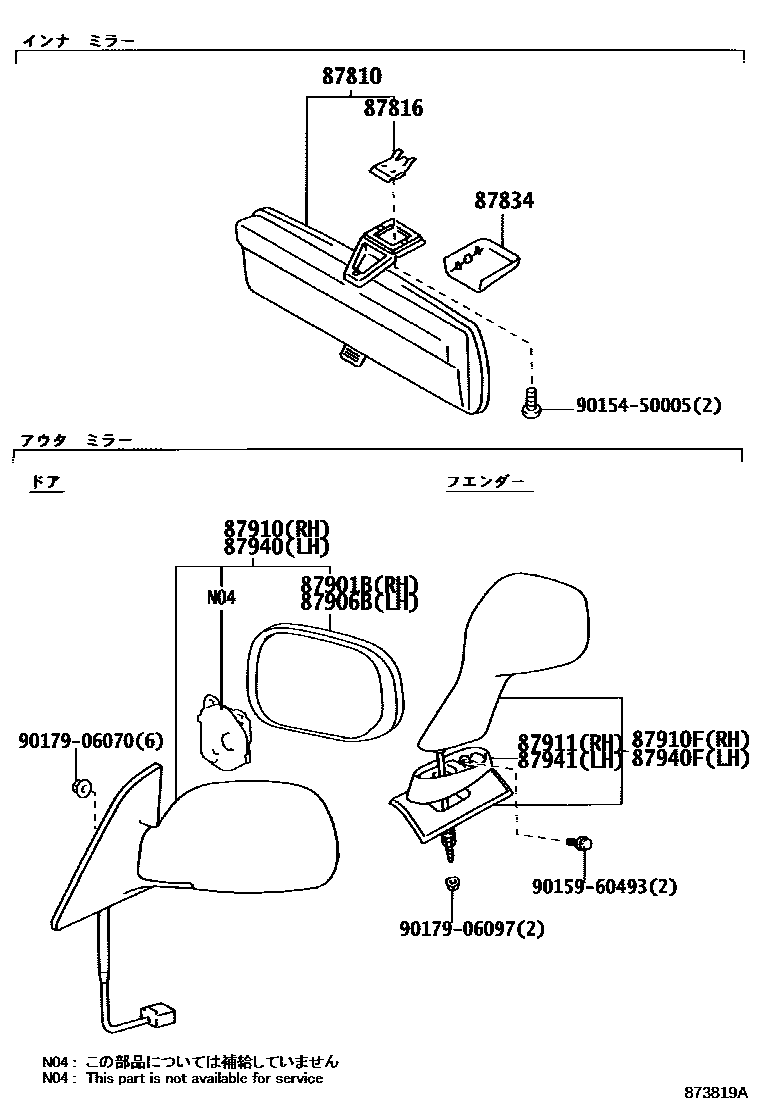

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A830 · 87931-1E550 · 87931-1E690 · 87931-1E720 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1E230 · 87961-1E550 · 87961-1E830 · 87961-1H050 |
| 87910 | Right exterior rearview mirror assembly | 87910-1A830 · 87910-1E530 |
| 87910F | Right fender rearview mirror assembly | 87910-1E510 |
| 87911 | Right exterior mirror pad | 87911-12300 |
| 87940 | Left exterior rearview mirror assembly | 87940-1E530 · 87940-1E830 |
| 87940F | Left fender rearview mirror assembly | 87940-1E510 |
| 87941 | Left exterior mirror pad | 87941-12280 |
