Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.

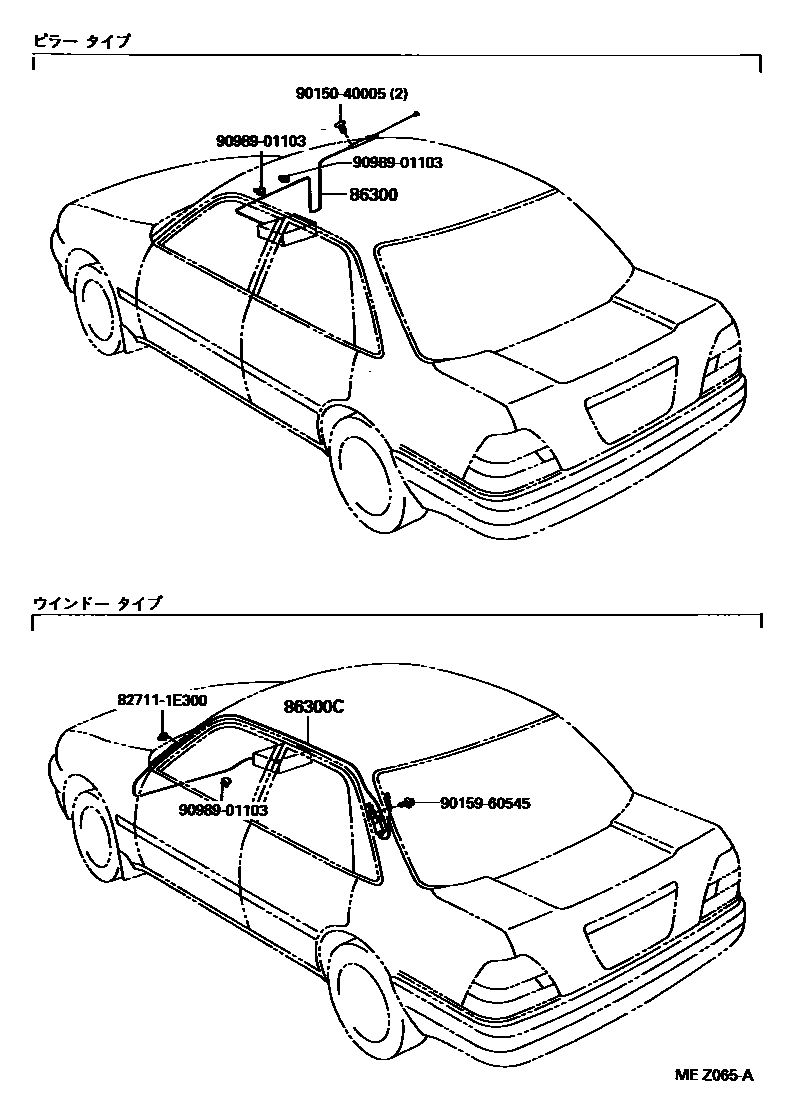

Toyota COROLLA antenna EPC diagram — MEZ065A
antenna — MEZ065A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
86300Antenna assembly with fixing parts86300-12410
86300CAmplifier antenna assembly86300-12640 · 86300-12641 · 86300-12680
