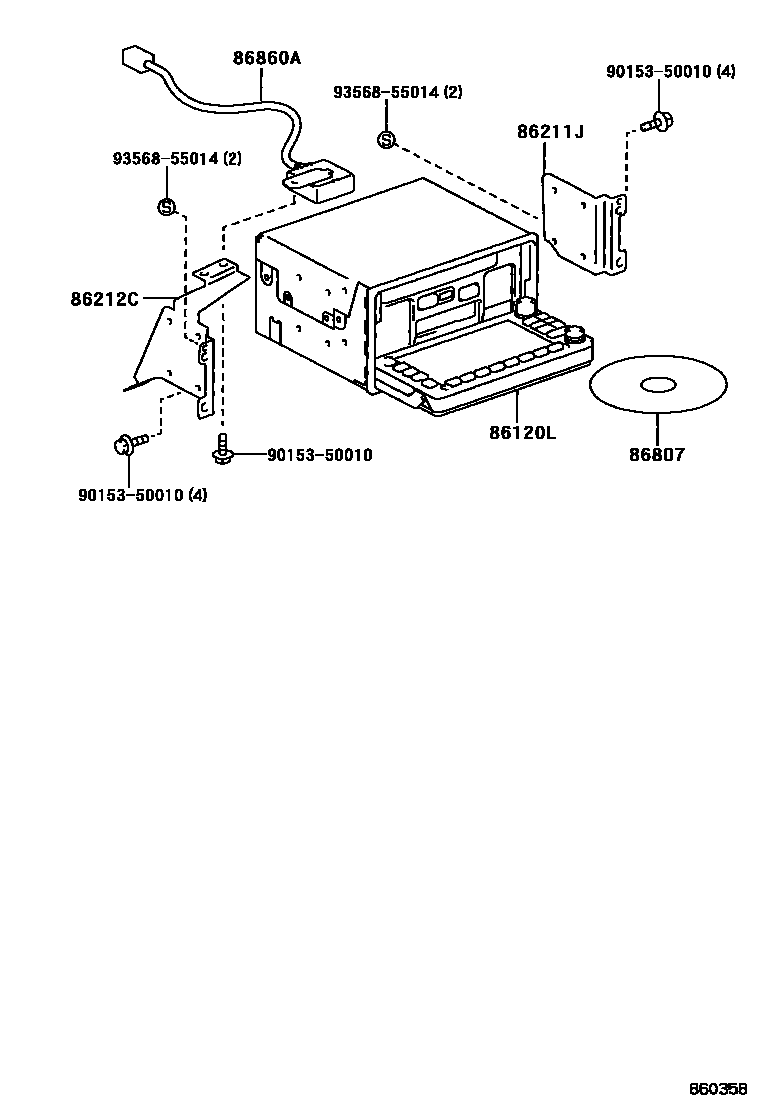

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-43011 · 86120-43012 · 86120-43020 · 86120-43021 |
| 86211J | No. 1 radio bracket | 86211-12360 |
| 86212C | No. 2 radio bracket | 86212-12340 |
| 86807 | CD-ROM disc repair kit | 86807-13010 · 86807-13011 |
| 86860A | navigation antenna | 86861-12010 |
