Toyota COROLLA 车门电机和车门电磁阀 — Figure 8511

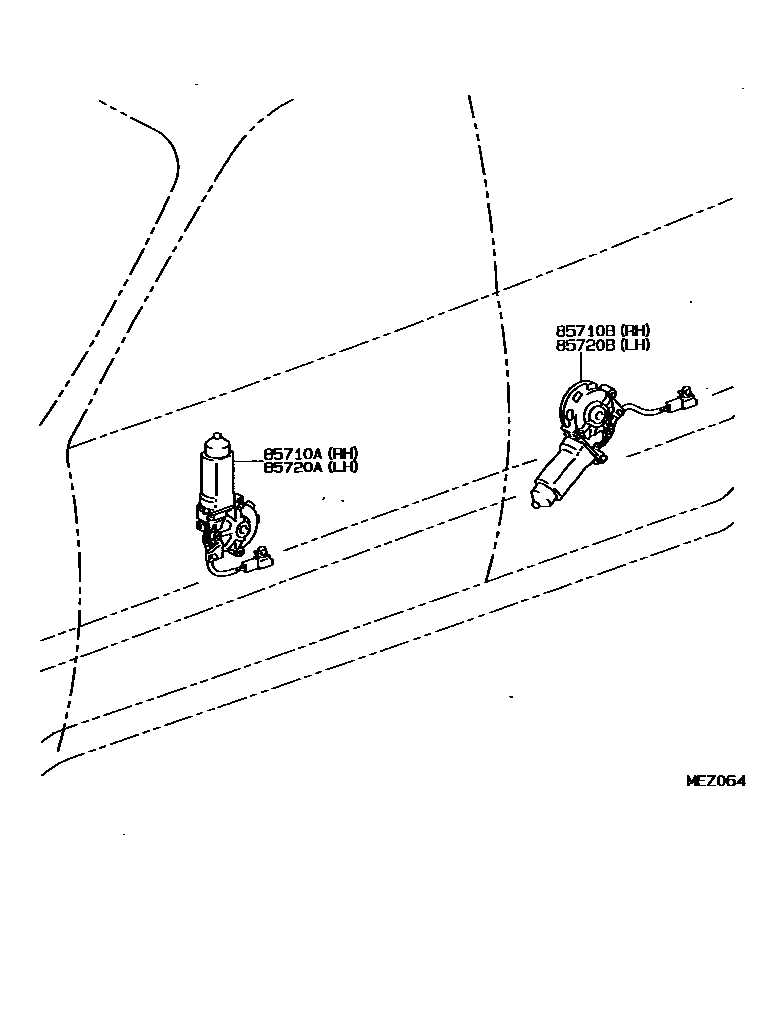

Toyota COROLLA EPC diagram 8511, 车门电机和车门电磁阀, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85710A | Right front electric window lift motor assembly | 85710-12140 · 85710-12170 |
| 85710B | Right rear electric window lift motor assembly | 85710-12150 · 85710-12200 · 85710-12270 |
| 85720A | Left front electric window lift motor assembly | 85720-12140 · 85720-12220 |
| 85720B | Left rear electric window lift motor assembly | 85720-12150 · 85720-12200 · 85720-12270 |
