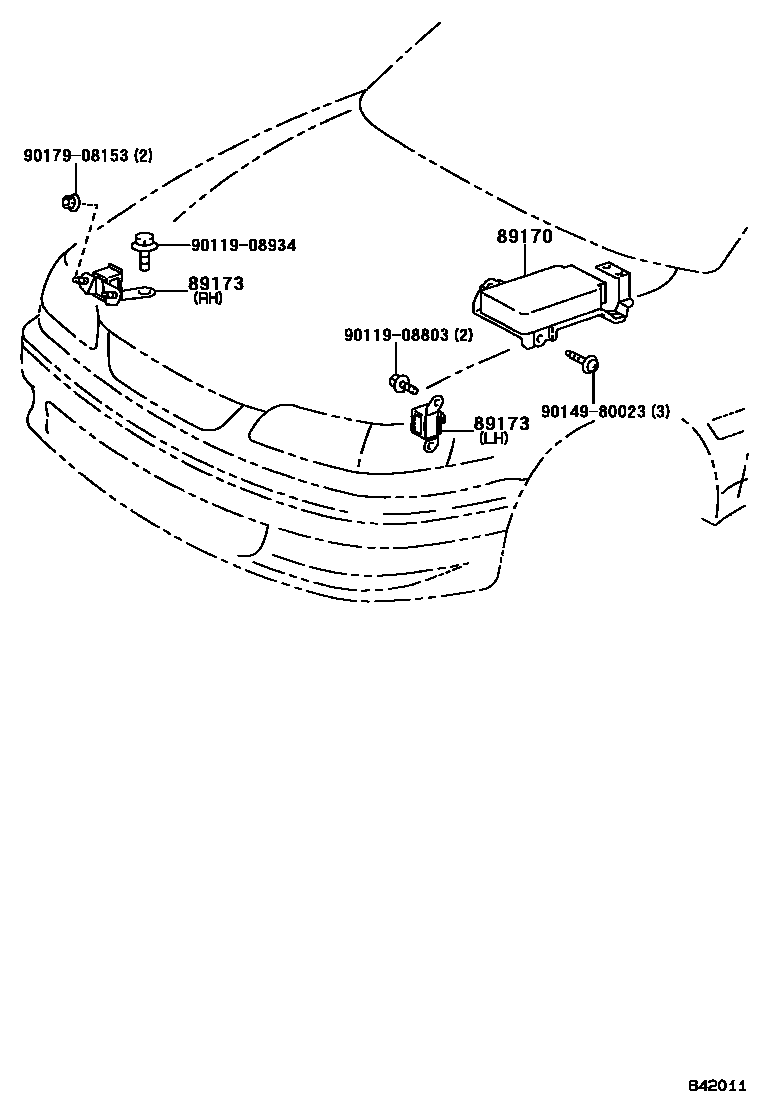

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-12060 · 89170-12061 · 89170-12130 · 89170-12240 · 89170-12250 · 89170-12330 · 89170-13020 |
| 89173 | front airbag sensor | 89173-19115 · 89173-19125 |
