Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405

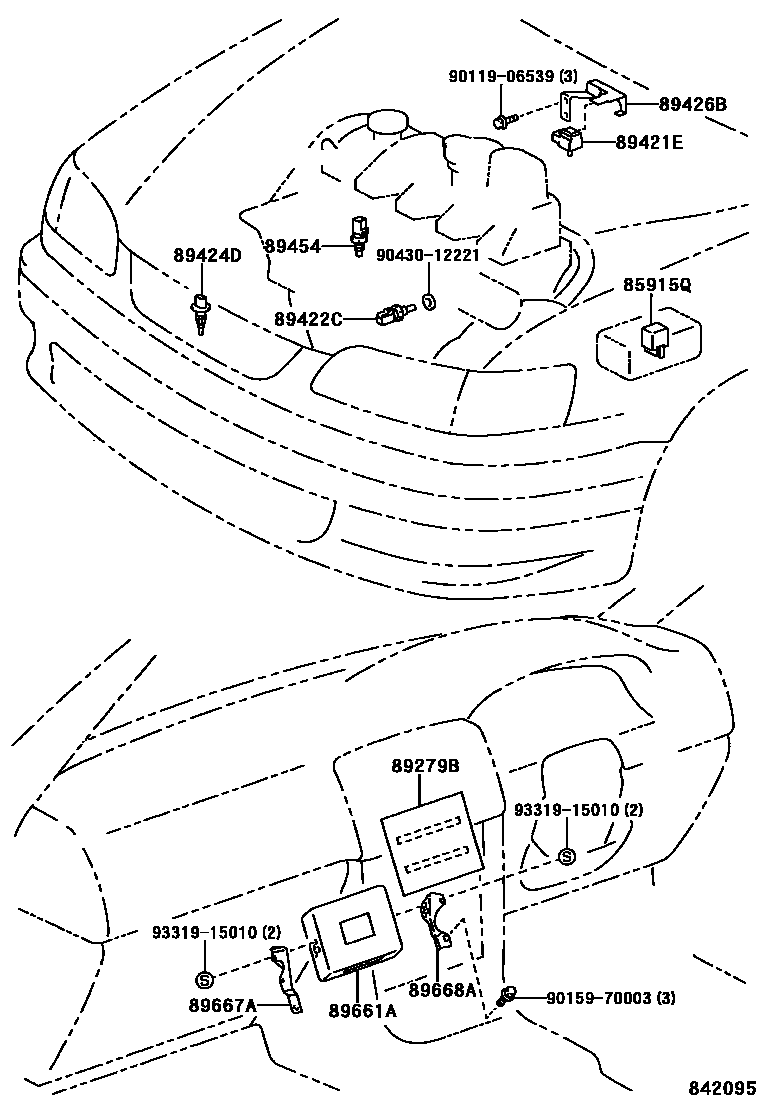

Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915Q | ECU relay (for diesel engine) | 85915-26010 |
| 89279B | Diesel engine control ECU cover | 89279-13020 |
| 89421E | vacuum sensor | 89420-12110 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424D | Intake air temperature sensor | 89424-12010 |
| 89426B | Vacuum sensor holder | 89426-12150 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-1E220 · 89661-1E230 · 89661-1E240 |
| 89667A | No. 1 engine control ECU bracket | 89667-12130 |
| 89668A | No. 2 engine control ECU bracket | 89668-12060 |
