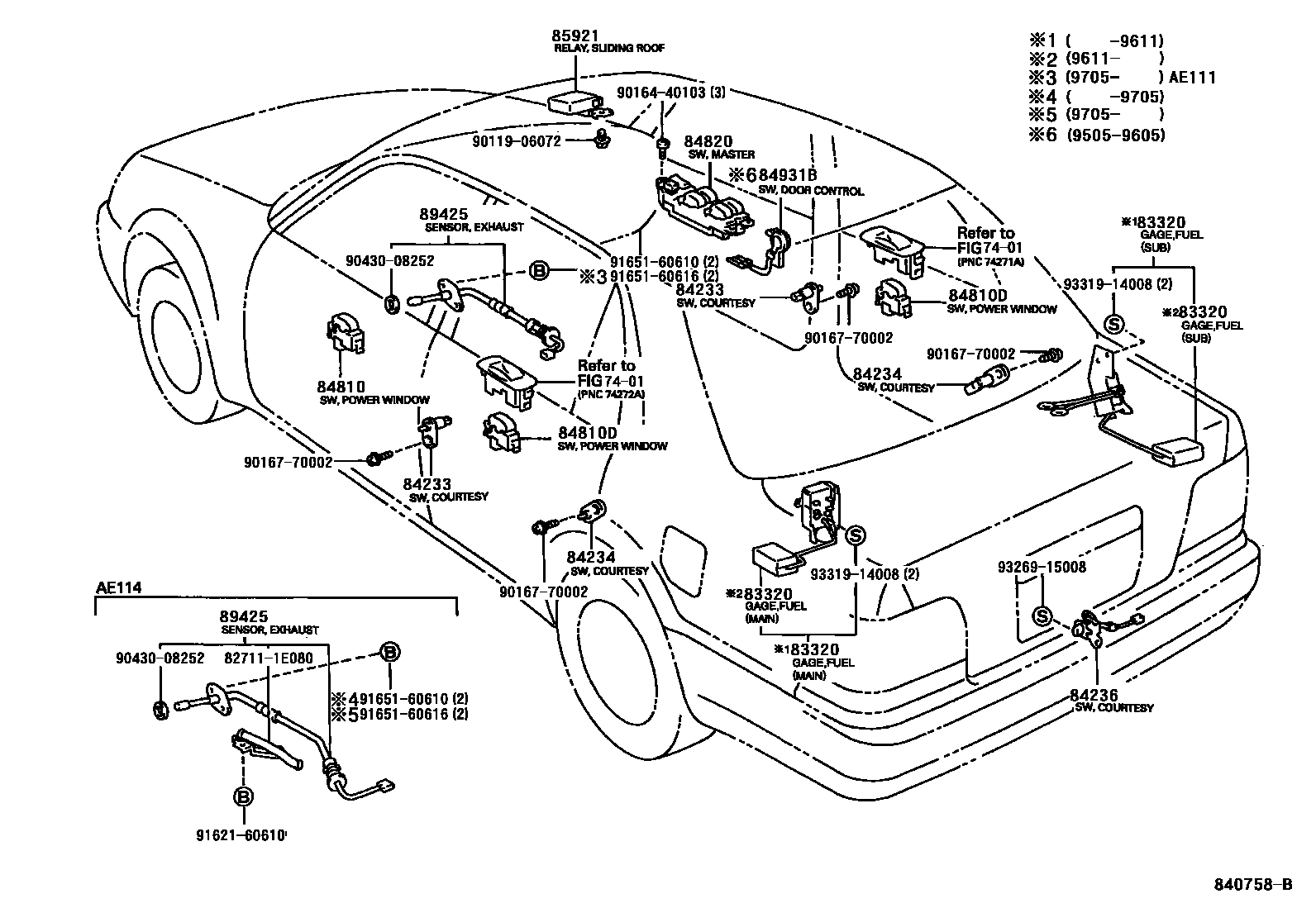

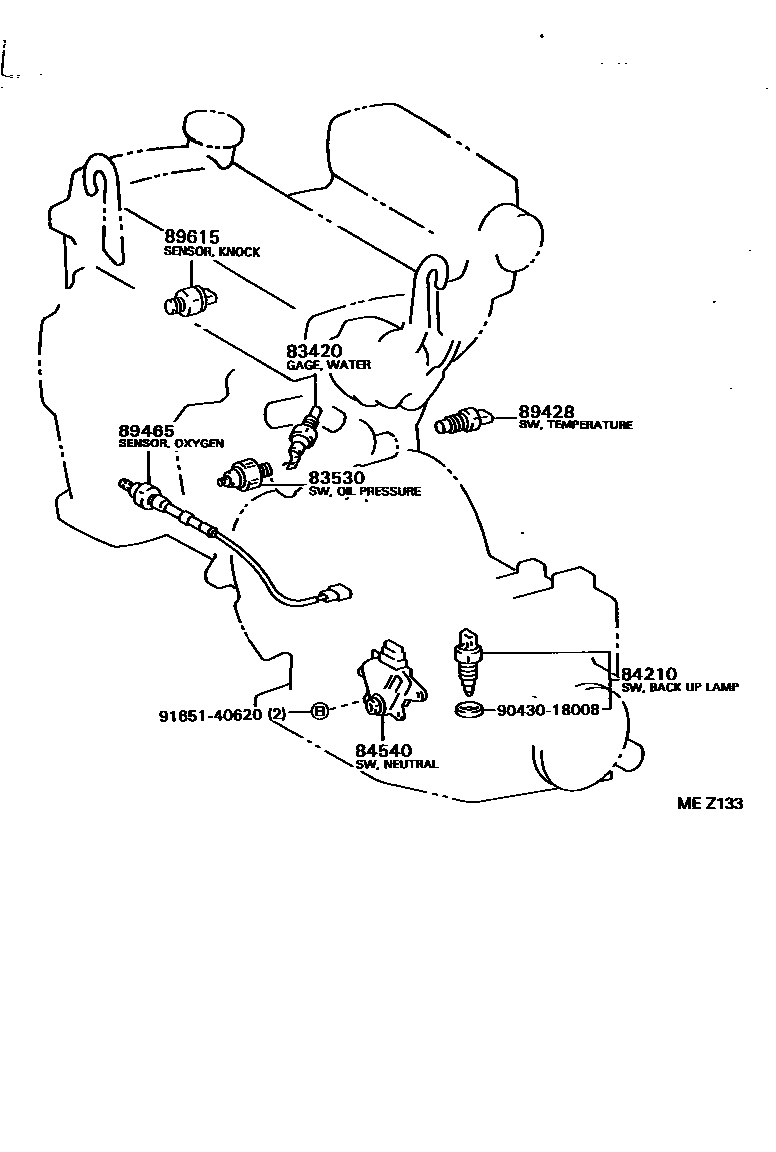

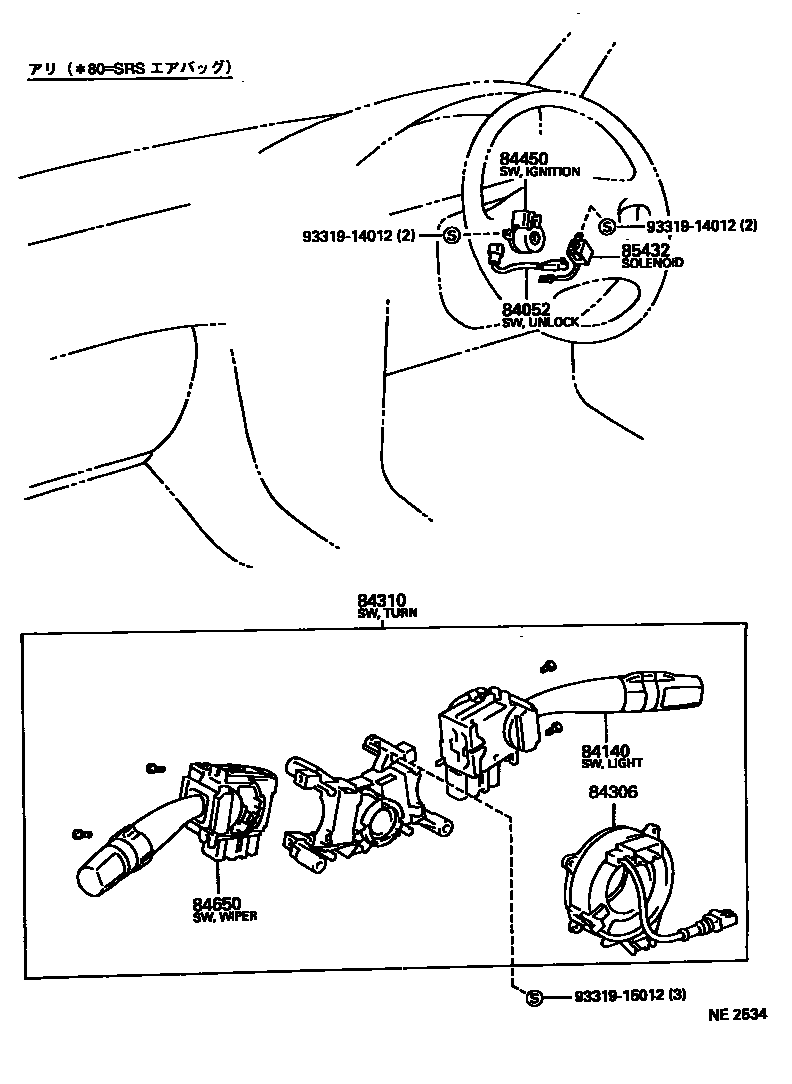

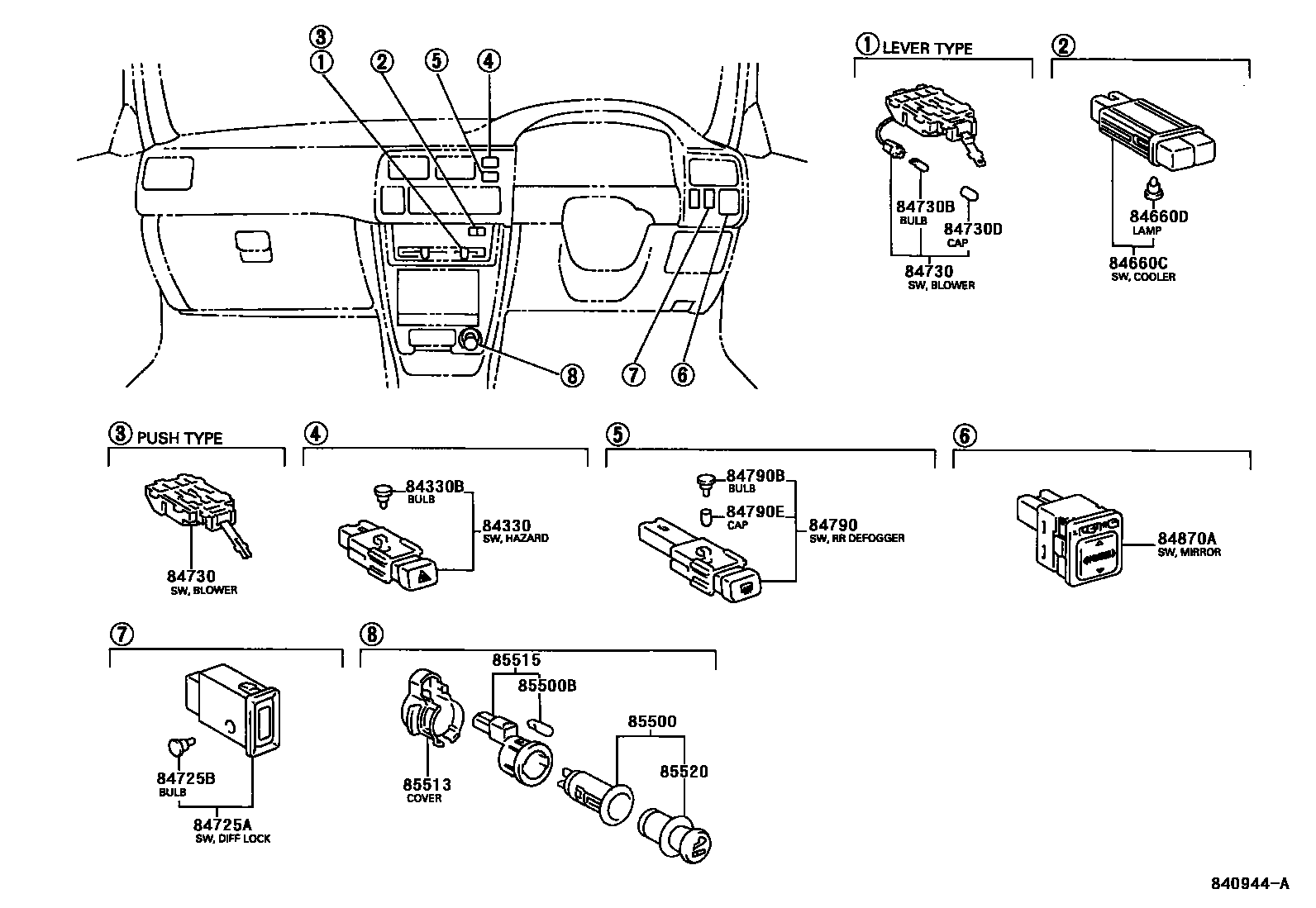

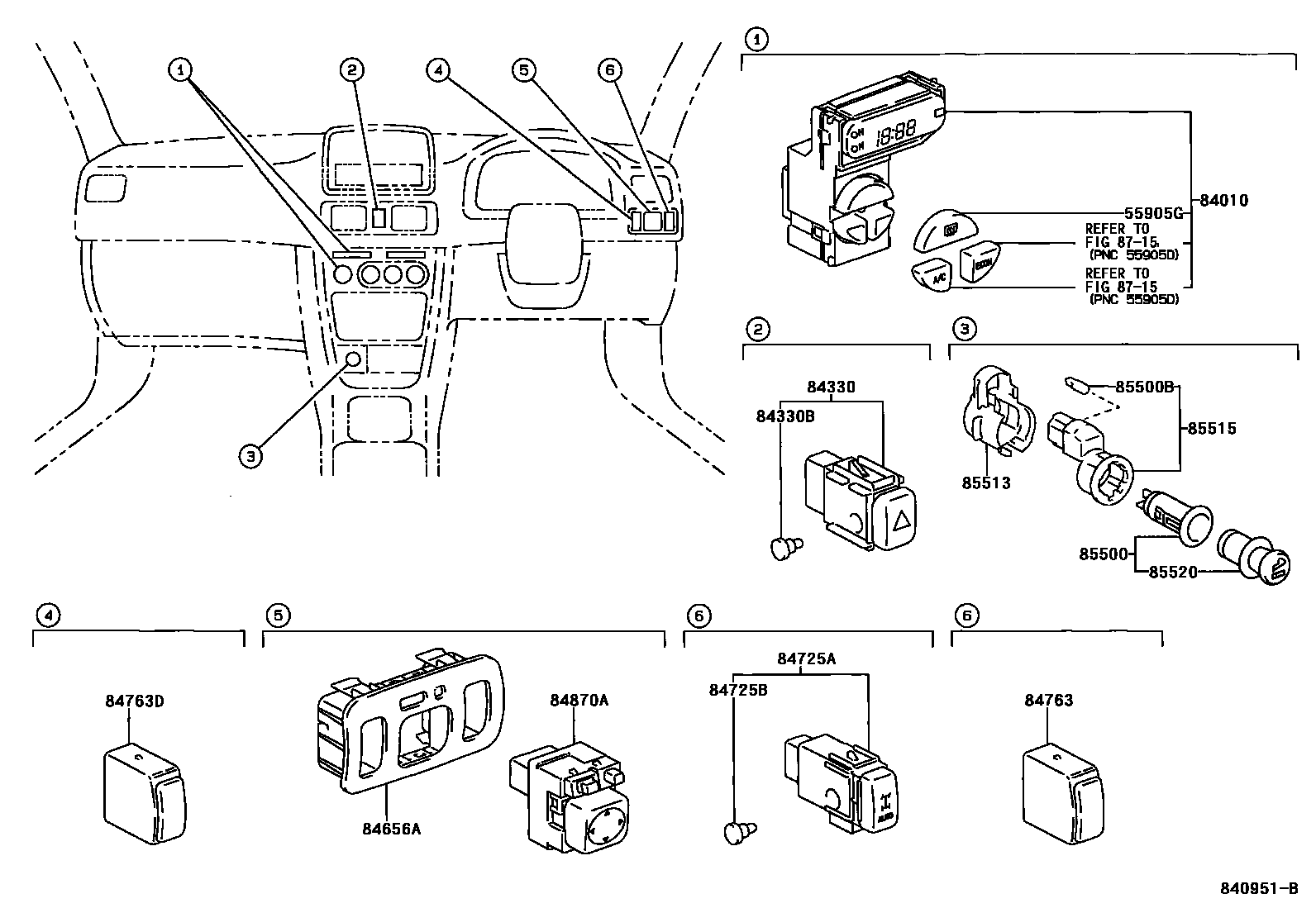

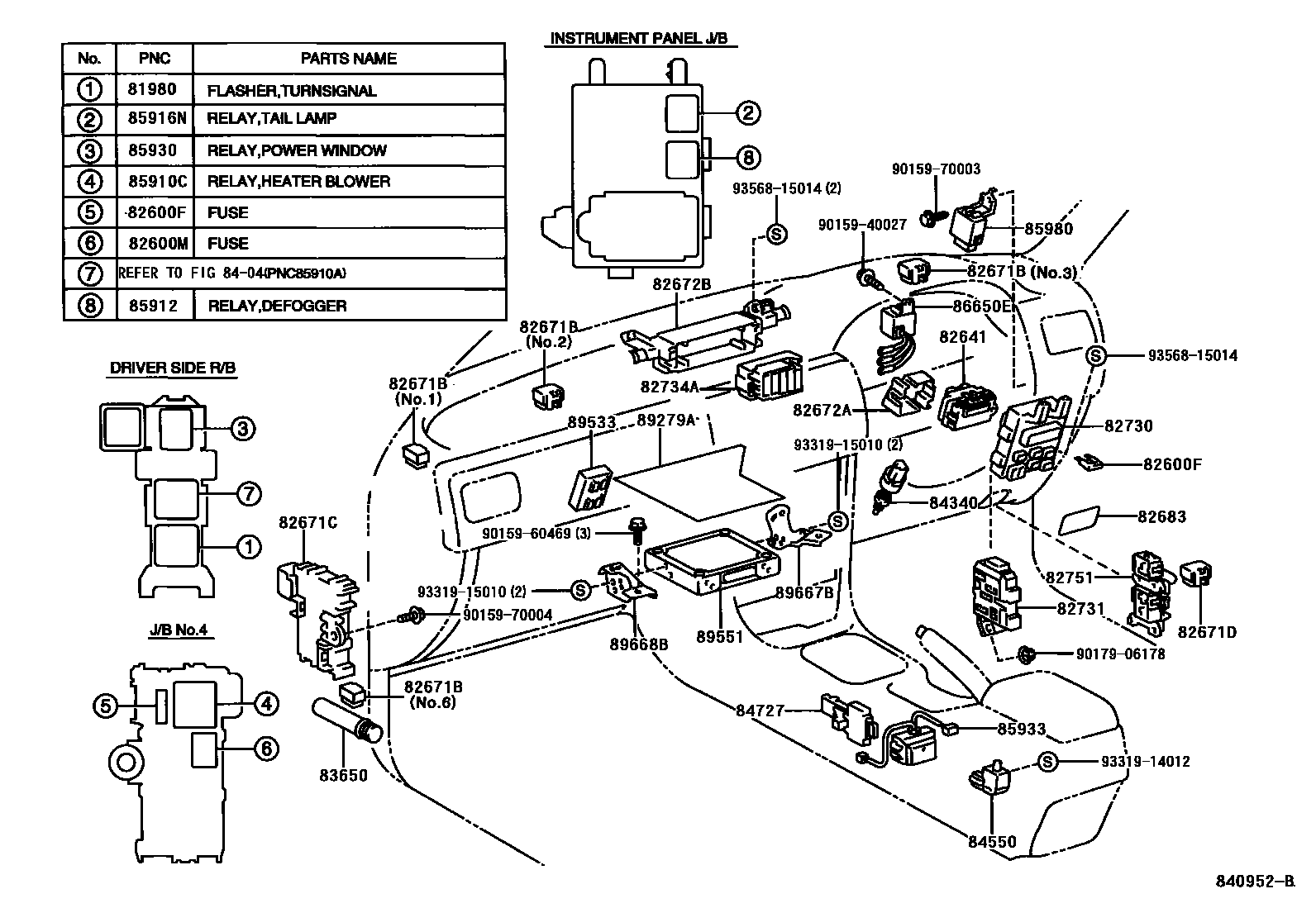

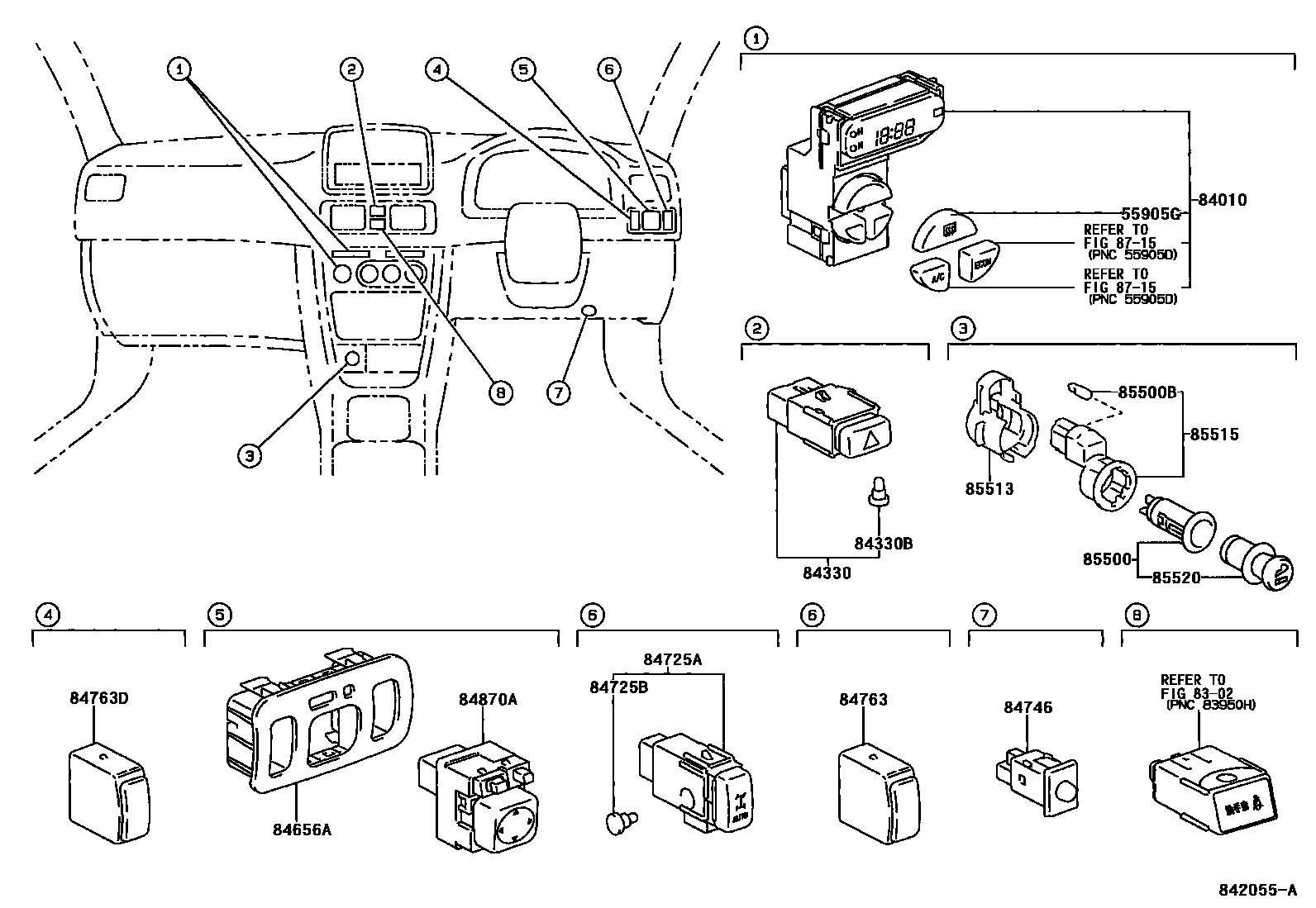

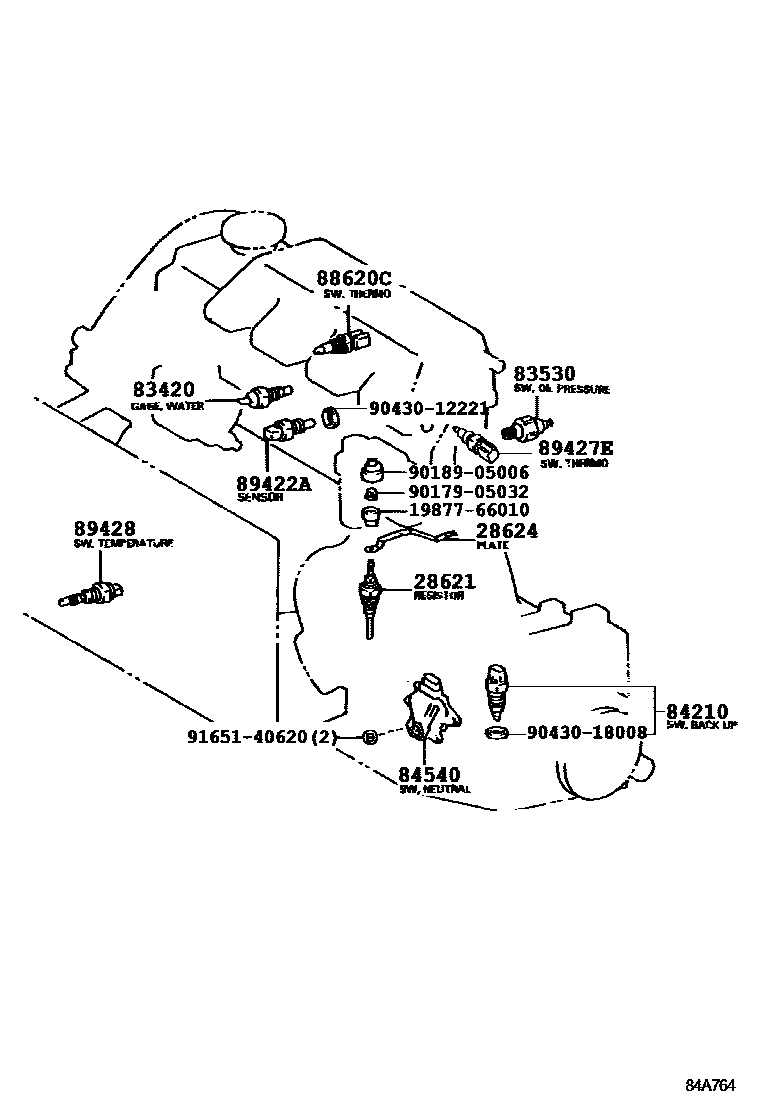

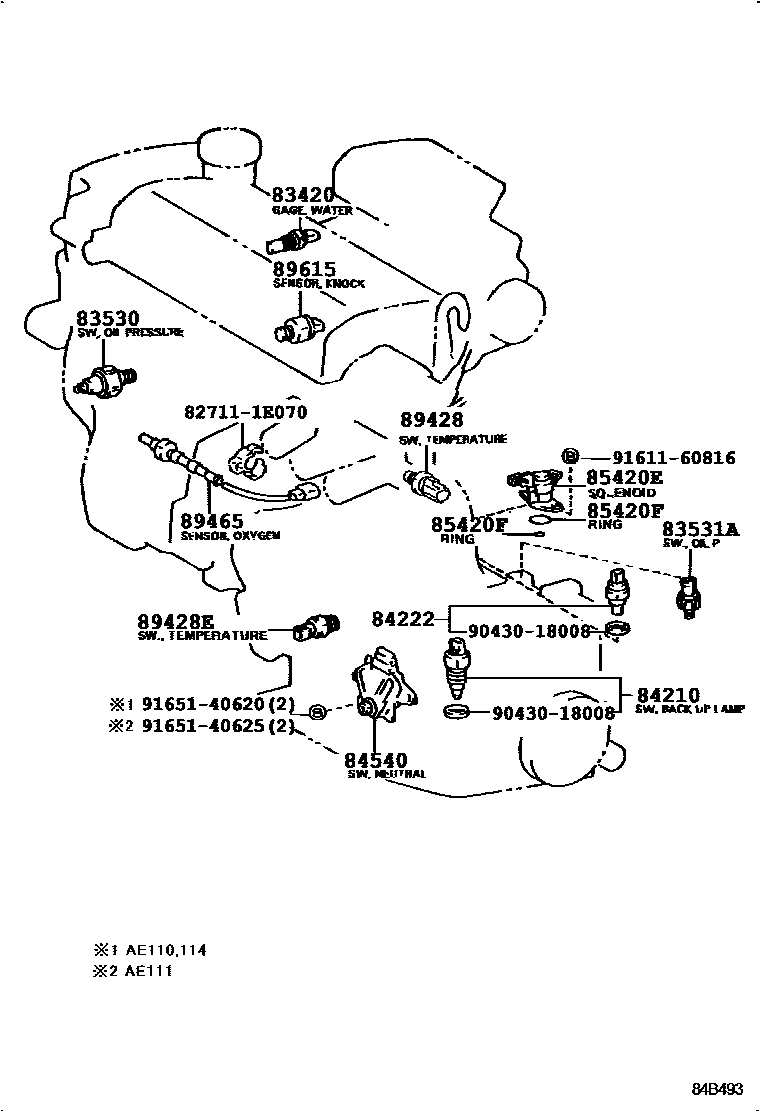

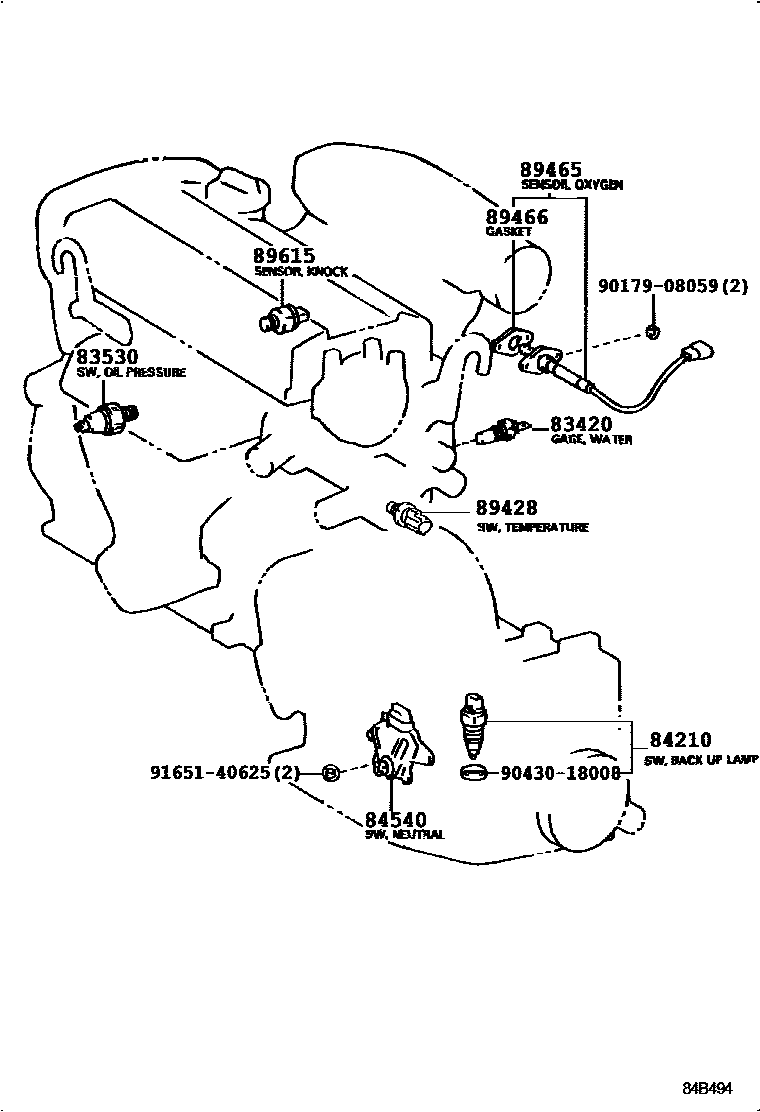

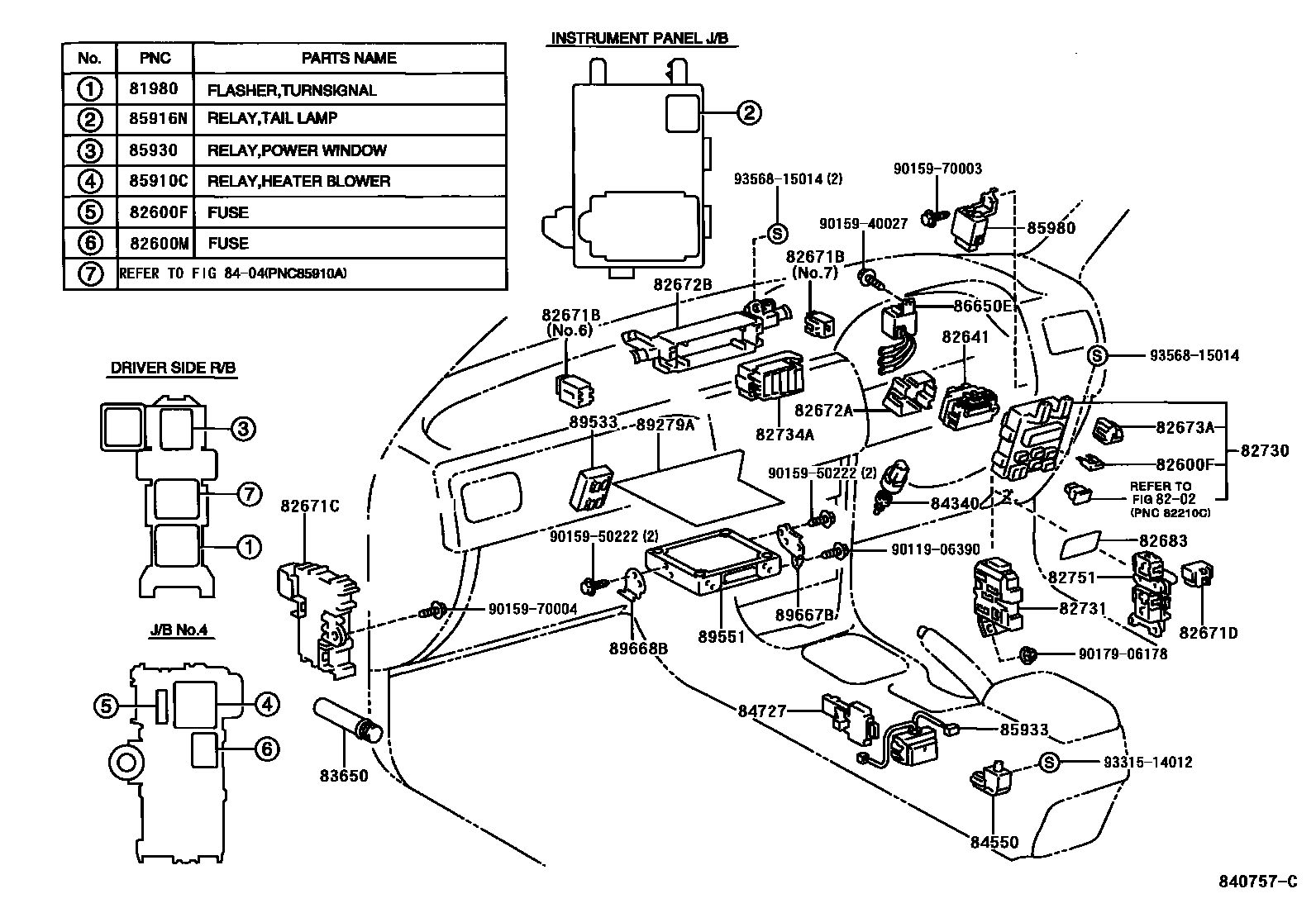

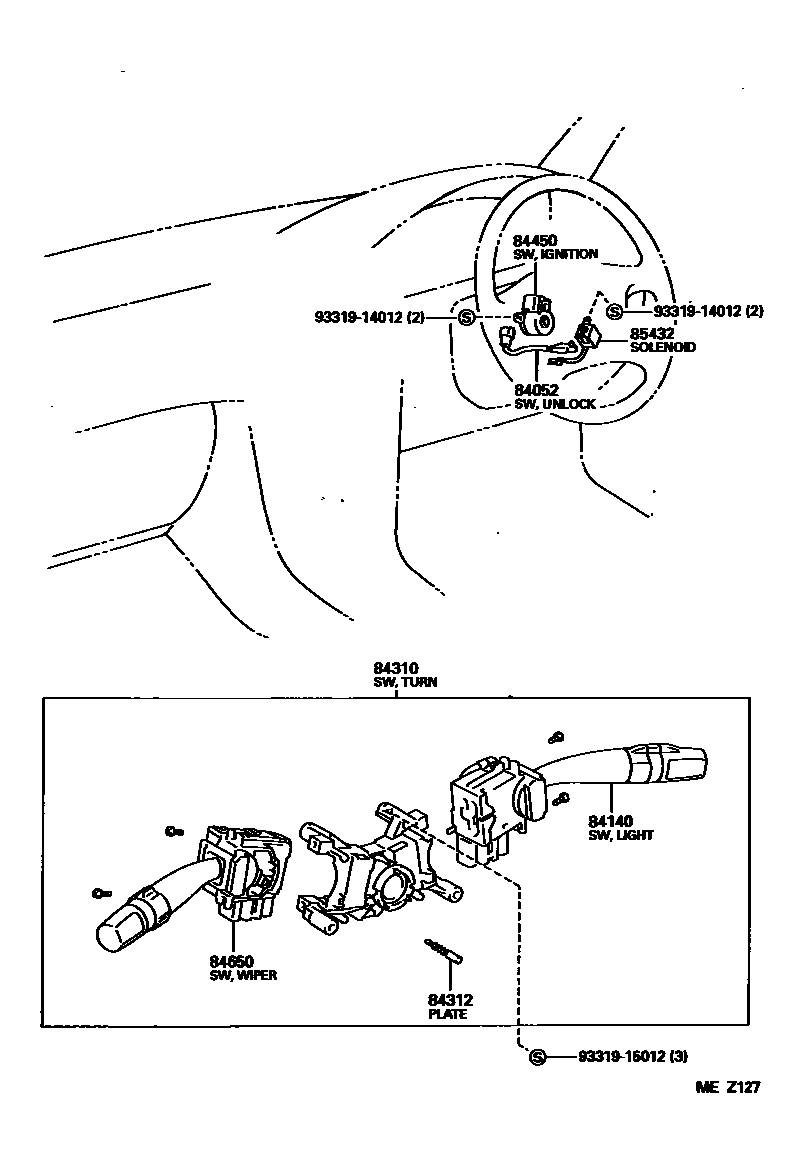

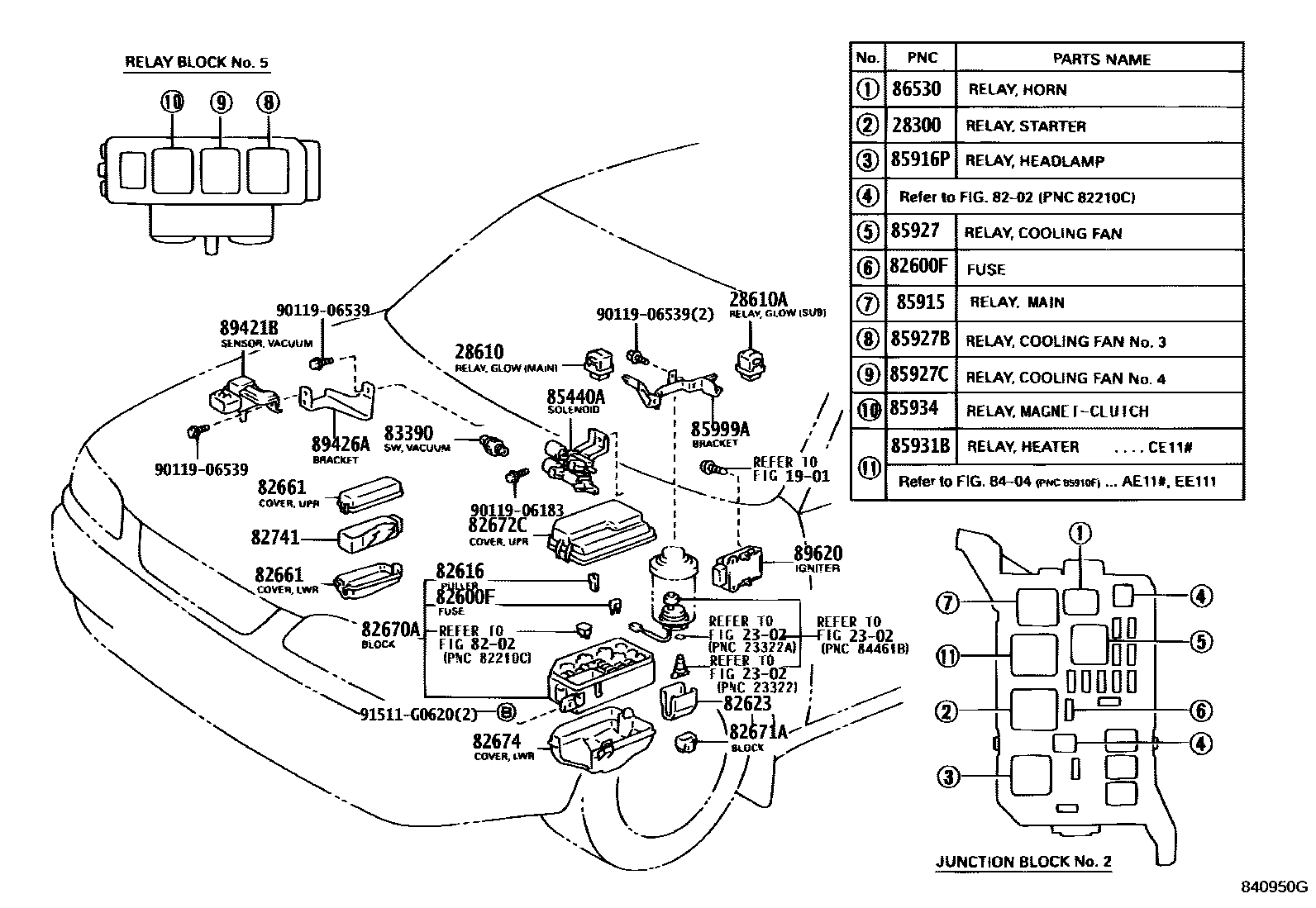

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 13 images and 111 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28610A | Sub glow plug relay assembly | 28610-64110 |
| 28621 | glow plug resistor | 28621-64011 |
| 28624 | Current sensor chip | 28624-64050 |
| 81980 | Turn signal flasher relay assembly | 81980-0W010 · 81980-12070 · 81980-12110 · 81980-32010 |
| 82600F | Spare fuse | 90982-09003 · 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09013 |
| 82600M | medium current fuse | 90982-10002 |
| 82616 | fuse puller | 82616-20010 |
| 82623 | Fuse lower cover | 82623-12010 |
| 82641 | Integrated relay No. 1 | 82641-12060 · 82641-12061 · 82641-12080 · 82641-12081 · 82641-12090 · 82641-12110 · 82641-12120 |
| 82661 | No. 1 relay box cover | 82661-12200 · 82661-12220 |
| 82670A | No. 1 junction box assembly | 82720-12020 · 82720-12021 · 82720-12060 · 82720-12070 |
| 82671A | junction box | 82671-30360 · 82671-30370 |
| 82671B | junction box | 82671-30350 · 82671-30360 · 82671-30370 |
| 82671C | junction box | 82671-12140 |
| 82671D | junction box | 82671-30350 · 82671-30360 |
| 82672A | Junction box cover | 82672-12350 · 82672-12380 |
| 82672B | Junction box cover | 82672-12210 · 82672-12370 |
| 82672C | Junction box cover | 82672-12310 · 82672-12311 · 82672-12390 |
| 82673A | Junction box bracket | 82673-12020 |
| 82674 | Junction box lower cover | 82674-12010 |
| 82683 | Fuse box warning nameplate | 82683-12200 · 82683-12201 · 82683-12230 · 82683-12231 |
| 82730 | Instrument panel junction box assembly | 82730-12010 · 82730-12020 · 82730-12050 · 82730-12060 · 82732-12040 · 82732-12050 · 82732-12060 · 82732-12070 |
| 82731 | Driver's side junction box | 82731-12010 |
| 82734A | central junction box | 82734-12010 |
| 82741 | Engine room relay box | 82741-12010 |
| 82751 | Driver's side relay box | 82751-12020 · 82751-13010 |
| 83320 | Fuel gauge sensor assembly | 83320-12521 · 83320-12522 · 83320-12530 · 83320-12540 · 83320-12550 · 83320-12571 · 83320-12572 · 83320-12581 · 83320-12582 · 83320-12590 · 83320-80199 · 83320-80200 · 83320-80201 · 83320-80202 · 83320-80270 · 83320-80271 · 83320-80272 |
| 83390 | Vacuum warning switch assembly | 83390-12340 · 83390-32100 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-20020 · 83420-20040 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-28040 · 83530-30080 · 83530-30090 · 83530-30100 · 83530-60010 · 83530-60020 · 83530-60040 |
| 83531A | Oil pressure switch | 83531-12010 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-12070 |
| 84140 | Headlight dimmer switch assembly | 84140-12380 · 84140-12400 · 84140-20570 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84231-12160 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12170 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12130 |
| 84306 | Spiral cable sub-assembly | 84306-12070 · 84306-12080 · 84306-20080 · 84306-35010 |
| 84310 | Turn signal switch assembly | 84310-1A810 · 84310-1A820 · 84310-1A840 · 84310-1E040 · 84310-1E050 · 84310-1E060 · 84310-1E070 · 84310-1E080 · 84310-1E470 · 84310-1E510 · 84310-1E550 · 84310-21120 |
| 84312 | Speaker contact piece | 84312-12050 · 84312-26010 |
| 84330 | Hazard warning signal switch assembly | 84332-12370 · 84332-12380 · 84332-12381 · 84332-12400 · 84332-12410 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 · 84999-10860 |
| 84340 | brake light switch assembly | 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-12200 · 84540-12210 · 84540-16050 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-1A380 · 84652-1A400 · 84652-1A470 · 84652-1A550 · 84652-1A560 · 84652-21021 |
| 84660C | Cooler switch | 84660-16120 · 84660-16130 |
| 84660D | Light bulb (for cooler switch) | 88607-10020 · 88607-20060 |
| 84725A | Differential lock switch | 84725-12030 · 84725-12050 · 84725-20020 |
| 84725B | Differential lock switch light bulb | 84999-10320 · 90010-01012 |
| 84727 | Shift lock control switch | 84727-12070 |
| 84730 | Heater blower switch assembly | 84732-16190 · 84732-20270 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10710 |
| 84746 | tire pressure warning switch | 84746-12010 |
| 84790 | Rear window defogger switch assembly | 84790-12350 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10320 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10680 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-10040 · 84820-12350 · 84820-13030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12130 · 84870-12140 · 84870-16020 · 84870-16040 |
| 84931B | door control switch | 84931-16030 |
| 85420E | Transmission solenoid valve assembly | 85420-12090 |
| 85420F | O-ring (for transmission solenoid valve) | 90301-11001 · 90301-23001 |
| 85432 | Key interlock solenoid valve | 85432-12020 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-12030 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 90010-01015 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-12100 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90080-87008 · 90987-02012 |
| 85915 | main relay | 85925-17010 · 90987-04002 |
| 85916N | Tail light relay | 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85921 | Sliding sunroof control relay | 85921-12061 |
| 85927 | cooling fan relay | 90084-98011 · 90987-03003 |
| 85927B | Cooling fan relay No. 3 | 90080-87009 · 90987-04004 |
| 85927C | No. 4 cooling fan relay | 90987-02012 |
| 85930 | Electric window relay assembly | 90987-02012 |
| 85931B | Fuel heater relay | 90987-02009 |
| 85933 | Shift lock control ECU | 85933-12120 · 85933-12121 |
| 85934 | Electromagnetic clutch relay | 90987-02012 |
| 85980 | Door control relay assembly | 85980-12250 · 85980-12270 · 85980-12290 |
| 85999A | No. 2 relay bracket | 85999-12220 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 86650E | Buzzer assembly | 86650-12030 · 86650-12050 |
| 88620C | Temperature switch assembly | 88620-12070 |
| 89279A | ECU cover | 89279-12080 · 89279-12120 |
| 89421B | vacuum sensor | 89420-12110 |
| 89422A | water temperature sensor | 89422-35010 |
| 89425 | Exhaust gas temperature sensor | 89425-19565 · 89425-19575 · 89425-19585 |
| 89426A | Vacuum sensor holder | 89426-12150 |
| 89427E | Temperature switch (for heater idle speed boost) | 89427-12110 |
| 89428 | No. 2 temperature detection switch | 89428-12160 · 89428-33010 |
| 89428E | Temperature switch No. 2 (for transmission) | 89428-12140 |
| 89465 | oxygen sensor | 89465-10060 · 89465-12280 · 89465-12430 · 89465-13020 · 89465-16040 · 89465-19685 |
| 89466 | Oxygen sensor pad | 89466-12020 |
| 89533 | Four-wheel drive control ECU | 89533-12050 |
| 89551 | Emission control ECU | 89551-12200 · 89551-12210 |
| 89615 | knock control sensor | 89615-12030 · 89615-22030 · 89615-22040 · 89615-22050 · 89615-52010 |
| 89620 | Ignition assembly | 89621-12050 |
| 89667B | No. 1 engine control ECU bracket | 89667-12120 · 89667-12130 |
| 89668B | No. 2 engine control ECU bracket | 89668-12050 · 89668-12060 |
