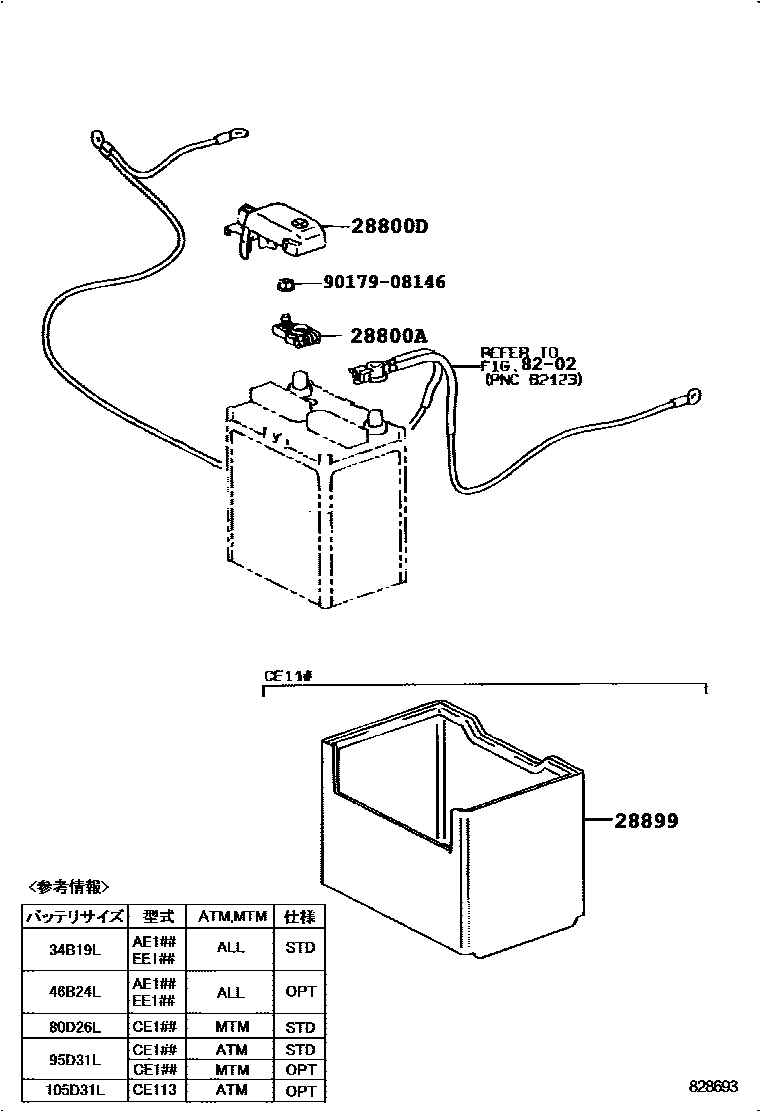

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05034 · 90982-05037 · 90982-05055 · 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 · 82821-12300 · 82821-12480 · 82821-12490 |
| 28899 | Battery insulation cover | 28899-54050 · 28899-64110 |
