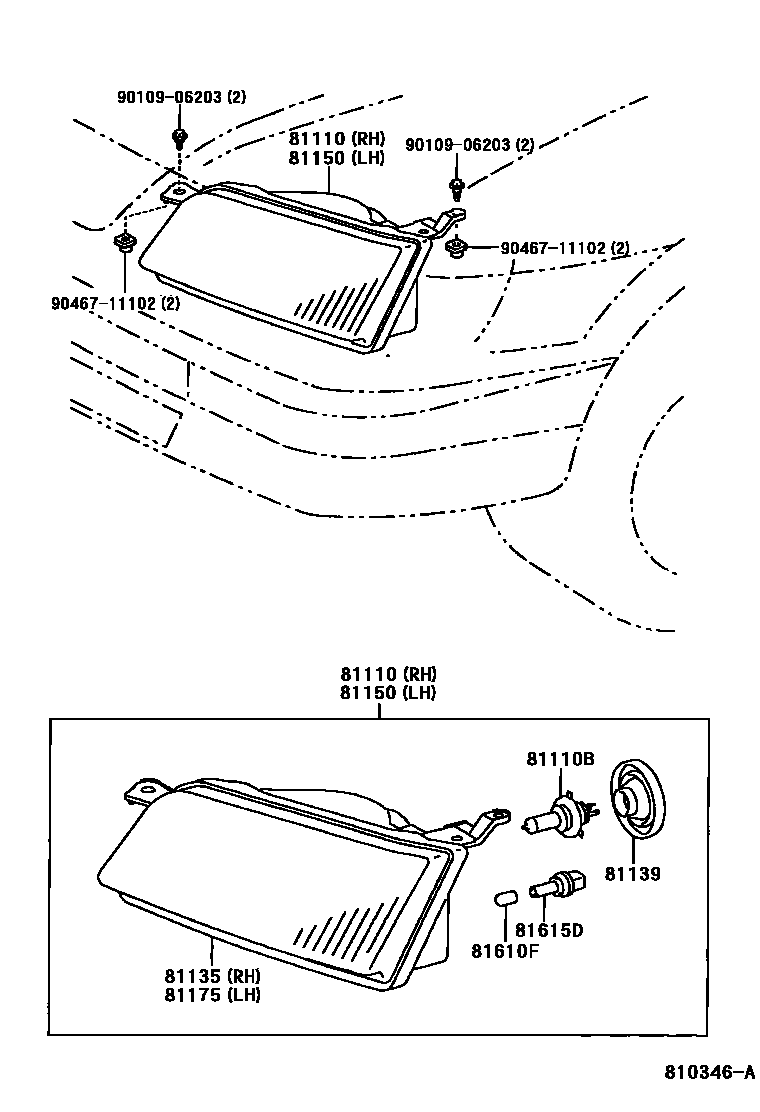

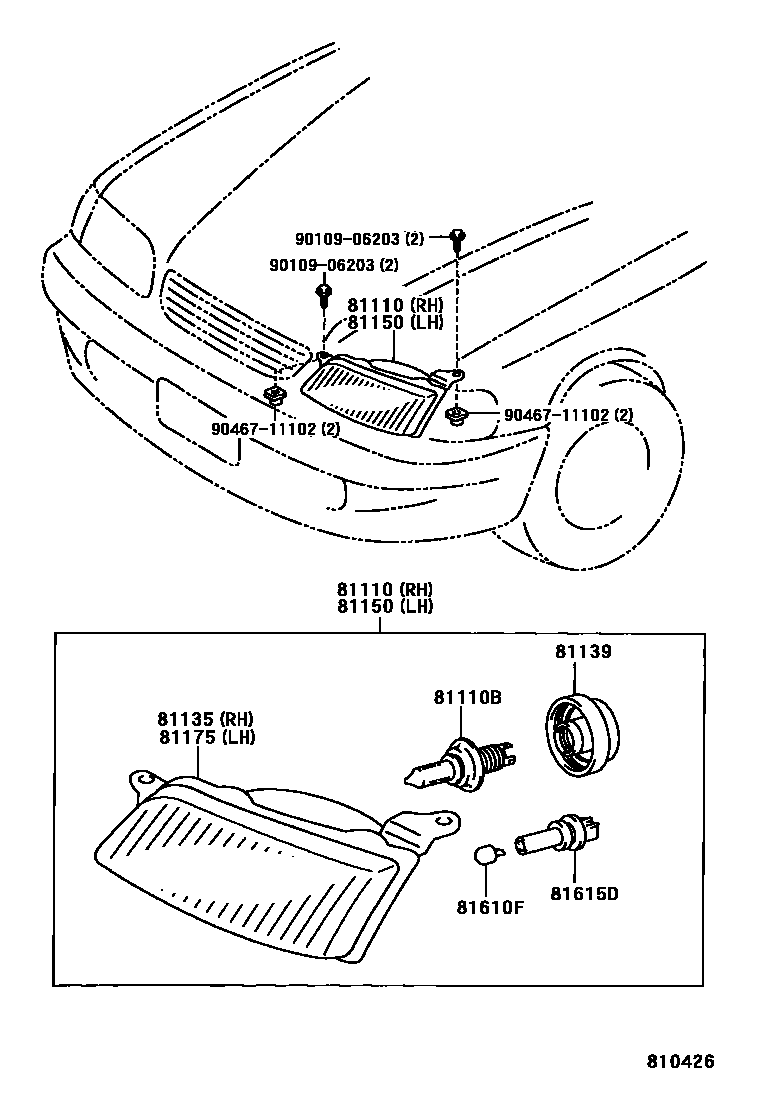

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-1E250 · 81110-1E450 |
| 81110B | Bulb (for headlight No. 1) | 90981-22004 |
| 81135 | Right headlight assembly | 81130-1E250 · 81130-1E450 · 81130-1E570 |
| 81139 | Headlight lamp holder cover | 90075-65002 |
| 81150 | Left headlight assembly | 81150-1A520 · 81150-1E320 |
| 81175 | Left headlight assembly | 81170-1A520 · 81170-1E320 · 81170-1E450 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 |
