Toyota COROLLA accelerator pedal connecting rod — Figure 7801

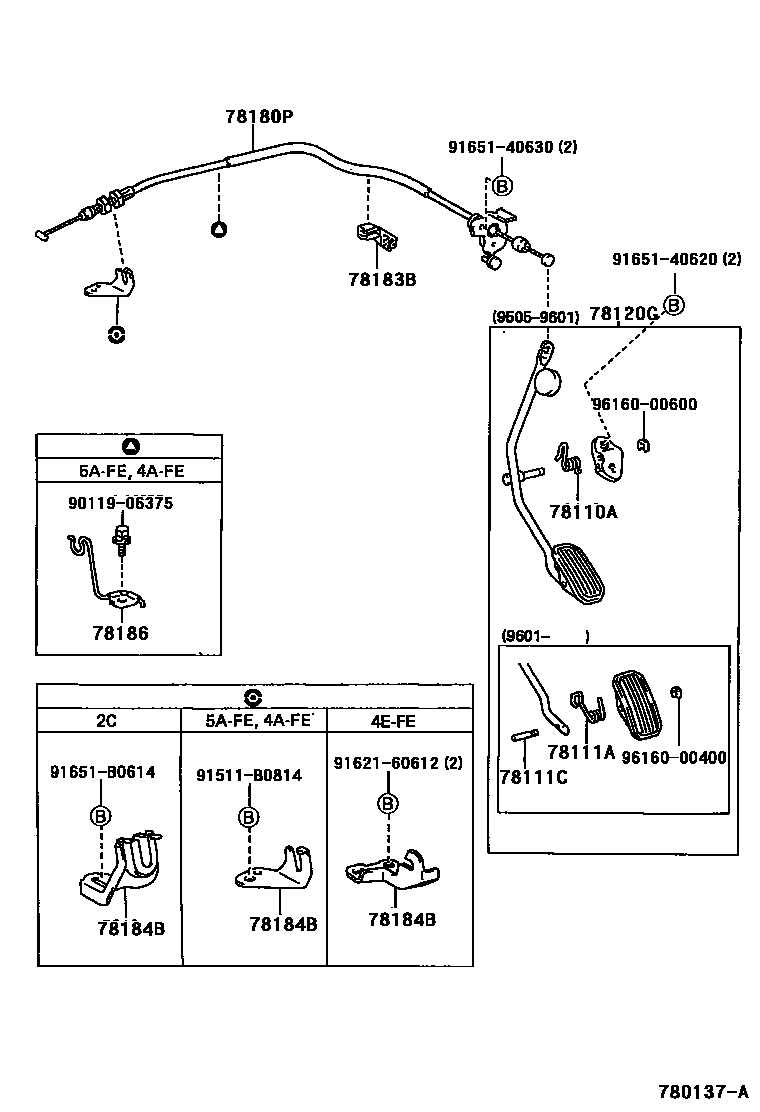

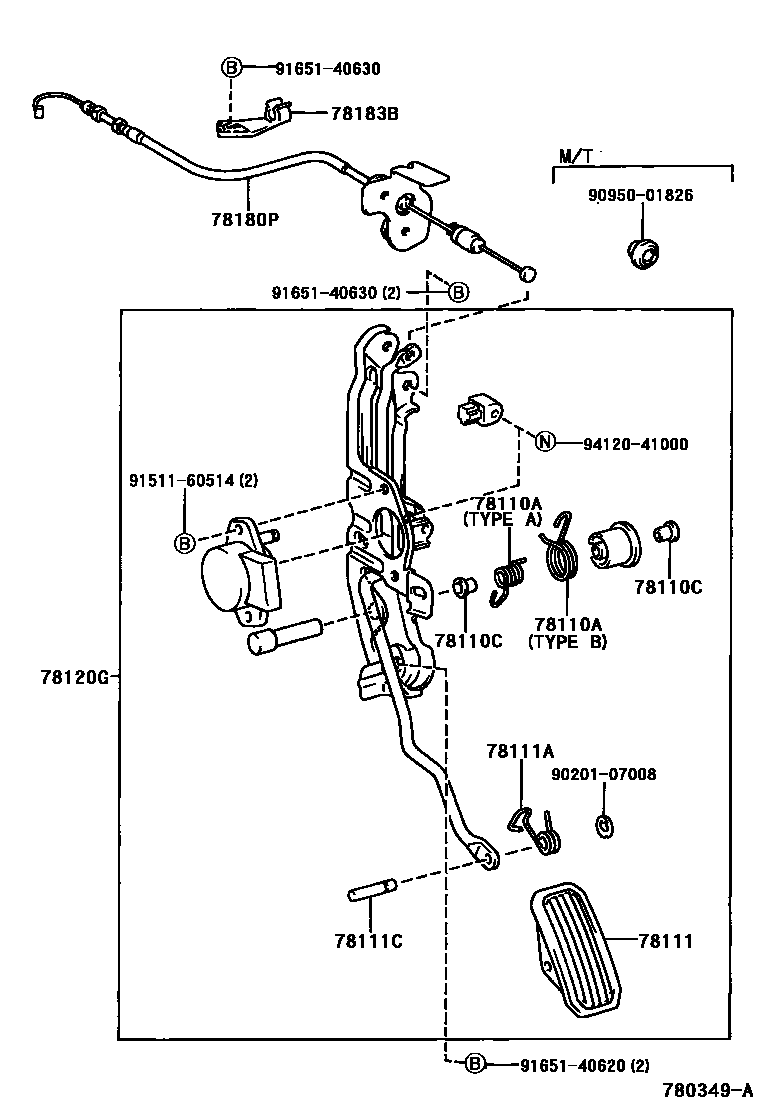

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-18398 · 90508-26036 · 90959-03195 · 90959-03196 · 90959-03197 · 90959-03198 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08007 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78010-12130 · 78010-12140 · 78120-12150 · 78120-12151 · 78120-12160 · 78120-12161 · 78120-12170 |
| 78180P | Accelerator pedal control cable assembly | 78180-1A250 · 78180-1A420 · 78180-1A460 · 78180-1A461 · 78180-1A490 · 78180-1A640 · 78180-1A650 · 78180-1A660 |
| 78183B | Accelerator pedal control cable clip | 78183-12160 |
| 78184B | Throttle pedal control cable bracket | 78024-32140 · 78184-12280 · 78184-16070 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12290 |
