Toyota COROLLA 挡泥板和扰流板 — Figure 7601

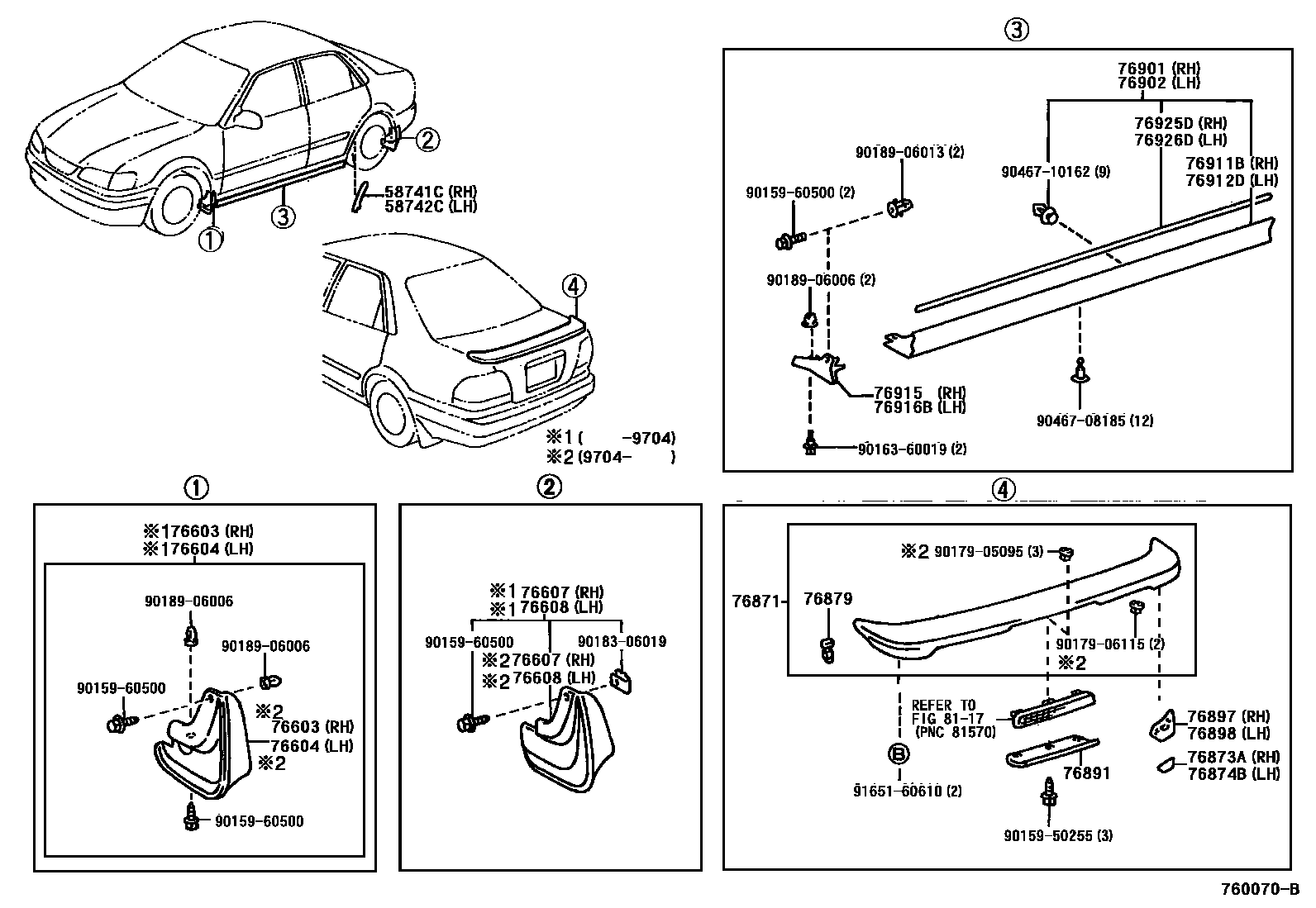

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741C | Right side enclosure protection panel | 58741-12130 |
| 58742C | Left side enclosure protection panel | 58742-12120 |
| 76603 | Right front fender fender sub-assembly | 76621-12181 · 76621-19285 · 76621-19286 |
| 76604 | Left front fender fender sub-assembly | 76622-12181 · 76622-19285 · 76622-19286 |
| 76607 | Right rear side fender sub-assembly | 76625-12440 · 76625-19545 |
| 76608 | Left rear side fender sub-assembly | 76626-12430 · 76626-19545 |
| 76871 | rear spoiler | 76871-12230 · 76871-12906 |
| 76873A | Right rear spoiler protective strip | 76783-12010 · 76783-12030 |
| 76874B | Left rear spoiler protective strip | 76783-12010 · 76784-12030 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 |
| 76891 | No. 1 rear spoiler | 76891-12110 |
| 76897 | Right rear spoiler protection strip | 76897-12070 · 76897-12090 |
| 76898 | Left rear spoiler protection strip | 76898-12070 · 76898-12090 |
| 76911B | right fender | 76911-12901 |
| 76912D | left fender | 76912-12901 |
| 76915 | Right rear door fender | 76915-12090 |
| 76916B | Left rear door fender | 76916-12090 |
