Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 16 PNC and OE references.

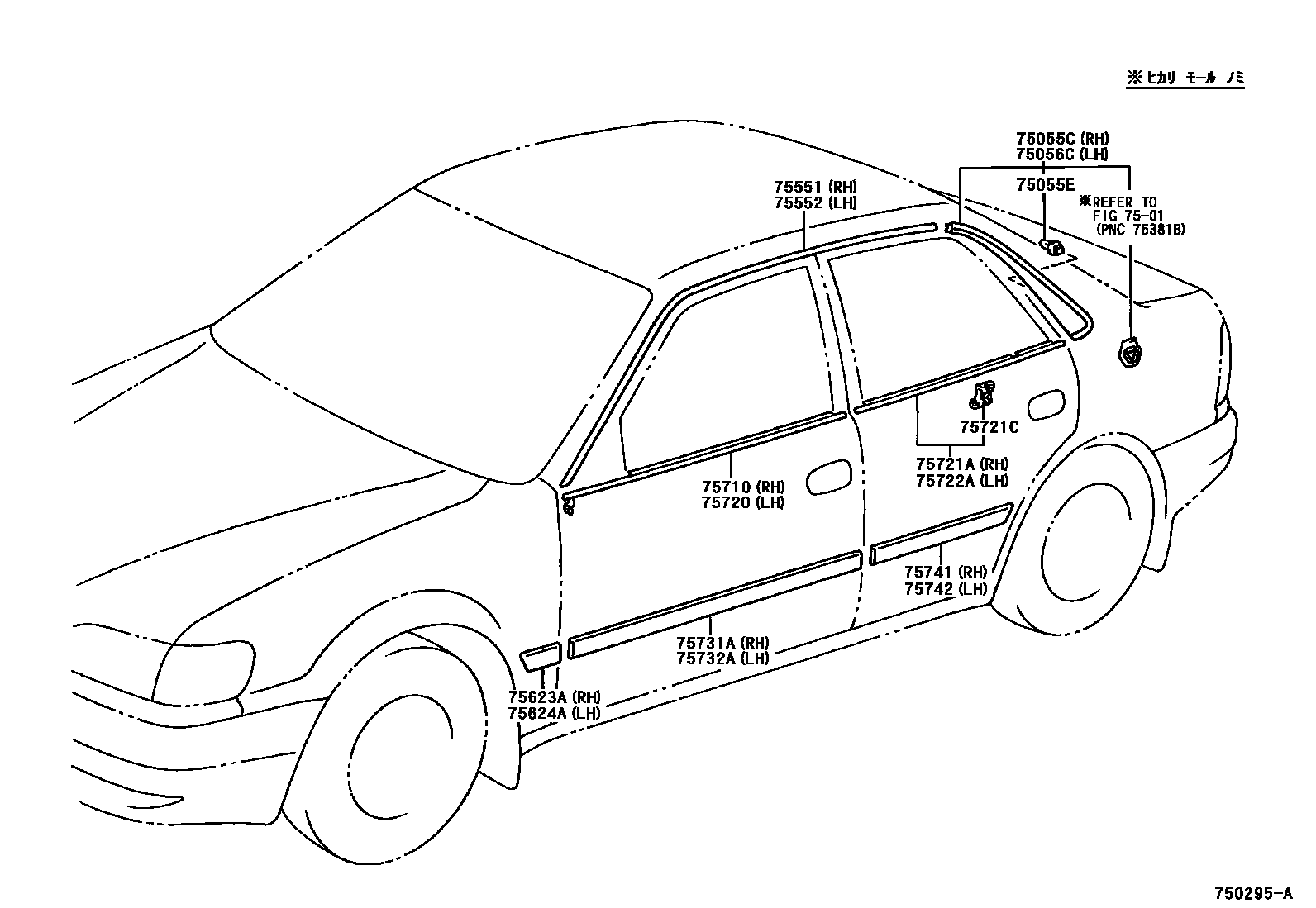

Toyota COROLLA 侧防护条 EPC diagram — 750295A
侧防护条 — 750295A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
75055CRoof right rear gutter side decorative strip sub-assembly75055-12140 · 75055-12150 · 75055-12160 · 75055-12180 · 75055-12190 · 75055-12200 · 75055-12220 · 75055-12230 · 75055-12250 · 75055-12260
75055ERoof drain gutter protection strip clip62955-12040
75056CRoof left rear gutter side decorative strip sub-assembly75056-12140 · 75056-12150 · 75056-12160 · 75056-12180 · 75056-12190 · 75056-12200 · 75056-12220 · 75056-12230 · 75056-12250 · 75056-12260
75551Drainage groove side decorative strip on the right side of the roof75551-12580 · 75551-12590 · 75551-12600 · 75551-12660 · 75551-12670 · 75551-12680
75552Drainage groove side decorative strip on the left side of the roof75552-12580 · 75552-12590 · 75552-12600 · 75552-12660 · 75552-12670 · 75552-12680
75623ARight front fender outer rear protective strip75623-12700 · 75623-12720
75624ALeft front fender outer rear protective strip75624-12700 · 75624-12720
75710Right front door waistline protection strip assembly75710-12610 · 75710-12620 · 75710-12630 · 75710-12660 · 75710-12670 · 75710-12680
75720Left front door waistline protection strip assembly75720-12610 · 75720-12620 · 75720-12630 · 75720-12660 · 75720-12670 · 75720-12680
75721ARight rear door waistline protection strip75721-12390 · 75721-12400 · 75721-12410 · 75721-12440 · 75721-12450 · 75721-12460
75721CDoor glass seal strip clip68211-12240
75722ALeft rear door waistline protection strip75722-12390 · 75722-12400 · 75722-12410 · 75722-12440 · 75722-12450 · 75722-12460
75731ARight front door outer protective strip75731-1A410 · 75731-1A430
75732ALeft front door outer protective strip75732-1A250 · 75732-1A270
75741Right rear door outer protective strip75741-12890 · 75741-1A020
75742Left rear door outer protective strip75742-12880 · 75742-1A010
