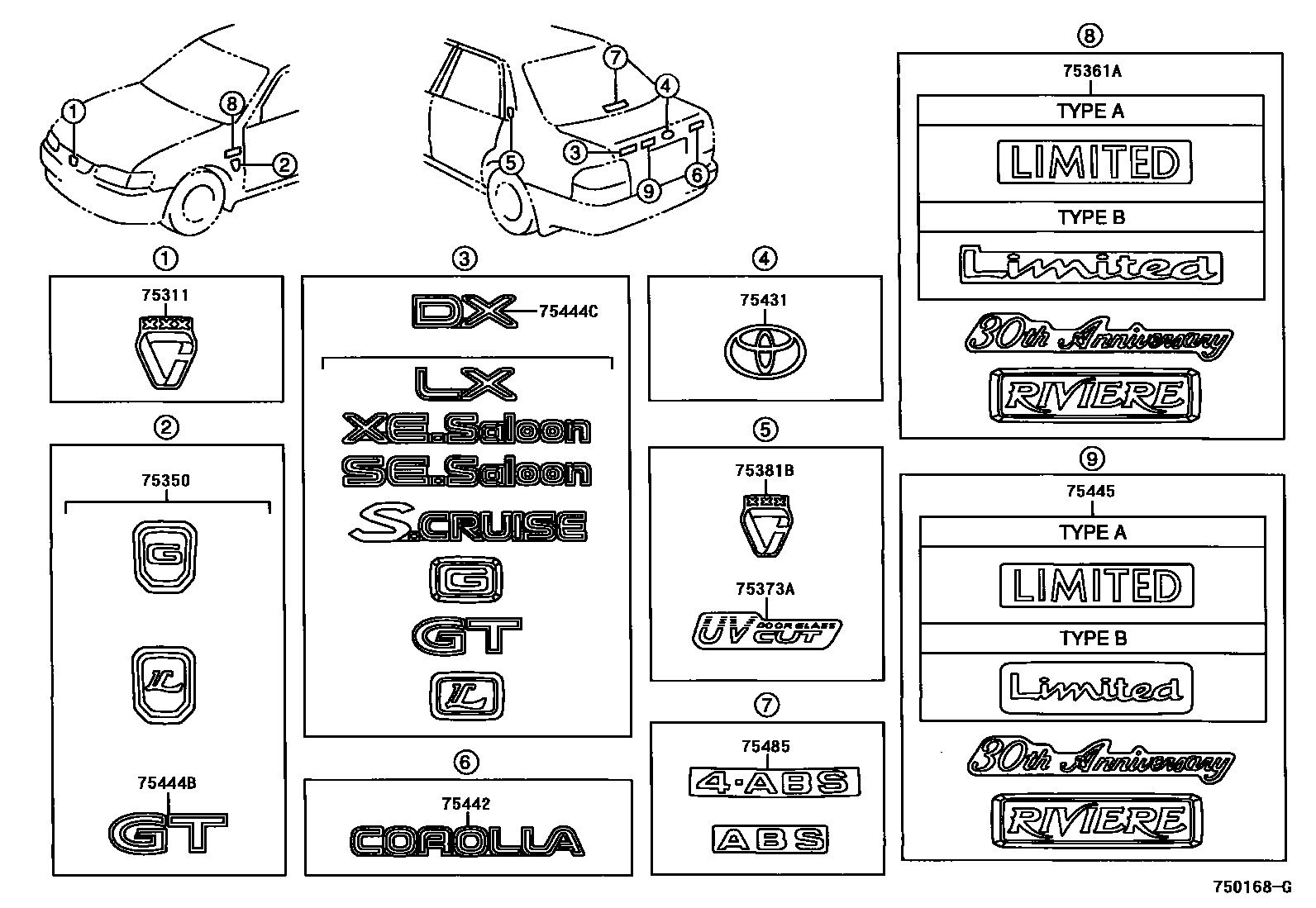

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-1A840 · 75311-1A860 · 75311-1A880 · 75311-1E020 |
| 75350 | Front fender sign assembly | 75350-12040 · 75351-12070 |
| 75361A | Front fender No. 1 nameplate | 75351-12090 · 75351-12110 · 75445-12200 · 75445-12210 · 75452-14010 |
| 75373A | corner window marking plate | 75373-12010 |
| 75381B | Side panel nameplate | 75381-12010 · 75381-12020 |
| 75431 | luggage compartment door sign | 75431-12010 · 75431-12060 · 75431-12080 · 75431-12110 |
| 75442 | Trunk door number plate No. 2 | 75442-1A280 · 75442-1A350 · 75442-1A370 · 75442-1A420 |
| 75444B | Front fender nameplate | 75351-12060 |
| 75444C | Trunk door No. 4 nameplate | 75444-12840 · 75444-12880 · 75444-12890 · 75444-1A010 · 75444-1A020 · 75444-1A240 · 75444-1A250 · 75444-1A310 · 75444-1A330 · 75444-1A340 · 75444-1A370 · 75444-1A380 · 75444-1A440 · 75444-1A620 · 75444-1A680 |
| 75445 | Trunk door No. 5 name plate | 75445-12200 · 75445-12220 · 75445-12230 · 75452-14010 |
| 75485 | Back window nameplate | 75485-12300 · 75485-12320 |
