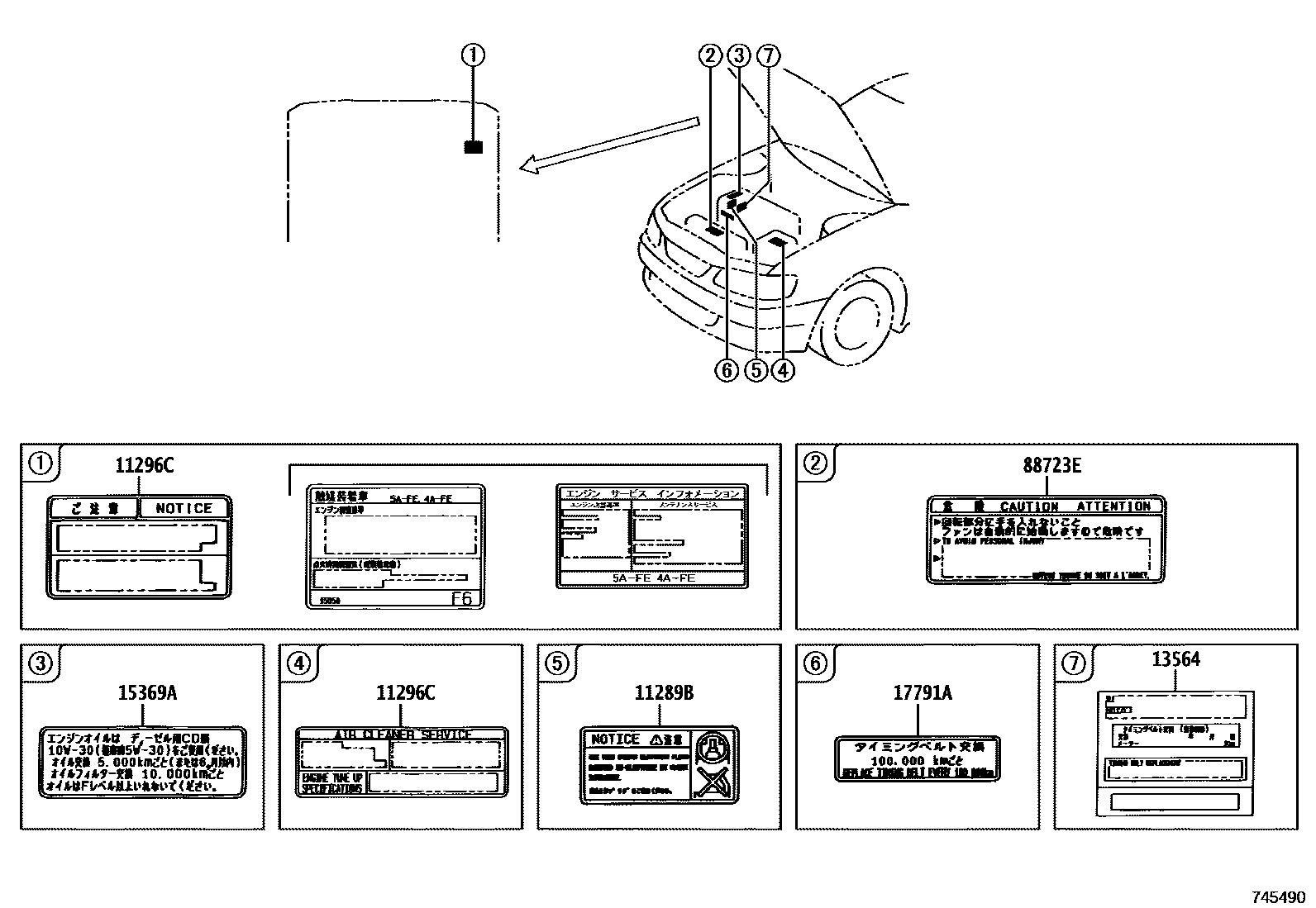

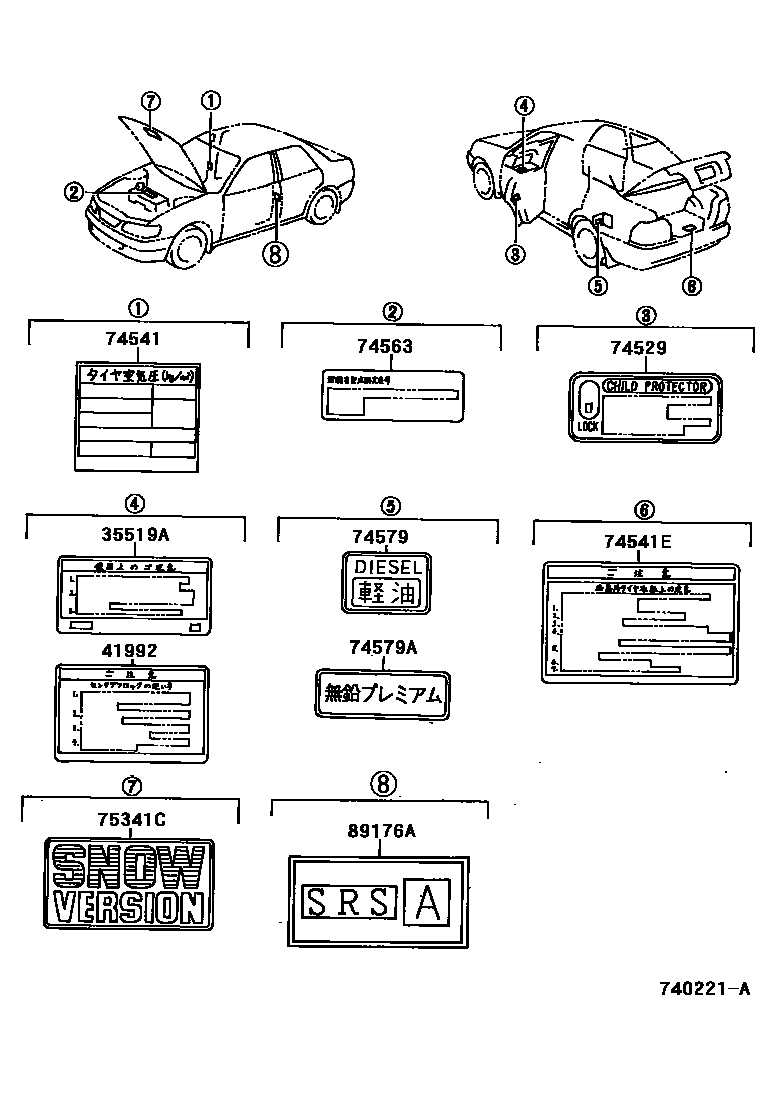

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-62020 |
| 11296C | Engine maintenance information label | 11296-11310 · 11296-11360 · 11296-15060 · 11296-16220 · 11296-16300 · 11296-16330 · 11296-16350 · 11296-64010 · 11296-64020 · 11296-64031 |
| 13564 | Toyota part | 13564-10010 |
| 15369A | Engine oil information label | 15369-54010 · 15369-64010 |
| 17791A | Toyota part | 17791-15010 · 17791-55010 |
| 35519A | Automatic transfer case information label | 35519-12020 |
| 41992 | Differential attention label | 41992-12010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-1A400 · 42661-1A410 · 42661-1A420 · 42661-1A430 · 42661-1A700 · 42661-1A710 · 42661-1A820 · 42661-1A860 · 42661-1A870 · 42661-1A890 · 42661-1E020 · 42661-1E030 |
| 74541E | Small spare tire warning plate | 42668-32010 |
| 74563 | Emission control equipment identification plate | 74563-12181 · 74563-12190 · 74563-12220 · 74563-12230 · 74563-12260 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 |
| 74579A | Unleaded Fuel Information Label | 74579-24010 |
| 75341C | engine cover plate | 75341-20060 |
| 88723E | Cooler maintenance warning label | 88723-12100 · 88723-20081 |
| 89176A | Air bag deployment information label | 89176-32010 |
