Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

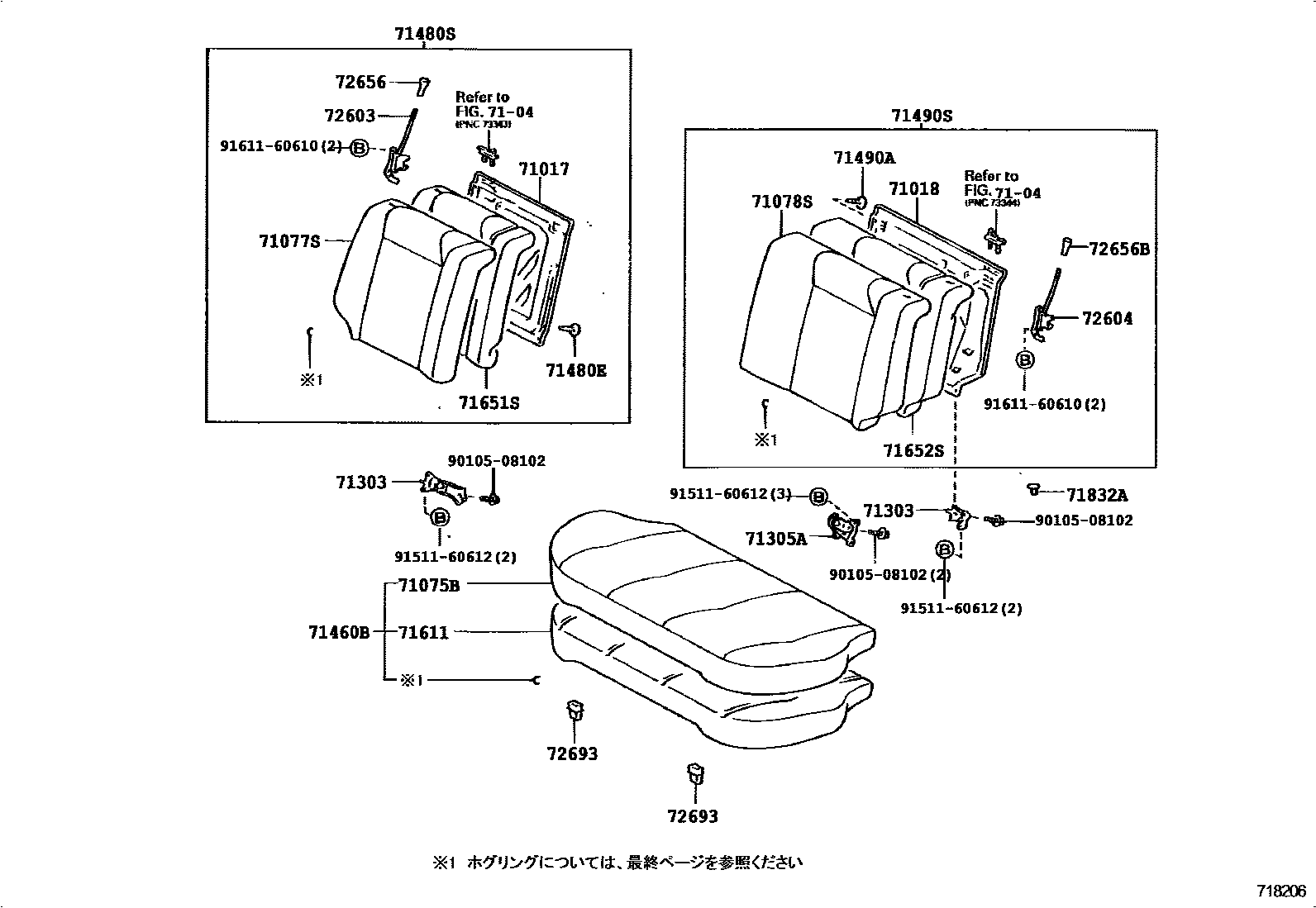

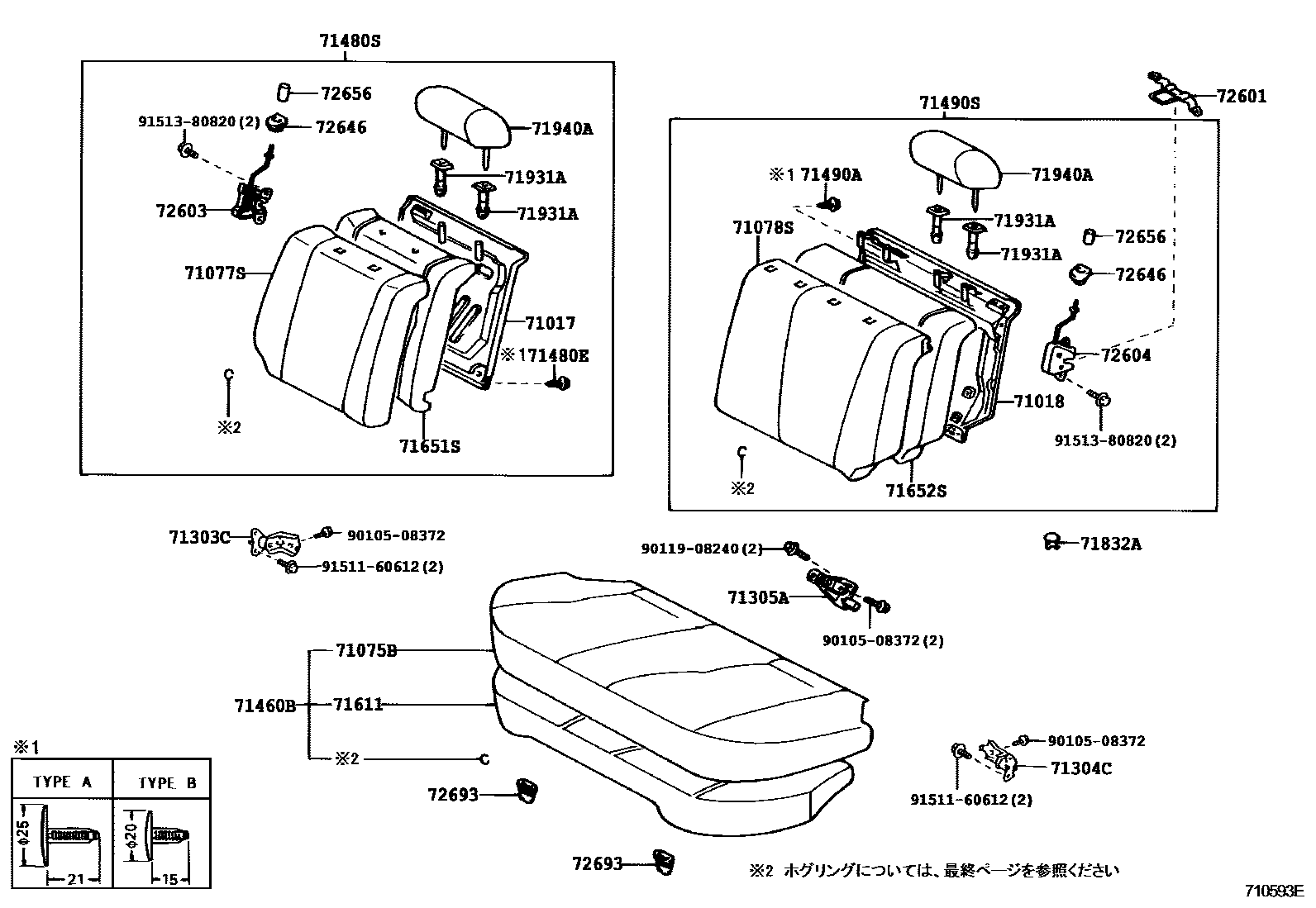

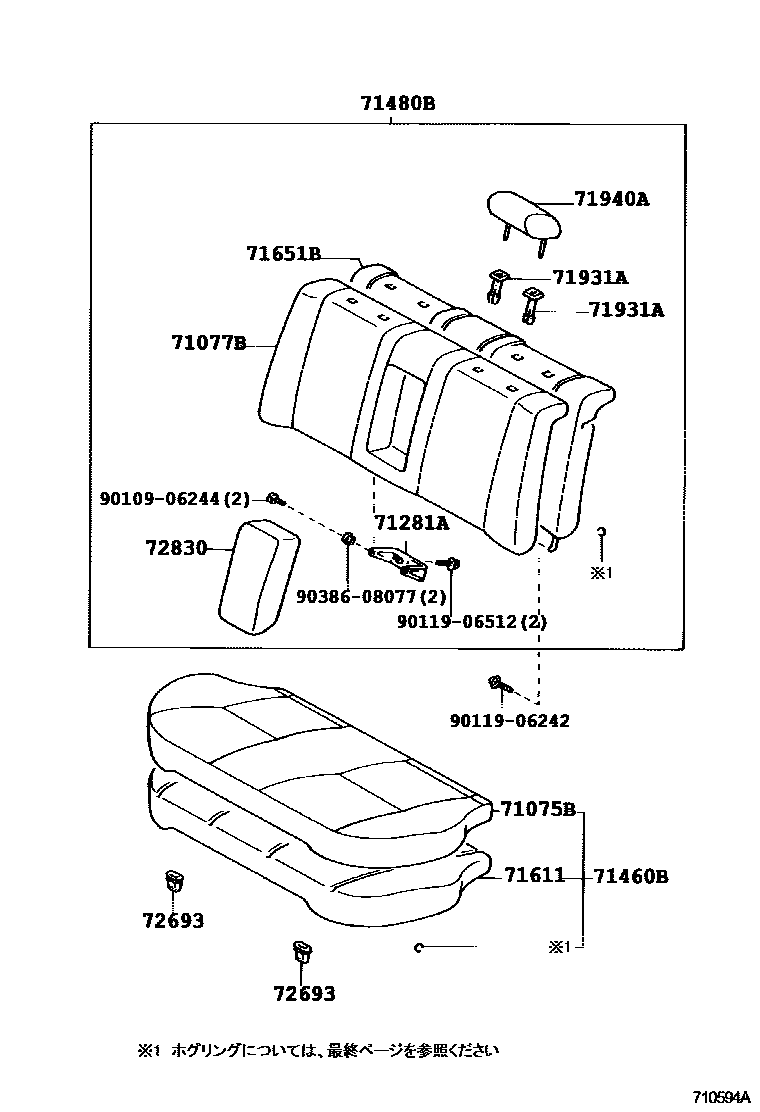

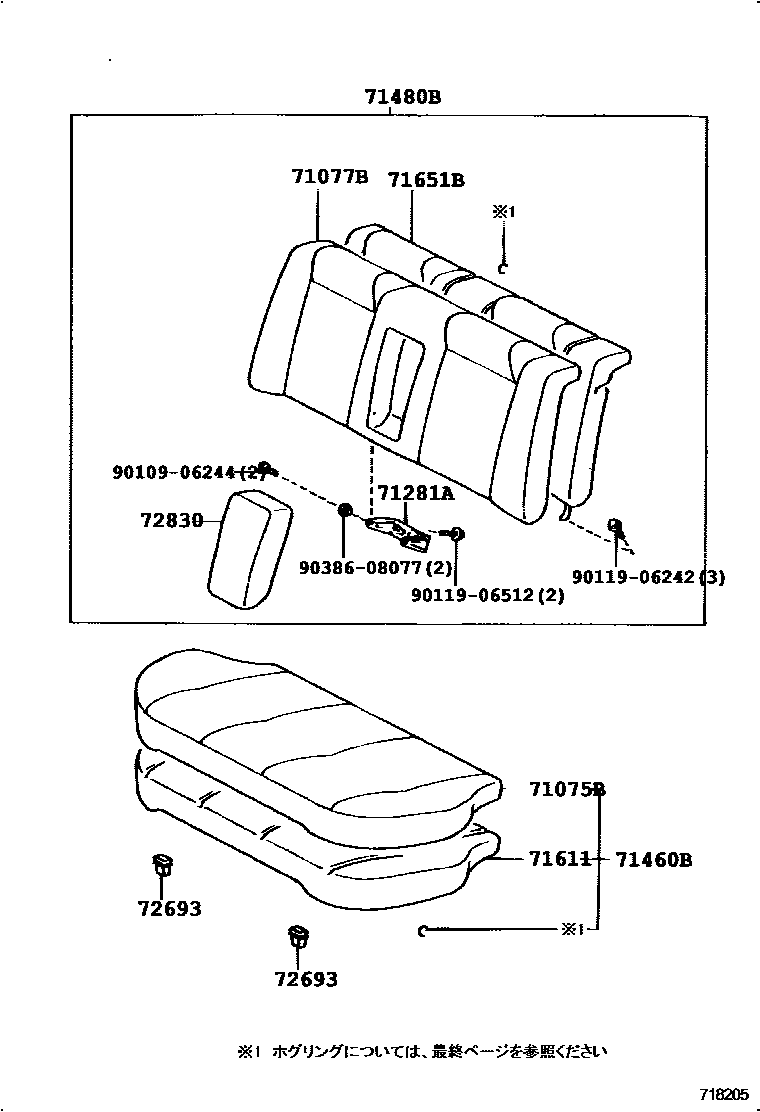

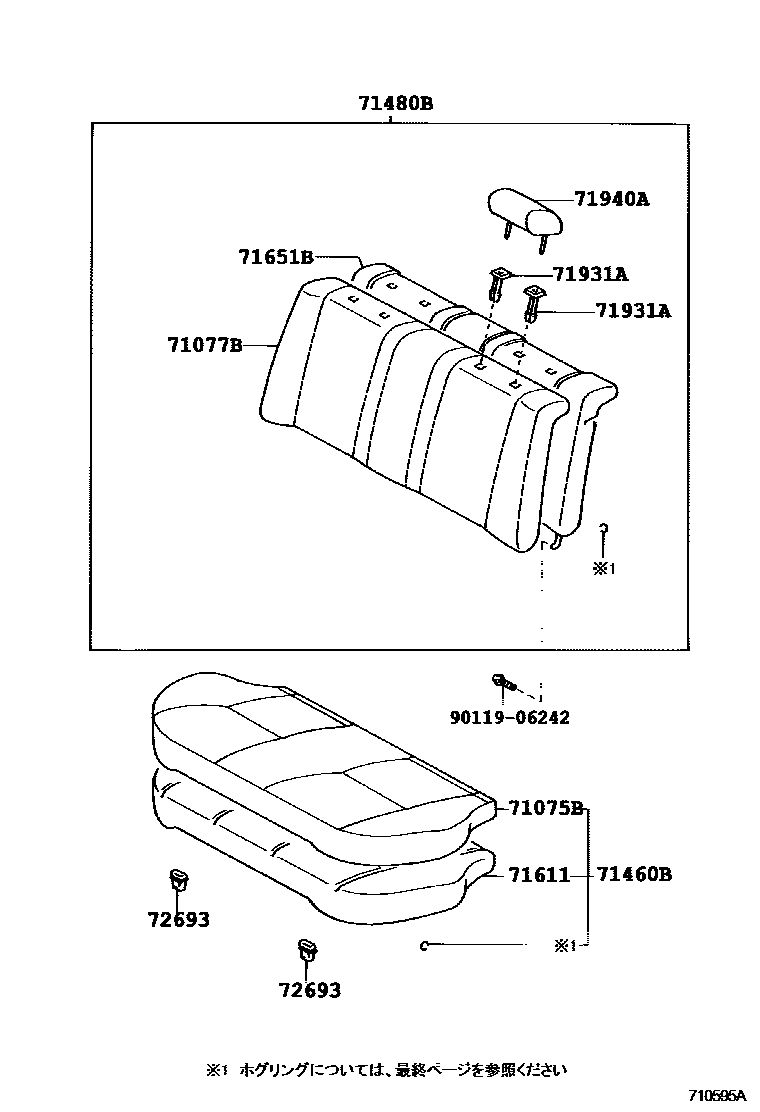

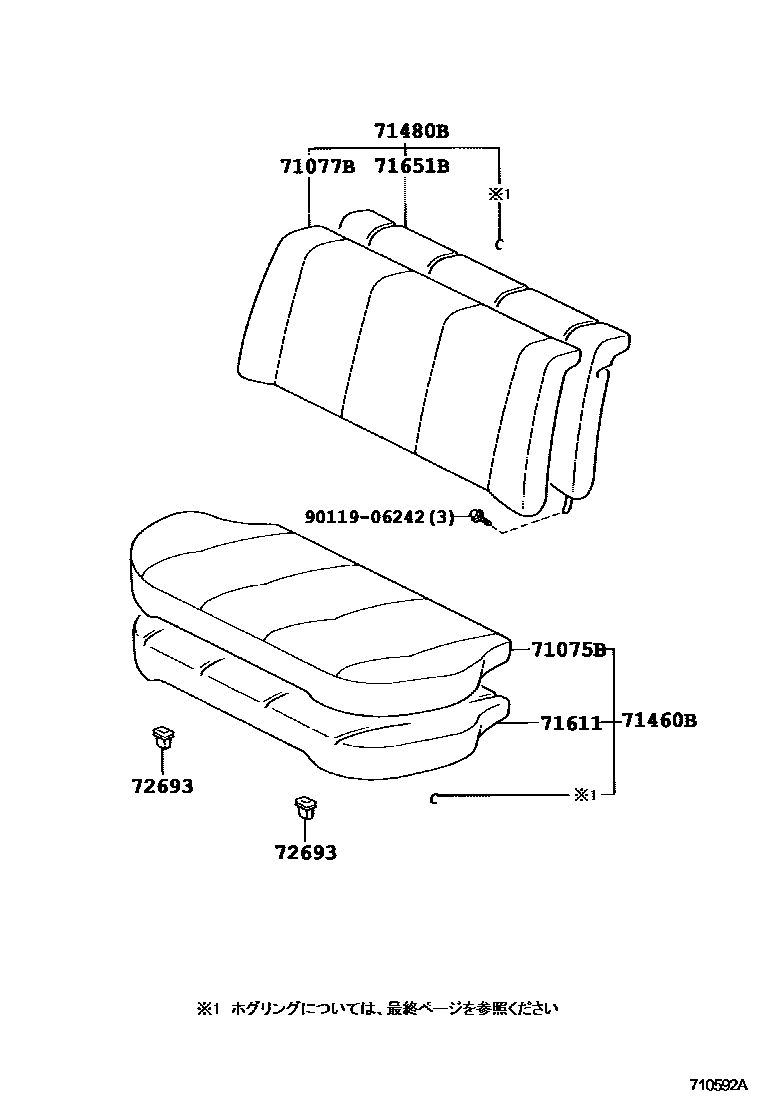

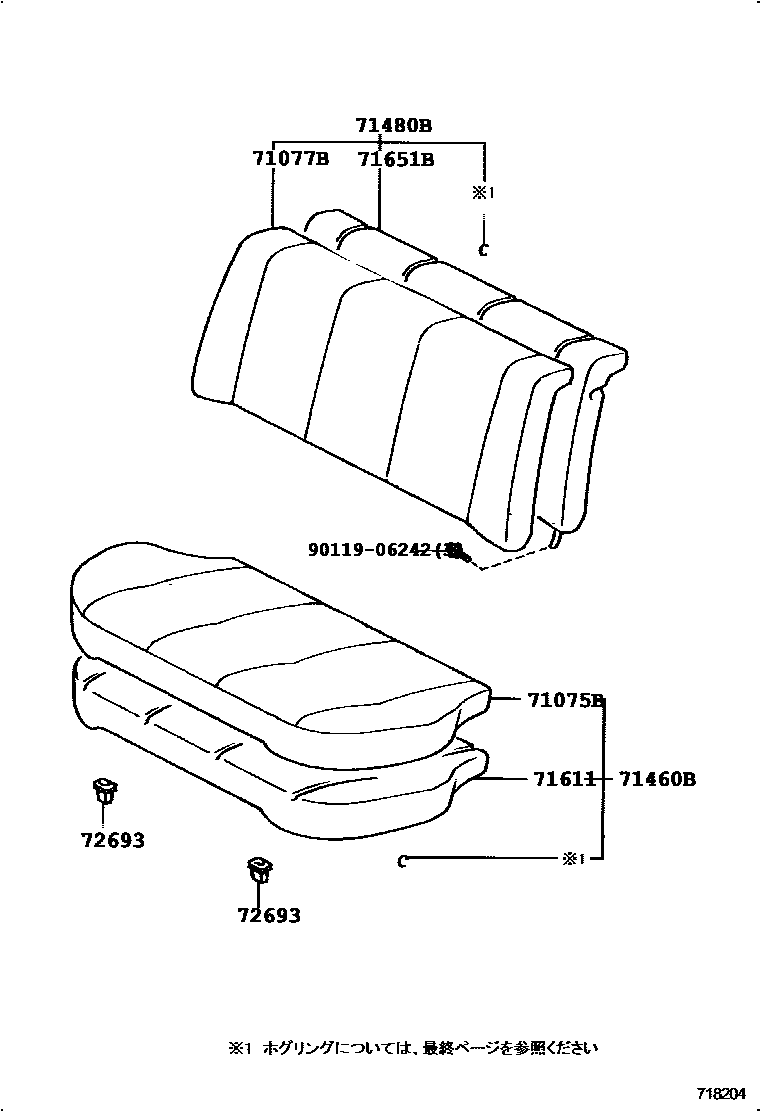

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 8 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12470 · 71017-12570 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12190 · 71018-12240 |
| 71281A | Rear seat center armrest hinge | 71281-12030 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12110 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12130 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-12130 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12110 · 71305-12160 |
| 71611 | Rear seat cushion cushion | 71503-12080 · 71503-12100 · 71503-12110 · 71503-12120 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12130 · 71507-12140 · 71507-12180 · 71507-12190 · 71507-12210 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12740 · 71651-12770 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12560 · 71652-12610 |
| 72601 | Rear seat lock sub-assembly | 72601-12160 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12260 · 72630-12280 |
| 72604 | Rear left seat back lock sub-assembly | 72630-12260 · 72640-12250 |
| 72693 | Rear seat cushion hook | 72693-12060 |
