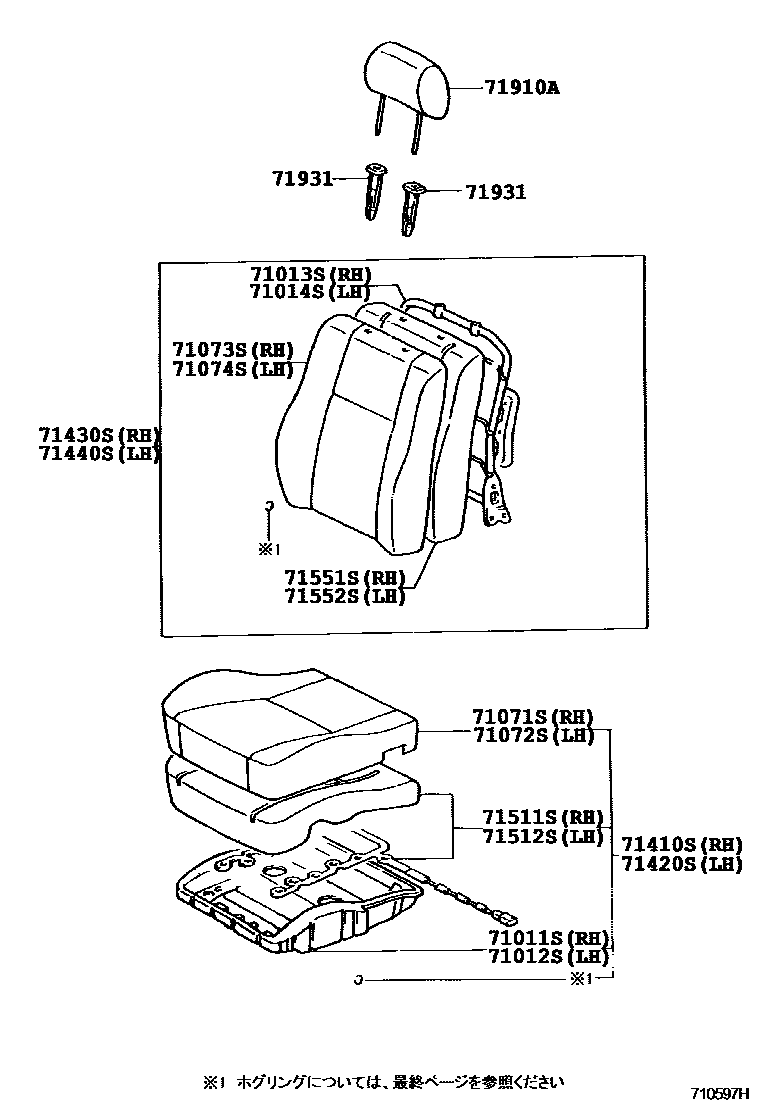

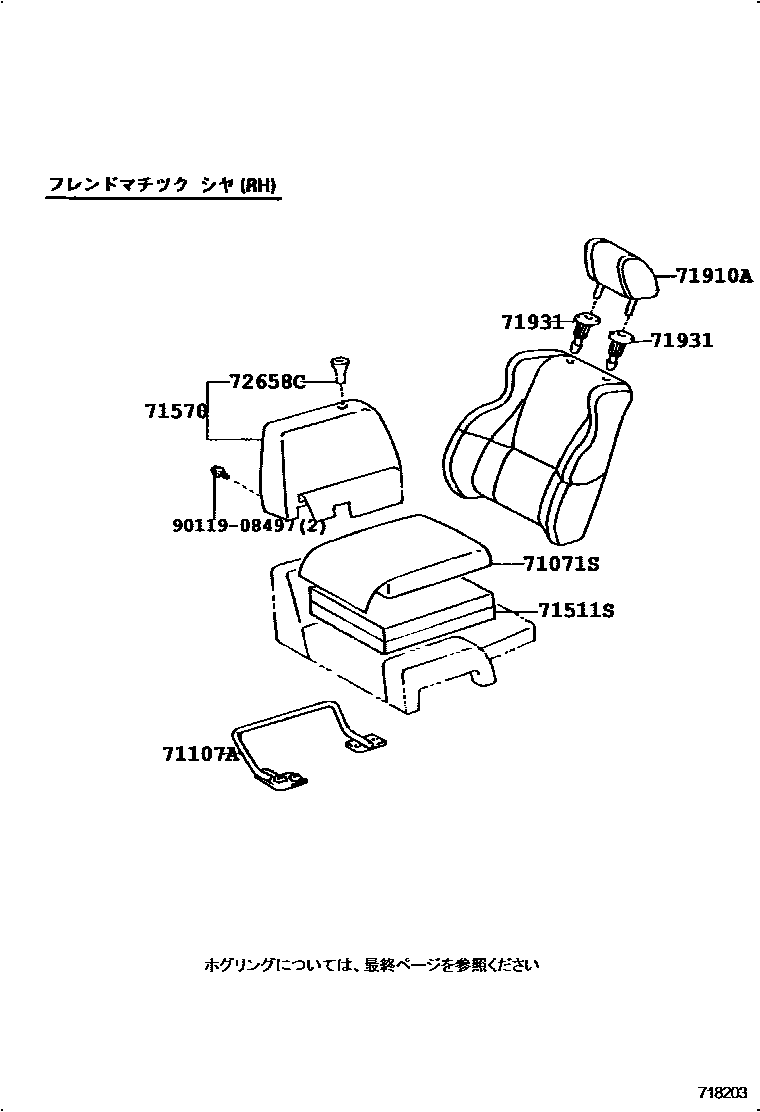

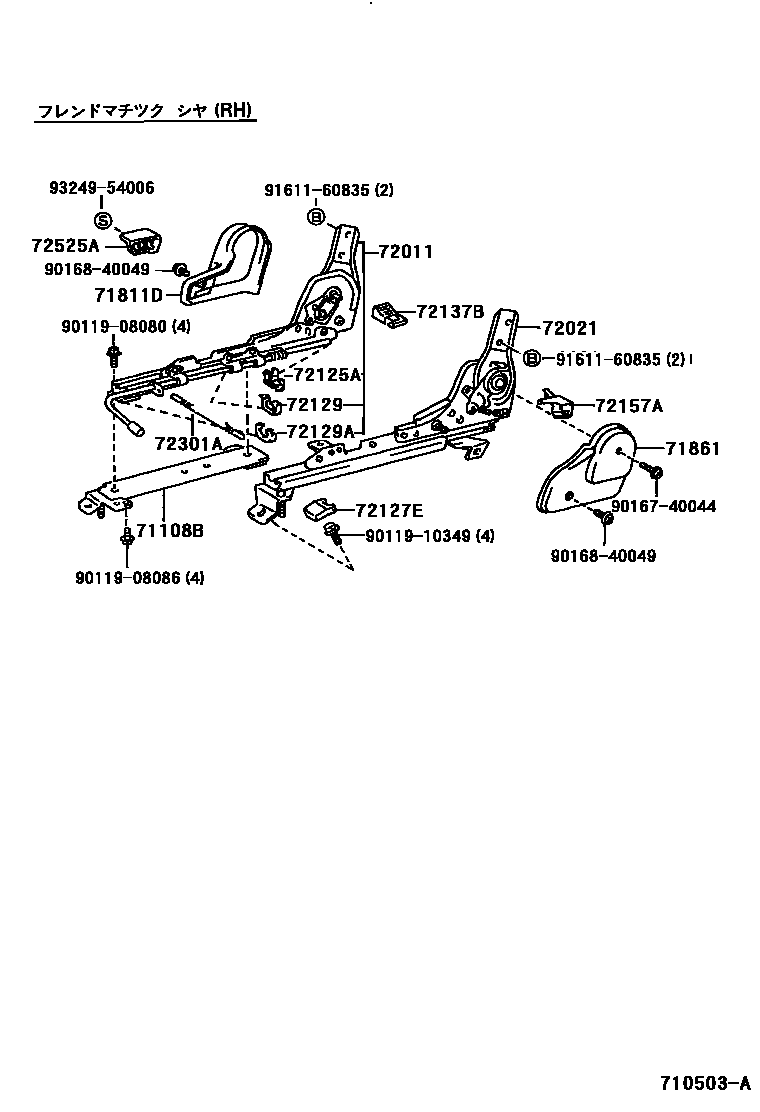

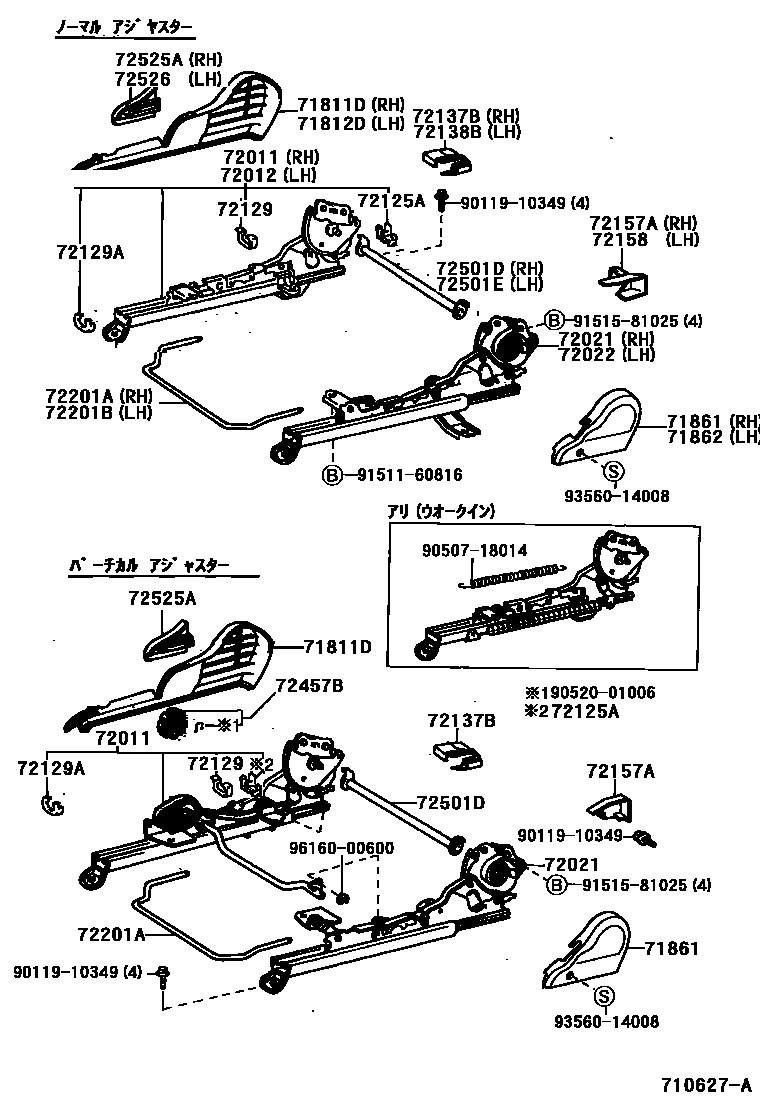

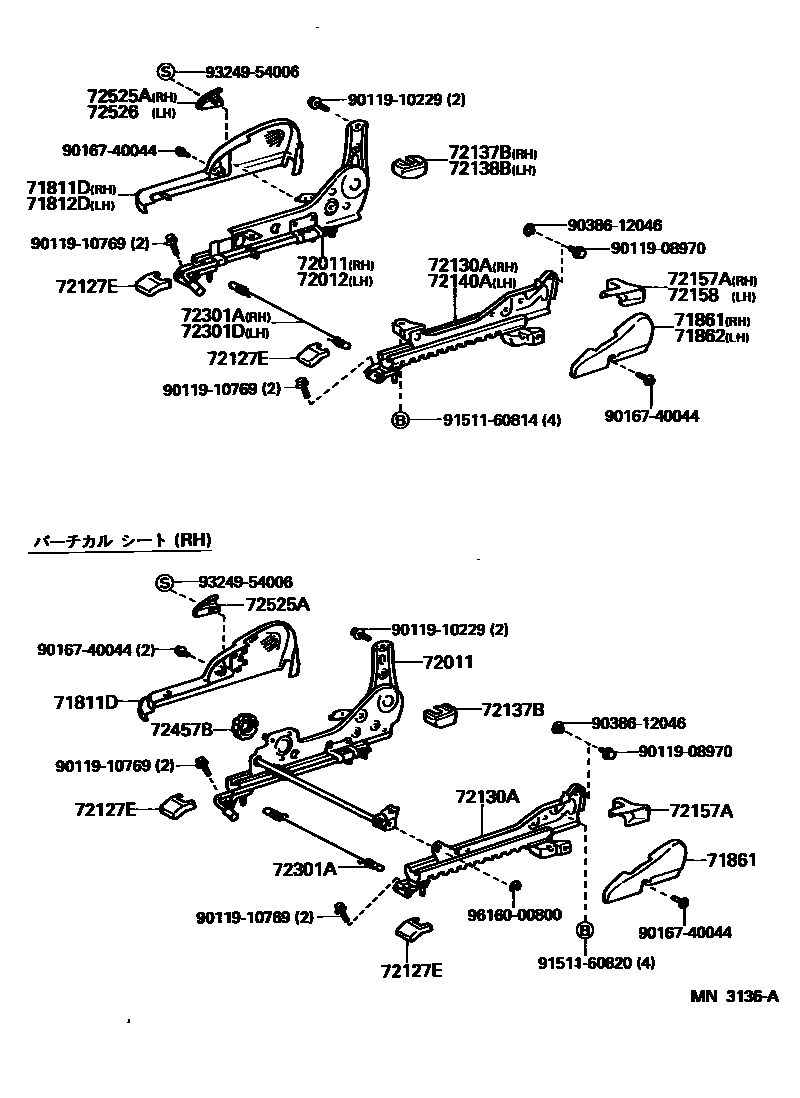

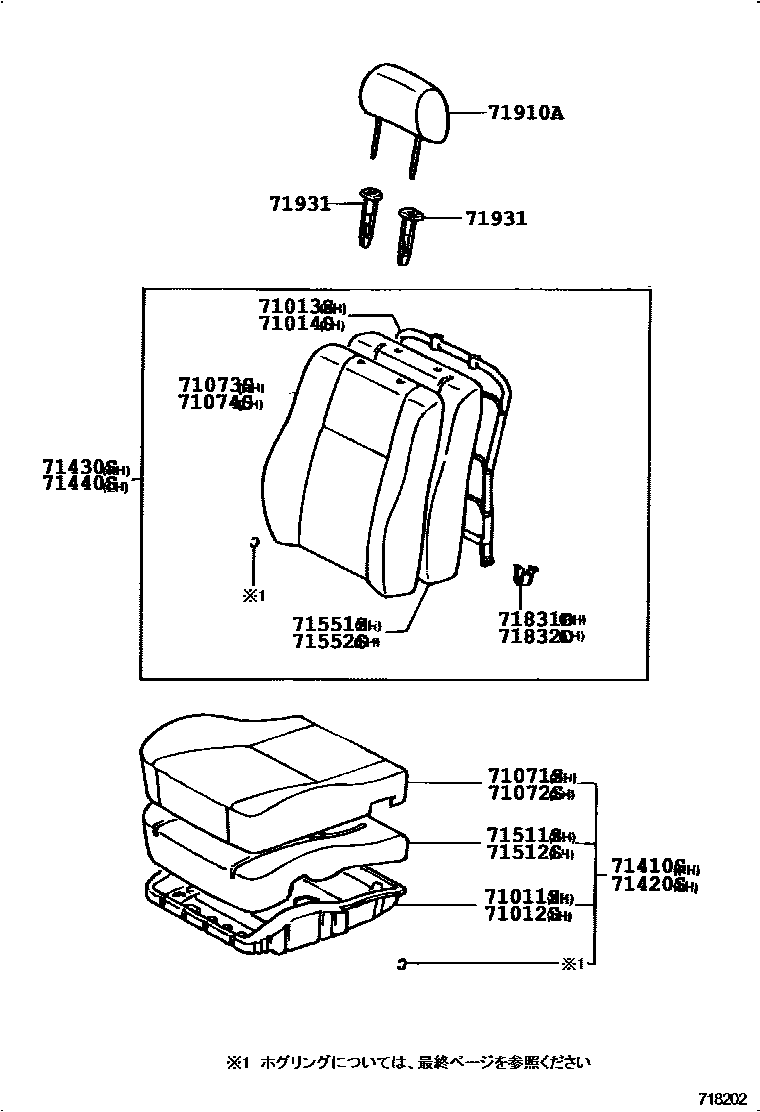

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12440 · 71011-12450 · 71011-20430 · 71011-20440 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12440 · 71011-20440 |
| 71013S | Front right seat back frame sub-assembly | 71013-12500 · 71013-12630 · 71013-12631 |
| 71014S | Front left seat back frame sub-assembly | 71013-12630 · 71013-12631 · 71014-12410 |
| 71107A | Front right seat armrest bracket sub-assembly | 71107-12010 |
| 71108B | Front right seat leg sub-assembly | 71108-12010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12850 · 71511-12860 · 71511-12880 · 71511-12890 · 71511-1A030 · 71511-1A060 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-12040 · 71052-12050 · 71052-12060 · 71511-12860 · 71511-12880 · 71511-12890 · 71511-1A020 · 71511-1A050 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12580 · 71551-12610 · 71551-12630 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12610 · 71551-12630 · 71552-12150 · 71552-12210 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12600 · 72010-12620 · 72011-12250 · 72011-12260 · 72011-12280 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12210 · 72012-12290 · 72020-12570 · 72020-12580 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12220 · 72021-12230 · 72021-12320 · 72021-12330 · 72021-12360 · 72021-12370 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12270 · 72022-12290 · 72022-12390 · 72022-12400 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-20020 |
| 72130A | Front right seat inner slide rail assembly | 72130-12650 · 72130-12660 · 72130-12670 · 72130-12680 |
| 72140A | Front left seat inner slide rail assembly | 72140-12490 · 72140-12510 · 72140-12570 · 72140-12600 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12030 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12030 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12160 · 72301-12230 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12140 · 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
