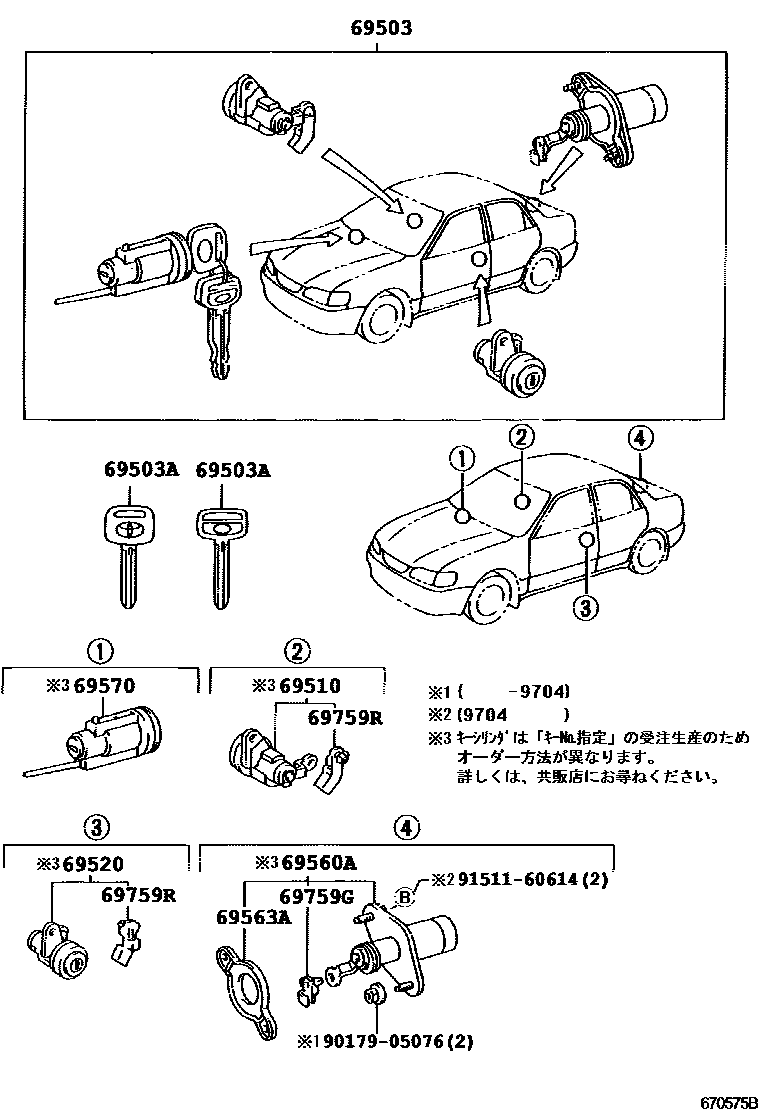

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-1A480 · 69005-1E070 · 69005-1E210 · 69005-1E220 · 69005-1E260 · 69005-1E270 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 |
| 69510 | Right front door lock cylinder assembly | 69510-12250 |
| 69520 | Left front door lock cylinder assembly | 69520-12250 |
| 69560A | Trunk door lock core assembly | 69560-12550 · 69560-12660 |
| 69563A | Trunk door lock cylinder lining | 69563-12100 · 69563-12130 |
| 69570 | Ignition switch lock cylinder assembly | 69570-12150 · 69570-12200 · 69570-12210 · 69570-20220 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
