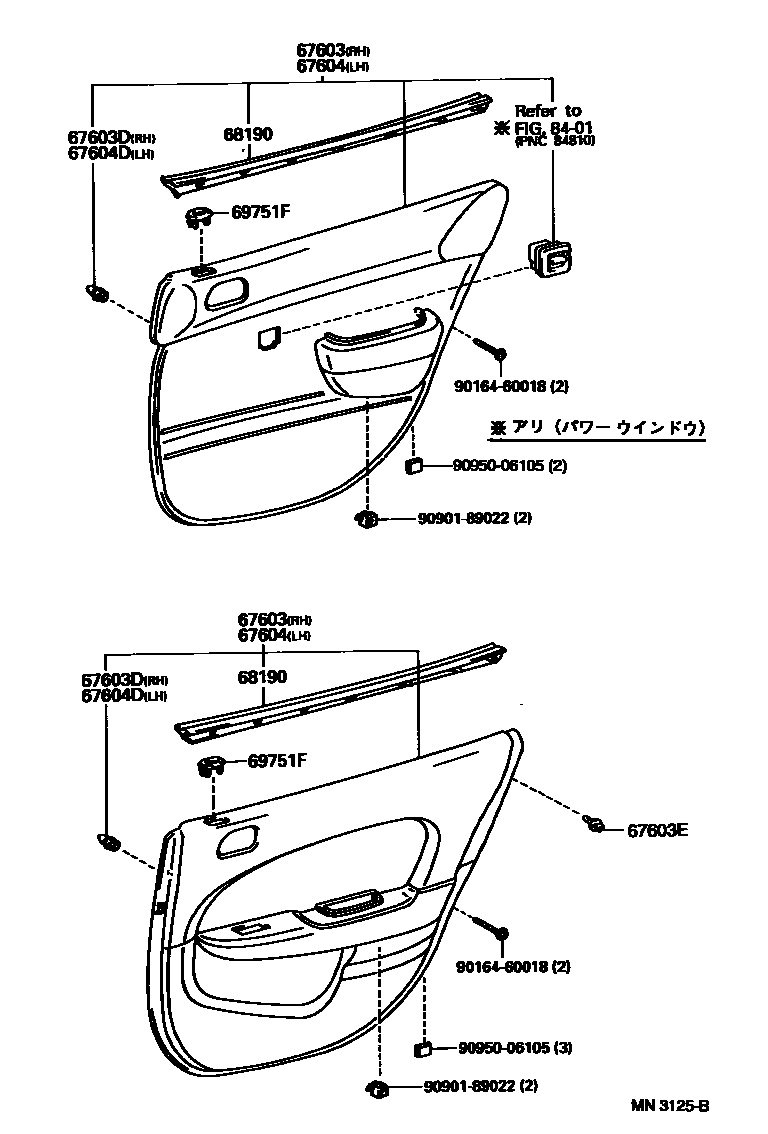

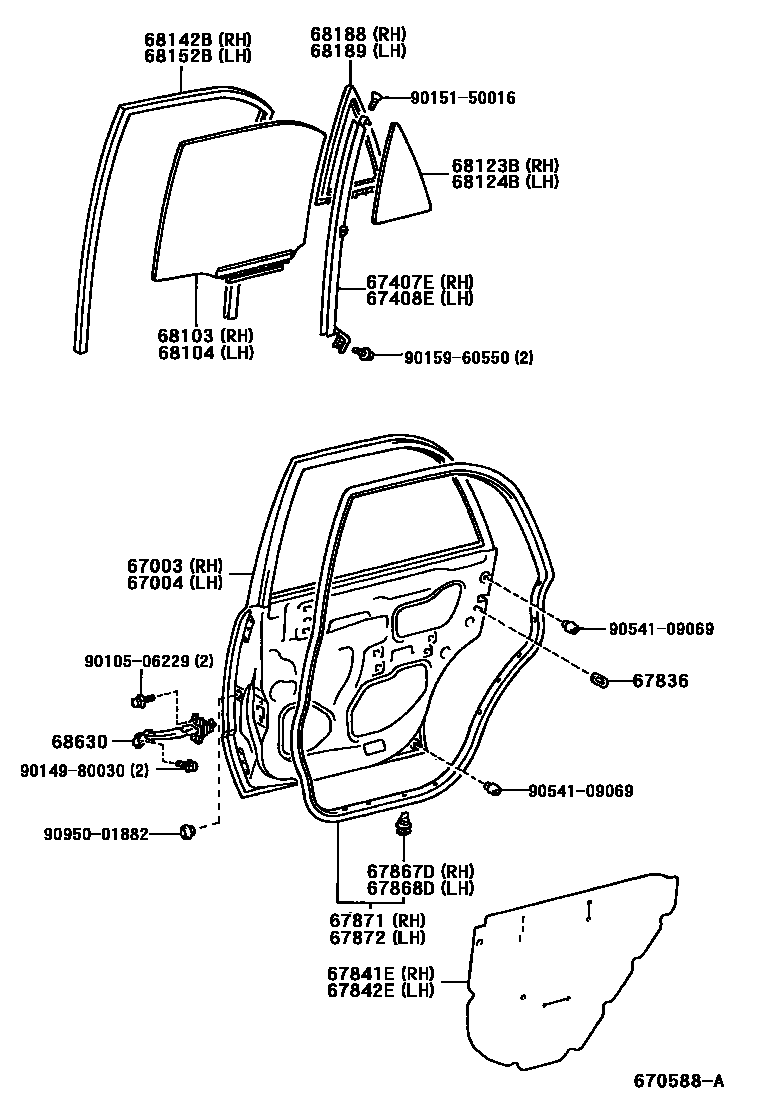

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12740 · 67003-12780 |
| 67004 | Left rear door panel sub-assembly | 67004-12740 · 67004-12780 |
| 67407E | Right rear door window divider sub-assembly | 67407-12230 |
| 67408E | Left rear door window divider sub-assembly | 67408-12230 |
| 67603D | Right rear door trim panel fixing | 67771-12050 · 67771-16170 |
| 67604D | Left rear door trim panel fixing | 67771-12050 · 67771-16170 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-12290 |
| 67842E | Left rear door access hole cover | 67842-12120 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12400 · 67871-12470 |
| 67872 | Left rear door sealing strip | 67872-12400 · 67872-12470 |
| 68103 | Right rear door glass sub-assembly | 68103-12410 · 68103-12530 · 68103-12590 |
| 68104 | Left rear door glass sub-assembly | 68104-12420 · 68104-12540 · 68104-12600 |
| 68123B | Right rear door corner window glass | 68123-12510 · 68123-12670 · 68123-12680 |
| 68124B | Left rear door corner window glass | 68124-12510 · 68124-12670 · 68124-12680 |
| 68142B | Right rear door window lift chute | 68142-12210 |
| 68152B | Left rear door window lift chute | 68152-12120 |
| 68188 | Right rear door corner window seal | 68188-12270 |
| 68189 | Left rear door corner window seal | 68189-12270 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12220 · 68173-12250 · 68174-12080 · 68174-12110 |
| 68630 | Rear door opening limiter assembly | 68630-12080 · 68640-12030 |
