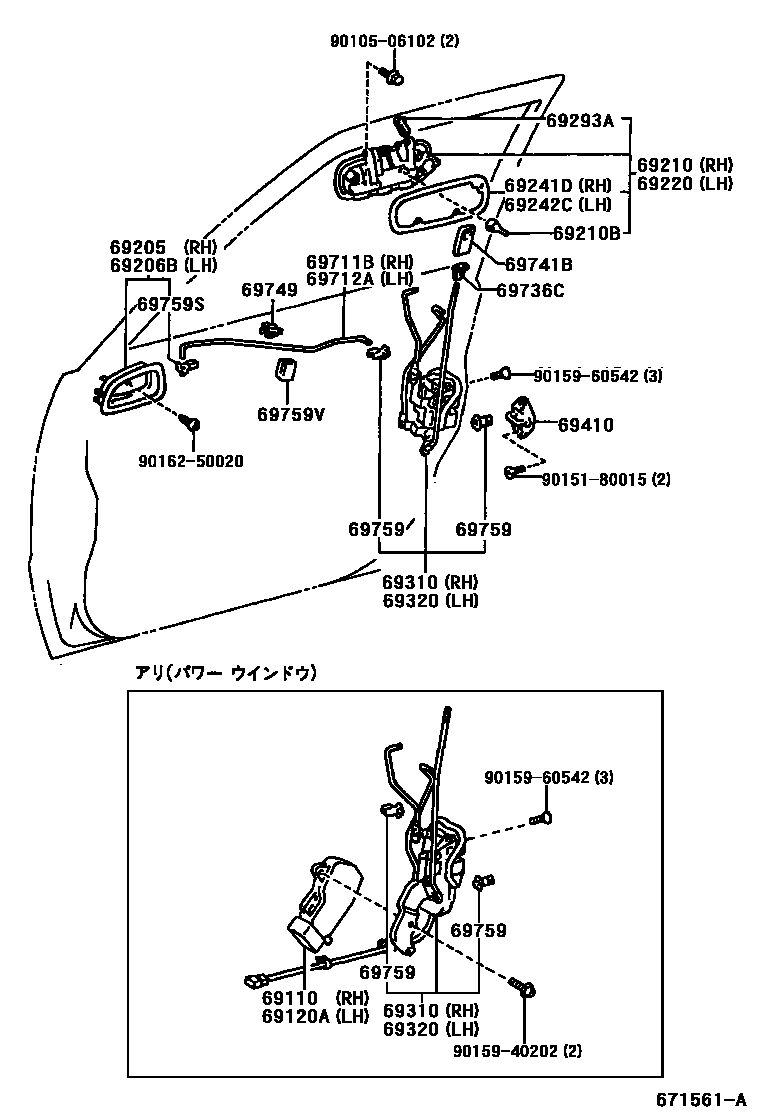

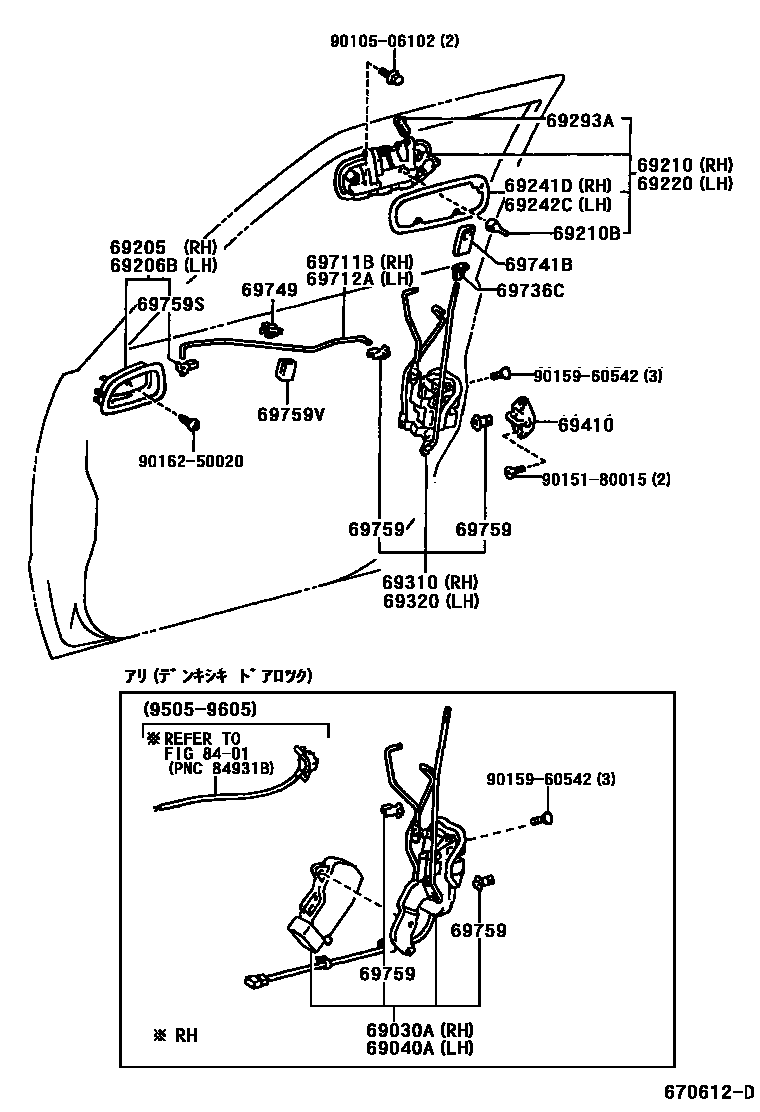

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-12330 · 69030-12340 |
| 69040A | Left front door door lock assembly with motor | 69040-12340 · 69040-12350 |
| 69110 | Right front door lock actuator assembly | 69110-12030 |
| 69120A | Left front door lock actuator assembly | 69120-12030 |
| 69210 | Right front door outer handle assembly | 69210-12190 · 69210-12250 · 69210-12280 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-12180 · 69220-12250 · 69220-12280 |
| 69241D | Right front door outer handle pad | 69241-12100 |
| 69242C | Left front door outer handle pad | 69242-12050 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-12520 · 69310-12530 · 69310-12580 · 69310-12590 |
| 69320 | Left front door lock assembly | 69320-12530 · 69320-12540 · 69320-12580 · 69320-12590 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-12170 |
| 69712A | Left front door lock remote control lever | 69712-12180 |
| 69736C | Front door locking link guide block | 69736-12120 · 69736-12121 |
| 69749 | Front door lock link clip | 69749-12070 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 · 69759-24010 · 69759-24020 |
| 69759S | Front door inner handle buckle | 69759-22040 · 69759-22050 |
| 69759V | Front door lock link silencer | 69759-14010 · 69759-20390 |
