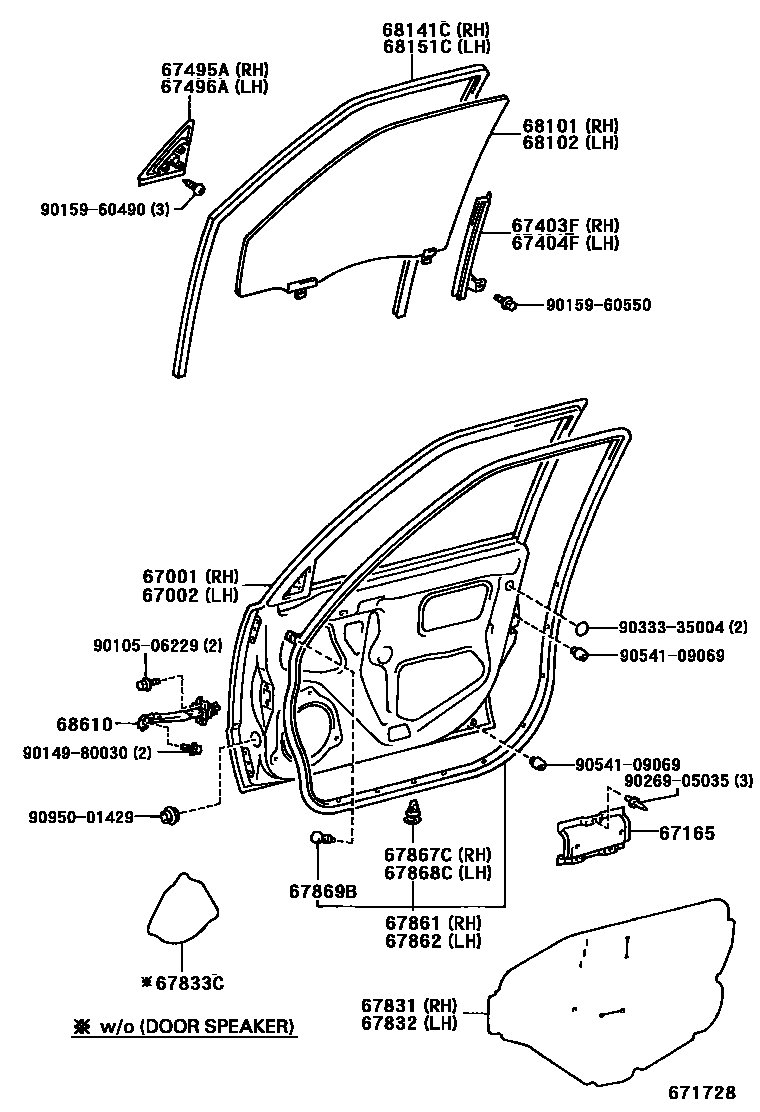

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A460 · 67001-1A560 |
| 67002 | Left front door panel sub-assembly | 67002-1A440 · 67002-1A540 |
| 67165 | Front door inner panel front reinforcement extension section | 67165-12010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12200 · 67403-12210 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12160 · 67404-12210 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12270 · 67491-12360 · 67491-12400 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12350 · 67492-12360 · 67492-12400 |
| 67495A | Right front door front lower door frame upper cover | 67495-12210 |
| 67496A | Left front door front lower door frame upper cover | 67496-12210 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-30070 |
| 67601H | Right door trim panel fixing | 67771-12050 · 67771-16170 |
| 67602A | Left door trim panel fixing | 67771-12050 · 67771-16170 |
| 67831 | Right front door access hole cover | 67831-12550 |
| 67832 | Left front door access hole cover | 67832-12350 |
| 67833C | Front door speaker hole cover | 67833-12050 |
| 67861 | Right front door seal | 67861-12830 · 67861-12880 |
| 67862 | Left front door seal | 67862-12790 · 67862-12840 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-12050 |
| 68101 | Right front door glass sub-assembly | 68101-12820 · 68101-1A160 · 68101-1A370 · 68101-1A390 · 68101-1A440 |
| 68102 | Left front door glass sub-assembly | 68102-12820 · 68102-1A360 · 68102-1A370 · 68102-1A390 · 68102-1A440 |
| 68141C | Right front door glass lift channel | 68141-12470 |
| 68151C | Left front door glass lift channel | 68151-12180 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12250 · 68171-12270 · 68172-12170 · 68172-12190 |
| 68610 | Front door opening limiter assembly | 68610-12150 · 68620-12060 |
