Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 4 PNC and OE references.

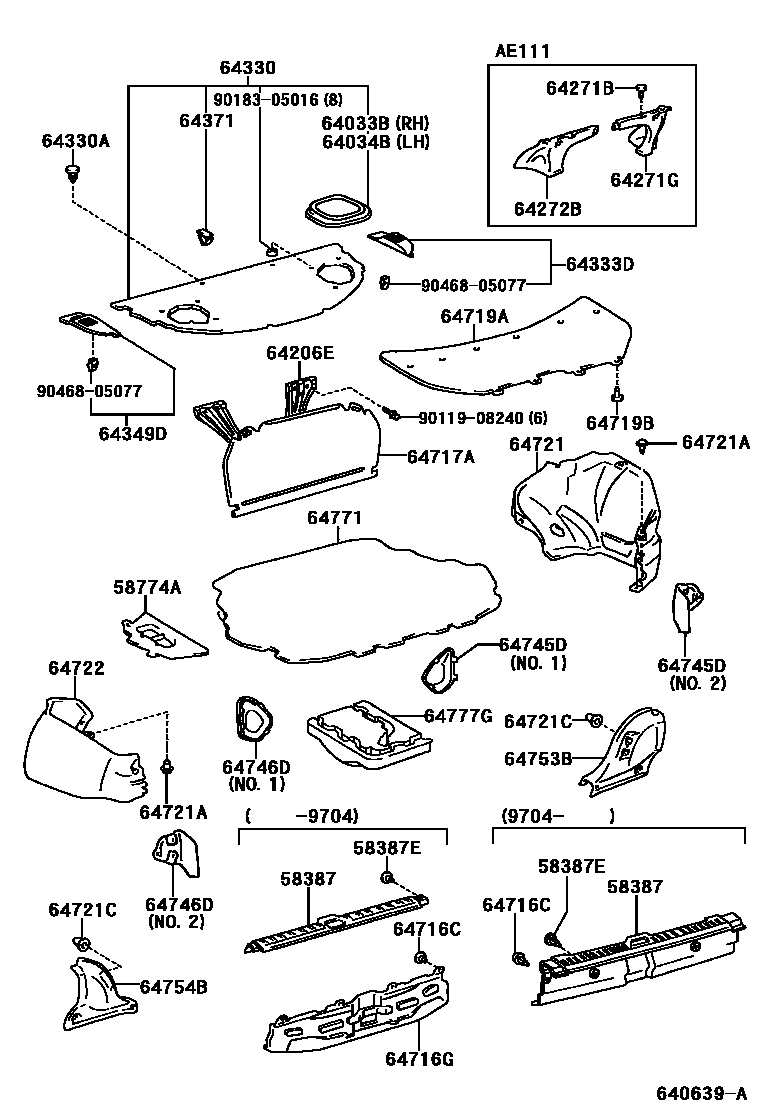

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — 640639A
杂物箱板和行李箱垫 — 640639A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
64206ECar partition sub-assembly64206-12010
64371Glove box decorative panel fixings64371-16010
64745DRight rear combination light access hole cover64745-12100
64746DLeft rear combination light access hole cover64746-12120
