Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

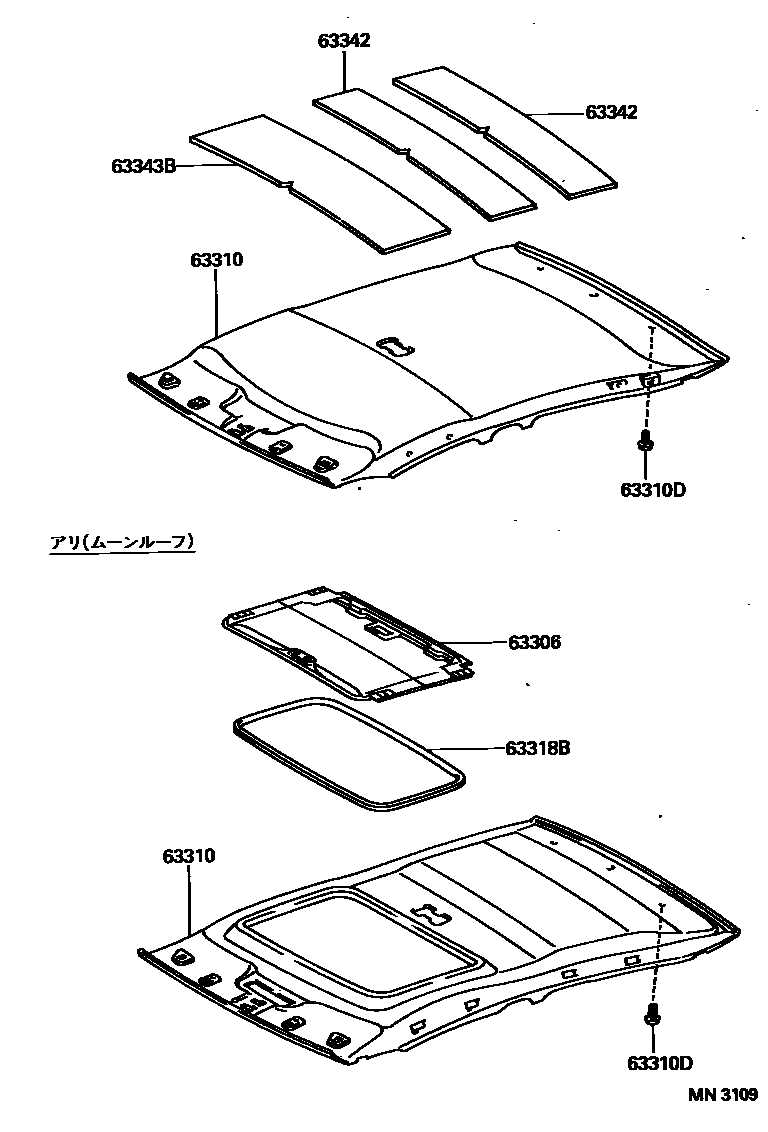

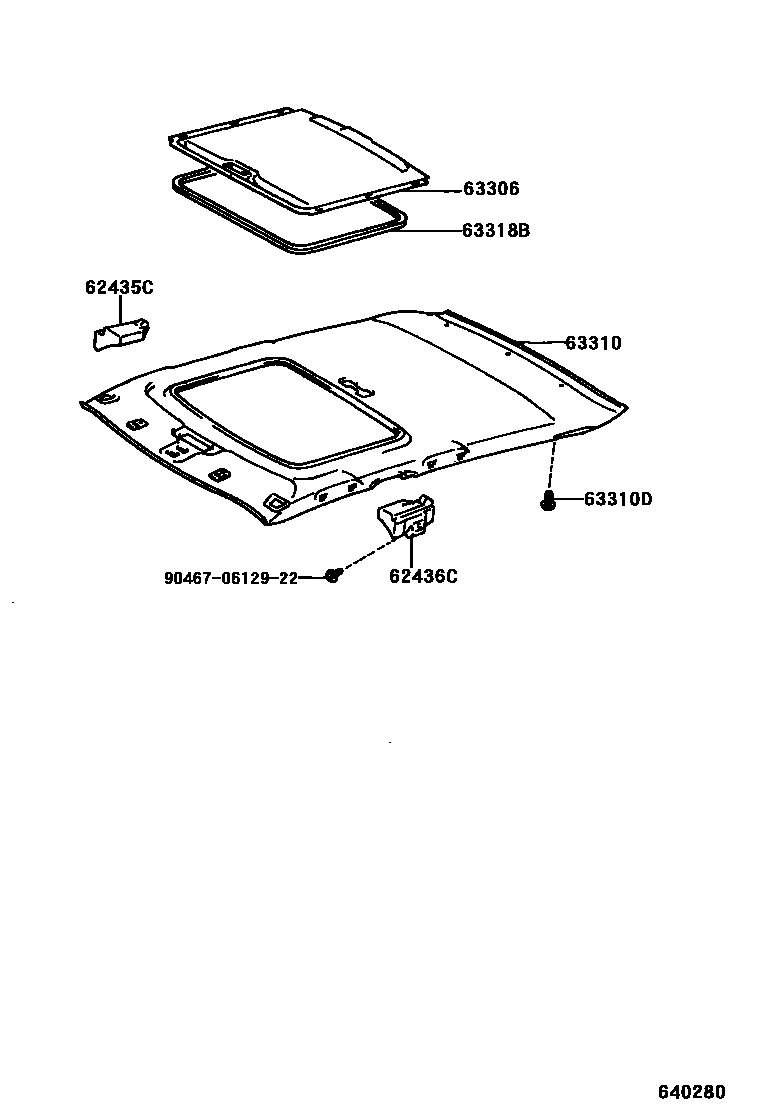

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-12020 |
| 62436C | Roof left side rail decorative pad | 62436-12020 |
| 63342 | No. 2 roof muffler pad | 63341-12160 · 63341-16010 · 63342-12060 |
| 63343B | Rear roof silencer pad | 63343-12050 |
