Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

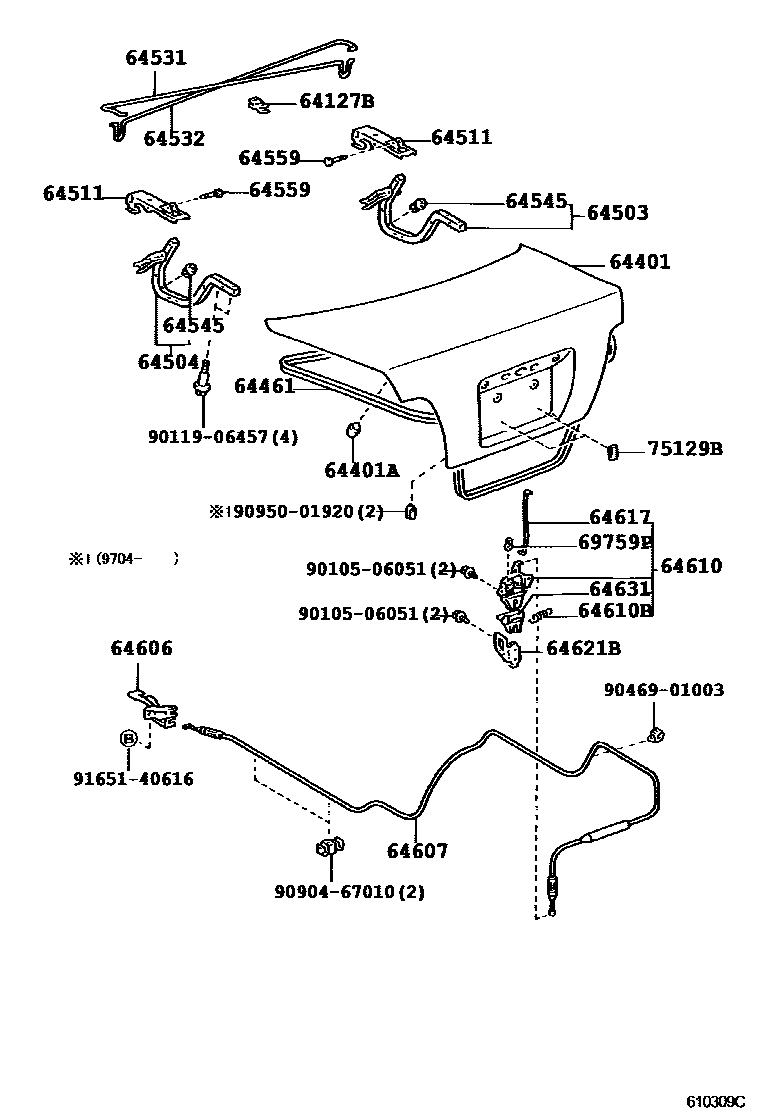

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-12100 |
| 64401 | Trunk door panel sub-assembly | 64401-1A640 · 64401-1A650 · 64401-1A710 · 64401-1A720 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09035 |
| 64461 | Trunk door seal | 64461-12510 · 64461-12530 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-12130 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-12130 |
| 64511 | Trunk door right hinge bracket | 64511-12240 |
| 64531 | Trunk door right hinge torsion bar | 64531-12600 · 64531-12601 · 64531-12610 · 64531-12640 · 64531-12650 |
| 64532 | Trunk door left hinge torsion bar | 64532-12590 · 64532-12591 · 64532-12600 · 64532-12630 · 64532-12640 |
| 64545 | Trunk door hinge cushion | 90541-07040 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64606 | Trunk door lock opening lever sub-assembly | 64606-20160 · 64606-20161 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-12720 |
| 64610 | Trunk door lock assembly | 64610-12260 · 64610-12330 |
| 64610B | Tension spring (for trunk door lock) | 90506-05001 · 90905-06021 |
| 64617 | Trunk door lock linkage | 64617-12120 · 64617-12150 |
| 64621B | Trunk door latch | 64621-12070 |
| 64631 | Trunk door lock protector | 64631-12040 |
| 69759P | Door lock control link buckle | 69759-24050 |
| 75129B | rear license plate cushion | 75129-13020 |
