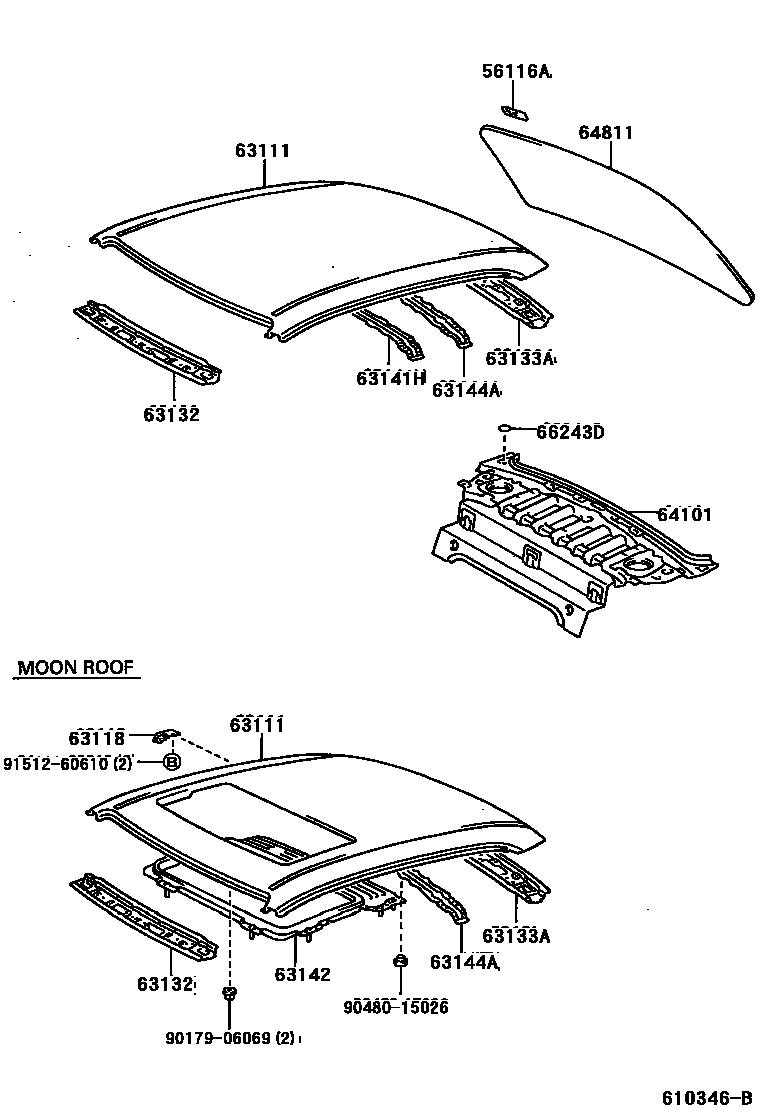

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56116A | windshield spacer | 56116-16050 |
| 63111 | roof panel | 63104-12010 · 63111-12680 |
| 63118 | Right roof panel bracket | 63118-12050 · 63118-12080 |
| 63132 | Windshield inner roof panel | 63102-12140 · 63132-12210 |
| 63133A | upper frame of back window | 63133-12240 |
| 63141H | Center roof panel reinforcement | 63141-12200 |
| 63142 | No. 2 roof panel reinforcement | 63142-12080 |
| 63144A | No. 4 roof panel reinforcement | 63144-12050 |
| 63201G | Sliding sunroof glass sub-assembly | 63204-12080 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-12010 · 63202-12020 |
| 63209 | Roof deflector sub-assembly | 63209-12120 · 63209-12140 · 63209-12160 |
| 63214F | Roof rear drain channel | 63214-12060 |
| 63218H | Sliding skylight drain hose | 63249-12160 · 63249-12280 |
| 63221 | Sliding sunroof cable duct | 63221-12080 |
| 63223 | Right sliding sunroof transmission cable | 63223-12110 · 63223-12130 |
| 63224 | Left sliding sunroof transmission cable | 63224-12100 · 63224-12120 |
| 63233C | Sliding skylight shelf | 63233-12070 · 63233-12080 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-12080 · 63241-12100 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-12080 · 63241-12100 |
| 63251H | Sliding skylight seal | 63251-12140 · 63251-12160 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12090 · 63260-12100 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12040 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12030 · 63625-12040 |
| 63626 | Left sliding sunroof guide block | 63626-12030 · 63626-12040 |
| 64101 | Upper back panel sub-assembly | 64101-12590 · 64101-12591 · 64101-12600 · 64101-12630 · 64101-12631 |
| 64811 | back window glass | 64811-1A620 · 64811-1A670 · 64811-1E060 · 64811-1E100 · 64811-1E110 · 64811-1E160 · 64811-1E170 · 64811-1E180 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 |
