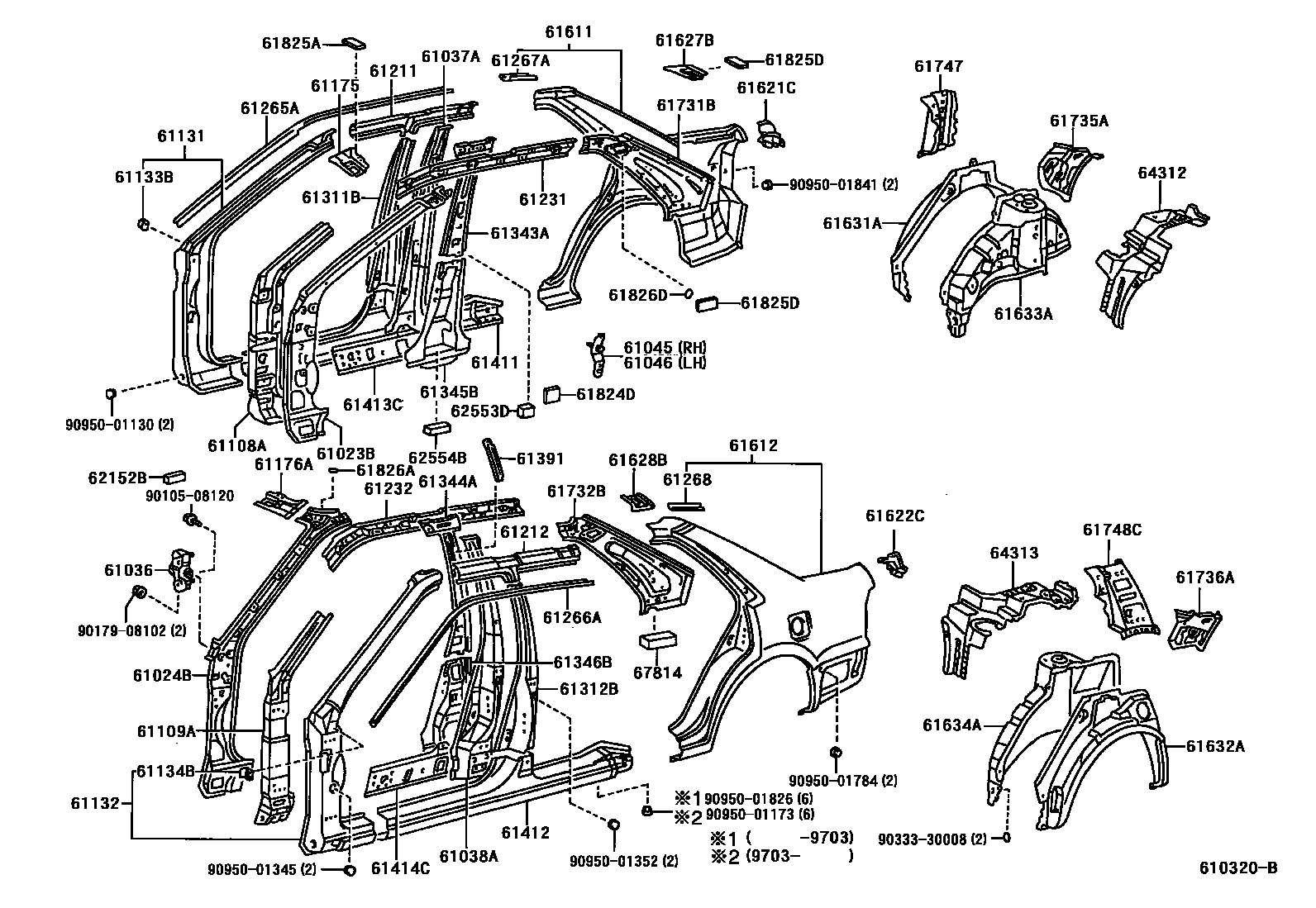

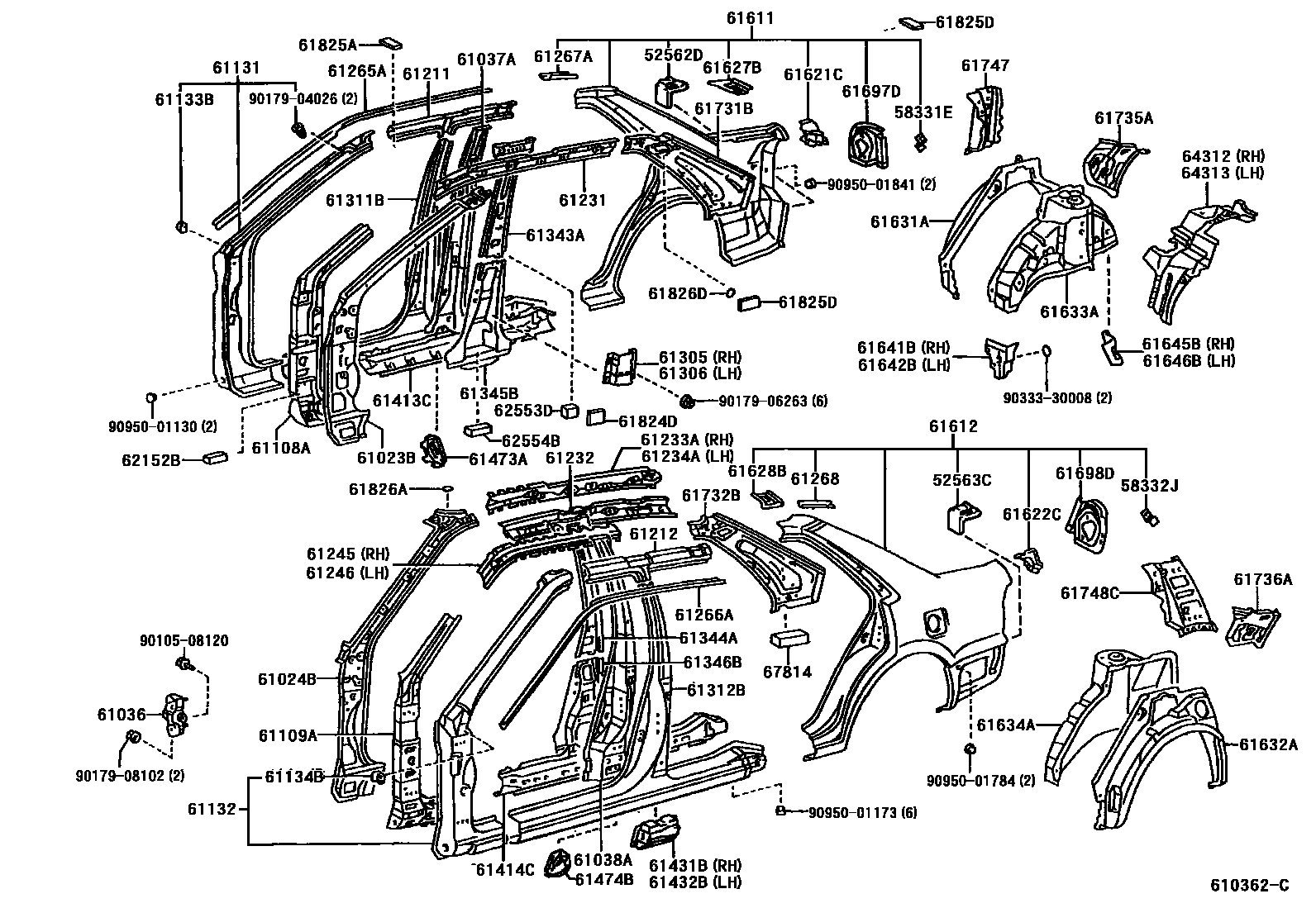

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 81 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562D | Rear bumper upper right side fixing bracket | 52562-12060 |
| 52563C | Rear bumper upper left side fixing bracket | 52562-12060 |
| 58331E | No. 1 suitcase decorative panel bracket | 58331-12030 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-12030 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12090 · 61023-12230 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12090 · 61024-12230 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12070 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12100 · 61037-12901 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12100 · 61038-12901 |
| 61045 | Right seat belt to center pillar reinforcement sub-assembly | 61045-12070 |
| 61046 | Left seat belt to center pillar reinforcement sub-assembly | 61046-12070 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12160 · 61108-12180 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12150 · 61109-12170 |
| 61131 | Right body outer front upper pillar | 61131-12440 · 61131-12450 · 61131-12470 · 61131-12500 · 61131-12510 · 61131-12560 · 61131-12570 · 61131-12580 |
| 61132 | Left body outer front upper pillar | 61132-12450 · 61132-12480 · 61132-12510 · 61132-12570 · 61132-12580 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-12110 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-12120 |
| 61211 | Roof right outer longitudinal beam | 61211-12350 |
| 61212 | Roof left outer longitudinal beam | 61212-12350 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12840 · 61231-1A040 |
| 61232 | Roof left inner longitudinal beam | 61232-12720 · 61232-12810 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-12120 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-12080 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12010 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12010 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12230 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12230 |
| 61267A | Roof right rear gutter | 61267-12210 |
| 61268 | Roof left rear gutter | 61268-12210 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12130 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12130 |
| 61311B | Right body outer center pillar | 61311-12240 · 61311-12290 · 61311-12300 · 61311-12310 · 61311-12320 |
| 61312B | Left body outer center pillar | 61312-12280 · 61312-12330 · 61312-12340 · 61312-12350 · 61312-12360 |
| 61343A | Right body inner center pillar | 61343-12120 · 61343-12160 |
| 61344A | Left body inner center pillar | 61344-12120 · 61344-12160 |
| 61345B | Right body inner middle and lower pillar | 61345-12030 · 61345-12040 |
| 61346B | Left side inner middle and lower pillar | 61346-12030 · 61346-12040 |
| 61391 | Interior center pillar spacer | 61391-12010 |
| 61411 | Right door outer sill panel | 61411-12590 |
| 61412 | Left door outer sill panel | 61412-12580 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-12080 · 61413-12900 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-12100 · 61414-12900 |
| 61431B | Right side door sill panel No. 6 reinforcement | 61431-12010 |
| 61432B | Left side door sill panel No. 6 reinforcement | 61432-12010 |
| 61473A | Right column No. 3 lower plate | 61473-12030 |
| 61474B | Left column No. 4 lower plate | 61474-12030 |
| 61611 | Right side hoarding | 61601-1E930 · 61601-1E933 · 61601-1E934 |
| 61612 | left side panel | 61602-1E936 · 61602-1E940 · 61602-1E942 |
| 61621C | Luggage right opening slot | 61621-12350 · 61621-12440 |
| 61622C | Luggage trunk left opening slot | 61622-12350 · 61622-12440 |
| 61627B | Right rear side panel extension | 61627-12130 |
| 61628B | Extension on left rear side panel | 61628-12140 |
| 61631A | Right wheel cover outer panel | 61631-12300 · 61631-12320 |
| 61632A | Left side wheel cover outer panel | 61632-12320 · 61632-12340 |
| 61633A | Right wheel housing lining panel | 61607-12922 |
| 61634A | Left side wheel housing lining panel | 61608-12920 |
| 61641B | Right wheel housing corner panel | 61641-12070 |
| 61642B | Left side wheel housing corner panel | 61642-12070 |
| 61645B | Right rear side wheel housing corner panel | 61645-12120 |
| 61646B | Left rear side wheel housing corner panel | 61646-12110 |
| 61697D | Right side enclosure end cover | 61697-12040 |
| 61698D | Left side enclosure end cover | 61698-12040 |
| 61731B | Roof right inner panel | 61731-12650 |
| 61732B | Roof left inner panel | 61732-12590 |
| 61735A | Right rear roof inner panel | 61735-12360 |
| 61736A | Left rear roof inner panel | 61736-12350 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12260 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12260 |
| 61824D | Noise Control Panel No. 1 | 61824-50020 |
| 61825A | Noise Control Panel No. 2 | 61815-32020 |
| 61825D | Right inner upper cover of the roof | 61815-32020 |
| 61826A | Noise Control Panel No. 3 | 61824-12040 · 61824-12050 |
| 61826D | Noise Control Panel No. 3 | 61824-12040 · 61824-12050 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 · 62554-12130 · 62554-12160 |
| 62553D | No. 3 column pad | 62553-12120 |
| 62554B | No. 4 column pad | 62554-12130 · 62554-12160 |
| 64312 | Glove box right bracket | 64301-12260 |
| 64313 | Glove box left bracket | 64302-12260 |
| 67814 | No. 2 side panel silencer pad | 67814-12020 |
