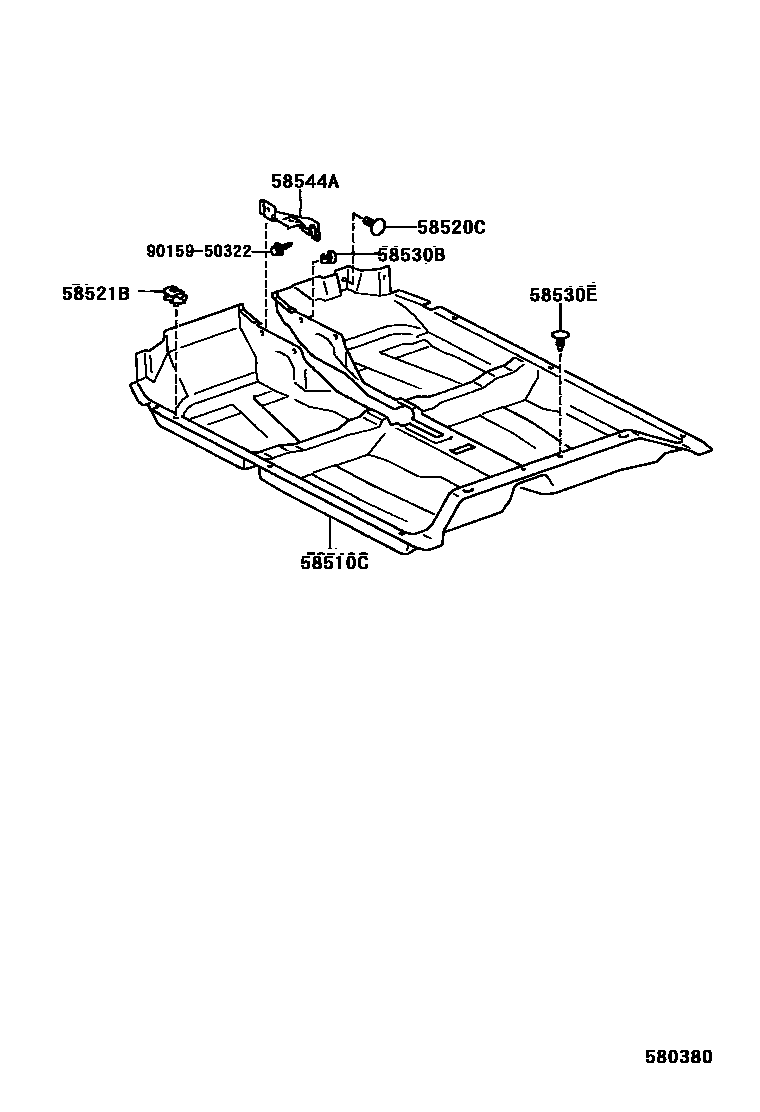

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58520C | Clip (for front carpet) | 90467-09068 |
| 58521B | carpet hook | 58521-12120 |
| 58530B | Clip (for front carpet) | 90467-09118 |
| 58530E | Clip (for front floor and rear felt pad) | 90467-07049 |
| 58544A | left carpet bracket | 58544-13040 |
