Toyota COROLLA 地板隔热垫 — Figure 5802

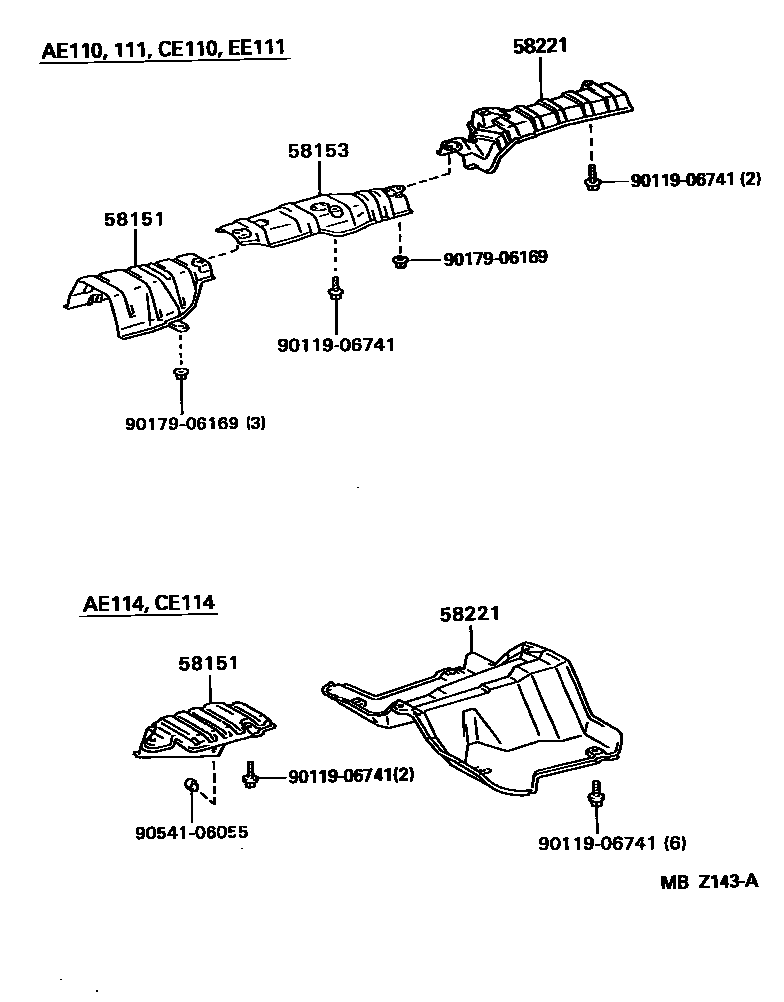

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-12160 · 58151-12200 |
| 58153 | Front floor insulation mat No. 2 | 58153-12130 · 58153-12150 |
| 58221 | Central Floor Insulating Mat No. 1 | 58044-12020 · 58221-12110 |
