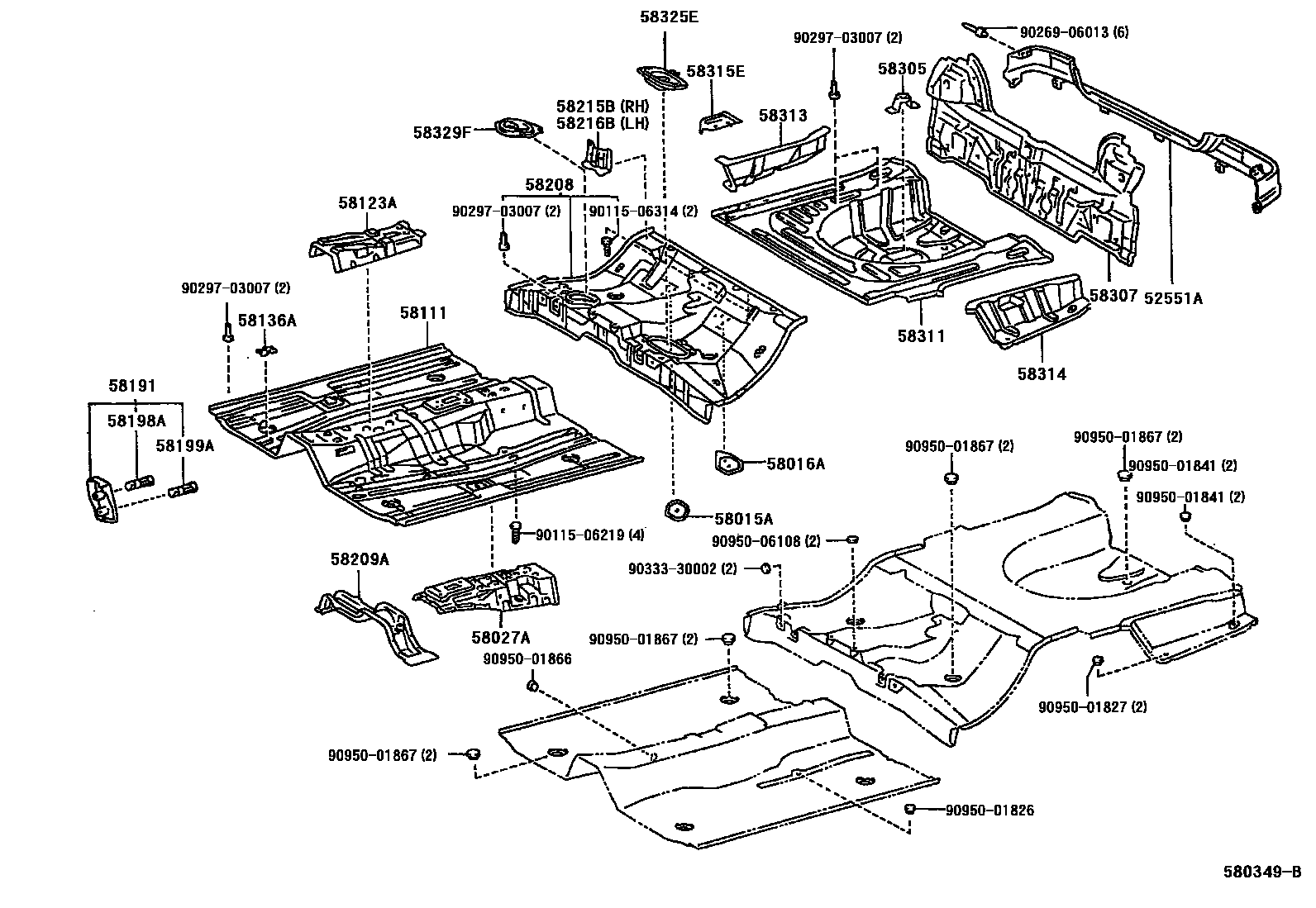

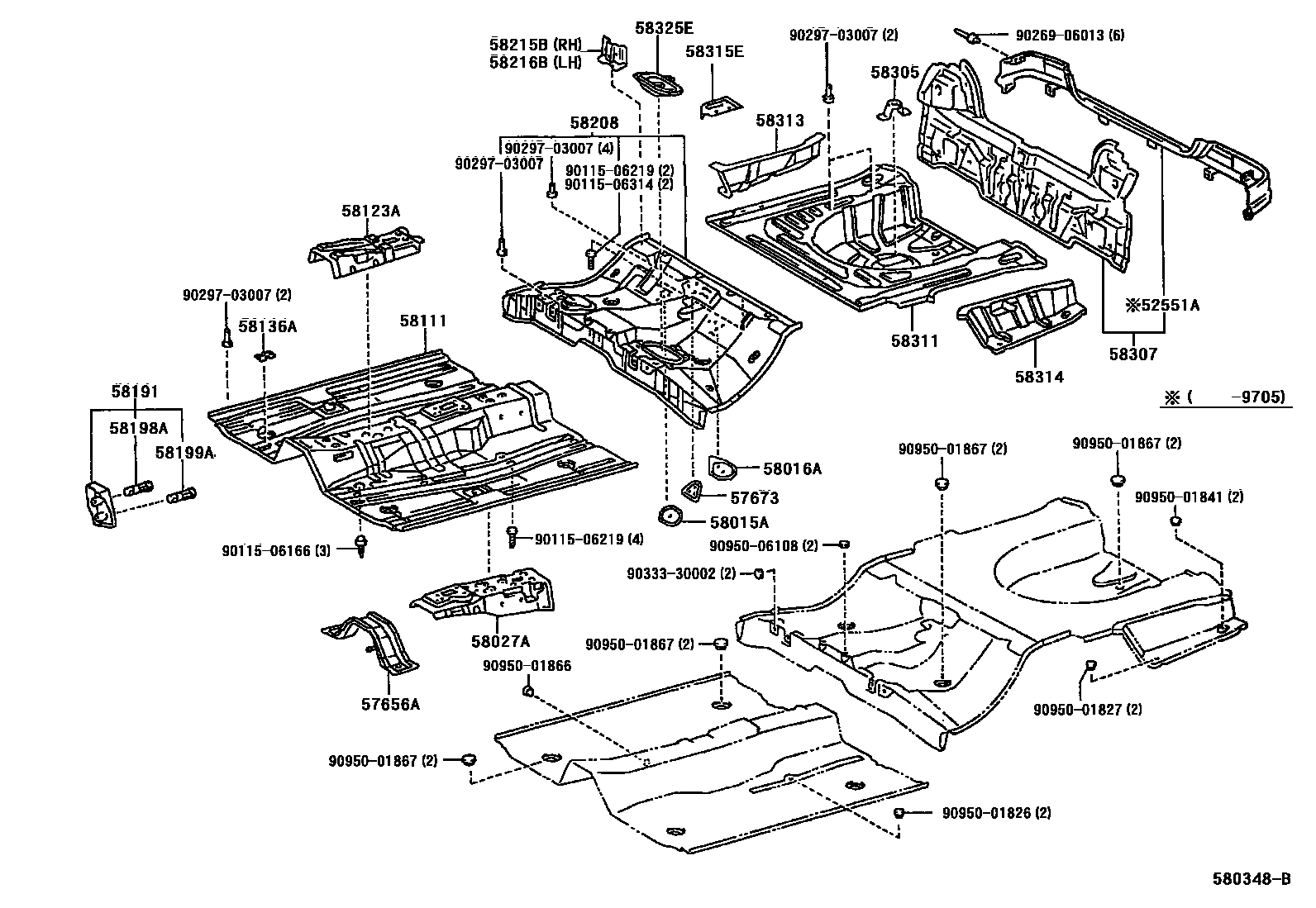

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52551A | Rear bumper curved filler | 52551-12040 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57509-12020 · 57509-12030 · 57656-12060 |
| 57673 | Rear seat back hinge mounting bracket | 57673-12070 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-12040 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-12010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12121 · 58027-12131 · 58027-12132 |
| 58111 | front floor pan | 58111-12261 · 58111-12262 · 58111-12271 · 58111-12272 · 58111-12273 |
| 58123A | shift lever bracket | 58013-12060 · 58013-12070 |
| 58136A | Front floor access hole cover | 58136-12030 |
| 58191 | Front floor footrest | 58191-12110 |
| 58198A | No. 1 footrest clip | 58198-12030 |
| 58199A | Footrest clip No. 2 | 58199-12020 |
| 58208 | central floor base | 58211-12901 · 58211-12902 · 58211-12911 · 58211-12912 |
| 58209A | Drive shaft center bracket reinforcement sub-assembly | 58209-12040 |
| 58215B | Rear right seat mounting bracket | 58215-12041 |
| 58216B | Rear left seat mounting bracket | 58216-12040 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-1A340 · 58307-1A390 · 58307-1A510 · 58307-1A520 |
| 58311 | rear floor pan | 58311-12210 |
| 58313 | Rear floor right panel | 58313-12904 |
| 58314 | rear floor left panel | 58314-12250 |
| 58315E | Rear floor right front side panel extension | 58315-12070 |
| 58325E | Rear floor access hole cover | 58325-12100 |
| 58329F | Rear floor manhole cover No. 2 | 58329-12030 |
