Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

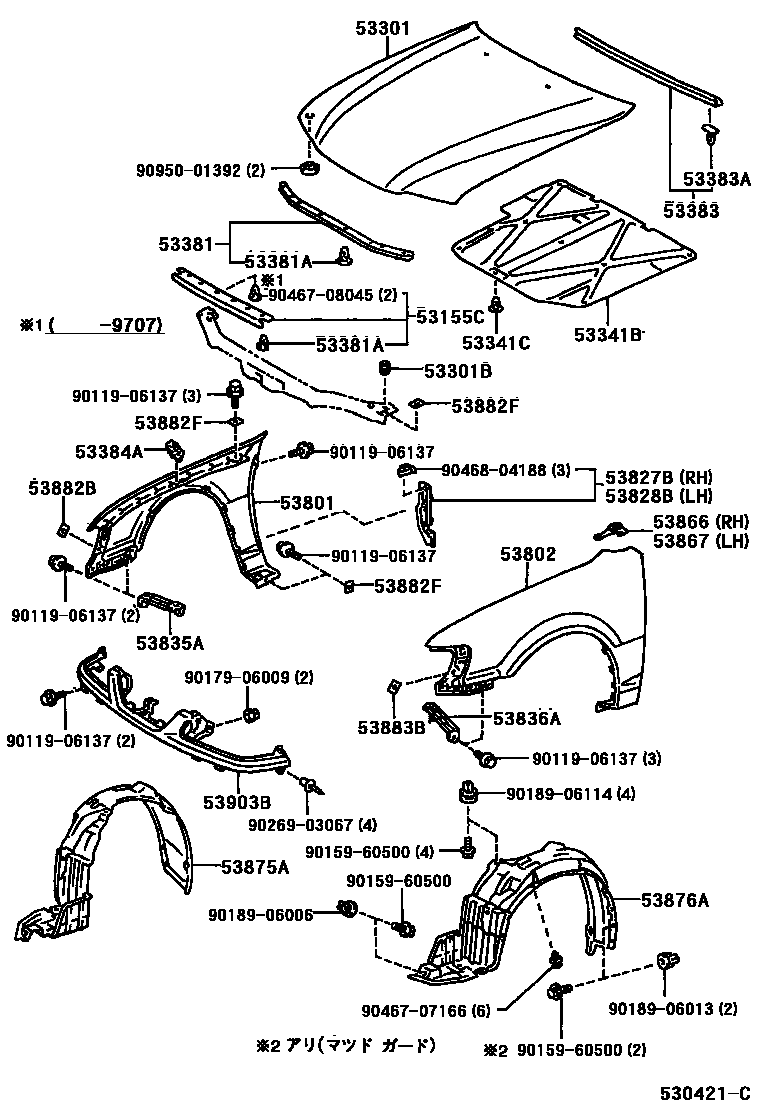

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53155C | Radiator grille seal No. 1 | 53155-12050 · 53155-12051 |
| 53301 | Engine cover sub-assembly | 53301-12800 · 53301-12801 |
| 53301B | engine cover cushion | 90541-15019 · 90541-15021 |
| 53341B | engine cover gasket | 53341-12070 · 53341-12071 |
| 53341C | Clip (for engine cover gasket) | 90467-08124 · 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-12170 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-12110 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 53384A | fender to engine cover buffer block | 53384-12090 |
| 53801 | Right front fender sub-assembly | 53811-1H030 · 53811-1H040 |
| 53802 | Left front fender sub-assembly | 53812-1E800 · 53812-1E810 |
| 53827B | Front fender side panel protectors | 53827-12040 |
| 53828B | Left front fender side panel protector | 53828-12040 |
| 53835A | Right front fender to fender stay | 53835-12110 |
| 53836A | Left front fender to fender stay | 53836-12070 |
| 53866 | Right front fender to cowl side seal | 53866-12010 |
| 53867 | Left front fender to cowl side seal | 53867-12010 |
| 53875A | Right front fender lining | 53875-12240 |
| 53876A | Left front fender lining | 53876-12230 |
| 53882B | Right front fender seal | 53882-16030 |
| 53882F | front fender seal | 53882-16030 |
| 53883B | Left front fender seal | 53882-16030 |
| 53903B | Front end plate sub-assembly | 53903-12070 · 53903-12090 |
